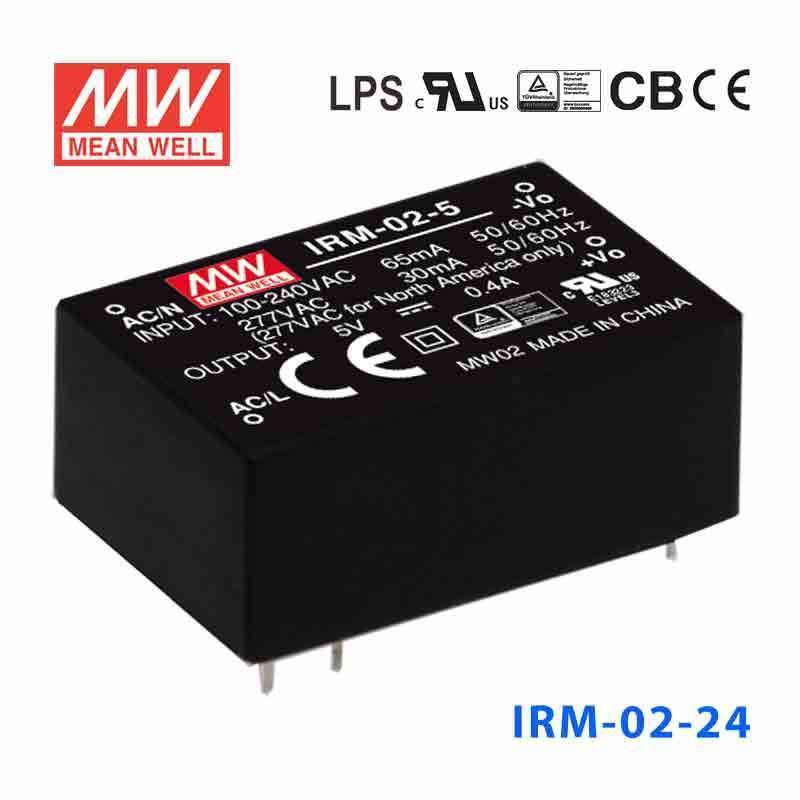

Mean Well IRM-02-24 Switching Power Supply 2W 24V 83mA - Encapsulated
Overview
IRM-02-24 is the 24V output model of this series: rated current 83mA, rated power 2W, typical efficiency 77%. Type Blank: PCB mounting style.
IRM-02 is a 2W miniature (33.7*22.2*15mm) AC-DC module-type power supply, ready to be soldered onto the PCB boards of various kinds of electronic instruments or industrial automation equipments. This product allows a universal input voltage range of 85~305Vac. The phenolic case and potted with silicone enhance the heat dissipation and meet the anti-vibration demand up to 5G; moreover, it provides the fundamental resistance to dust and moisture. With the high efficiency up to 77% and the extremely low no-load power consumption below 0.075W, IRM-02 series fulfills the worldwide regulation for the low power consumption requirement for electronics. The entire series is a Class Ⅱ design (no FG pin), incorporating the built-in EMI filtering components, enabling the compliance with BS EN/ EN55032 Class B; the supreme EMC features keep the end electronic units from electromagnetic interference. In addition to module-type model, IRM-02 series also offers the SMD style model.
Features
- Universal AC input / Full range
- No load power consumption<0.075W
- Compact size
- Comply with BS EN/EN55032 Class B without any additional components
- Wide operating temp. range -30~85℃
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- Isolation ClassⅡ
- High reliability, low cost
- 3 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 24V
- RATED CURRENT
- 83mA
- CURRENT RANGE
- 0 ~ 83mA
- RATED POWER
- 2W
- RIPPLE & NOISE (max.)Note.2
- 200mVp-p
- VOLTAGE TOLERANCENote.3
- ±2.5%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±0.5%
- SETUP, RISE TIME
- 600ms, 30ms/230Vac 600ms, 30ms/115Vac at full load
- HOLD UP TIME (Typ.)
- 40ms/230Vac 12ms/115Vac at full load
INPUT
- VOLTAGE RANGE
- 85 ~ 305Vac 120 ~ 430Vdc
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY (Typ.)
- 77%
- AC CURRENT (Typ.)
- 45mA/115Vac 30mA/230Vac 25mA/277Vac
- INRUSH CURRENT (Typ.)
- 5A/115Vac 10A/230Vac
- LEAKAGE CURRENT
- < 0.25mA/277Vac
PROTECTION
- OVERLOAD
- ≥110% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 25.2 ~ 32.4V Protection type : Shut off o/p voltage, clamping by zener diode
ENVIRONMENT
- WORKING TEMP.
- -30 ~ +85℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +100℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 75℃)
- VIBRATION
- 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
- SOLDERING TEMPERATURE
- Wave soldering: 265℃,5s (max.); Manual soldering: 390℃,3s (max.); Reflow soldering(SMD style): 240℃,10s (max.)
SAFETY & EMC
- SAFETY STANDARDS
- IEC62368-1,IEC61558-1/-2-16,UL62368-1,TUV BS EN/EN62368-1, BS EN/EN61558-1/-2-16,EAC TP TC 004, BSMI CNS15598-1 approved
- OVER VOLTAGE CATEGORY
- IEC/EN 61558-1/-2-16(OVC Ⅱ, altitude up to 2000m); IEC/EN/UL 62368-1(OVC Ⅱ, altitude up to 2000m)
- WITHSTAND VOLTAGE
- I/P-O/P:4.2KVac
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms / 500Vdc / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS15936 Class B
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, heavy industry level (surge L-N : 1KV), EAC TP TC 020
OTHERS
- MTBF
- 13571.4K hrs min. Telcordia SR-332 (Bellcore) ; 1960.2K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- PCB mounting style : 33.7*22.2*15mm (L*W*H) SMD style : 33.7*22.2*16mm (L*W*H)
- PACKING
- PCB mounting style : 0.024Kg; 640pcs/ 16.3 Kg/ 0.84CUFT SMD style : 0.024Kg; 640 pcs/ 16.3 Kg/ 0.84CUFT
Certifications & ratings
- Marked features
- LPS
MODEL ENCODING
- Blank (this model)
- PCB mounting style
- S
- SMD style
Test conditions and notes4
- 1. All parameters NOT specially mentioned are measured at 230Vac input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Technical drawings
Typical applications
- Industrial electrical equipment
- Mechanical equipment
- Factory automation equipment
- Handheld electronic device
Downloads
Datasheet1
Certificates4
Test reports1
Catalogues1
FAQ
Can I use the IRM-02-24 to power a small 24V industrial sensor or transmitter from AC mains?
Yes, this model is a 24V constant-voltage power supply rated at 2W with 83mA output. That makes it suitable for small 24V industrial electronics that stay within those output limits and need wide 85-305VAC input support.
Is this power supply a fit for low-power 24V building automation or control PCB circuits?
It can be a fit for compact 24V control circuitry where the total load stays within 2W and 83mA. Its miniature encapsulated construction and PCB mounting style make it better aligned with embedded or board-level automation products than higher-power 24V loads.
Can the IRM-02-24 be used in a compact embedded device that needs 24V DC internally?
Yes, for embedded equipment that requires a regulated 24V constant-voltage output and does not exceed 2W. The compact 33.7 × 22.2 × 15.0 mm size and 0.024 kg weight support use in space-constrained internal assemblies.
Would this work for a small 24V relay, indicator, or interface circuit inside industrial equipment?
It is intended for low-power 24V DC loads, so it can suit small relay-interface, indicator, or signaling circuits that remain within 2W and 83mA. It is not positioned for larger 24V devices that need more current than this output provides.
Is the IRM-02-24 suitable for outdoor or washdown environments?
No outdoor or washdown rating is listed for this model. The published operating range is -30°C to +85°C with load derating per the derating curve, and the miniature encapsulated PCB-mount style is better suited to protected indoor equipment enclosures.
