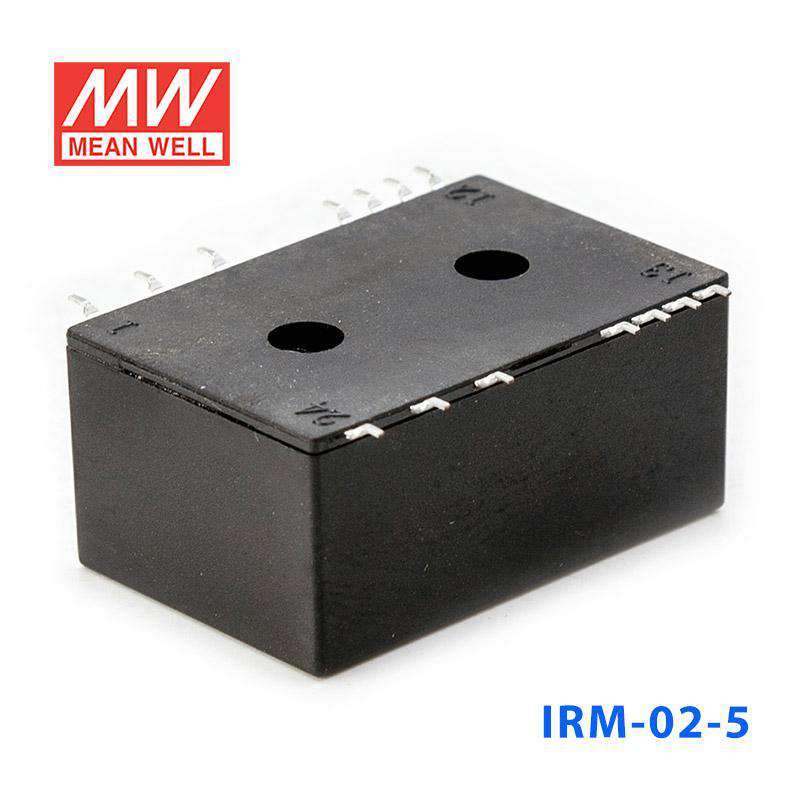

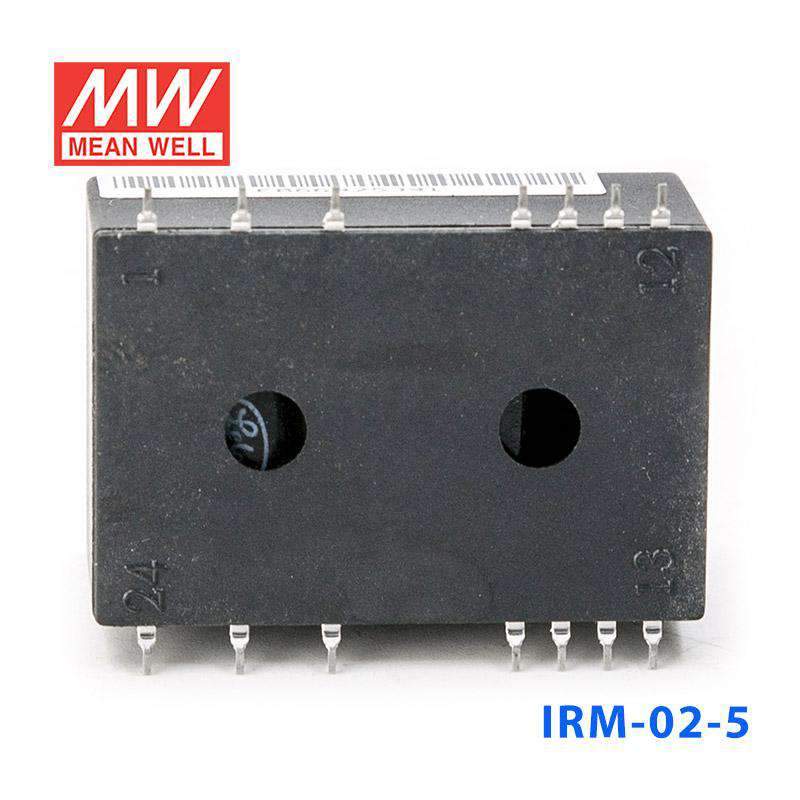

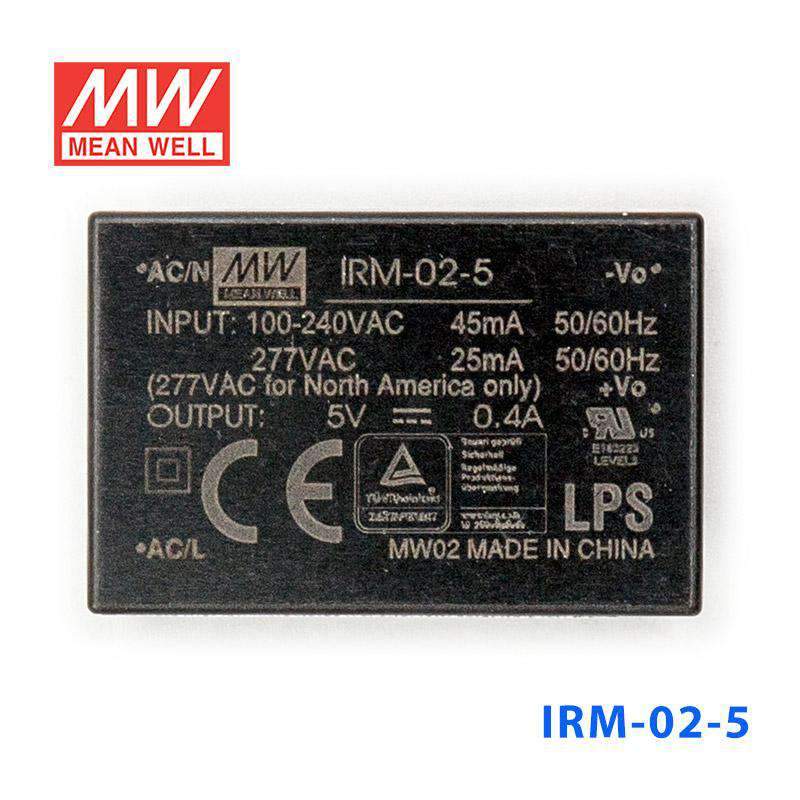

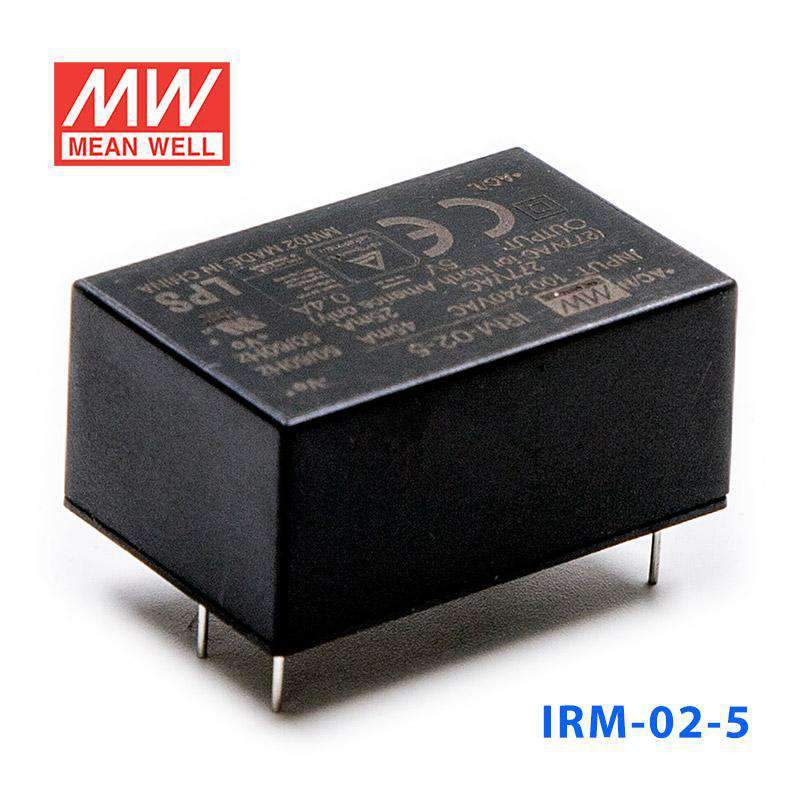

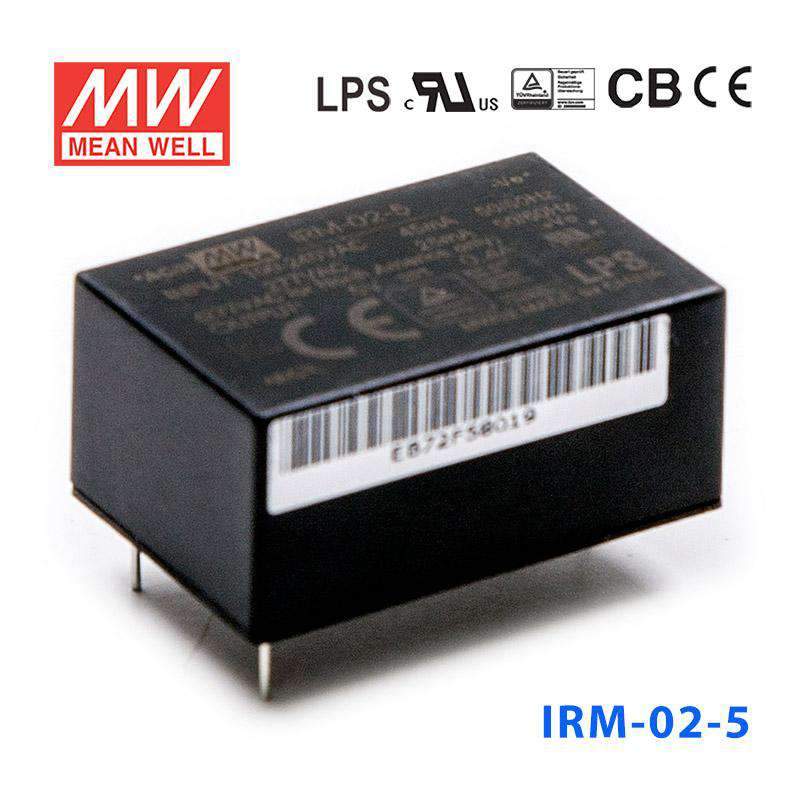

Mean Well IRM-02-5 Switching Power Supply 2W 5V 400mA - Encapsulated
Overview
IRM-02-5 is the 5V output model of this series: rated current 400mA, rated power 2W, typical efficiency 70%. Type Blank: PCB mounting style.
IRM-02 is a 2W miniature (33.7*22.2*15mm) AC-DC module-type power supply, ready to be soldered onto the PCB boards of various kinds of electronic instruments or industrial automation equipments. This product allows a universal input voltage range of 85~305Vac. The phenolic case and potted with silicone enhance the heat dissipation and meet the anti-vibration demand up to 5G; moreover, it provides the fundamental resistance to dust and moisture. With the high efficiency up to 77% and the extremely low no-load power consumption below 0.075W, IRM-02 series fulfills the worldwide regulation for the low power consumption requirement for electronics. The entire series is a Class Ⅱ design (no FG pin), incorporating the built-in EMI filtering components, enabling the compliance with BS EN/ EN55032 Class B; the supreme EMC features keep the end electronic units from electromagnetic interference. In addition to module-type model, IRM-02 series also offers the SMD style model.
Features
- Universal AC input / Full range
- No load power consumption<0.075W
- Compact size
- Comply with BS EN/EN55032 Class B without any additional components
- Wide operating temp. range -30~85℃
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- Isolation ClassⅡ
- High reliability, low cost
- 3 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 5V
- RATED CURRENT
- 400mA
- CURRENT RANGE
- 0 ~ 400mA
- RATED POWER
- 2W
- RIPPLE & NOISE (max.)Note.2
- 150mVp-p
- VOLTAGE TOLERANCENote.3
- ±2.5%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±0.5%
- SETUP, RISE TIME
- 600ms, 30ms/230Vac 600ms, 30ms/115Vac at full load
- HOLD UP TIME (Typ.)
- 40ms/230Vac 12ms/115Vac at full load
INPUT
- VOLTAGE RANGE
- 85 ~ 305Vac 120 ~ 430Vdc
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY (Typ.)
- 70%
- AC CURRENT (Typ.)
- 45mA/115Vac 30mA/230Vac 25mA/277Vac
- INRUSH CURRENT (Typ.)
- 5A/115Vac 10A/230Vac
- LEAKAGE CURRENT
- < 0.25mA/277Vac
PROTECTION
- OVERLOAD
- ≥110% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 5.2 ~ 6.8V Protection type : Shut off o/p voltage, clamping by zener diode
ENVIRONMENT
- WORKING TEMP.
- -30 ~ +85℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +100℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 75℃)
- VIBRATION
- 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
- SOLDERING TEMPERATURE
- Wave soldering: 265℃,5s (max.); Manual soldering: 390℃,3s (max.); Reflow soldering(SMD style): 240℃,10s (max.)
SAFETY & EMC
- SAFETY STANDARDS
- IEC62368-1,IEC61558-1/-2-16,UL62368-1,TUV BS EN/EN62368-1, BS EN/EN61558-1/-2-16,EAC TP TC 004, BSMI CNS15598-1 approved
- OVER VOLTAGE CATEGORY
- IEC/EN 61558-1/-2-16(OVC Ⅱ, altitude up to 2000m); IEC/EN/UL 62368-1(OVC Ⅱ, altitude up to 2000m)
- WITHSTAND VOLTAGE
- I/P-O/P:4.2KVac
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms / 500Vdc / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS15936 Class B
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, heavy industry level (surge L-N : 1KV), EAC TP TC 020
OTHERS
- MTBF
- 13571.4K hrs min. Telcordia SR-332 (Bellcore) ; 1960.2K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- PCB mounting style : 33.7*22.2*15mm (L*W*H) SMD style : 33.7*22.2*16mm (L*W*H)
- PACKING
- PCB mounting style : 0.024Kg; 640pcs/ 16.3 Kg/ 0.84CUFT SMD style : 0.024Kg; 640 pcs/ 16.3 Kg/ 0.84CUFT
Certifications & ratings
- Marked features
- LPS
MODEL ENCODING
- Blank (this model)
- PCB mounting style
- S
- SMD style
Test conditions and notes4
- 1. All parameters NOT specially mentioned are measured at 230Vac input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Technical drawings
Typical applications
- Industrial electrical equipment
- Mechanical equipment
- Factory automation equipment
- Handheld electronic device
Downloads
Datasheet1
Certificates4
Test reports1
Catalogues1
FAQ
What is the output rating of the Mean Well IRM-02-5?
The IRM-02-5 is a 2W AC-DC switching power supply with a regulated 5V DC output. Its rated output current is 400mA, making it suitable for low-power embedded and PCB-mounted electronics.
What input voltage range does the IRM-02-5 support?
This model accepts a universal input range of 85 to 305VAC, and it also supports 120 to 430VDC input. That wide range makes it a practical option for equipment intended for different global mains environments.
Is the IRM-02-5 a good choice for compact PCB applications?
Yes. The IRM-02-5 is designed as a compact encapsulated module-type power supply with dimensions of 33.7 x 22.2 x 15mm in PCB mounting style. Its small footprint helps when board space is limited and a low-power onboard supply is needed.
What protections are built into the Mean Well IRM-02-5?
The IRM-02-5 includes short circuit, overload, and over voltage protection. Overload protection operates in hiccup mode with auto-recovery, and over voltage protection is specified at 5.2V to 6.8V, shutting off the output with zener diode clamping.
What operating environment is the IRM-02-5 rated for?
This power supply is rated for operation from -30°C to +85°C, subject to the output derating curve. It is cooled by free air convection, has isolation class II construction, and leakage current is specified at less than 0.25mA at 277VAC.
How does the IRM-02-5 compare for low standby power applications?
One of the key advantages of the IRM-02-5 is its very low no-load power consumption of less than 0.075W. That makes it a strong fit for designs where standby efficiency and minimizing wasted power matter.
