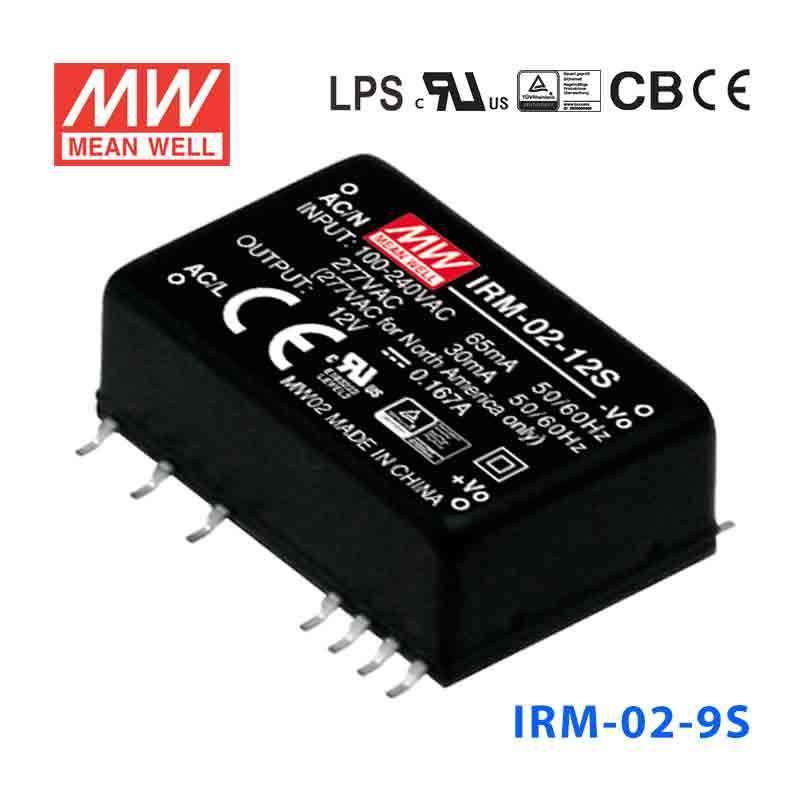

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
Mean Well IRM-02-9S Switching Power Supply 2W 9V 222mA - Encapsulated
Overview
IRM-02-9S is the 9V output model of this series: rated current 222mA, rated power 2W, typical efficiency 72%. Type S: SMD style.
IRM-02 is a 2W miniature (33.7*22.2*15mm) AC-DC module-type power supply, ready to be soldered onto the PCB boards of various kinds of electronic instruments or industrial automation equipments. This product allows a universal input voltage range of 85~305Vac. The phenolic case and potted with silicone enhance the heat dissipation and meet the anti-vibration demand up to 5G; moreover, it provides the fundamental resistance to dust and moisture. With the high efficiency up to 77% and the extremely low no-load power consumption below 0.075W, IRM-02 series fulfills the worldwide regulation for the low power consumption requirement for electronics. The entire series is a Class Ⅱ design (no FG pin), incorporating the built-in EMI filtering components, enabling the compliance with BS EN/ EN55032 Class B; the supreme EMC features keep the end electronic units from electromagnetic interference. In addition to module-type model, IRM-02 series also offers the SMD style model.
Features
- Universal AC input / Full range
- No load power consumption<0.075W
- Compact size
- Comply with BS EN/EN55032 Class B without any additional components
- Wide operating temp. range -30~85℃
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- Isolation ClassⅡ
- High reliability, low cost
- 3 years warranty
Model encoding
| Type | Function |
|---|---|
| Blank | PCB mounting style |
| S (this model) | SMD style |
Specifications
OUTPUT
- DC VOLTAGE
- 9V
- RATED CURRENT
- 222mA
- CURRENT RANGE
- 0 ~ 222mA
- RATED POWER
- 2W
- RIPPLE & NOISE (max.)Note.2
- 150mVp-p
- VOLTAGE TOLERANCENote.3
- ±2.5%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±0.5%
- SETUP, RISE TIME
- 600ms, 30ms/230Vac 600ms, 30ms/115Vac at full load
- HOLD UP TIME (Typ.)
- 40ms/230Vac 12ms/115Vac at full load
INPUT
- VOLTAGE RANGE
- 85 ~ 305Vac 120 ~ 430Vdc
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY (Typ.)
- 72%
- AC CURRENT (Typ.)
- 45mA/115Vac 30mA/230Vac 25mA/277Vac
- INRUSH CURRENT (Typ.)
- 5A/115Vac 10A/230Vac
- LEAKAGE CURRENT
- < 0.25mA/277Vac
PROTECTION
- OVERLOAD
- ≥110% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 10.3 ~ 12.2V Protection type : Shut off o/p voltage, clamping by zener diode
ENVIRONMENT
- WORKING TEMP.
- -30 ~ +85℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +100℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 75℃)
- VIBRATION
- 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
- SOLDERING TEMPERATURE
- Wave soldering: 265℃,5s (max.); Manual soldering: 390℃,3s (max.); Reflow soldering(SMD style): 240℃,10s (max.)
SAFETY & EMC
- SAFETY STANDARDS
- IEC62368-1,IEC61558-1/-2-16,UL62368-1,TUV BS EN/EN62368-1, BS EN/EN61558-1/-2-16,EAC TP TC 004, BSMI CNS15598-1 approved
- OVER VOLTAGE CATEGORY
- IEC/EN 61558-1/-2-16(OVC Ⅱ, altitude up to 2000m); IEC/EN/UL 62368-1(OVC Ⅱ, altitude up to 2000m)
- WITHSTAND VOLTAGE
- I/P-O/P:4.2KVac
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms / 500Vdc / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS15936 Class B
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, heavy industry level (surge L-N : 1KV), EAC TP TC 020
OTHERS
- MTBF
- 13571.4K hrs min. Telcordia SR-332 (Bellcore) ; 1960.2K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- PCB mounting style : 33.7*22.2*15mm (L*W*H) SMD style : 33.7*22.2*16mm (L*W*H)
- PACKING
- PCB mounting style : 0.024Kg; 640pcs/ 16.3 Kg/ 0.84CUFT SMD style : 0.024Kg; 640 pcs/ 16.3 Kg/ 0.84CUFT
Certifications & ratings
- Marked features
- LPS
Test conditions and notes4
- 1. All parameters NOT specially mentioned are measured at 230Vac input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Technical drawings
Typical applications
- Industrial electrical equipment
- Mechanical equipment
- Factory automation equipment
- Handheld electronic device
Downloads
Datasheet1
Certificates4
Test reports1
Catalogues1
FAQ
Can I use the IRM-02-9S in a compact embedded product that needs 9V DC from AC mains?
Yes, it provides a constant 9V output rated at 2W from an 85-305VAC input. Its SMD style and 33.7 × 22.2 × 16.0 mm body make it suitable for compact board-level power sections in embedded equipment.
Is the IRM-02-9S a good fit for low-power 9V industrial interface electronics?
It is intended for low-power 9V loads that stay within the 2W output rating. That aligns with small interface, monitoring, or auxiliary electronics rather than heavier 9V devices.
Can this model power a small 9V automation controller board?
Yes, if the controller uses a regulated 9V supply and remains within 2W output demand. The wide 85-305VAC input range is useful where the same design may be used across different AC mains environments.
Does the IRM-02-9S work for harsh indoor temperature conditions?
The specified operating range is -30°C to +85°C, subject to the derating curve, which supports demanding indoor equipment environments. No IP rating is provided, so the specs do not identify it as suitable for exposed outdoor use or washdown areas.
What is the difference between the IRM-02-9S and the other 9V IRM models?
This datasheet covers only the 2W IRM-02 series, so it does not specify other 9V IRM models. Within it, the IRM-02-9S is the SMD style version (33.7 × 22.2 × 16 mm) and the IRM-02-9 is the PCB mounting style version (33.7 × 22.2 × 15 mm), both rated 2W, 9V, 222mA.
