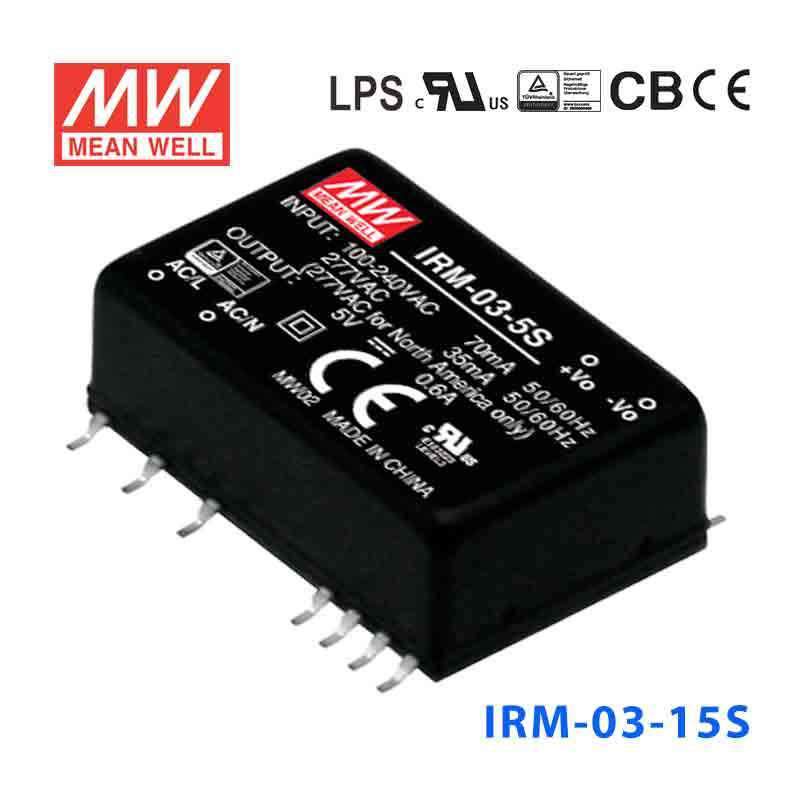

Mean Well IRM-03-15S Switching Power Supply 3W 15V 200mA - Encapsul...
Overview
IRM-03-15S is the 15V output model of this series: rated current 200mA, rated power 3W, typical efficiency 78%. Type S: SMD style.
IRM-03 is a 3W miniature (37*24*15mm) AC-DC module-type power supply, ready to be soldered onto the PCB boards of various kinds of electronic instruments or industrial automation equipments. This product allows a universal input voltage range of 85~305Vac. The phenolic case and potted with silicone enhance the heat dissipation and meet the anti-vibration demand up to 5G; moreover, it provides the fundamental resistance to dust and moisture. With the high efficiency up to 80% and the extremely low no-load power consumption below 0.075W, IRM-03 series fulfills the worldwide regulation for the low power consumption requirement for electronics. The entire series is a Class Ⅱ design (no FG pin), incorporating the built-in EMI filtering components, enabling the compliance with BS EN/ EN55032 Class B; the supreme EMC features keep the end electronic units from electromagnetic interference. In addition to module-type model, IRM-03 series also offers the SMD style model.
Features
- Universal AC input / Full range
- No load power consumption<0.075W
- Compact size
- Comply with BS EN/EN55032 Class B without any additional components
- Wide operating temp. range -30~85℃
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- Isolation ClassⅡ
- High reliability, low cost
- 3 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 15V
- RATED CURRENT
- 200mA
- CURRENT RANGE
- 0 ~ 200mA
- RATED POWER
- 3W
- RIPPLE & NOISE (max.)Note.2
- 200mVp-p
- VOLTAGE TOLERANCENote.3
- ±2.5%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±0.5%
- SETUP, RISE TIME
- 600ms, 30ms/230Vac 600ms, 30ms/115Vac at full load
- HOLD UP TIME (Typ.)
- 40ms/230Vac 8ms/115Vac at full load
INPUT
- VOLTAGE RANGE
- 85 ~ 305Vac 120~430Vdc
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY (Typ.)
- 78%
- AC CURRENT (Typ.)
- 70mA/115Vac 40mA/230Vac 35mA/277Vac
- INRUSH CURRENT (Typ.)
- 10A/115Vac 20A/230Vac
- LEAKAGE CURRENT
- < 0.25mA/277Vac
PROTECTION
- OVERLOAD
- 105%~260% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 15.75 ~ 20.3V Protection type : Shut off o/p voltage, clamping by zener diode
ENVIRONMENT
- WORKING TEMP.
- -30 ~ +85℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +100℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
- SOLDERING TEMPERATURE
- Wave soldering: 265℃,5s (max.); Manual soldering: 390℃,3s (max.); Reflow soldering(SMD style): 240℃,10s (max.)
SAFETY & EMC
- SAFETY STANDARDS
- IEC62368-1,IEC61558-1/-2-16,UL62368-1, TUV BS EN/EN62368, BS EN/EN60335-1, BS EN/EN61558-1/-2-16, EAC TP TC 004, BSMI CNS15598-1 approved, design refer to IEC60601-1 (By request)
- OVER VOLTAGE CATEGORY
- IEC/EN 61558-1/-2-16(OVC Ⅱ, altitude up to 2000m); IEC/EN/UL 62368-1(OVC Ⅱ, altitude up to 2000m)
- WITHSTAND VOLTAGE
- I/P-O/P:4.2KVac
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms / 500Vdc / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS15936 Class B
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, heavy industry level (surge L-N : 1KV), EAC TP TC 020
OTHERS
- MTBF
- 10762.8K hrs min. Telcordia SR-332 (Bellcore) ; 2137.6K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- PCB mounting style : 37*24*15mm (L*W*H) SMD style : 37*24*16mm (L*W*H)
- PACKING
- PCB mounting style : 0.023Kg;560pcs/14.1Kg/0.77CUFT SMD style :0.023Kg;560pcs/14.1Kg/0.77CUFT
Certifications & ratings
- Marked features
- LPS
MODEL ENCODING
- Blank
- PCB mounting style
- S (this model)
- SMD style
Test conditions and notes4
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Technical drawings
Typical applications
- Industrial electrical equipment
- Mechanical equipment
- Factory automation equipment
- Handheld electronic device
Downloads
Datasheet1
Certificates4
Test reports1
Catalogues1
FAQ
Can I use the IRM-03-15S for a low-power 15V analog or instrumentation circuit?
Yes, it provides constant-voltage 15V output rated at 3W. That makes it suitable for small 15V analog, sensing, or instrumentation circuits that stay within the 3W capacity.
Is the IRM-03-15S appropriate for compact embedded equipment that runs on 15V DC?
It can be used where the product needs a regulated 15V rail and the power draw remains within 3W. The SMD style format and 37.0 × 24.0 × 16.0 mm size support compact internal power sections.
Can this model support small automation, test, or industrial interface modules with 15V requirements?
Yes, for low-power 15V electronics, this model converts 85-305VAC input to a constant 15V output. It is better matched to auxiliary and interface functions than to higher-power 15V loads.
Would the IRM-03-15S work for a small communications or control daughterboard that needs 15V?
It can, as long as the board is designed for 15V constant-voltage input and stays within the 3W rating. Its encapsulated miniature design is intended for internal board-level use.
Can the IRM-03-15S be used in cold or hot equipment environments?
The specified operating temperature range is -30°C to +85°C, which supports a wide range of indoor equipment conditions. No IP rating is listed, so the provided specs do not identify it for exposed outdoor or wet-area use.
How does the IRM-03-15S compare with other 15V models in the series?
Within the IRM-03 series, the 15V output comes in two versions: IRM-03-15 (PCB mounting style, 37 x 24 x 15 mm) and IRM-03-15S (SMD style, 37 x 24 x 16 mm), both rated 3W and 200mA. The series also covers 3.3V, 5V, 9V, 12V and 24V outputs, all at 3W. The IRM-03-15S is the 3W SMD style option in that 15V lineup.
