Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

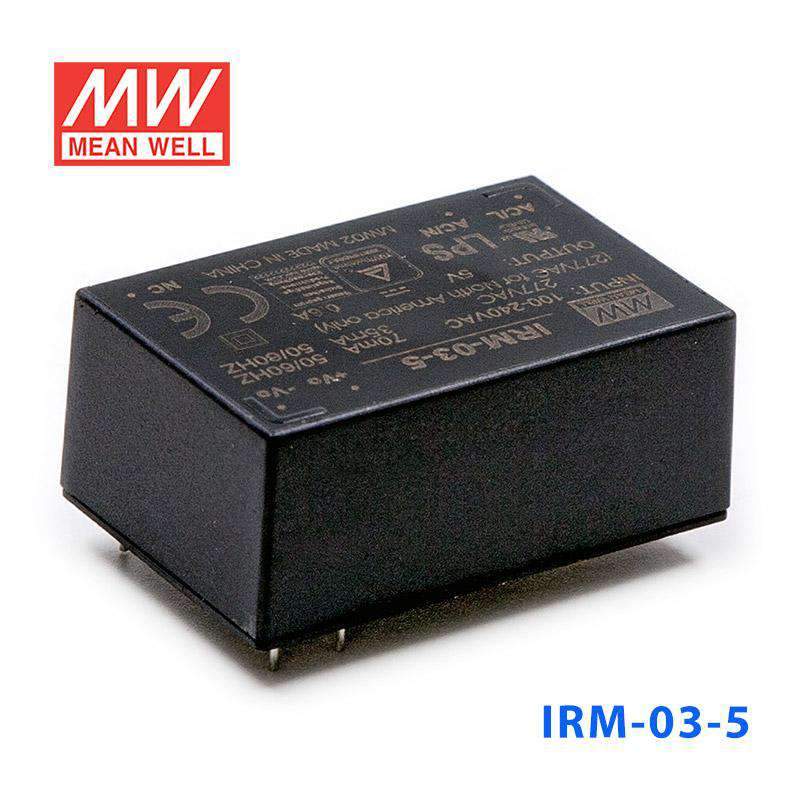

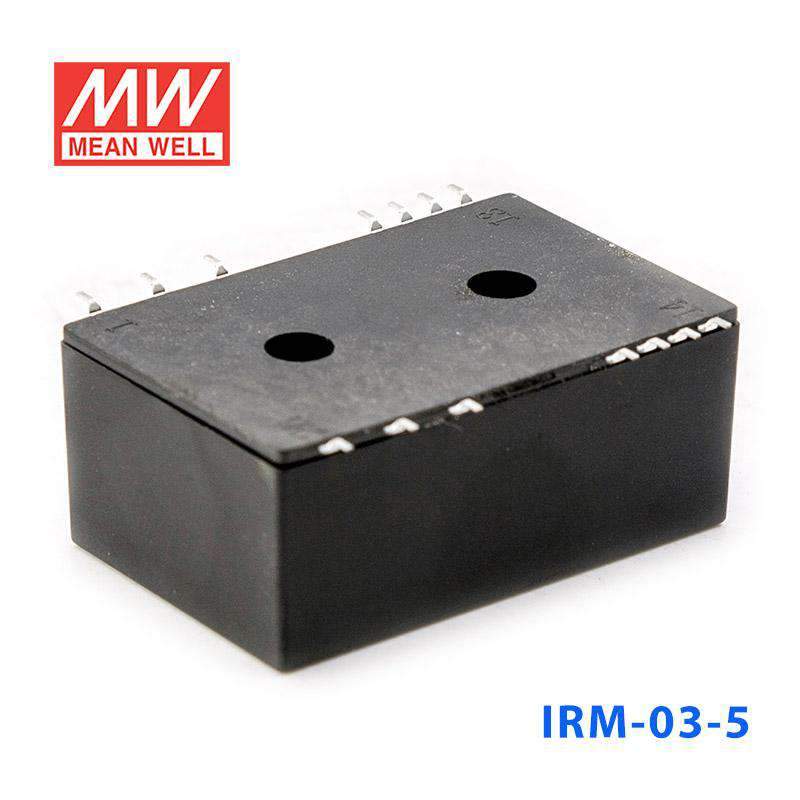

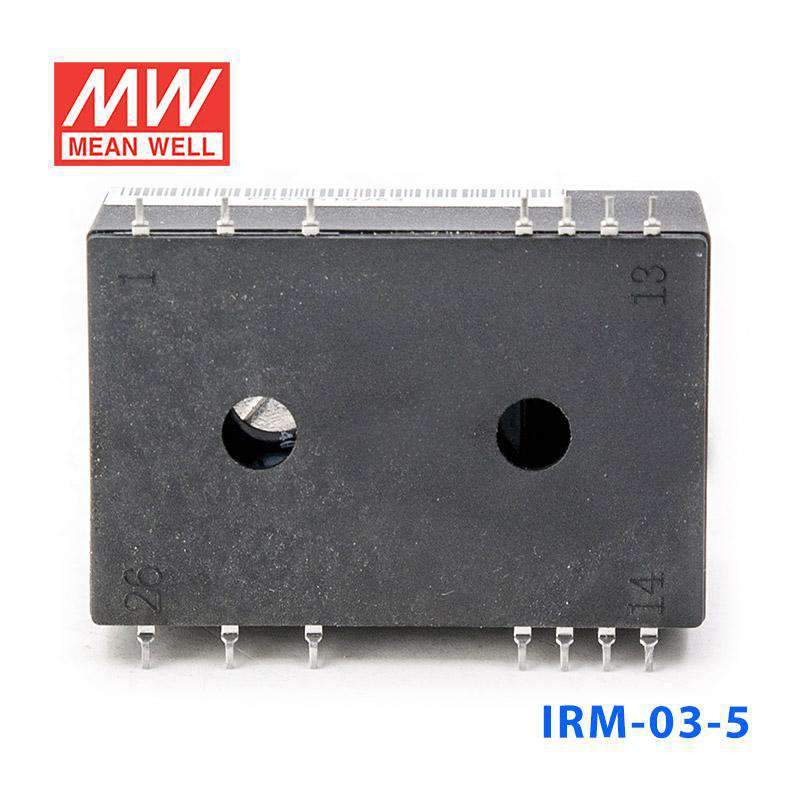

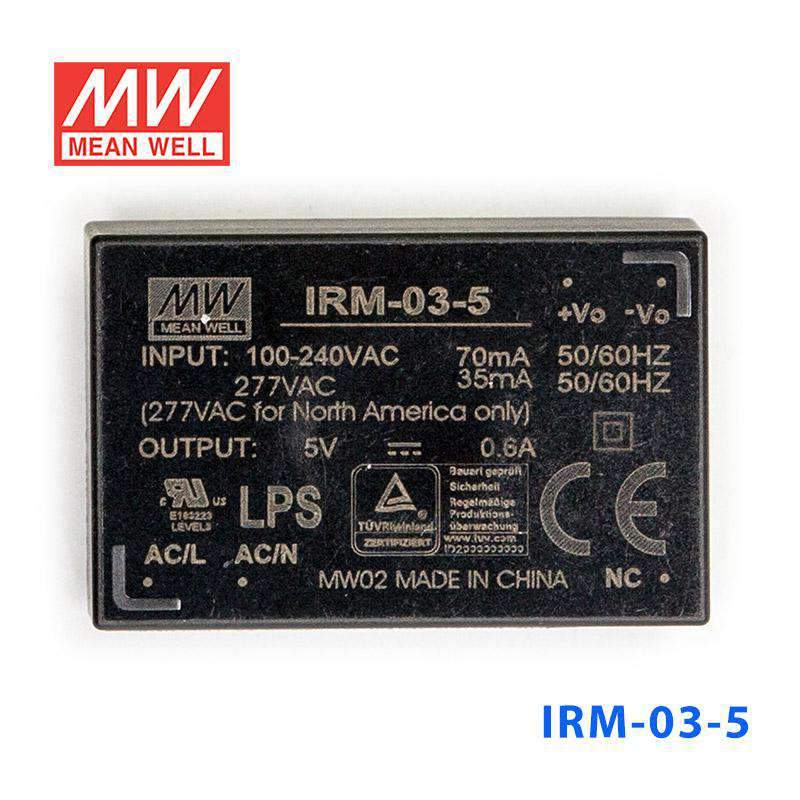

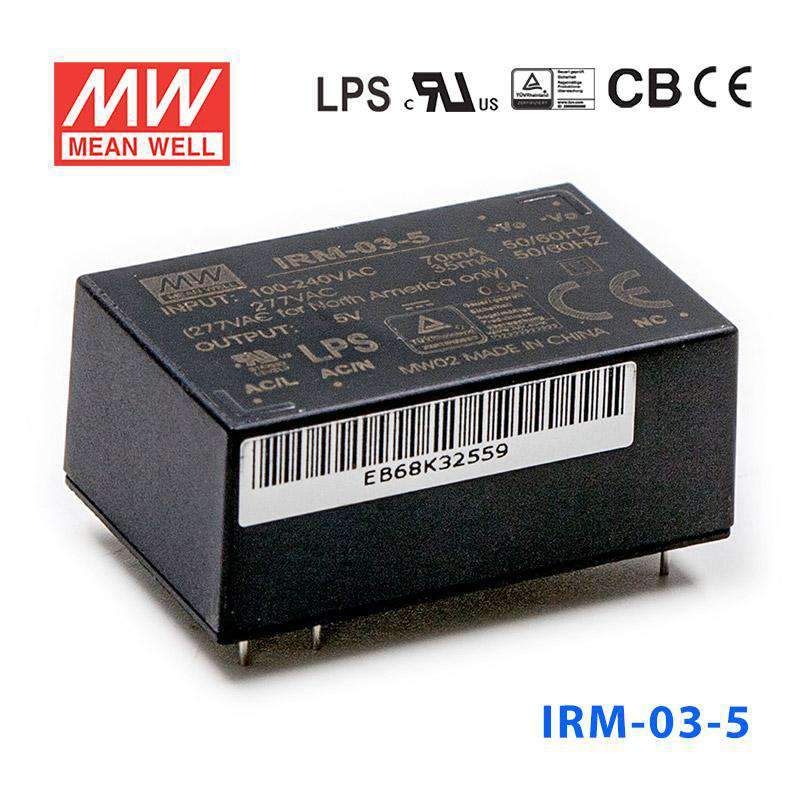

Mean Well IRM-03-5 Switching Power Supply 3W 5V 600mA - Encapsulated
$6.04 USD
Unit price /
Unavailable
Description
Description
Features
| Universal AC input / Full range |
| No load power consumption < 0.075W |
| Protections: Short circuit / Overload / Over voltage |
| Compact size |
| Cooling by free air convection |
| Isolation class II |
| High reliability |
| Low cost |
| 3 years warranty |
General Specification
| AC input voltage range | 85~305VAC; 120~430VDC |
| AC inrush current (max.) | Cold start, 10A at 115VAC, 20A at 230VAC |
| Setup, rise, hold up time | 600ms, 30ms, 40ms |
| Overload protection | 105%~260% rated output voltage, hiccup mode, auto-recovery |
| Over voltage protection | 115%~135% rated output voltage |
| Withstand voltage | I/P-O/P: 3kVAC |
| Working temperature | -30~+85°C (refer to output derating curve) |
| Leakage current | Less than 0.25mA at 277VAC |
| Safety standards | UL60950-1, TUV EN60950-1,TUV EN60335-1 approved,Design refer to IEC60601-1, EN61558-1/-2-16 |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11,EN55024 |
| Dimension (LxWxH) | PCB mounting style : 37x 24x 15mm SMD style : 37x 24x 16 mm |
| Vibration | 10~500Hz, 5G 10min./1 cycle, period for 60 min. each along X, Y, Z axes |
Specifications
Specifications
-
BrandMean Well
-
SeriesIRM Series
-
Power Rating3 Watt
-
Output Voltage5 Volt
-
Rated Current0.6 Ampere
-
Input Voltage85V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSMI,CB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~85°C
-
Warranty3 Year
-
Length1.46 in
-
Width0.94 in
-
Height0.59 in
-
Weight0.06 lb
