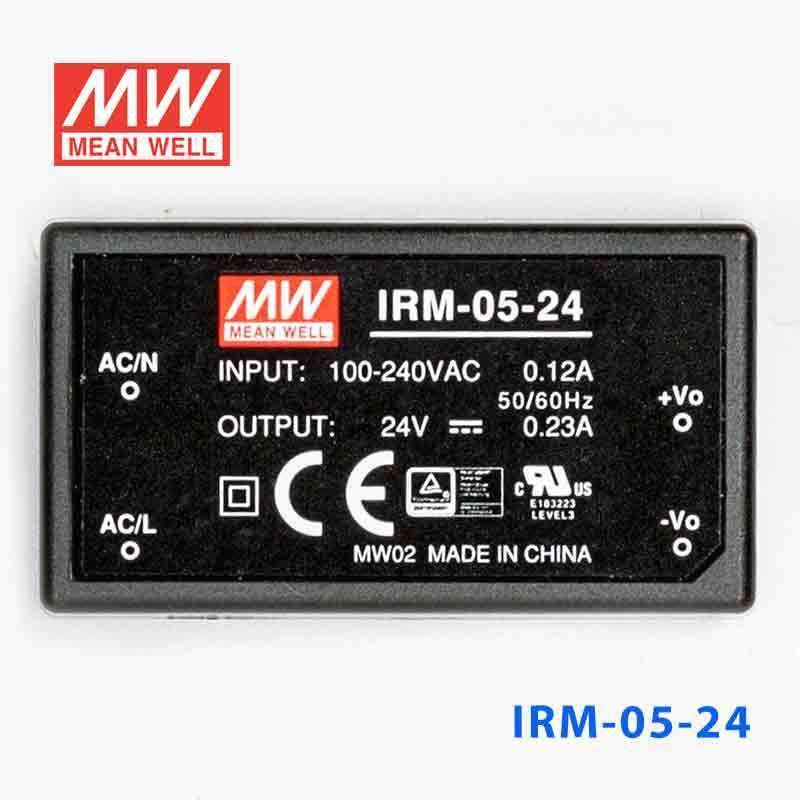

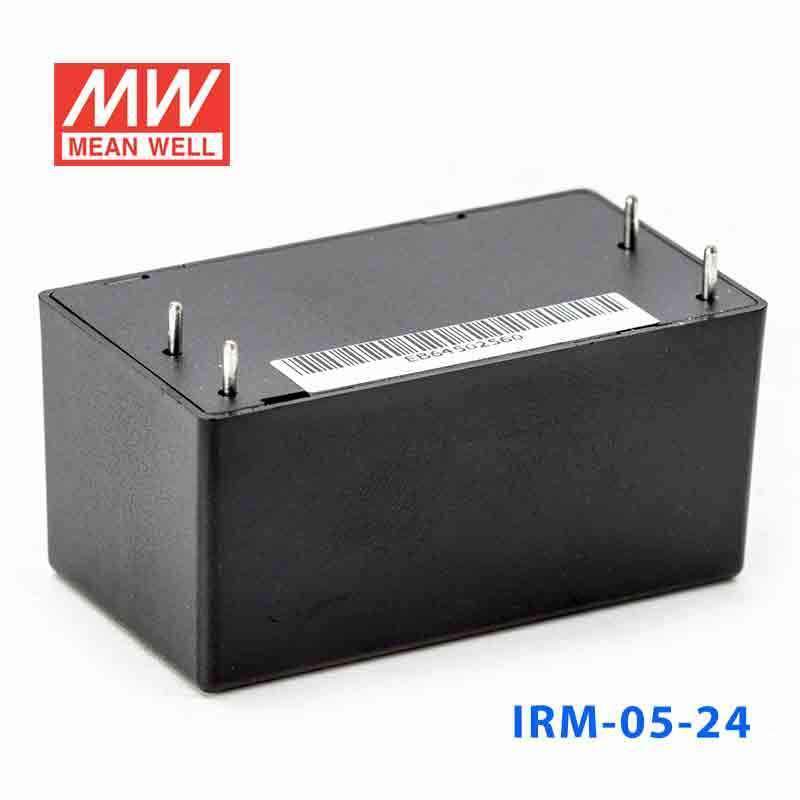

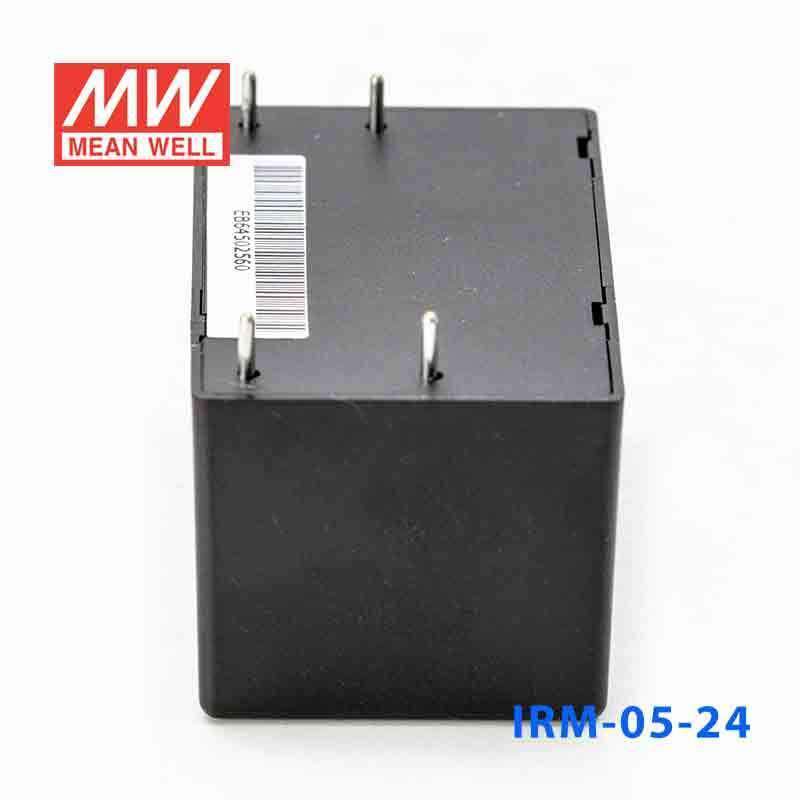

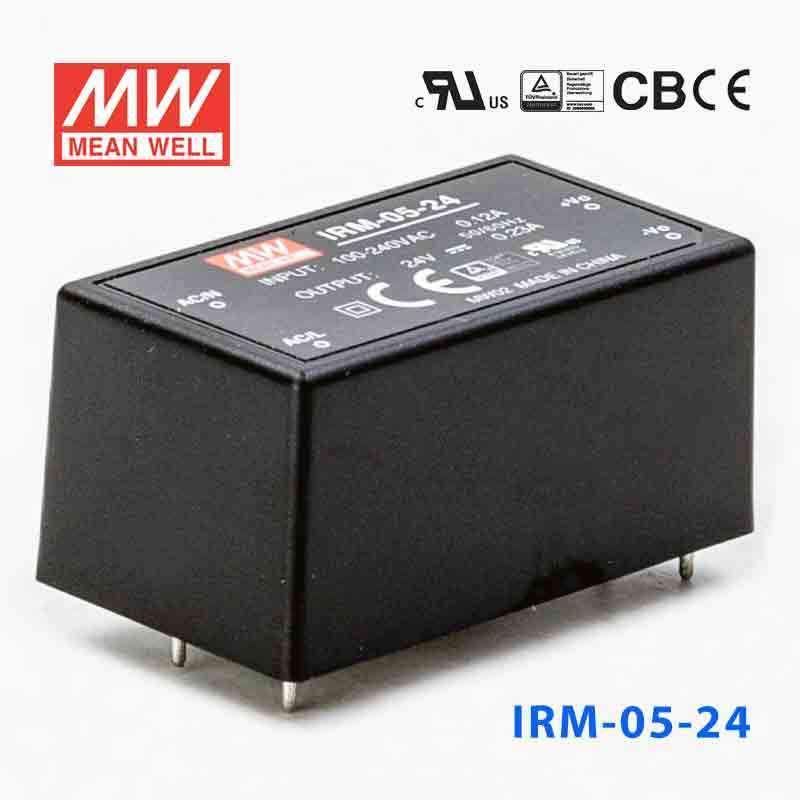

Mean Well IRM-05-24 Switching Power Supply 5.52W 24V 0.23A - Encaps...
Description
Description
Features
| Universal AC input / Full range |
| No load power consumption < 0.1W |
| Protections: Short circuit / Overload / Over voltage |
| Miniature size, high power density |
| Cooling by free air convection |
| Isolation class II |
| Fully isolated plastic case |
| Withstand 5G vibration test |
| Low cost, high reliability |
| 100% full load burn-in test |
| 3 years warranty |
General Specification
| AC input voltage range | 85~264VAC; 120~370VDC |
| AC inrush current (max.) | Cold start, 20A at 115VAC, 40A at 230VAC |
| Setup, rise, hold up time | 600ms, 30ms, 80ms |
| Overload protection | 115%~260% |
| Over voltage protection | 115%~135% rated output voltage |
| Withstand voltage | I/P-O/P: 3kVAC |
| Working temperature | -30~+70°C (refer to output derating curve) |
| Leakage current | Less than 0.75mA at 240VAC |
| Safety standards | UL60950-1, TUV EN60950-1 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| Connection | 4 industrial pins |
| Dimension (LxWxH) | 45.7x 25.4x 21.5 |
| Vibration | 10~500Hz, 5G 10min./1 cycle, period for 60 min. each along X, Y, Z axes |
Specifications
Specifications
-
BrandMean Well
-
SeriesIRM Series
-
Power Rating5.52 Watt
-
Output Voltage24 Volt
-
Rated Current0.23 Ampere
-
Input Voltage85V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSMI,CB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length1.8 in
-
Width1 in
-
Height0.85 in
-
Weight0.07 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the IRM-05-24 for a small 24V PLC input, relay, or control circuit?
Yes, if the circuit needs constant-voltage 24V DC and the load stays within 5.52W and 0.23A. That suits low-power 24V industrial control and automation electronics, not higher-current 24V hardware.
Is the IRM-05-24 suitable for embedded 24V electronics inside compact industrial equipment?
It is built for compact PCB integration, measuring 45.7 × 25.4 × 21.5 mm in a miniature encapsulated package. Its output is 24V at up to 0.23A, so it fits small embedded 24V sections rather than larger field loads.
Can this model be used for a low-power 24V monitoring or signaling module?
It can be used where the module requires a regulated 24V constant-voltage source and total consumption remains within 5.52W. The wide 85-305VAC input range also supports equipment intended for varied AC input conditions.
What are the main differences between the IRM-05-24 and the other IRM-05 options?
The IRM-05 series includes IRM-05-3.3 at 4.125W, 3.3V, 1.25A; IRM-05-5 at 5W, 5V, 1A; IRM-05-12 at 5.04W, 12V, 0.42A; IRM-05-15 at 4.95W, 15V, 0.33A; and IRM-05-24 at 5.52W, 24V, 0.23A. The IRM-05-24 is the 24V version in that family, with the lowest current rating of the group because it operates at the highest output voltage.
Is the IRM-05-24 rated for outdoor use or temperature extremes?
Its operating temperature range is -40°C to +85°C, which supports use in equipment exposed to a wide temperature span. No IP rating is listed, so it should be treated as a protected internal power component rather than an outdoor-exposed supply.
