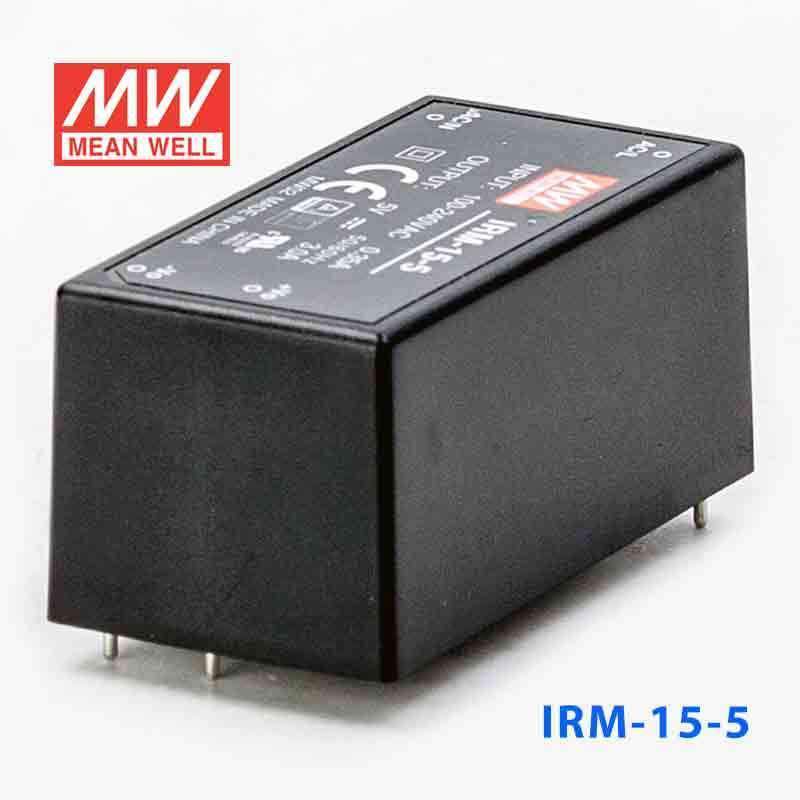

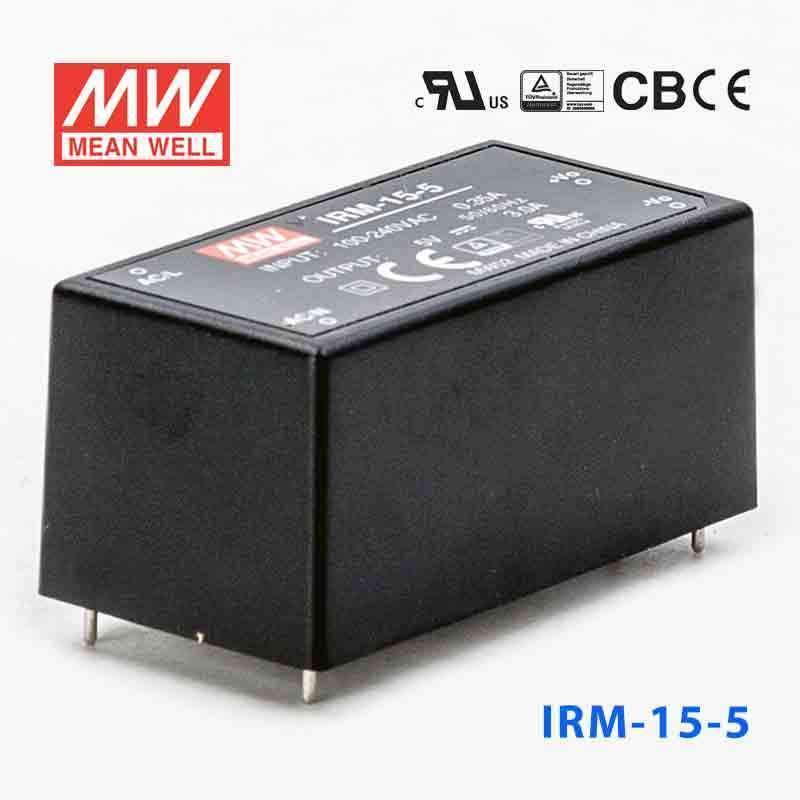

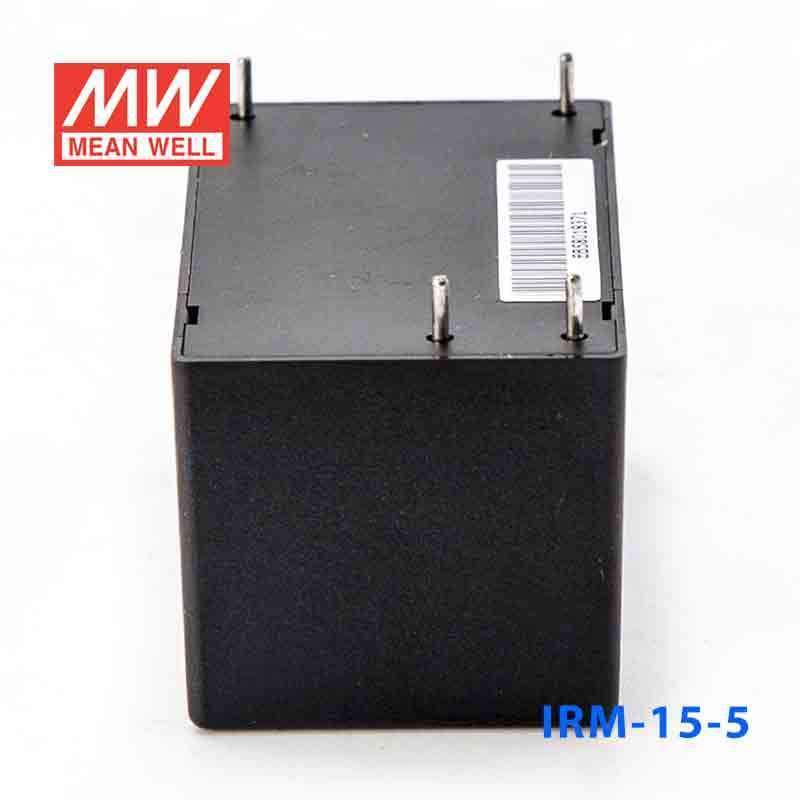

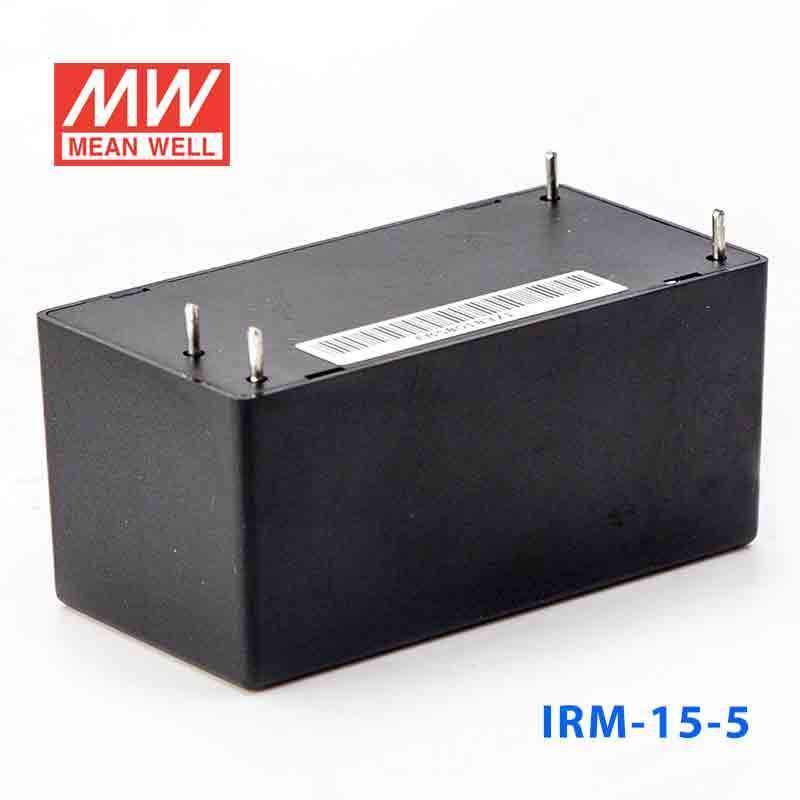

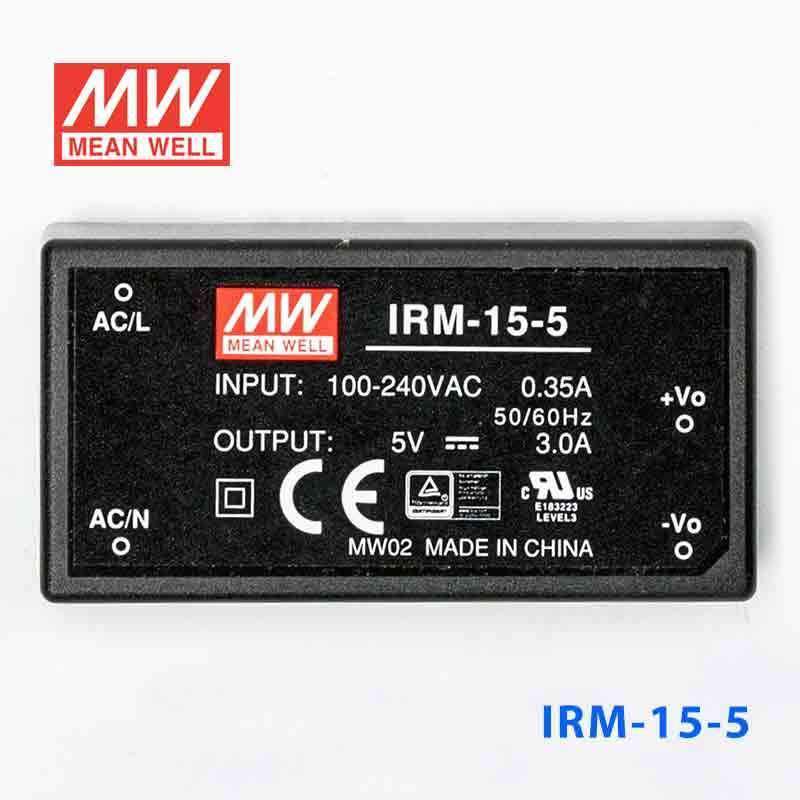

Mean Well IRM-15-5 Switching Power Supply 15W 5V 3A - Encapsulated
Overview
IRM-15-5 is the 5V output model of this series: rated current 3A, rated power 15W, typical efficiency 78%.
IRM-15 is a 15W miniature (52.4*27.2*24mm) AC-DC module-type power supply, ready to be soldered onto the PCB boards of various kinds of electronic instruments or industrial automation equipments. This product allows the universal input voltage range of 85~ 305 Vac. The 94V-0 flame retardant plastic case and potted with silicone enhance the heat dissipation and meet the anti-vibration demand up to 5G; moreover, it provides the fundamental resistance to dust and moisture. With the high efficiency up to 83% and the extremely low no-load power consumption below 0.1W, IRM-15 series fulfills the worldwide regulation for the low power consumption requirement for electronics. The entire series is a Class Ⅱ design (no FG pin), incorporating the built-in EMI filtering components, enabling the compliance with BS EN/EN55032 Class B; the supreme EMC features keep the end electronic units from electromagnetic interference.
Features
- 2.06''x1.07''compact size
- Universal input 85~305Vac
- No load power consumption<0.1W
- EMI Class B without additional components
- Wide operating temp. range -30~85℃
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- Isolation Class Ⅱ
- Over voltage category Ⅲ (OVC Ⅲ)
- Pass LPS
- 3 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 5V
- RATED CURRENT
- 3A
- CURRENT RANGE
- 0 ~ 3A
- RATED POWER
- 15W
- RIPPLE & NOISE (max.)Note.2
- 200mVp-p
- VOLTAGE TOLERANCENote.3
- ±2.5%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±1%
- SETUP, RISE TIME
- 1000ms, 20ms/230Vac 1000ms, 20ms/115Vac at full load
- HOLD UP TIME (Typ.)
- 40ms/230Vac 10ms/115Vac at full load
INPUT
- VOLTAGE RANGE
- 85 ~ 305Vac 120 ~ 430Vdc
- FREQUENCY RANGE
- 47 ~ 440Hz
- EFFICIENCY (Typ.)
- 78%
- AC CURRENT (Typ.)
- 0.35A/115Vac 0.2A/230Vac 0.17A/277Vac
- INRUSH CURRENT (Typ.)
- COLD START 20A/115Vac 40A/230Vac
- LEAKAGE CURRENT
- < 0.25mA/277Vac
PROTECTION
- OVERLOAD
- 115%~190% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 5.75 ~ 6.75V Protection type : Shut off o/p voltage, clamping by zener diode
ENVIRONMENT
- WORKING TEMP.
- -30 ~ +85℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
- SOLDERING TEMPERATURE
- Wave soldering: 265℃,5s (max.); Manual soldering: 390℃,3s (max.)
- OPERATING ALTITUDENote.4
- 2000 meters
SAFETY & EMC
- SAFETY STANDARDS
- IEC62368-1,IEC61558-1/-2-16,UL62368-1,TUV BS EN/EN62368-1,TUV BS EN/EN61558-1/-2-16,EAC TP TC 004, BSMI CNS15598-1 approved
- OVER VOLTAGE CATEGORY
- IEC/EN 61558-1/-2-16(OVC Ⅲ, altitude up to 2000m); IEC/EN/UL 62368-1(OVC Ⅱ, altitude up to 2000m)
- WITHSTAND VOLTAGE
- I/P-O/P:4.2KVac
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms / 500Vdc / 25℃/ 70% RH
- EMC EMISSION
-
Parameter Standard Test Level Conducted BS EN/EN55032(CISPR32), CNS15936 Class B Radiated BS EN/EN55032(CISPR32), CNS15936 Class B Harmonic Current (Note 5) BS EN/EN61000-3-2 Class A Voltage Flicker BS EN/EN61000-3-3 - EMC IMMUNITY
-
BS EN/EN55035, BS EN/EN61000-6-2
Parameter Standard Test Level ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact, criteria A Radiated Susceptibility BS EN/EN61000-4-3 Level 3, criteria A EFT/Burest BS EN/EN61000-4-4 Level 3, criteria A Surge BS EN/EN61000-4-5 Level 4,2KV/L-N, criteria A Conducted BS EN/EN61000-4-6 Level 3, criteria A Magnetic Field BS EN/EN61000-4-8 Level 4, criteria A Voltage Dips and interruptions BS EN/EN61000-4-11 ＞95% dip 0. 5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods
OTHERS
- MTBF
- 10656.2K hrs min. Telcordia SR-332 (Bellcore) ; 970.3K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 52.4*27.2*24mm (L*W*H)
- PACKING
- 0.05Kg/240pcs/13Kg/0.94CUFT
Test conditions and notes5
- 1. All parameters NOT specially mentioned are measured at 230Vac input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 5. The power supply is considered as an independent unit ,but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
Technical drawings
Typical applications
- Industrial electrical equipment
- Mechanical equipment
- Factory automation equipment
- Hand-held electronic device
Downloads
Datasheet1
Certificates4
Test reports1
Catalogues1
FAQ
What output does the Mean Well IRM-15-5 provide?
The IRM-15-5 is a 15W encapsulated AC/DC switching power supply with a regulated 5V DC output. It is rated for up to 3A output current, making it suitable for low-voltage industrial and embedded power applications.
What input voltage range does the IRM-15-5 support?
This model supports a universal input range of 85 to 305VAC and also accepts 120 to 430VDC. That wide range makes it practical for OEM and industrial designs intended for multiple regions or varying mains conditions.
What protection features are included in the IRM-15-5?
The IRM-15-5 includes short circuit, overload, and over voltage protection. Its overload protection is specified at 115% to 190%, and over voltage protection is rated at 115% to 135% of the rated output voltage.
Is the Mean Well IRM-15-5 suitable for compact embedded applications?
Yes. This model is designed with a miniature encapsulated PCB-mount form factor, with dimensions of 52.4 x 27.2 x 24 mm. Its 94V-0 flame-retardant plastic case and free air convection cooling also support use in compact internal power designs.
What operating environment can the IRM-15-5 handle?
The specified working temperature range is -30°C to +85°C, subject to the output derating curve. It also passes a 5G vibration test, which helps support use in demanding industrial environments.
What safety and EMC standards are listed for the IRM-15-5?
The IRM-15-5 is listed with UL62368-1, TUV BS EN/EN62368-1 and IEC61558-1/-2-16 safety approvals. Its EMC specifications include EN55032 Class B and EN61000-3-2, EN61000-3-3, and EN61000-4 series standards noted in the product data.
