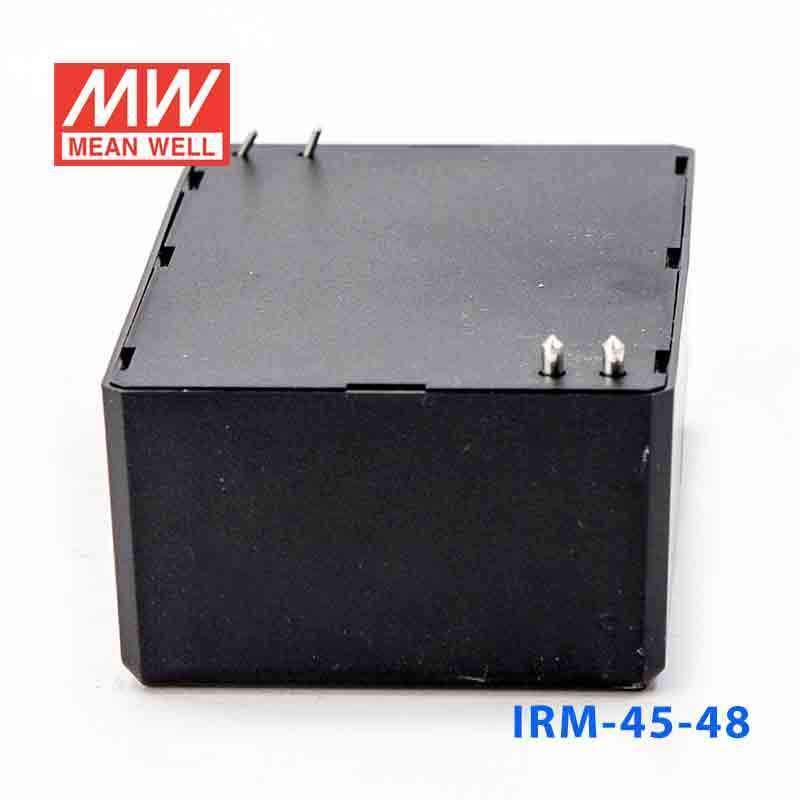

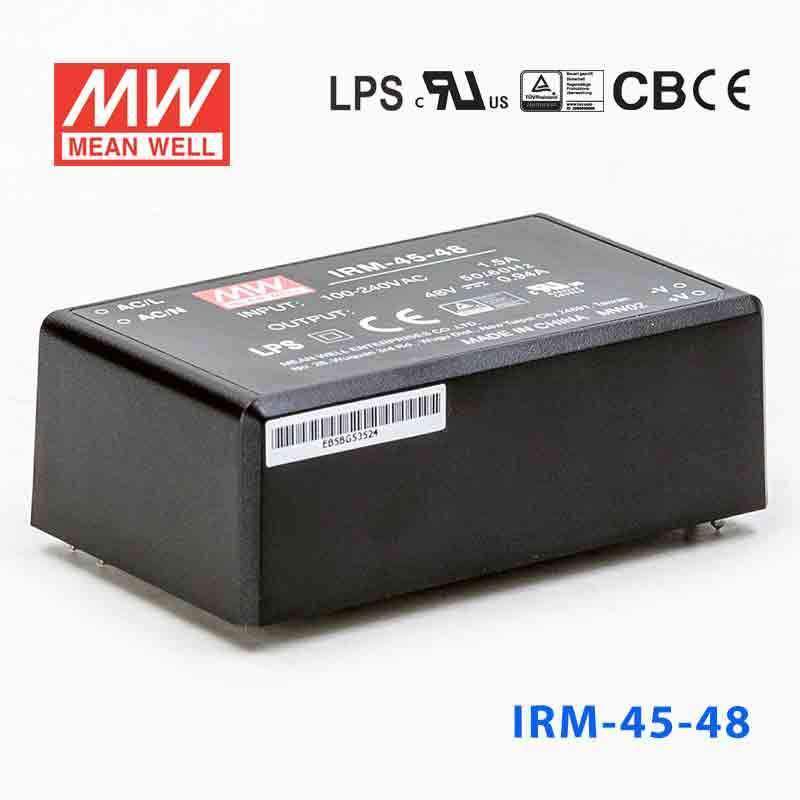

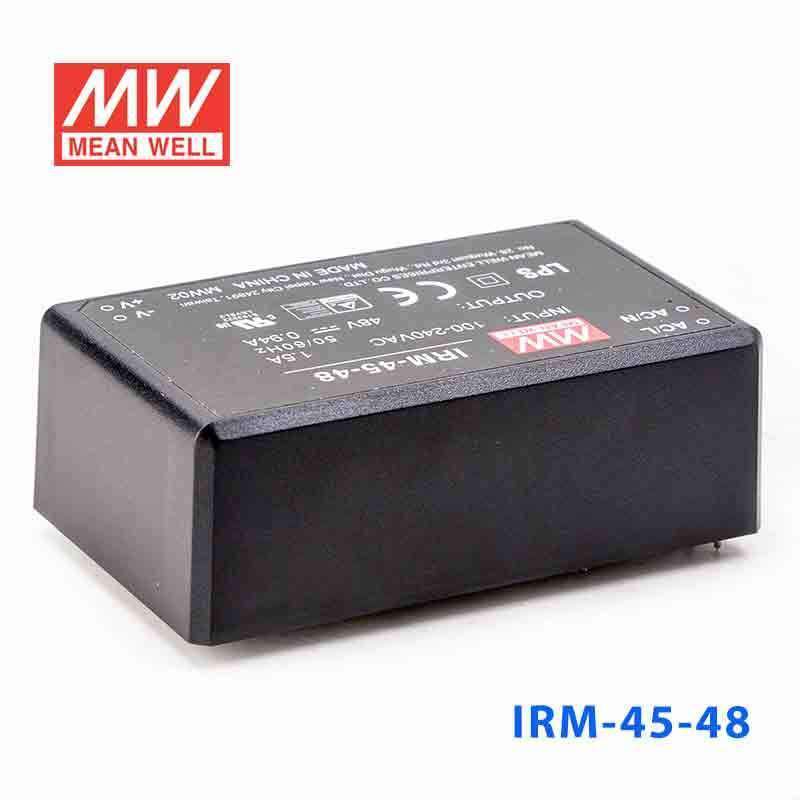

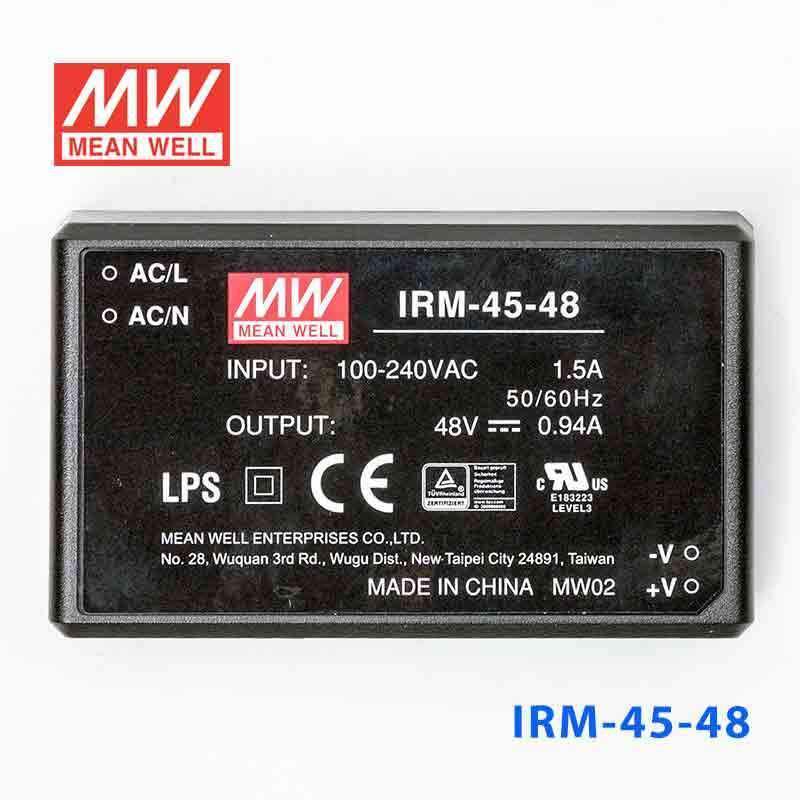

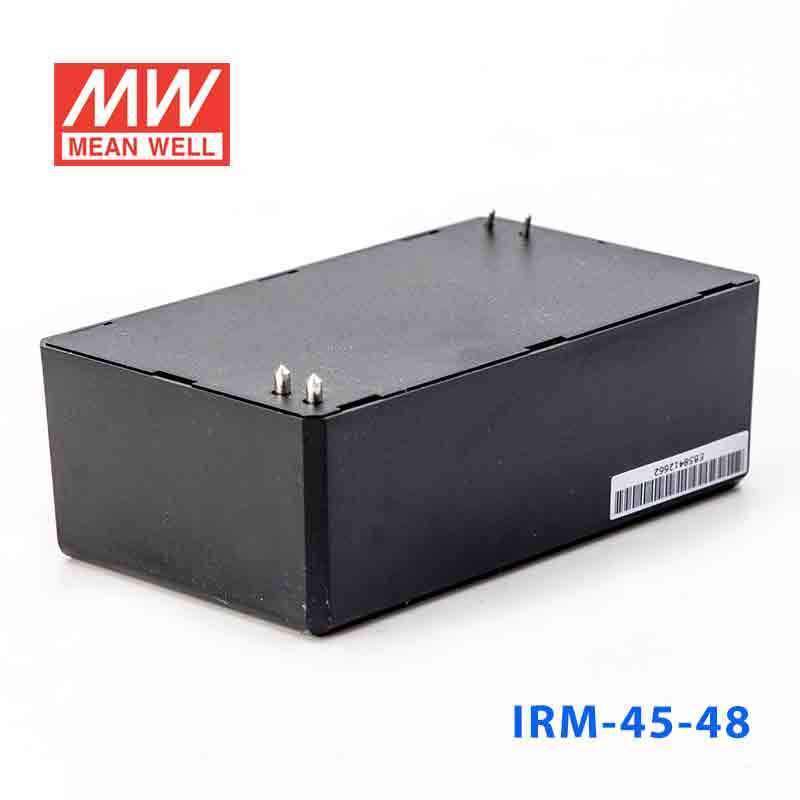

Mean Well IRM-45-48 Switching Power Supply 45.12W 48V 0.94A - Encapsulated

miniature encapsulated type, PCB mouting style
$15.35 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range
No load power consumption < 0.1W
Protections: Short circuit / Overload / Over voltage
Compact size
Cooling by free air convection
Isolation class II
High reliability
100% full load burn-in test
3 years warranty

General Specification

AC input voltage range 85~264VAC
AC inrush current (max.) Cold start, 30A at 115VAC, 60A at 230VAC
Setup, rise, hold up time 1000ms, 30ms, 50ms
Overload protection 115%~160% rated output voltage, hiccup mode, auto-recovery
Over voltage protection 115%~135% rated output voltage
Withstand voltage I/P-O/P: 3kVAC
Working temperature -30~+70°C (refer to output derating curve)
Leakage current Less than 0.25mA at 240VAC
Safety standards UL60950-1, TUV EN60950-1 approved
EMC standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11,EN55024
Dimension (LxWxH) PCB mounting style : 87x 52x 29.5mm Screw terminal style : 109x 52x 33.5mm
Vibration 10~500Hz, 5G 10min./1 cycle, period for 60 min. each along X, Y, Z axes

Specifications

  • Brand
    Mean Well
  • Series
    IRM Series
  • Power Rating
    45.12 Watt
  • Output Voltage
    48 Volt
  • Rated Current
    0.94 Ampere
  • Input Voltage
    85V~305V
  • No of Output
    1
  • Dimming Control
    None
  • Standards Met
    BSMI,CB,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    3.43 in
  • Width
    2.05 in
  • Height
    1.16 in
  • Weight
    0.43 lb
