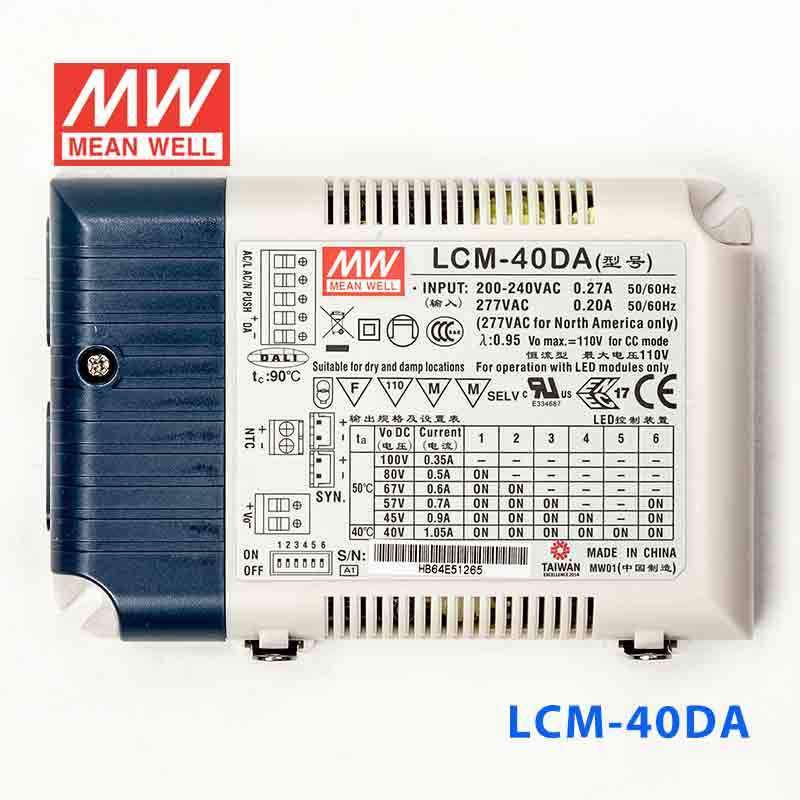

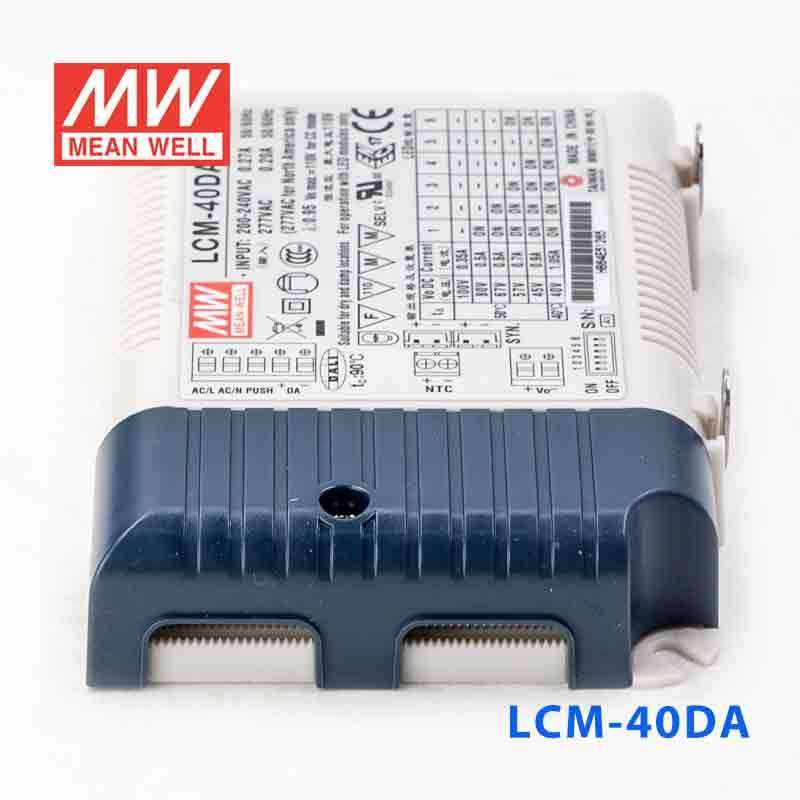

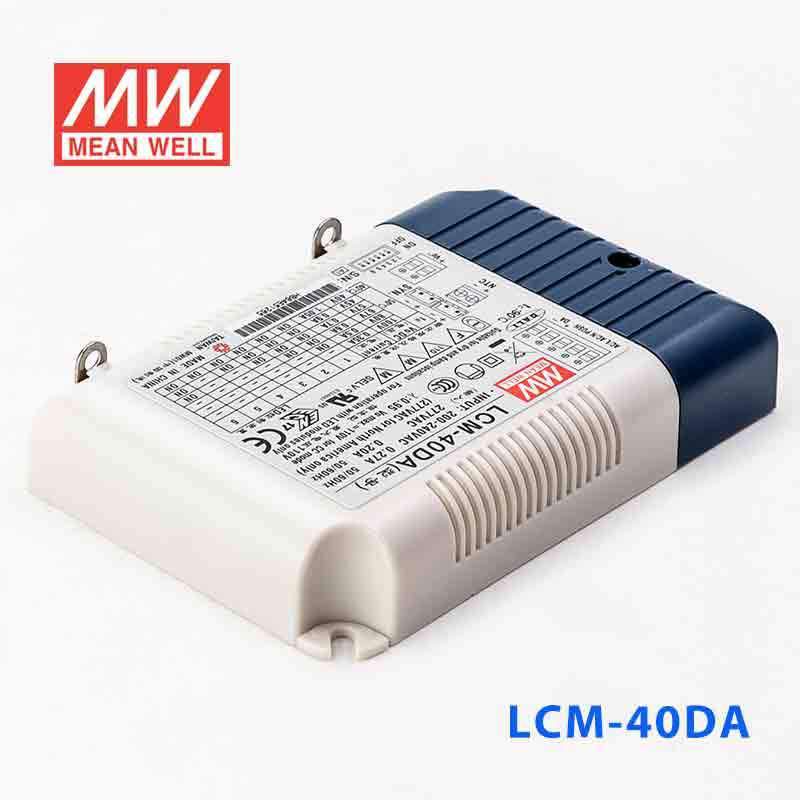

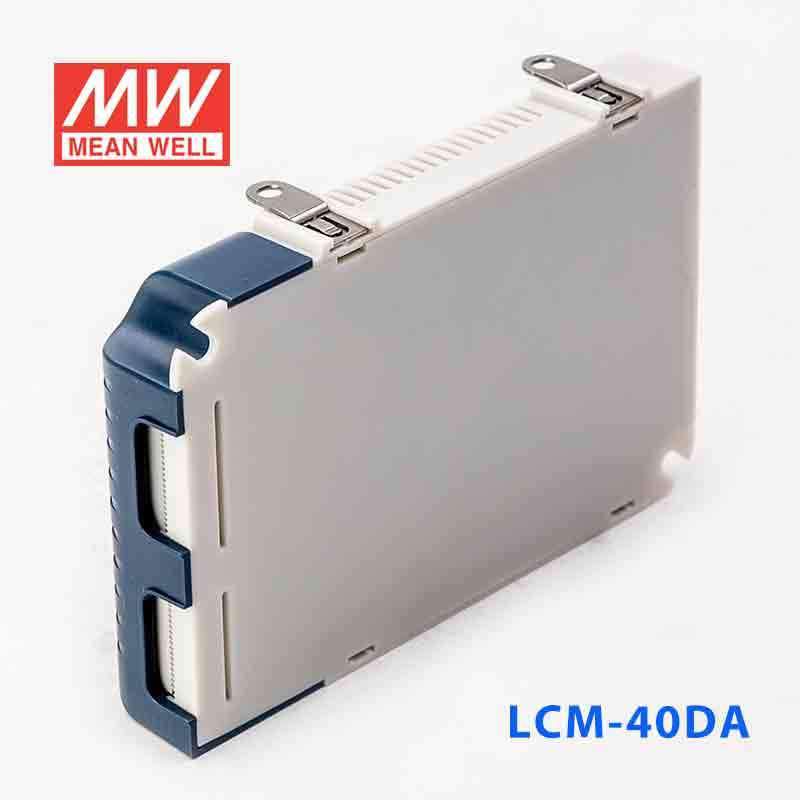

Mean Well LCM-40DA Power Supply 42W 350mA 500mA 600mA 700mA(default) 900mA 1050mA - DALI and Push

Name: Mean Well LCM-40DA Power Supply 42W 350mA 500mA 600mA 700mA(default) 900mA 1050mA - DALI and Push
Brand: Mean Well
SKU: LCM-40DA
Price: 36.74 USD
Availability: InStock

selectable output current using dip switchflicker-freeClass II without FGDALI

SKU LCM-40DA

$36.74 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

LCM-40DA is the model of this series: rated power 42W, typical efficiency 91%.

LCM-40DA series is a 40W AC/DC constant current mode output LED driver featuring the multiple levels selectable by dip switch and the DALI interface with the compliance to IEC62386. LCM-40DA operates from 180～295VAC and offers different current levels ranging between 350mA and 1050mA. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -30℃~+90℃ case temperature under free air convection. In addition, LCM-40DA is equipped with push dimming and synchronization functions, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant current mode output with multiple levels selectable by dip switch
Emergency lighting application is available according to IEC61347-2-13
Built-in active PFC function and class II design
Standby power consumption <0.5W
Functions: DALI interface(logarithm or linear dimming curve selectable), push dimming synchronization up to 10units
3 years warranty

Specifications

LCM-40DASpecifications from the official datasheet (2026-02-09 edition)

OUTPUT

CURRENT LEVEL: Current level selectable via DIP switch, please refer to"DIP SWITCH TABLE" section; 350mA / 500mA / 600mA / 700mA(default) / 900mA / 1050mA
RATED POWER: 42W
DC VOLTAGE RANGE: 2 ~ 100V (350mA) / 2 ~ 80V (500mA) / 2 ~ 67V (600mA) / 2 ~ 57V (700mA) / 2 ~ 45V (900mA) / 2 ~ 40V (1050mA)
OPEN CIRCUIT VOLTAGE (max.): 110V (350mA, 500mA, 600mA) / 65V (700mA, 900mA, 1050mA)
CURRENT RIPPLE^Note.5: 5.0% max. @rated current
CURRENT TOLERANCE: ±5%
AUXILIARY DC OUTPUT: Nominal 12V(deviation 11.4~12.6V)@50mA for AUX-Type only
SETUP TIME^{Note.3 Note.9}: 500ms / 230VAC

INPUT

VOLTAGE RANGE^Note.2: 180 ~ 295VAC 254 ~ 392VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.975/230VAC, PF≧0.95/277VAC@ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧75%) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.)^Note.4: 91%
AC CURRENT (Typ.): 0.23A/230VAC 0.2A/277VAC
INRUSH CURRENT (Typ.): COLD START 20A(twidth=260μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 26 units (circuit breaker of type B) / 44 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.5mA / 240VAC
STANDBY POWER CONSUMPTION^Note.6: <0.5W for Blank-Type, <1.2W for AUX-Type

PROTECTION

SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 110 ~ 130V Shutdown o/p voltage, re-power on to recover
OVER TEMPERATURE: Shutdown o/p voltage,re-power on to recover

FUNCTION

DIMMING: Please refer to "DIMMING OPERATION" section
SYNCHRONIZATION: Please refer to "SYNCHRONIZATION OPERATION” section
TEMP. COMPENSATION: By external NTC, please refer to “TEMPERATURE COMPENSATION OPERATION”section

ENVIRONMENT

WORKING TEMP.: Tcase=-30 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(except for DA2-Type), CSA C22.2 No.250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent, GB/T19510.1, GB/T19510.213, BIS IS15885(except for DA2-Type), EAC TP TC 004 approved; According to BS EN/EN61347-2-13 appendix J suitable for emergency installations(EL)(AC Input: 200-240Vac)(for DA2-Type only)
DALI STANDARDS: IEC62386-101, 102, 207,251
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC;I/P-DA:1.5KVAC; O/P-DA:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.7: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C(@load≧40%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level(surge immunity Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF: 2271.4K hrs min. Telcordia SR-332 (Bellcore) ; 193.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 123.5*81.5*23mm (L*W*H)
PACKING: 0.24Kg ; 54pcs/15Kg/1.12CUFT

Test conditions and notes10

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
3. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
4. Efficiency is measured at 500mA/80V output set by DIP switch.
5. Current ripple is measured 50%~100% of maximum voltage under rated power delivery.
6. Standby power consumption is measured at 180~230VAC.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. Based on IEC 62386-101/102 DALI power on timing and interruption regulations, the set up time needs to test with a DALI controller which can support for DALI power on function, otherwise the set up time will be higher than 0.5 second for DA2-type.
10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.

Technical drawings

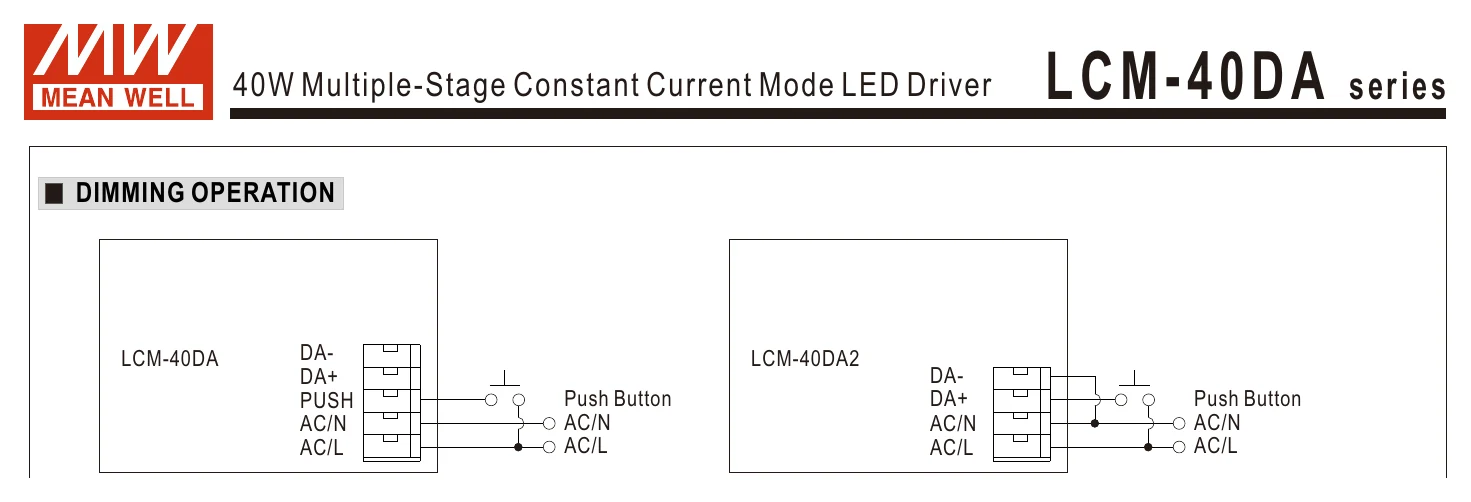

LCM-40DA LCM-40DA series — LCM-40DA series

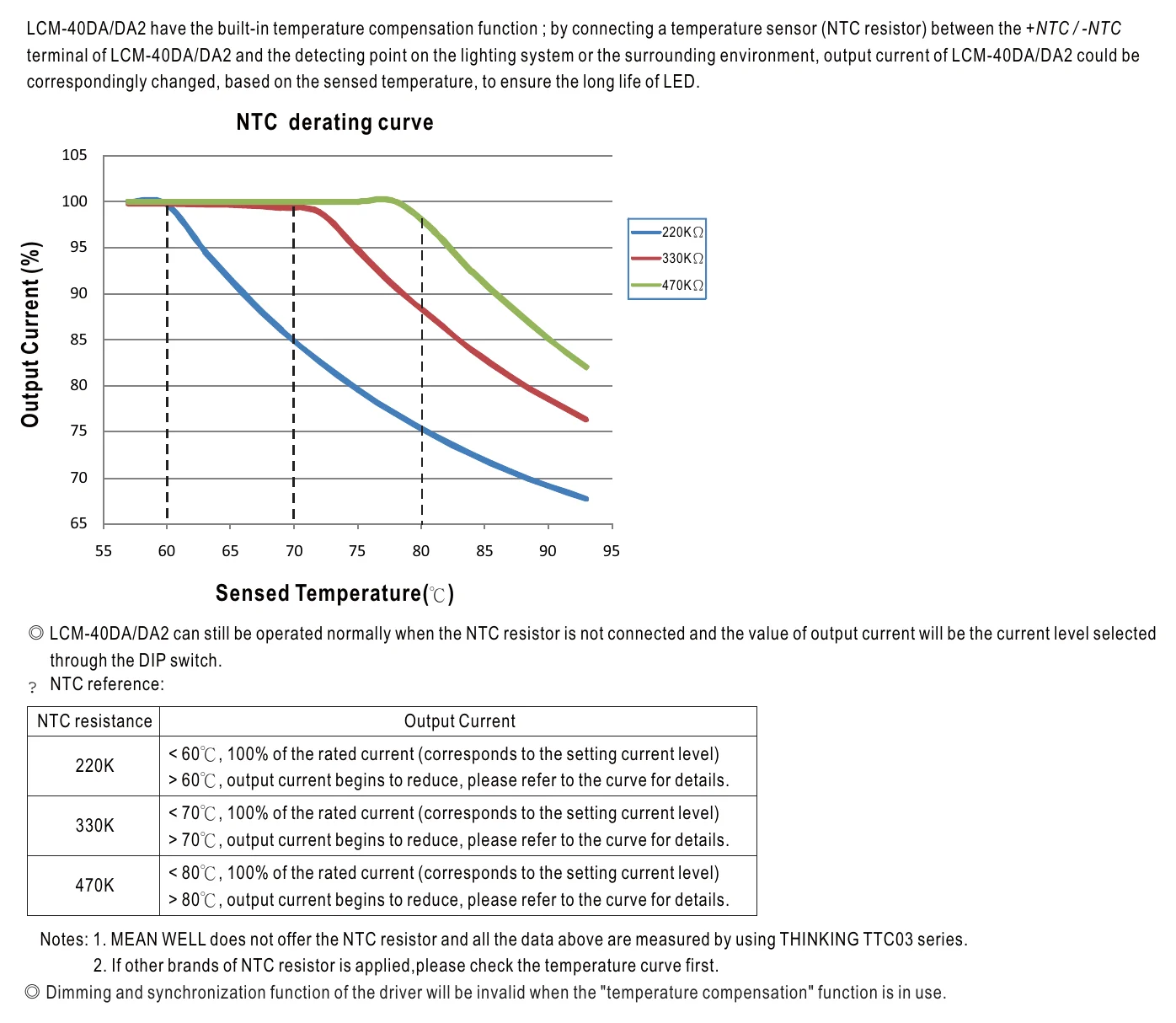

LCM-40DA TEMPERATURE COMPENSATION — TEMPERATURE COMPENSATION

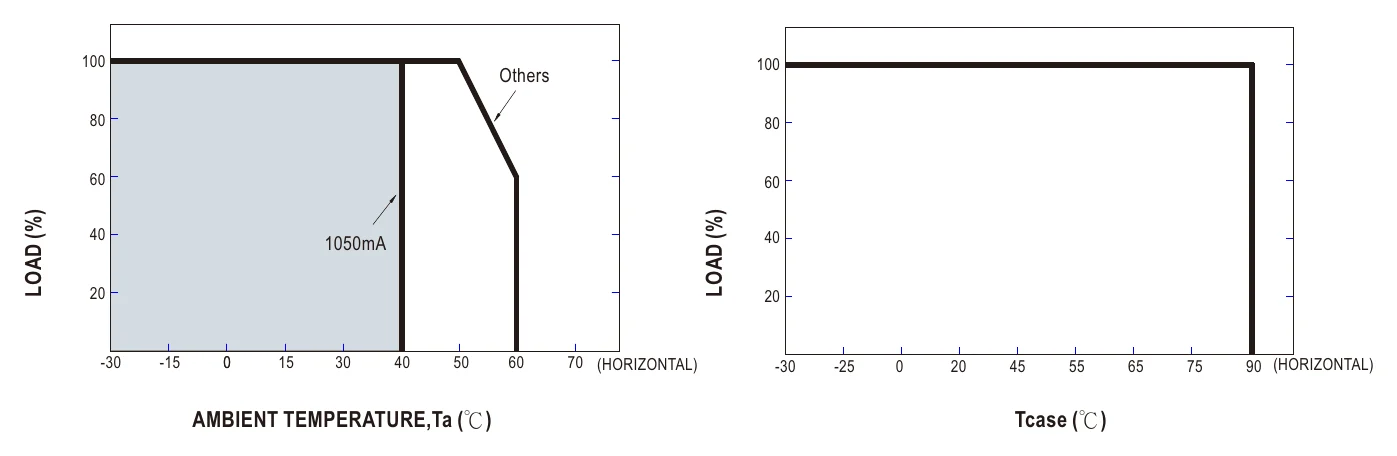

LCM-40DA OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

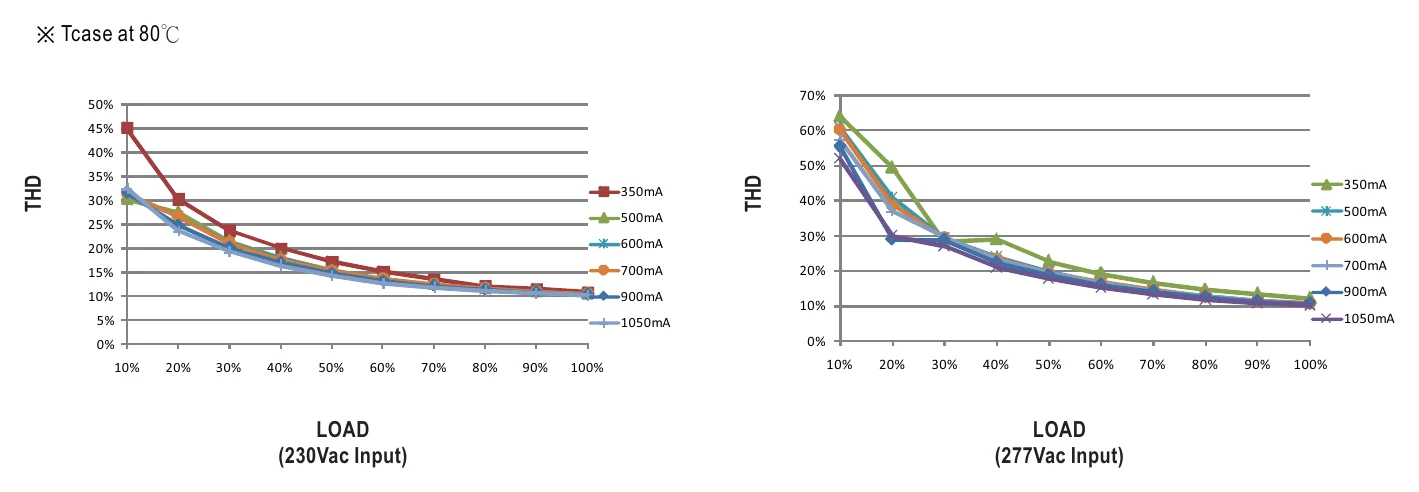

LCM-40DA TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

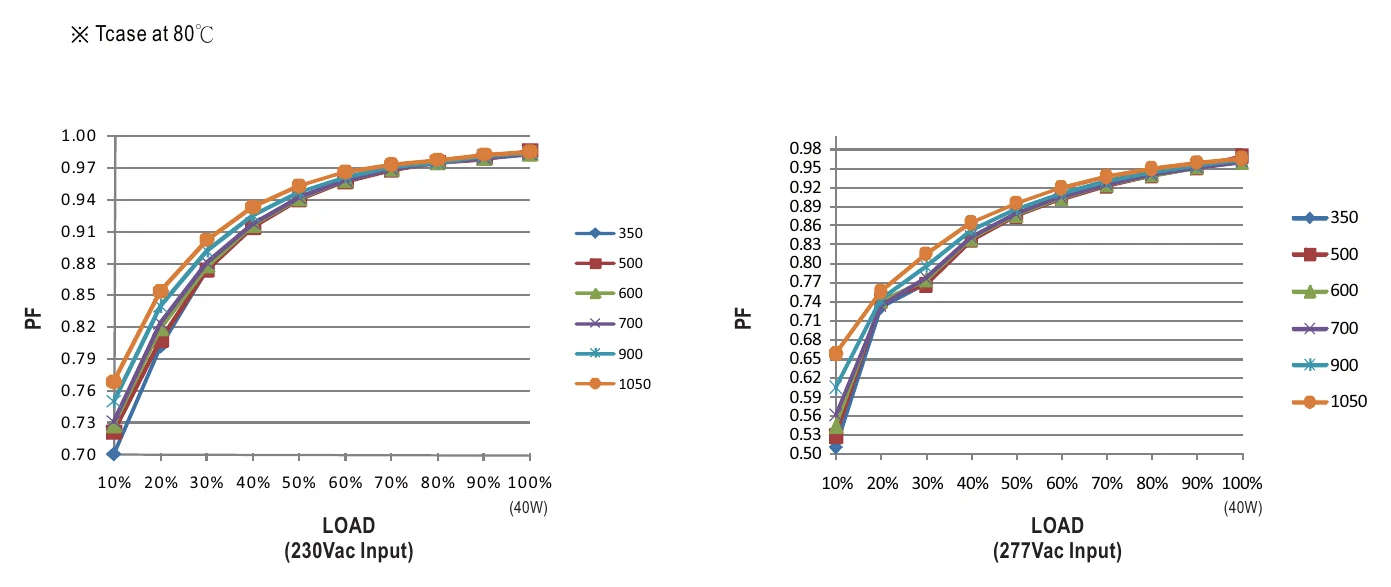

LCM-40DA POWER FACTOR (PF) CHARACTERISTIC — POWER FACTOR (PF) CHARACTERISTIC

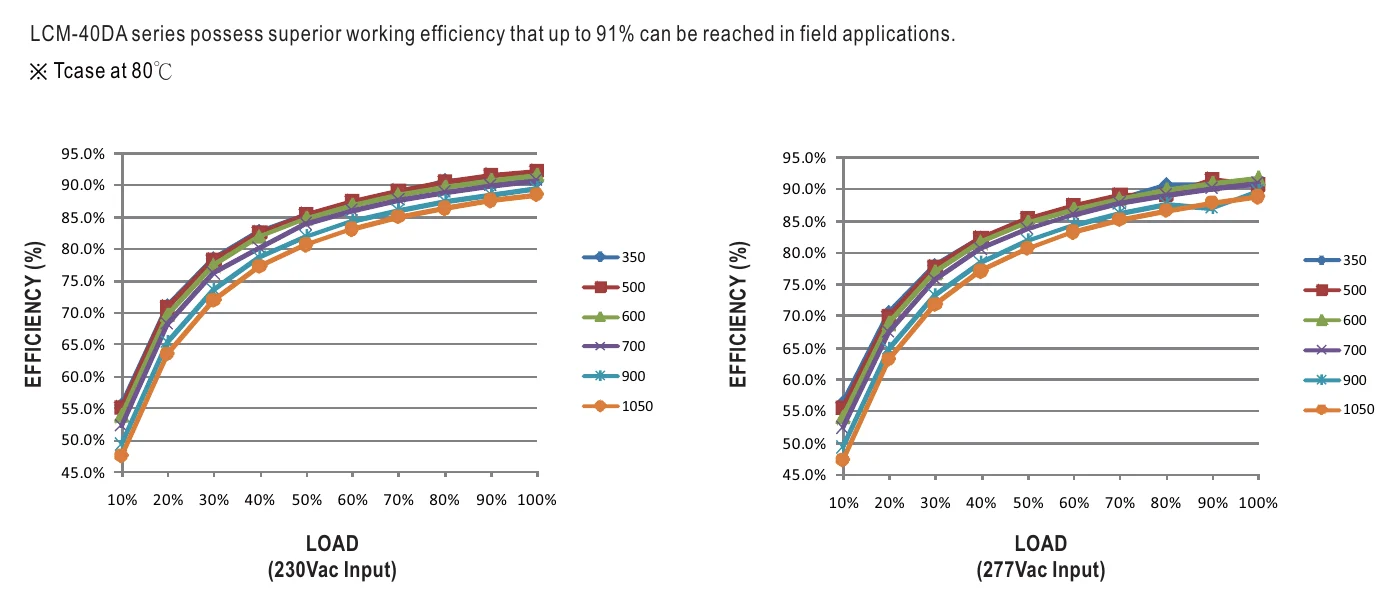

LCM-40DA EFFICIENCY vs LOAD — EFFICIENCY vs LOAD

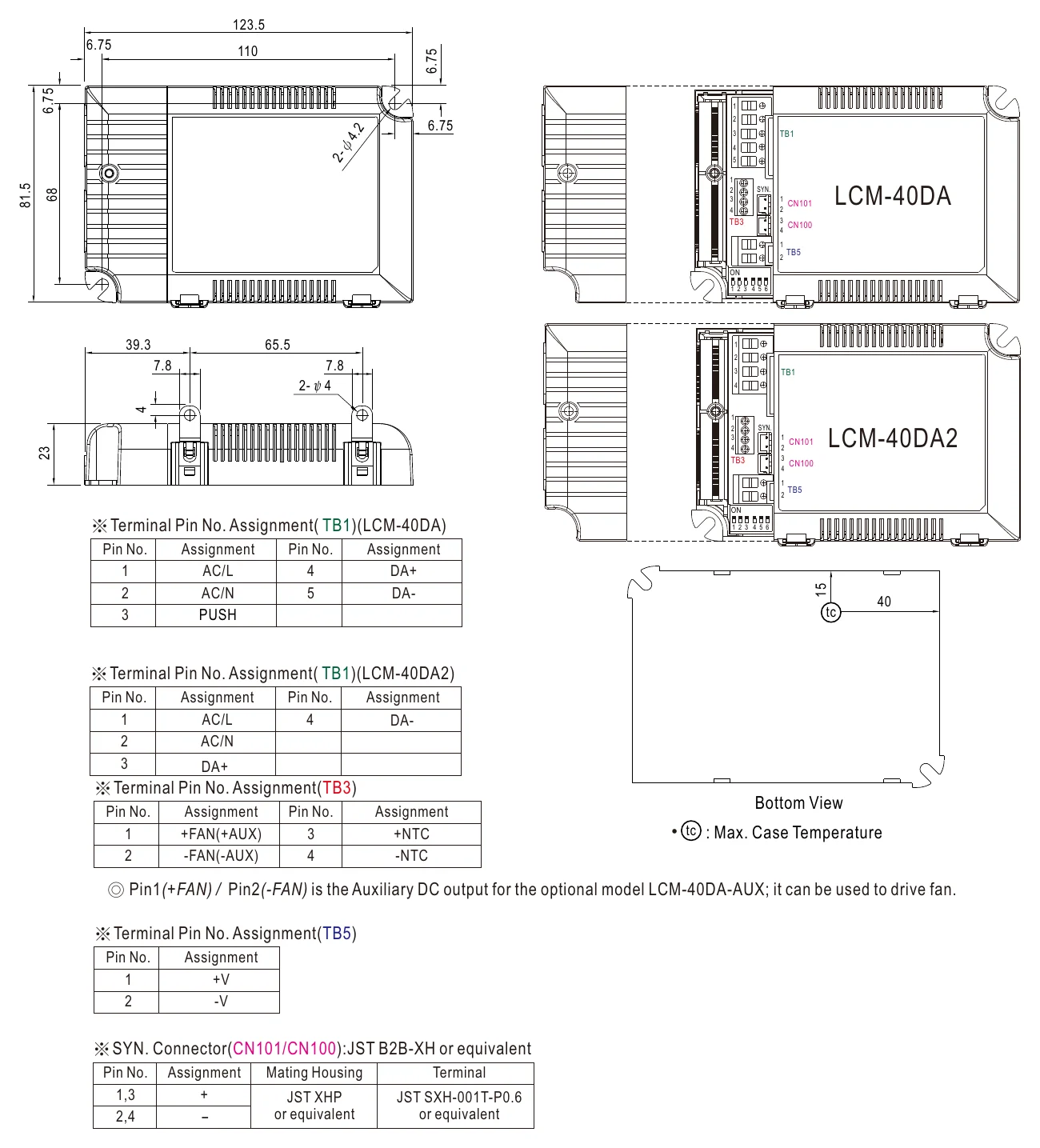

LCM-40DA MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

Typical applications

LED indoor lighting
LED office lighting
LED commercial lighting
LED panel lighting
Industrial lighting

Downloads

Certificates4

UL Certificate(LCM-40DA)(EN) PDF Download

CB Certificate(LCM-40DA)(EN) PDF Download

ENEC Certificate(LCM-40DA)(EN) PDF Download

EMC Certificate(LCM-40DA)(EN) PDF Download

Test reports1

Test Report (LCM-40DA)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the LCM-40DA for dimmable LED downlights?

Yes, it is a constant current LED driver with 42W output and a 2-57V output range at the default 700mA (2-40V to 2-100V depending on the DIP-switch current setting), which suits many LED downlight designs that require current-regulated output. It also includes DALI and push dimming, so it fits projects where dimming control is required rather than a fixed constant voltage supply.

Is the LCM-40DA suitable for LED signage modules?

It can be suitable for signage modules only if those modules are designed for constant current operation at the selected output current, with total load staying within 42W and within the DC voltage range for that current (e.g. 2-57V at 700mA, 2-40V at 1050mA, 2-100V at 350mA). It is not the right match for signage modules that expect a constant voltage power supply.

Can this driver run a small LED array for architectural or display lighting?

Yes, a small LED array can be a good fit when the array is built for constant current drive and the full load remains inside the DC voltage range of the selected current (2-57V at the default 700mA) and the 42W rating. The selectable output current by dip switch (350mA to 1050mA) also helps match different constant current LED array requirements.

How do I know if my LEDs are compatible with the LCM-40DA?

Check that your LEDs are meant for constant current operation and that the total forward voltage falls within the DC voltage range for the selected current (2-100V at 350mA, 2-80V at 500mA, 2-67V at 600mA, 2-57V at 700mA, 2-45V at 900mA, 2-40V at 1050mA). The number of LEDs depends on each LED forward voltage, so compatibility should be based on total forward voltage rather than a fixed LED count.

Can the LCM-40DA be used in demanding temperature conditions?

Its working temperature is specified as a case temperature (Tcase) of -30°C to +90°C, with load derating per the output load vs temperature curve, which gives it a wide working window for indoor equipment and enclosed lighting assemblies. Environmental suitability should still be checked against the final fixture because these specs do not list an IP rating.
