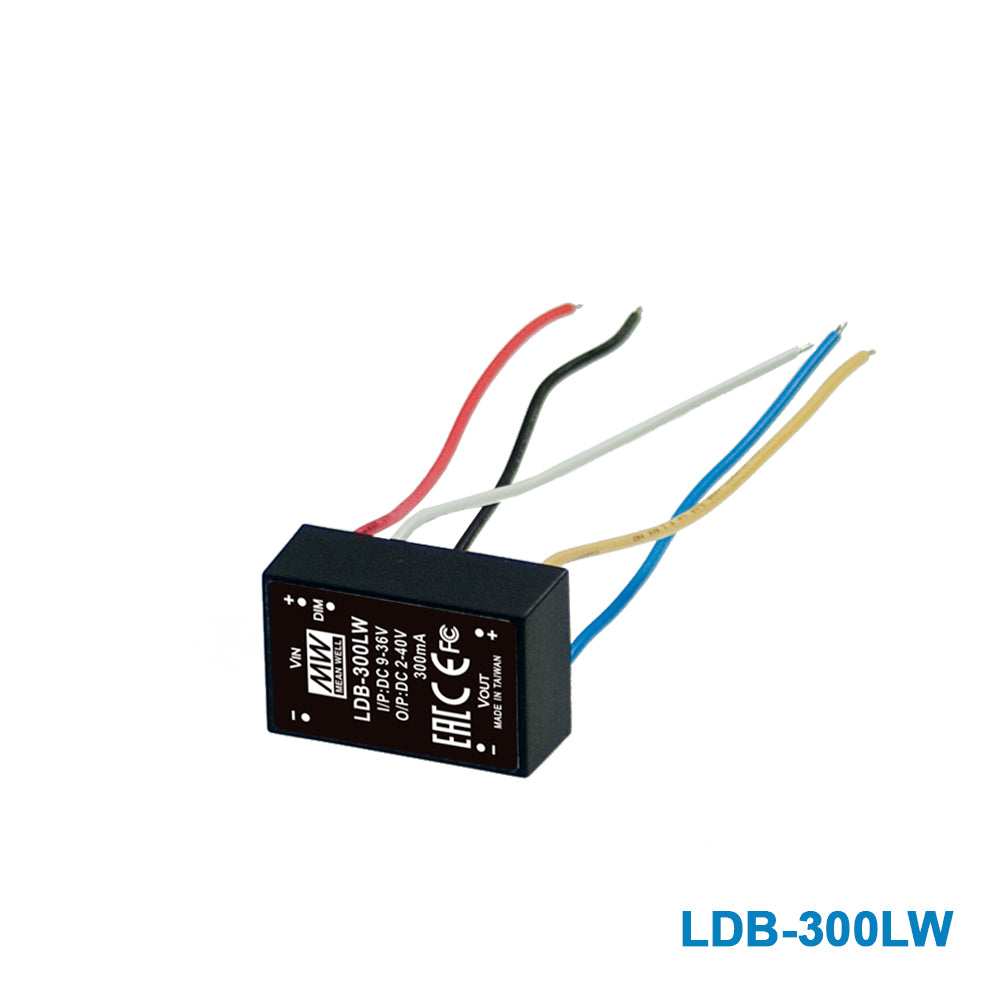

Mean Well LDB-300LW DC/DC LED Driver CC 300mA - Buck-boost

contant current, buck-boost, high efficiency up to 91%, wire style
$8.55 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

DC/DC buck-boost converter
Constant current output: 300mA to 600mA
Wide input voltage: 9~36VDC
Wide output LED string voltage: 2~40VDC
High efficiency up to 91%
Comply with BS EN/EN55015 and FCC part15
Build-in PWM and remote ON/OFF control
Protections: Short circuit/Over temperature
Cooling by free air convection
Fully encapsulated with IP67 level for pin and wire style
Compact size
High reliability
Suitable for driving illumination LED
3 years warranty

General Specification

Current accuracy ±5%
Over temperature protection Shut down, auto-recovery
Efficiency 90% (typical)
Short circuit protection Regulated at rated output current
Working temperature -40°C to +70°C
EMC Compliance to EN55015 class B, EN61000-4-2,3,4,6,8, EAC TP TC 020
Temp. Coefficient ±0.03% / °C
Dimension (LxWxH) (mm) 31.8x20.3x12.2mm
Potting material Expoxy(UL94-V0)

Specifications

  • Brand
    Mean Well
  • Series
    LDB Series
  • Power Rating
    12 Watt
  • Output Voltage
    40 Volt
  • Rated Current
    0.3 Ampere
  • Input Voltage
    9V~36V
  • No of Output
    1
  • Dimming Control
    PWM
  • Standards Met
    CE,EAC
  • Operation Mode
    Constant Current
  • Operating Temperature
    -40°C~71°C
  • Warranty
    3 Year
  • Length
    1.25 in
  • Width
    0.8 in
  • Height
    0.48 in
  • Weight
    0.04 lb
