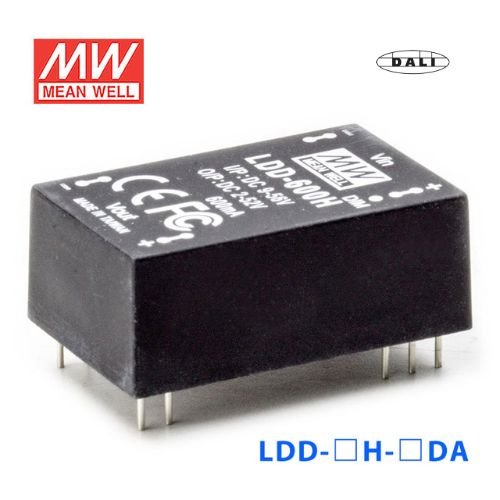

Mean Well LDD-1400H-DA DC/DC LED Driver CC 1400mA - Step-down
constant current, step down, high efficiency up to 97%, IP67, pin style
SKU:
LDD-1400H-DA
Datasheet:
$15.22 USD
Unit price /
Unavailable
Shipping calculated at checkout.
|
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LDD-1400H-DA DC/DC LED Driver CC 1400mA - Step-down
$15.22 USD
Unit price /
Unavailable
Description
Description
MEAN WELL LDD-H-(W)DA Series Power Supplies are step down LED drivers with high efficiency, long life, and high reliability.
Features
- DC/DC step-down converter
- Constant current output: 350mA to 1400mA
- Wide input voltage: 6 - 50VDC Wide output LED string voltage: 3 - 45VDC
- High efficiency up to 95%
- Built-in EMI filter
- comply with EN55015 without additional input filter and capacitors
- DALI dimming function input under voltage lockout
- Built-in PWM and remote ON/OFF control(pin style only
- wire style optional)
- Protections: Short circuit
- Cooling by free air convection
- Fully encapsulated with IP65 level
- Compact size
- Suitable for driving illumination LED
- 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesLDD Series
-
Power Rating50.4 Watt
-
Output Voltage36 Volt
-
Rated Current1.4 Ampere
-
Input Voltage6V~50V
-
No of Output1
-
Dimming ControlDALI
-
Standards MetCE,EAC
-
Operation ModeConstant Current
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length1.6 in
-
Width0.93 in
-
Height0.4 in
-
Weight0.04 lb
