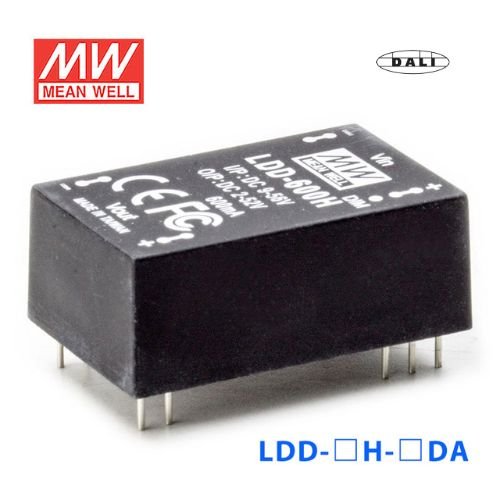

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

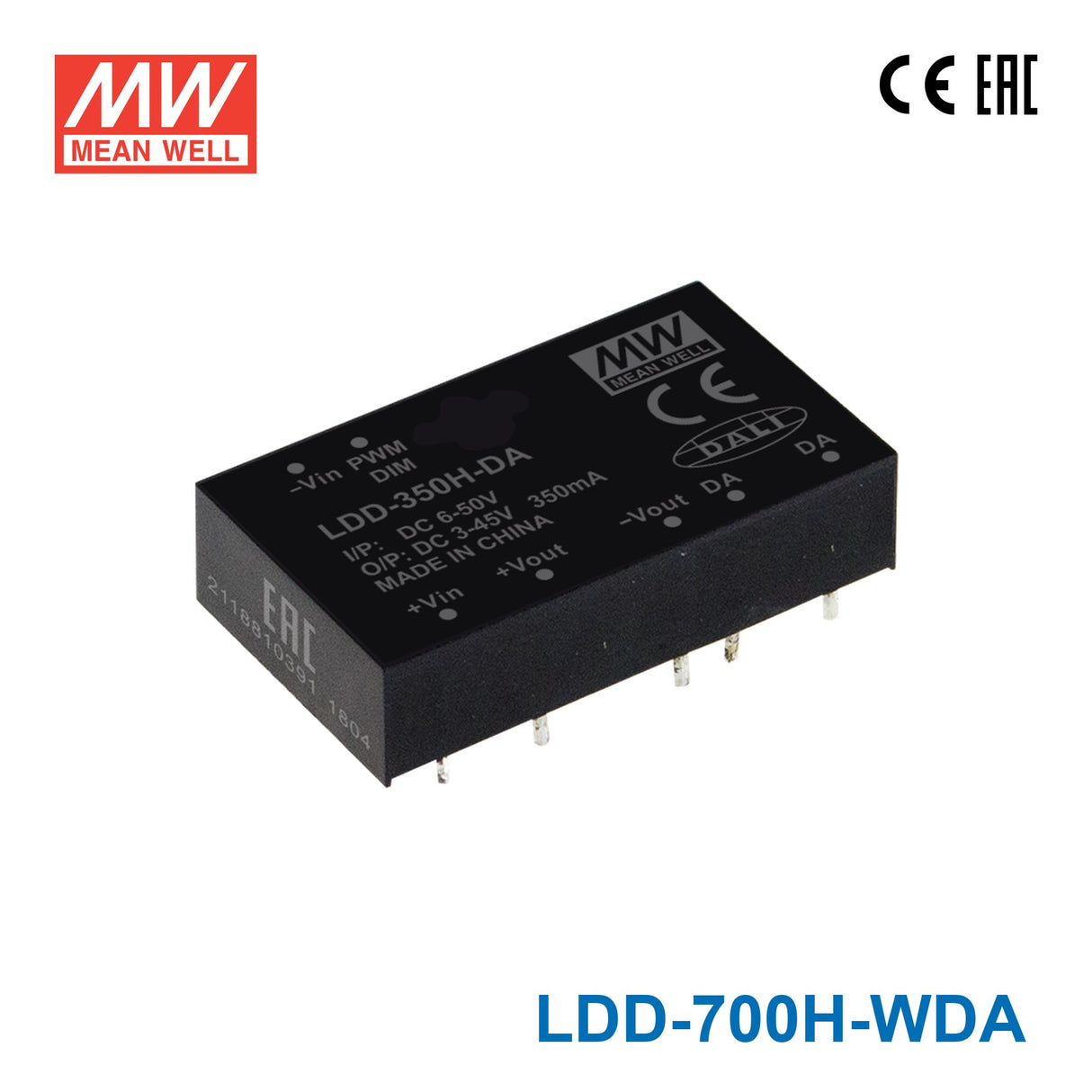

Mean Well LDD-700H-WDA DC/DC LED Driver CC 700mA - Step-down

constant current, step down, high efficiency up to 97%, IP67, pin style

SKU:

LDD-700H-WDA

$14.36 USD ~~$50.25~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

DC/DC step-down converter

Constant current output: 350mA to 1400mA

Wide input voltage: 6~50VDC; Wide output LED string voltage: 3~45VDC

High efficiency up to 95%

Built-in EMI filter, comply with BS EN/EN55015 and FCC part15 without additional input filter and capacitors

Built-in PWM and remote ON/OFF control

Protections: Short circuit

Cooling by free air convection

Fully encapsulated with IP65 level

Compact size

Suitable for driving illumination LED

3 years warranty

General Specification

Current accuracy	±5% at 48VDC input
Over temperature protection	Protection type : Shut down, recovers automatically after temperature goes down
Efficiency	95% at full load and 48VDC input
Short circuit protection	Regulated at rated output current
Working temperature	-40°C to +85°C
EMC	Compliance to EN55015 class B, EN61000-4-2,3,4,6,8, EAC TP TC 020
Temp. Coefficient	±0.03% / °C
Dimension (LxWxH) (mm)	40.623.510.1mm or 1.6"0.93"0.40" inch
Potting material	Expoxy(UL94-V0)

Specifications

Brand

Mean Well
Series

LDD Series
Power Rating

31.5 Watt
Output Voltage

45 Volt
Rated Current

0.7 Ampere
Input Voltage

6V~50V
No of Output

1
Dimming Control

DALI
Standards Met

CE,EAC
Operation Mode

Constant Current
Operating Temperature

-40°C~85°C
Warranty

3 Year
Length

1.6 in
Width

0.93 in
Height

0.4 in
Weight

0.04 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the LDD-700H-WDA for a 700mA LED downlight engine?

Yes, this is a constant current step-down driver with a 700mA output. It supports LED loads across a 3-45V constant current range and up to 31.5W. That makes it suitable for downlight engines designed around 700mA constant current within that voltage range.

Is the LDD-700H-WDA suitable for compact signage light engines?

It can be used for compact signage light engines when the LED load requires 700mA constant current. The driver's output window is 3-45V with a maximum power of 31.5W. Loads designed for constant voltage should use a constant voltage driver instead.

Can this model power a small LED array with a lower input range?

Yes, this version is specified with a 6-50VAC input range, which is lower than the 9-56VAC range used by some other LDD models in the data provided. On the output side, it delivers 700mA constant current across 3-45V and up to 31.5W. It is suited to small LED arrays that stay inside those output limits.

Can the LDD-700H-WDA be used in wet or outdoor equipment?

The driver carries an IP67 waterproof rating, so it is intended for applications needing that level of ingress protection. Its operating temperature range is -40°C to +85°C, which supports demanding environmental conditions. The complete assembly still needs the rest of the system to be designed for the same environment.

How do I check LED compatibility with the LDD-700H-WDA?

Use it with LEDs that are designed for 700mA constant current and whose total forward voltage falls within the 3-45V constant current range. The number of LEDs will vary because it depends on each LED's forward voltage. This driver regulates current, so it is not intended for constant voltage LED loads.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well LDD-700H-DA DC/DC LED Driver CC 700mA - Step-down	31.5W	45V	0.7A	—	$15.22	View
