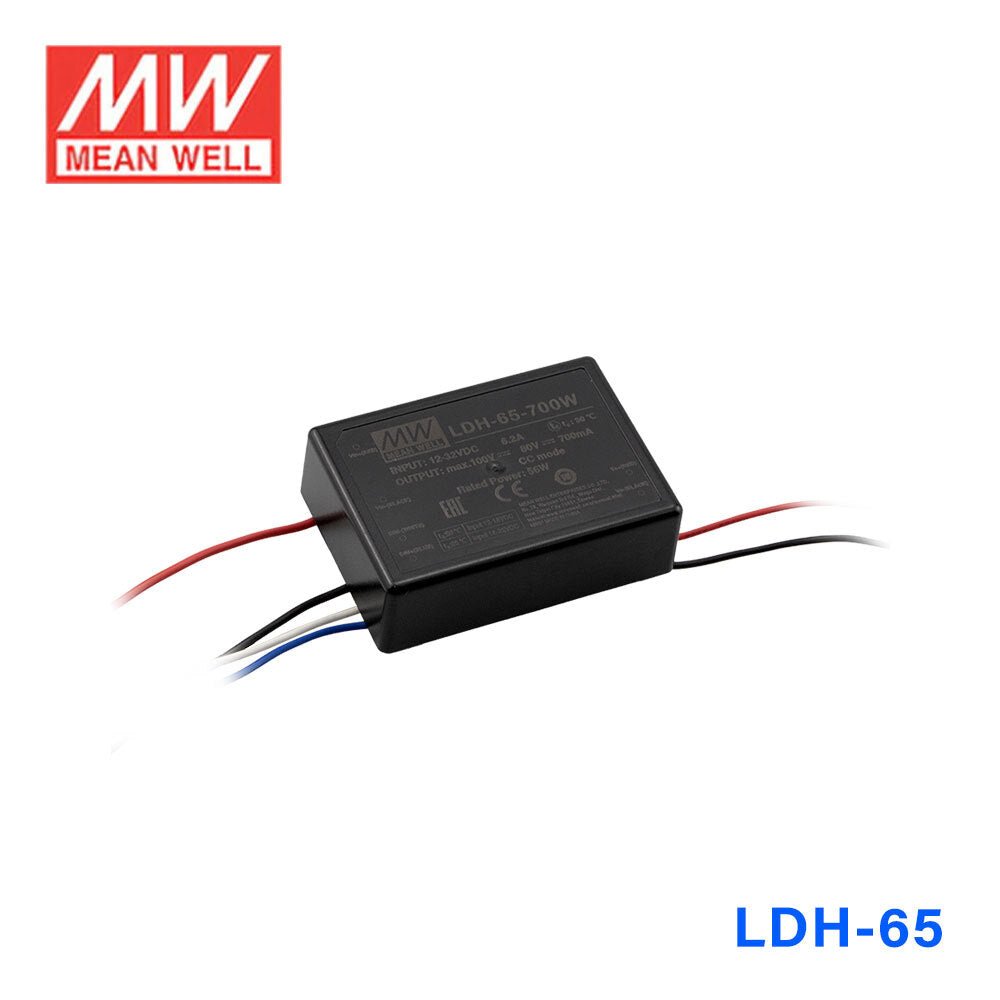

Mean Well LDH DC/DC LED Driver CC 1050mA - Step-up - with Wire

Name: Mean Well LDH DC/DC LED Driver CC 1050mA - Step-up - with Wire
Brand: Mean Well
SKU: LDH-65-1050W
Price: 14.95 USD
Availability: InStock

constant currentstep uphigh efficiency up to 95%wire style

SKU LDH-65-1050W

$14.95 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

LDH-65-1050W is the model of this series: rated current 1050mA, rated power 63.0W, typical efficiency 91.5%/12V 95.5%/24V.

LDH-65 series is a 65W DC/DC LED driver featuring constant current output. LDH-65 operates from 9.5～32VDC and offers models with different rated current ranging between 700mA and 1750mA. With the high efficiency up to 96%, The 94V-0 flame retardant plastic case the fully-potted silicone enhance the heat dissipation allows this series to fit solar LED street light. LDH-65 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for DC source LED lighting system.

Features

Wide DC input voltage operation 9.5~32V
DC/DC step-up converter
Constant current output : 700mA to 1750mA
Wide output LED forward voltage up to 80V DC
High efficiency up to 96%
2 in 1 dimming (0-10V,PWM)
Protections: Short circuit / Over voltage
Cooling by free air convection
Fully encapsulated
3 years warranty

Specifications

LDH-65-1050WSpecifications from the official datasheet (2024-10-16 edition)

OUTPUT

RATED CURRENT: 1050mA
CURRENT ACCURACY(Typ.): ±5% at 12VDC input and 24VDC input
VOLTAGE RANGE^Note.2: 12.5~60VDC
RATED POWER: 63.0W
CURRENT RIPPLE: 5%(@rated current)

INPUT

VOLTAGE RANGE^Note.2: 9.5~32VDC
EFFICIENCY (Typ.): 91.5%/12V 95.5%/24V
DC CURRENT (Typ.): 6.2A/12VDC, 3.1A/24VDC

DIMMING

DIMMING FUNCTION^Note.2: Leave open if not used 1KHz-3KHz 10V PWM signal or 0-10V DC input
QUIESCENT INPUT CURRENT IN SHUTDOWN MODE(Typ.): 10mA when PWM dimming OFF @12VDC

PROTECTION

SHORT CIRCUIT: Output short circuit, the power supply will be damaged
OVER VOLTAGE: 61~100V
NO LOAD: Output voltage rise to OVP, and drop equal to input voltage, re-power to recovery

ENVIRONMENT

WORKING TEMP.: -40 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SOLDERING TEMPERATURE: Wave soldering: 265℃,5s (max.); Manual soldering: 390℃,3s (max.)

SAFETY & EMC

SAFETY STANDARDS: LVD BS EN/EN61347-1, BS EN/EN61347-2-13, EAC TP TC 004 approved
EMC EMISSION^Note.5: Compliance to BS EN/EN55015;EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61547,BS EN/EN61000-4-2,3,4,6,8; light industry level, EAC TP TC 020

OTHERS

MTBF: 9118.4K hrs min. Telcordia TR/SR-332(Bellcore); 874.9 Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 75*53*22.7mm (L*W*H)
PACKING: Pin mounted style: 152g; 100pcs/15.2kg/0.86CUFT Lead wire style: 159g; 100pcs/15.9kg/1.07CUFT

Test conditions and notes5

1.All parameters are specified at normal input(12VDC), rated load, 25℃ 70% RH ambient.
2.Non dimming application: Output voltage must step up by 3 volts from input DC voltage Dimming application: Output voltage must be twice higher than the input DC voltage If input voltage down below 11, the output current may drop to more than 80% of the rated current
3.This series meets the typical life expectancy of >35,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
4.The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
5.BS EN/EN55015 EMI testing layout is based on DC input with a battery source.

Technical drawings

LDH-65-1050W Mechanical Specification — Mechanical Specification

LDH-65-1050W Standard Application — Standard Application

LDH-65-1050W Efficiency VS Load — Efficiency VS Load

LDH-65-1050W Application Notes of EMC — Application Notes of EMC

Typical applications

DC battery source lighting
Portable lighting
LED solar street lighting
LED greenhouse lighting
LED Low-bay lighting

Downloads

Certificates2

CE Certificate(LDH-65)(EN) PDF Download

EMC Certificate(LDH-65)(EN) PDF Download

FAQ

Can the LDH-65-1050W be used for a 1050mA LED downlight array?

Yes, if the downlight array is designed for constant current at 1050mA. The total LED forward voltage needs to stay within the 12.5-60V CC range, and the driver is rated for 63W.

Is this driver appropriate for compact LED arrays that need a step-up constant-current source?

Yes. The LDH-65-1050W is a step-up constant-current driver with a 1050mA output and a 12.5-60V constant-current range, so it suits compact LED arrays in that operating window. It is not intended for constant-voltage LED products.

Can I use this model with LED signage modules that are not constant voltage?

Yes, provided the signage module is a constant-current load rated for 1050mA. The module's total forward voltage must be within 12.5-60V, and the total load must not exceed 63W.

How does LED sizing work with the LDH-65-1050W?

The driver regulates 1050mA, so compatibility depends on the LED load's total forward voltage staying within 12.5-60V. The actual number of LEDs depends on each LED's forward voltage, which is why there is no single fixed LED count for this model.

Can this wire-style version be used in hot or cold environments?

It is rated for operation from -40°C to +60°C, with load derating per the derating curve, so it can handle a wide ambient range. No IP rating is listed, so environmental protection against water or dust depends on the housing or fixture around the driver.
