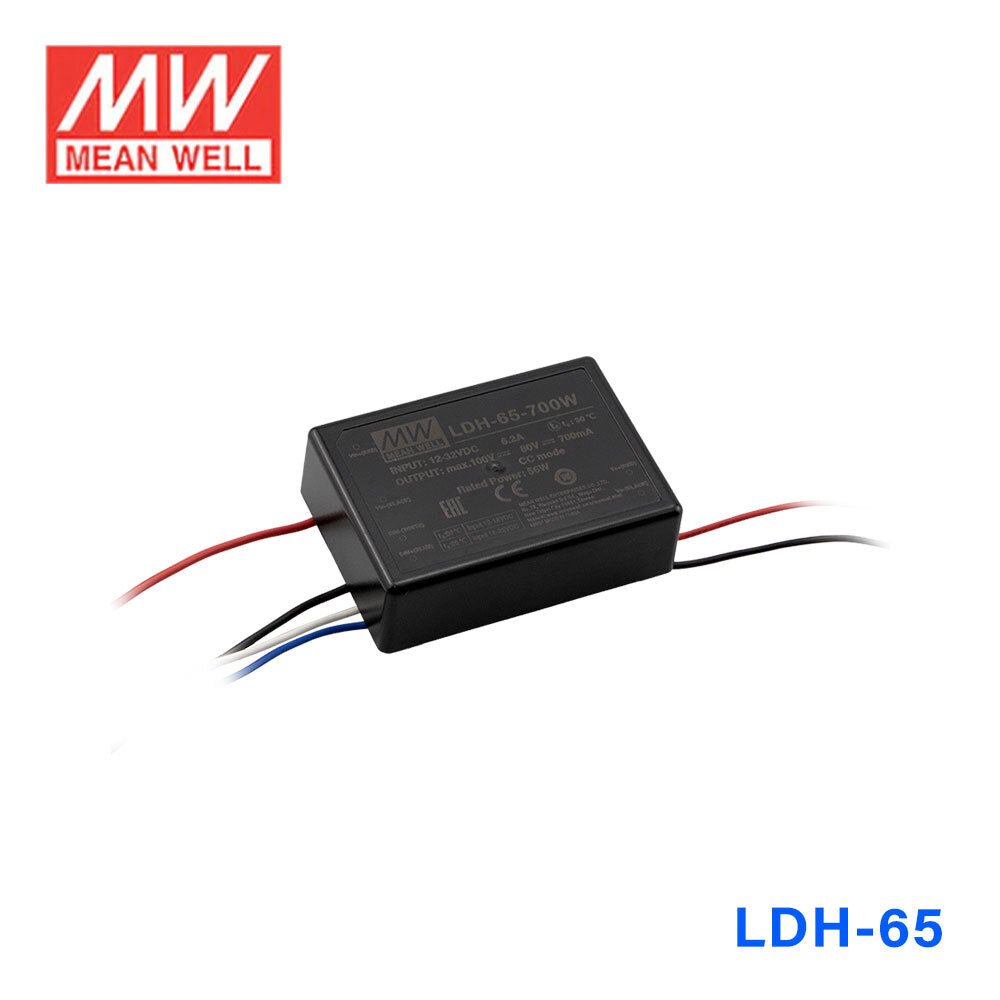

Mean Well LDH DC/DC LED Driver CC 1400mA - Step-up - with Wire

Name: Mean Well LDH DC/DC LED Driver CC 1400mA - Step-up - with Wire
Brand: Mean Well
SKU: LDH-65-1400W
Price: 14.95 USD
Availability: InStock

constant currentstep uphigh efficiency up to 95%wire style

SKU LDH-65-1400W

$14.95 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

LDH-65-1400W is the model of this series: rated current 1400mA, rated power 64.4W, typical efficiency 92%/12V 95%/24V.

LDH-65 series is a 65W DC/DC LED driver featuring constant current output. LDH-65 operates from 9.5～32VDC and offers models with different rated current ranging between 700mA and 1750mA. With the high efficiency up to 96%, The 94V-0 flame retardant plastic case the fully-potted silicone enhance the heat dissipation allows this series to fit solar LED street light. LDH-65 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for DC source LED lighting system.

Features

Wide DC input voltage operation 9.5~32V
DC/DC step-up converter
Constant current output : 700mA to 1750mA
Wide output LED forward voltage up to 80V DC
High efficiency up to 96%
2 in 1 dimming (0-10V,PWM)
Protections: Short circuit / Over voltage
Cooling by free air convection
Fully encapsulated
3 years warranty

Specifications

LDH-65-1400WSpecifications from the official datasheet (2024-10-16 edition)

OUTPUT

RATED CURRENT: 1400mA
CURRENT ACCURACY(Typ.): ±5% at 12VDC input and 24VDC input
VOLTAGE RANGE^Note.2: 12.5~46VDC
RATED POWER: 64.4W
CURRENT RIPPLE: 5%(@rated current)

INPUT

VOLTAGE RANGE^Note.2: 9.5~32VDC
EFFICIENCY (Typ.): 92%/12V 95%/24V
DC CURRENT (Typ.): 6.2A/12VDC, 3.1A/24VDC

DIMMING

DIMMING FUNCTION^Note.2: Leave open if not used 1KHz-3KHz 10V PWM signal or 0-10V DC input
QUIESCENT INPUT CURRENT IN SHUTDOWN MODE(Typ.): 10mA when PWM dimming OFF @12VDC

PROTECTION

SHORT CIRCUIT: Output short circuit, the power supply will be damaged
OVER VOLTAGE: 47~80V
NO LOAD: Output voltage rise to OVP, and drop equal to input voltage, re-power to recovery

ENVIRONMENT

WORKING TEMP.: -40 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SOLDERING TEMPERATURE: Wave soldering: 265℃,5s (max.); Manual soldering: 390℃,3s (max.)

SAFETY & EMC

SAFETY STANDARDS: LVD BS EN/EN61347-1, BS EN/EN61347-2-13, EAC TP TC 004 approved
EMC EMISSION^Note.5: Compliance to BS EN/EN55015;EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61547,BS EN/EN61000-4-2,3,4,6,8; light industry level, EAC TP TC 020

OTHERS

MTBF: 9118.4K hrs min. Telcordia TR/SR-332(Bellcore); 874.9 Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 75*53*22.7mm (L*W*H)
PACKING: Pin mounted style: 152g; 100pcs/15.2kg/0.86CUFT Lead wire style: 159g; 100pcs/15.9kg/1.07CUFT

Test conditions and notes5

1.All parameters are specified at normal input(12VDC), rated load, 25℃ 70% RH ambient.
2.Non dimming application: Output voltage must step up by 3 volts from input DC voltage Dimming application: Output voltage must be twice higher than the input DC voltage If input voltage down below 11, the output current may drop to more than 80% of the rated current
3.This series meets the typical life expectancy of >35,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
4.The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
5.BS EN/EN55015 EMI testing layout is based on DC input with a battery source.

Technical drawings

LDH-65-1400W Mechanical Specification — Mechanical Specification

LDH-65-1400W Standard Application — Standard Application

LDH-65-1400W Efficiency VS Load — Efficiency VS Load

LDH-65-1400W Application Notes of EMC — Application Notes of EMC

Typical applications

DC battery source lighting
Portable lighting
LED solar street lighting
LED greenhouse lighting
LED Low-bay lighting

Downloads

Certificates2

CE Certificate(LDH-65)(EN) PDF Download

EMC Certificate(LDH-65)(EN) PDF Download

FAQ

Can the LDH-65-1400W run a high-current LED downlight array?

Yes, if the downlight array is built for constant current at 1400mA. The total LED forward voltage must stay within the 12.5-46V CC range, and the driver is rated for 64.4W.

Is this driver suitable for small LED arrays that need 1400mA constant current?

Yes. The LDH-65-1400W provides 1400mA constant current over a 12.5-46V range, which fits small LED arrays designed for that current level. It should not be treated as a constant-voltage LED power supply.

Can I use this wire-style model for constant-current signage modules?

Yes, if the signage module is designed for constant current at 1400mA. The module's total forward voltage must be within 12.5-46V, and the total power draw must stay within 64.4W.

What determines whether my LED load is compatible with the LDH-65-1400W?

The LED load needs to be a constant-current load rated for 1400mA, with a combined forward voltage inside the 12.5-46V CC range. The number of LEDs varies with the forward voltage of each LED, so there is no single fixed LED quantity.

Can this driver be used where temperature swings are a concern?

Yes, it is rated for operation from -40°C to +60°C, with load derating per the derating curve. No IP rating is listed, so moisture and dust protection must come from the enclosure or finished fixture rather than the driver itself.
