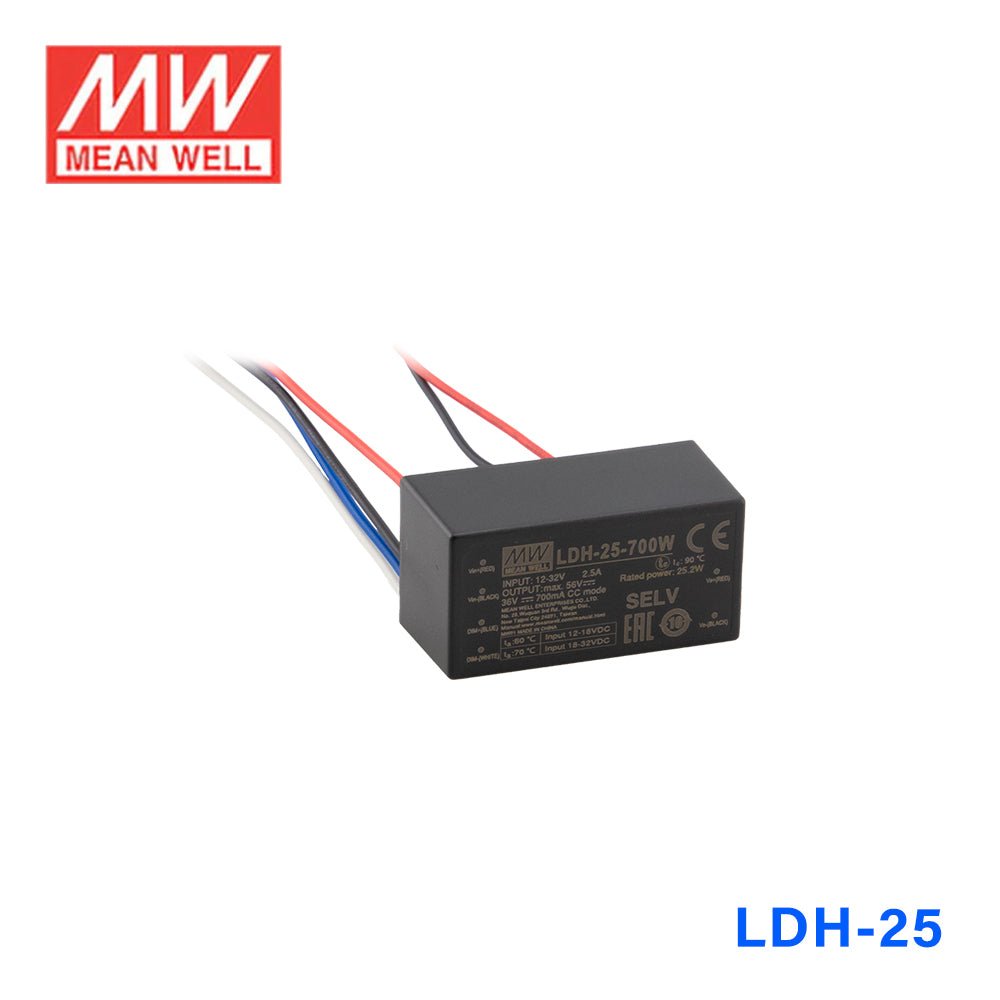

Mean Well LDH DC/DC LED Driver CC 500mA - Step-up - with Wire
constant current, step up, high efficiency up to 95%, wire style
SKU:
LDH-25-500W
$8.50 USD
Unit price /
Unavailable
Shipping calculated at checkout.
|
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LDH DC/DC LED Driver CC 500mA - Step-up - with Wire
$8.50 USD
Unit price /
Unavailable
Description
Description
Features
| Wide DC input voltage operation 9.5~32V |
| DC/DC step-up converter |
| Constant current output: 250ma to 700mA |
| Wide output LED forward voltage up to 84V DC |
| High efficiency up to 95.5% |
| 2-in-1 dimming(0-10V, PWM) |
| Protections: Short circuit/ Over voltage |
| Cooling by free air convection |
| Fully encapsulated |
| 3 years warranty |
General Specification
| Current accuracy | ±5% |
| Over-voltage protection | up to 140% output voltage |
| Efficiency | 95.5% |
| Short circuit protection | Output short circuit, the power supply will be damaged |
| Working temperature | -40°C to +70°C |
| EMC | Compliance to EN55015, EN61000-4-2,3,4,6,8, EAC TP TC 020 |
| Temp. Coefficient | ±0.03% / °C |
| Dimension (LxWxH) (mm) | 52.4x27.2x24 |
| Packing | 200pcs/11Kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesLDH Series
-
Power Rating25 Watt
-
Output Voltage50 Volt
-
Rated Current0.5 Ampere
-
Input Voltage9.5V~32V
-
No of Output1
-
Dimming Control0-10V,PWM
-
Standards MetCE
-
Operation ModeConstant Current
-
Operating Temperature-40°C~70°C
-
Warranty3 Year
-
Length2.06 in
-
Width1.07 in
-
Height0.94 in
-
Weight0.13 lb
