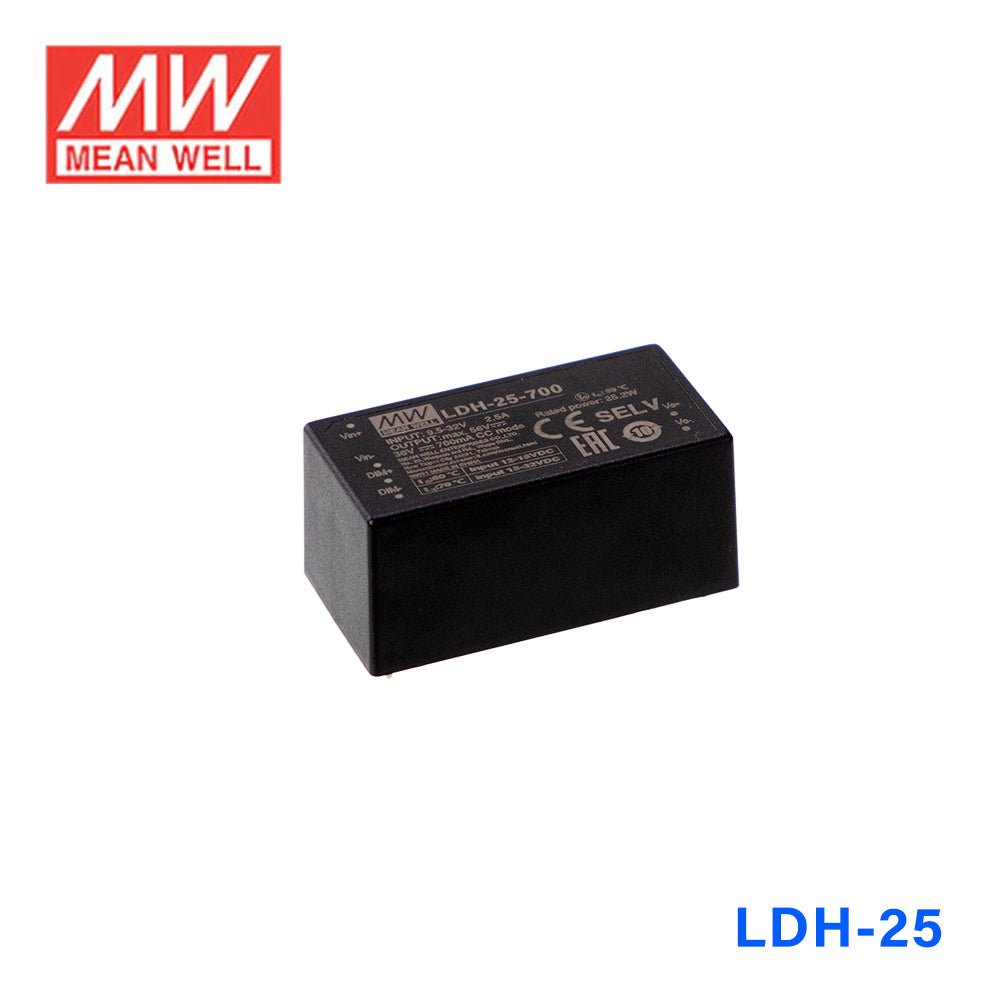

Mean Well LDH DC/DC LED Driver CC 700mA - Step-up

constant current, step up, high efficiency up to 95%, pin style
$9.32 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Wide DC input voltage operation 9.5~32V
DC/DC step-up converter
Constant current output: 250ma to 700mA
Wide output LED forward voltage up to 84V DC
High efficiency up to 95.5%
2-in-1 dimming(0-10V, PWM)
Protections: Short circuit/ Over voltage
Cooling by free air convection
Fully encapsulated
3 years warranty

General Specification

Current accuracy ±5%
Over-voltage protection up to 140% output voltage
Efficiency 95.5%
Short circuit protection Output short circuit, the power supply will be damaged
Working temperature -40°C to +70°C
EMC Compliance to EN55015, EN61000-4-2,3,4,6,8, EAC TP TC 020
Temp. Coefficient ±0.03% / °C
Dimension (LxWxH) (mm) 52.4x27.2x24
Packing 200pcs/11Kg

Specifications

  • Brand
    Mean Well
  • Series
    LDH Series
  • Power Rating
    25.2 Watt
  • Output Voltage
    36 Volt
  • Rated Current
    0.7 Ampere
  • Input Voltage
    9.5V~32V
  • No of Output
    1
  • Dimming Control
    0-10V,PWM
  • Standards Met
    CE
  • Operation Mode
    Constant Current
  • Operating Temperature
    -40°C~70°C
  • Warranty
    3 Year
  • Length
    2.06 in
  • Width
    1.07 in
  • Height
    0.94 in
  • Weight
    0.11 lb

File Downloads
