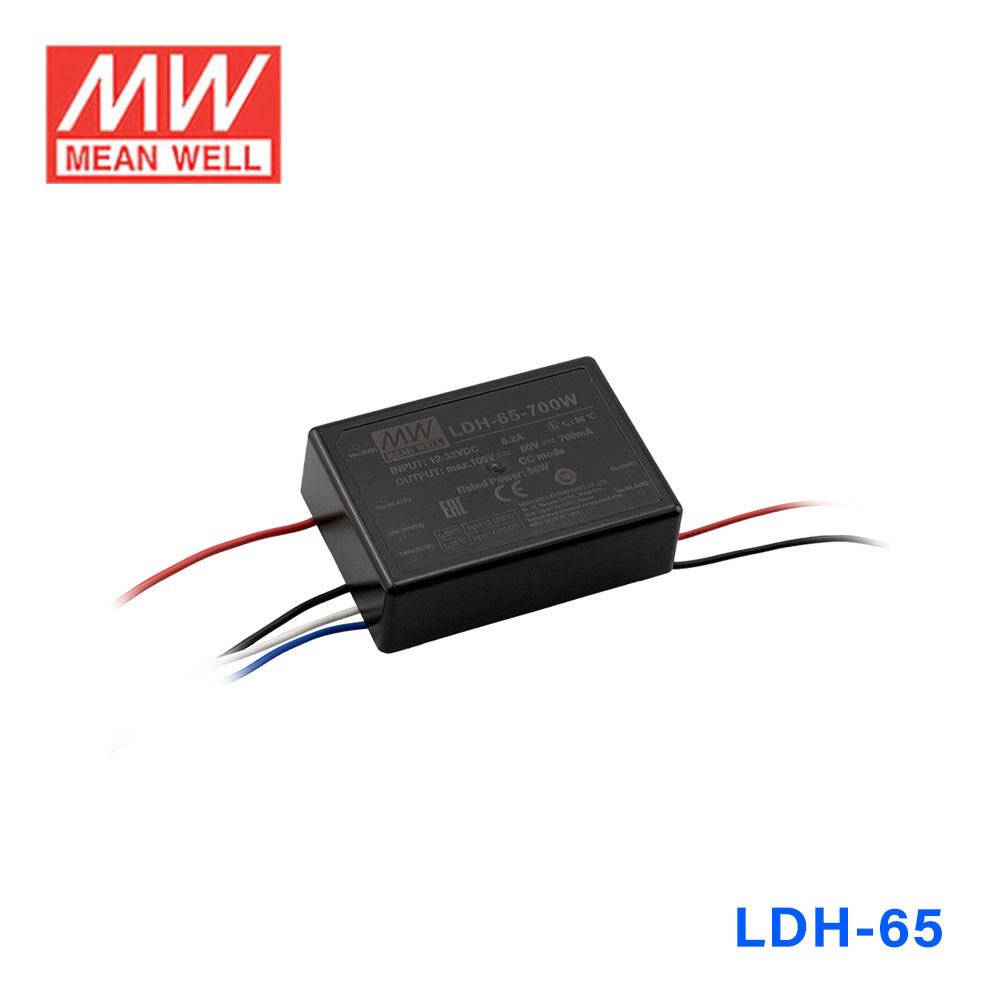

Mean Well LDH DC/DC LED Driver CC 700mA - Step-up - with Wire
Overview
LDH-65-700W is the model of this series: rated current 700mA, rated power 56.0W, typical efficiency 91%/12V 95%/24V.
LDH-65 series is a 65W DC/DC LED driver featuring constant current output. LDH-65 operates from 9.5～32VDC and offers models with different rated current ranging between 700mA and 1750mA. With the high efficiency up to 96%, The 94V-0 flame retardant plastic case the fully-potted silicone enhance the heat dissipation allows this series to fit solar LED street light. LDH-65 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for DC source LED lighting system.
Features
- Wide DC input voltage operation 9.5~32V
- DC/DC step-up converter
- Constant current output : 700mA to 1750mA
- Wide output LED forward voltage up to 80V DC
- High efficiency up to 96%
- 2 in 1 dimming (0-10V,PWM)
- Protections: Short circuit / Over voltage
- Cooling by free air convection
- Fully encapsulated
- 3 years warranty
Specifications
OUTPUT
- RATED CURRENT
- 700mA
- CURRENT ACCURACY(Typ.)
- ±5% at 12VDC input and 24VDC input
- VOLTAGE RANGENote.2
- 12.5~80VDC
- RATED POWER
- 56.0W
- CURRENT RIPPLE
- 5%(@rated current)
INPUT
- VOLTAGE RANGENote.2
- 9.5~32VDC
- EFFICIENCY (Typ.)
- 91%/12V 95%/24V
- DC CURRENT (Typ.)
- 6.2A/12VDC, 3.1A/24VDC
DIMMING
- DIMMING FUNCTIONNote.2
- Leave open if not used 1KHz-3KHz 10V PWM signal or 0-10V DC input
- QUIESCENT INPUT CURRENT IN SHUTDOWN MODE(Typ.)
- 10mA when PWM dimming OFF @12VDC
PROTECTION
- SHORT CIRCUIT
- Output short circuit, the power supply will be damaged
- OVER VOLTAGE
- 81~120V
- NO LOAD
- Output voltage rise to OVP, and drop equal to input voltage, re-power to recovery
ENVIRONMENT
- WORKING TEMP.
- -40 ~ +60℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
- SOLDERING TEMPERATURE
- Wave soldering: 265℃,5s (max.); Manual soldering: 390℃,3s (max.)
SAFETY & EMC
- SAFETY STANDARDS
- LVD BS EN/EN61347-1, BS EN/EN61347-2-13, EAC TP TC 004 approved
- EMC EMISSIONNote.5
- Compliance to BS EN/EN55015;EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61547,BS EN/EN61000-4-2,3,4,6,8; light industry level, EAC TP TC 020
OTHERS
- MTBF
- 9118.4K hrs min. Telcordia TR/SR-332(Bellcore); 874.9 Khrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 75*53*22.7mm (L*W*H)
- PACKING
- Pin mounted style: 152g; 100pcs/15.2kg/0.86CUFT Lead wire style: 159g; 100pcs/15.9kg/1.07CUFT
Test conditions and notes5
- 1.All parameters are specified at normal input(12VDC), rated load, 25℃ 70% RH ambient.
- 2.Non dimming application: Output voltage must step up by 3 volts from input DC voltage Dimming application: Output voltage must be twice higher than the input DC voltage If input voltage down below 11, the output current may drop to more than 80% of the rated current
- 3.This series meets the typical life expectancy of >35,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
- 4.The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 5.BS EN/EN55015 EMI testing layout is based on DC input with a battery source.
Technical drawings
Typical applications
- DC battery source lighting
- Portable lighting
- LED solar street lighting
- LED greenhouse lighting
- LED Low-bay lighting
Downloads
FAQ
Can the LDH-65-700W be used for a 700mA LED downlight?
Yes, it is designed for constant current LED loads that need 700mA and fall within the 12.5-80V CC output range. With 56W output power, it fits downlight assemblies that require current-controlled operation instead of constant voltage input.
Will the LDH-65-700W work for LED channel letters or sign modules?
It can work when the sign modules are built as a 700mA constant current load and the combined LED forward voltage is within 12.5-80V. It should not be used in place of a constant voltage power supply for standard sign modules.
Is this driver appropriate for a small multi-LED array with a wide voltage requirement?
Yes, the 12.5-80V CC range gives this driver flexibility for 700mA constant current LED arrays with a broad total forward voltage requirement. That wider range is one of the main differences between this model and lower-voltage LDH variants.
What kind of LED load is compatible with the LDH-65-700W?
The LEDs must be intended for constant current operation at 700mA, and the total LED forward voltage must stay within the 12.5-80V CC output range. The number of LEDs depends on each LED's forward voltage, so the correct array size varies by LED type.
How is the LDH-65-700W different from the rest of the LDH-65 family?
Within the LDH-65 family, the sibling specs are: LDH-65-700 at 700mA with a 12.5-80V CC range and 56W, LDH-65-1050 and LDH-65-1050W at 1050mA with a 12.5-60V CC range and 63W, LDH-65-1400 and LDH-65-1400W at 1400mA with a 12.5-46V CC range and 64.4W, and LDH-65-1750 and LDH-65-1750W at 1750mA with a 12.5-37V CC range and 64.75W. The LDH-65-700W matches the LDH-65-700 electrically, with the listed distinction being wire style instead of pin style.
