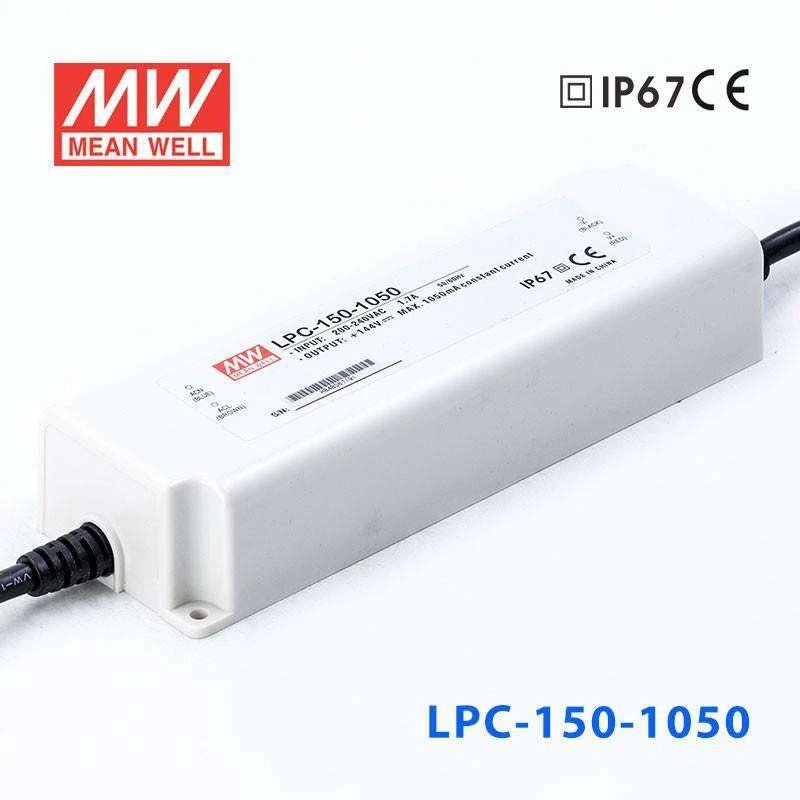

Mean Well LPC-150-1050 Power Supply 150W 1050mA
The LPC-150 is a 150W Mean Well power converter (input range: 180~305VAC, operating temperature: -25~+50℃).
Key Features
- ✓ Input voltage range: 180~305VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -25~+50℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Safety approvals: IP67 approved; refer to EN60950-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesLPC Series
-
Power Rating151.2 Watt
-
Output Voltage144 Volt
-
Rated Current1.05 Ampere
-
Input Voltage180V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Current
-
Operating Temperature-25°C~50°C
-
Warranty2 Year
-
Length7.52 in
-
Width2.48 in
-
Height1.48 in
-
Weight1.63 lb
::specification::
Frequently Asked Questions
Can I use the LPC-150-1050 for a larger LED downlight fixture?
Yes, if the fixture is designed for a constant current input of 1050mA. The LED load must operate within the 72-144V constant current range, and the driver can supply up to 151.2W.
Is the LPC-150-1050 a good fit for higher-power signage modules?
It can be a fit for signage modules built around a 1050mA constant current input. This model supports higher-power LED assemblies up to 151.2W, provided the total LED forward voltage stays within 72-144V.
Can this model power a small LED array with a higher output than 100W drivers?
Yes, this driver is positioned for constant current LED arrays that need 1050mA and more headroom than a 100W class unit. Its 151.2W rating and 72-144V CC range make it suitable for larger series-connected LED arrays than lower-power siblings.
How do I know if my LED load is compatible with the LPC-150-1050?
Your LED load needs to be designed for 1050mA constant current and have a total forward voltage within 72-144V. This is not a constant voltage driver, and the number of LEDs depends on each LED's forward voltage rather than a fixed quantity.
Is the LPC-150-1050 suitable for damp or outdoor environments?
Yes, the enclosure is rated IP67, so it is built for wet and dusty conditions. It is also specified for operation from -25°C to +50°C, which covers many indoor and outdoor commercial lighting environments.
