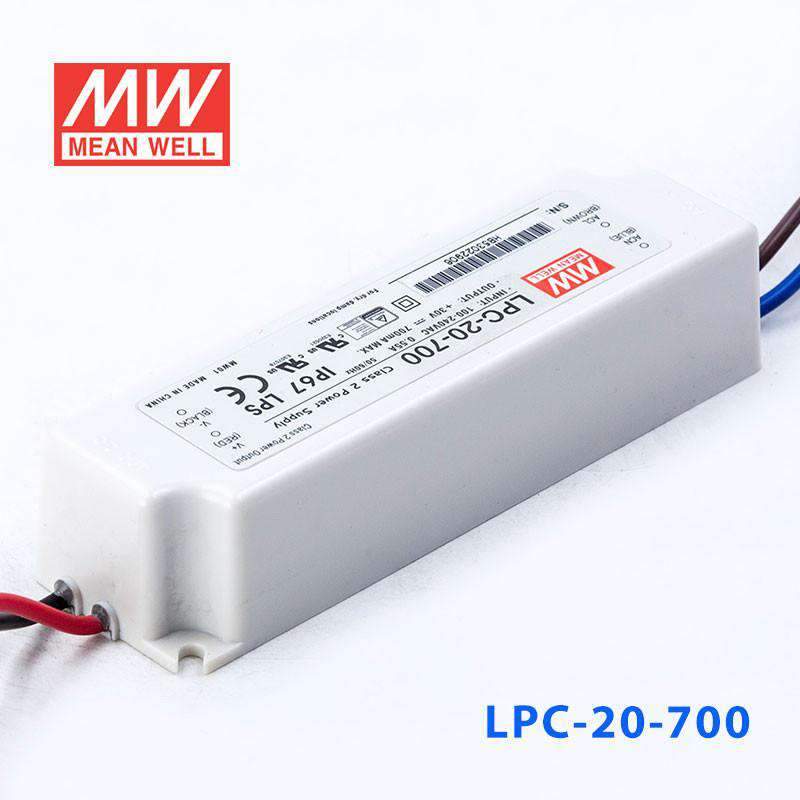

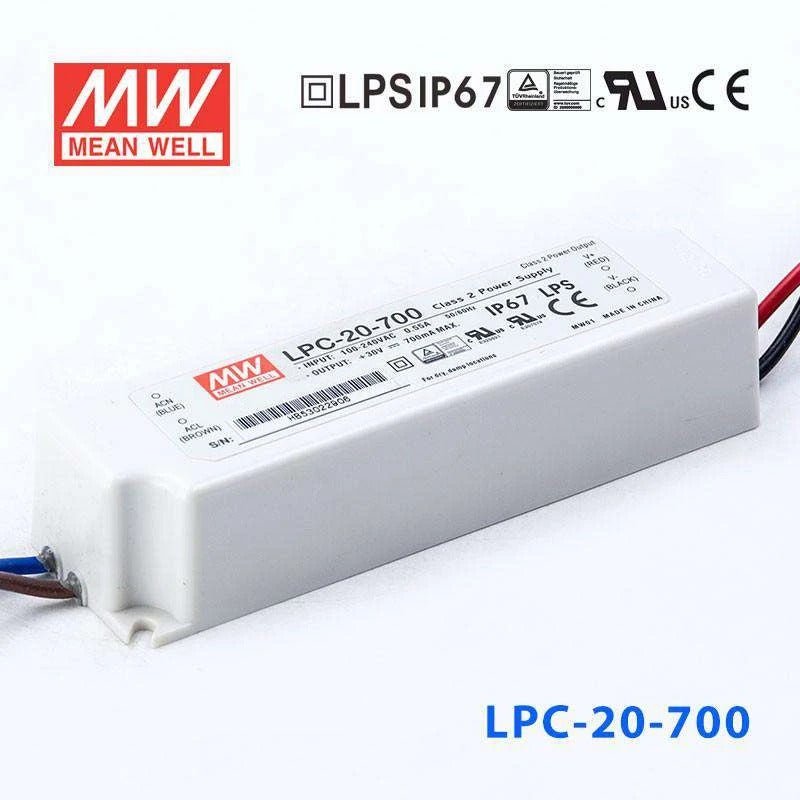

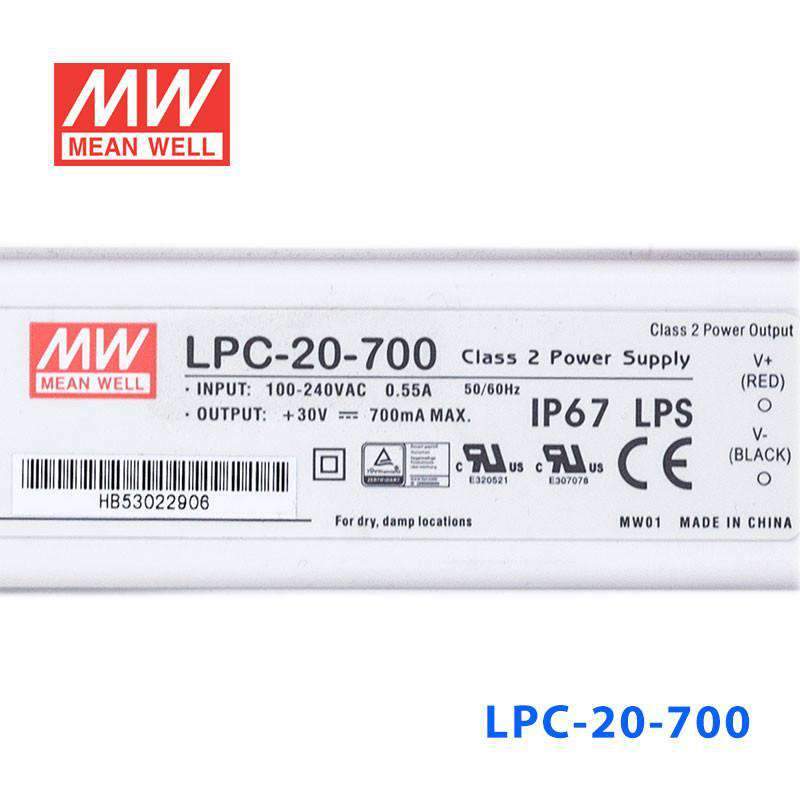

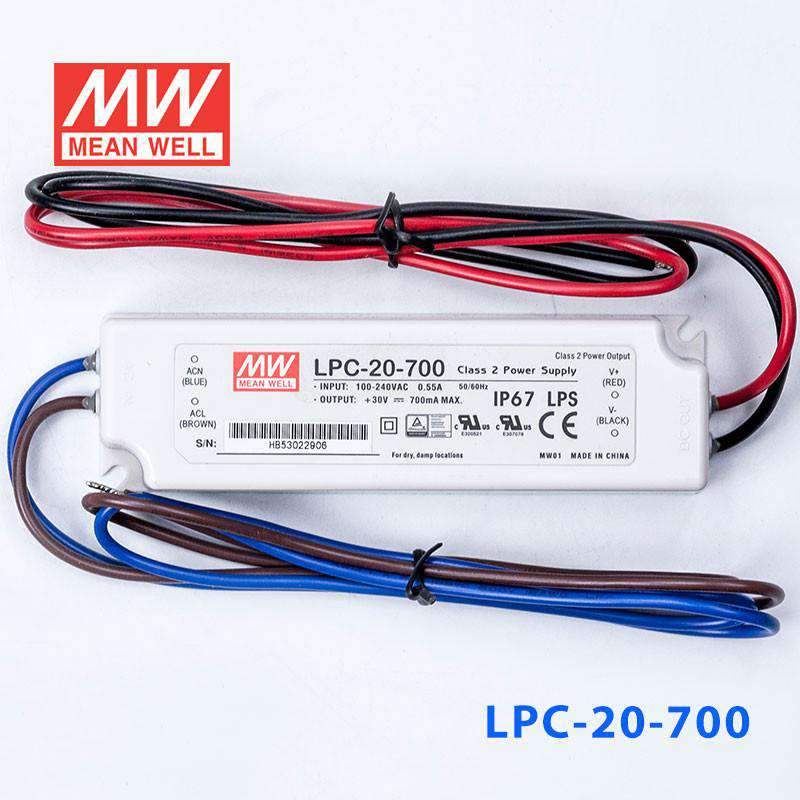

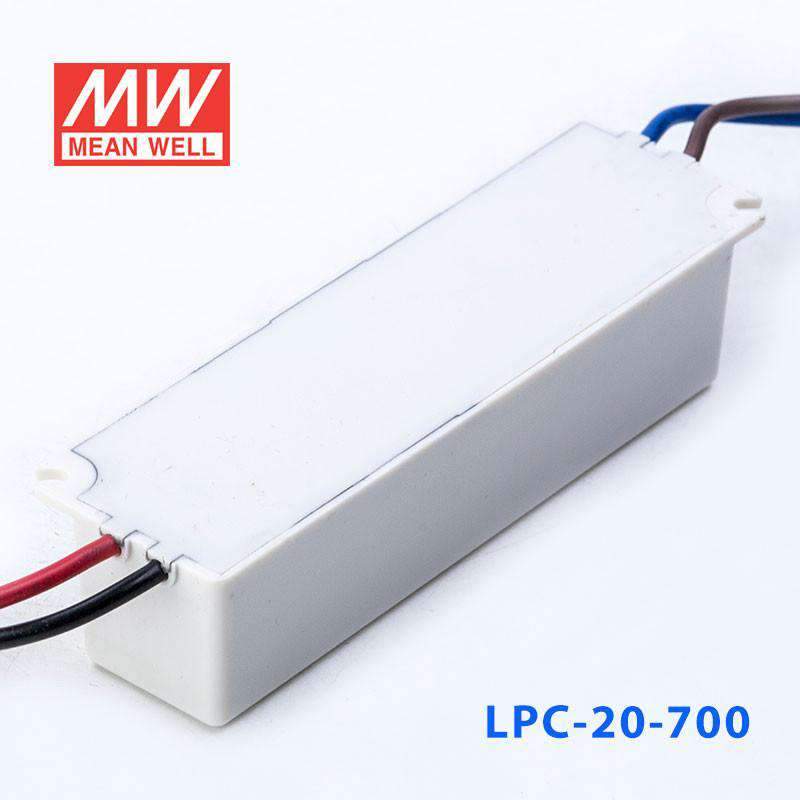

Mean Well LPC-20-700 Power Supply 20W 700mA

slim plastic case, economical, IP67
SKU:
LPC-20-700

Model
$11.22 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Description

Features

90~264VAC input
Fully encapsulated with IP67 level
Protections: Short circuit / Over voltage
Constant current design (C.C. mode)
Withstand 300VAC surge input for 5 seconds
Class 2 power unit / Pass LPS
Isolation class II, no F.G.
Cooling by free air convection
100% full load burn-in test
Low cost, high reliability
Suitable for LED-based decorative/architectural lighting, LED stage and theater lighting, and LED electronic displays
2 years warranty


General Specification

AC input voltage range 90~264VAC
AC inrush current Cold start, 70A at 230VAC
Over voltage protection 105%~135% rated output voltage
Withstand voltage I/P-O/P: 3kVAC
Working temperature -30~+70°C
Vibration 10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes
Safety standards LPC-20: UL1310, UL879, TUV EN60950-1 approved, LPC-35/60: UL1310 approved, LPC-150: Design refer to IEC60950-1
EMC standards EN55022 class B, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11
Connection Input UL rated, 18AWGx2C (60cm)
Connection Output UL rated, 18AWGx2C (60cm)
Dimension (LxWxH)(mm) 118x 35x 26

Specifications

  • Brand
    Mean Well
  • Series
    LPC Series
  • Power Rating
    21 Watt
  • Output Voltage
    30 Volt
  • Rated Current
    0.7 Ampere
  • Input Voltage
    90V~264V
  • No of Output
    1
  • Dimming Control
    None
  • Standards Met
    CE,EAC,TUV,UL
  • Operation Mode
    Constant Current
  • Operating Temperature
    -30°C~70°C
  • Warranty
    2 Year
  • Length
    4.65 in
  • Width
    1.38 in
  • Height
    1.02 in
  • Weight
    0.49 lb

File Downloads

::specification::
