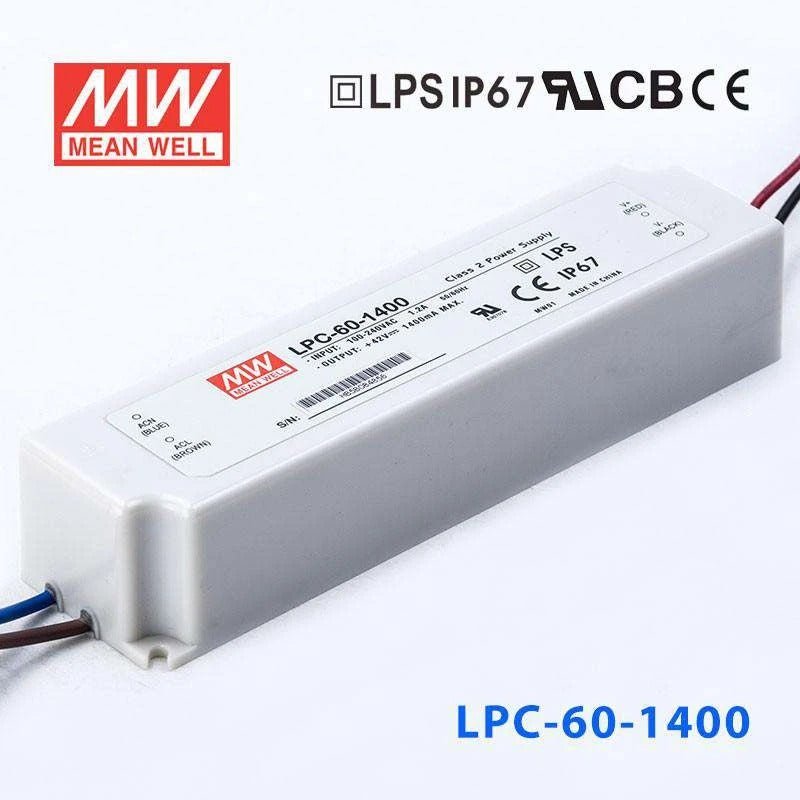

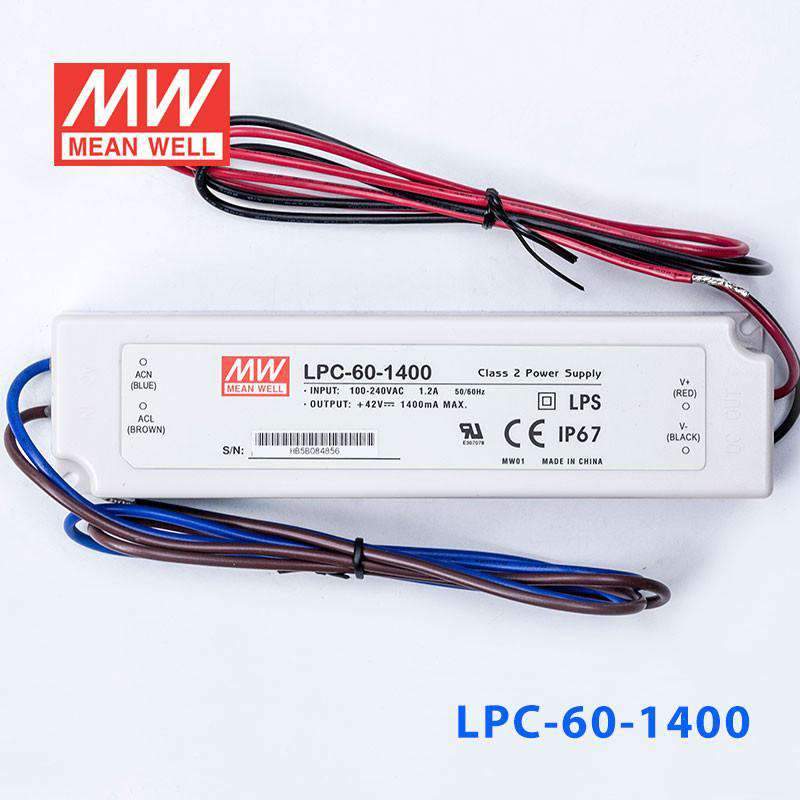

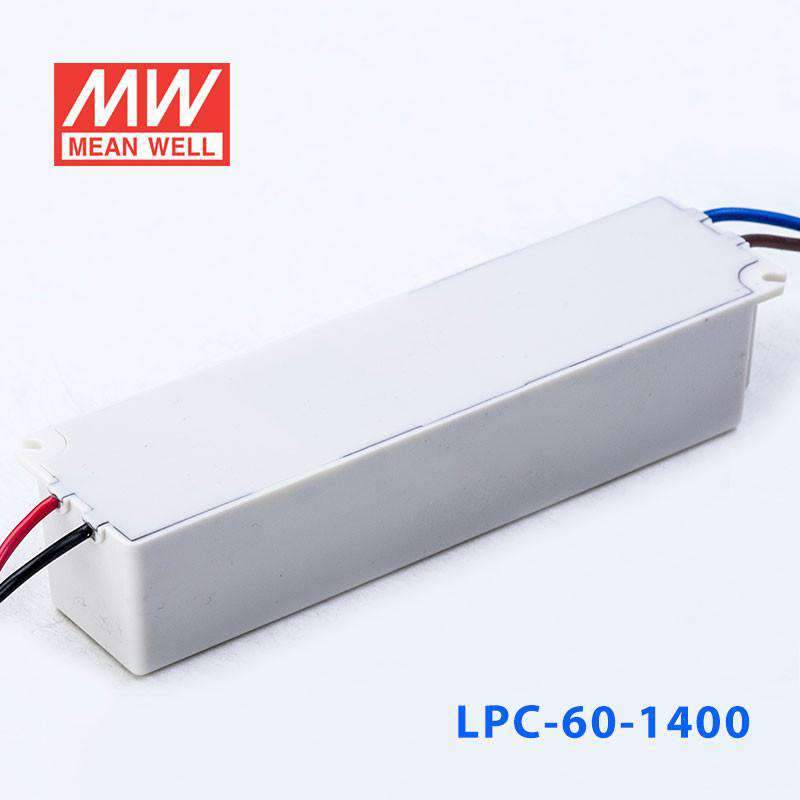

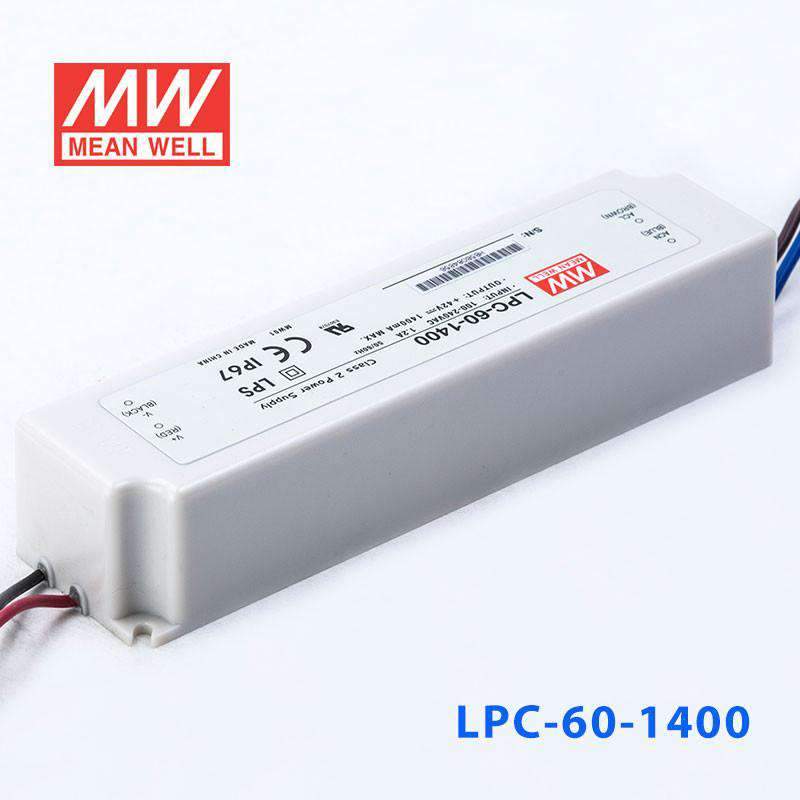

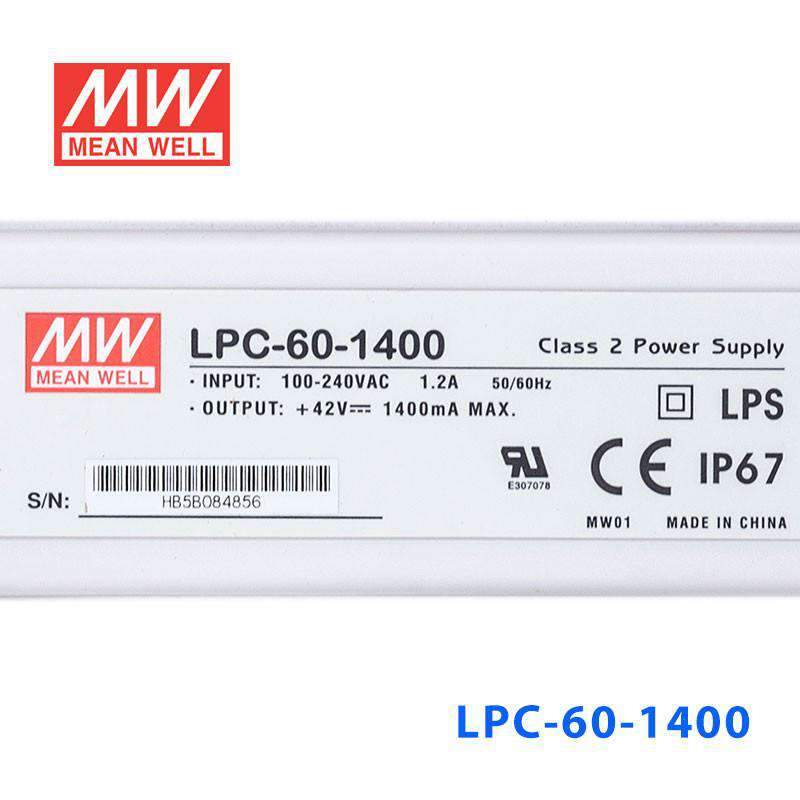

Mean Well LPC-60-1400 Power Supply 60W 1400mA
Description
Description
Features
| 90~264VAC input |
| Fully encapsulated with IP67 level |
| Protections: Short circuit / Over voltage |
| Constant current design (C.C. mode) |
| Withstand 300VAC surge input for 5 seconds |
| Class 2 power unit / Pass LPS |
| Isolation class II, no F.G. |
| Cooling by free air convection |
| 100% full load burn-in test |
| Low cost, high reliability |
| Suitable for LED-based decorative/architectural lighting, LED stage and theater lighting, and LED electronic displays |
| 2 years warranty |
General Specification
| AC input voltage range | 90~264VAC |
| AC inrush current | Cold start, 60A at 230VAC |
| Over voltage protection | 105%~135% rated output voltage |
| Withstand voltage | I/P-O/P: 3kVAC |
| Working temperature | -30~+70°C |
| Vibration | 10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes |
| Safety standards | LPC-20: UL1310, UL879, TUV EN60950-1 approved, LPC-35/60: UL1310 approved, LPC-150: Design refer to IEC60950-1 |
| EMC standards | EN55022 class B, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11 |
| Connection Input | UL rated, 18AWGx2C (60cm) |
| Connection Output | UL rated, 16AWGx2C (60cm) |
| Dimension (LxWxH)(mm) | 162x 42x 30 |
Specifications
Specifications
-
BrandMean Well
-
SeriesLPC Series
-
Power Rating58.8 Watt
-
Output Voltage42 Volt
-
Rated Current1.4 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,CSA,EAC,UL
-
Operation ModeConstant Current
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length6.4 in
-
Width1.67 in
-
Height1.26 in
-
Weight0.88 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the LPC-60-1400 for a 1400mA LED downlight?
Yes, if the downlight is designed for constant current operation at 1400mA. This driver supports a 9-42V CC output range and up to 58.8W, so both the current and voltage window need to match the fixture.
Is the LPC-60-1400 suitable for LED signage modules that need more current?
It can be suitable for signage modules built around a 1400mA constant current load. The total forward voltage has to stay within 9-42V, and the total load must remain within the 58.8W rating.
Can this driver run a compact LED array where a 1050mA model is not enough?
Yes, the LPC-60-1400 provides 1400mA constant current, which is higher than a 1050mA model. It is appropriate for small LED arrays specified for 1400mA and operating within the 9-42V constant current range.
What should I check before pairing the LPC-60-1400 with my LEDs?
Check that your LEDs are meant for constant current operation at 1400mA and that the total forward voltage falls within 9-42V. The number of LEDs cannot be set as a fixed count because it depends on each LED's forward voltage, and this is not a constant voltage driver.
Is the LPC-60-1400 appropriate for outdoor or enclosed fixture use?
Its IP67 waterproof rating supports use in wet or dusty conditions, and the operating range is -30°C to +70°C. The slim plastic case also helps where enclosure space is limited, but overall suitability still depends on the complete fixture design.
