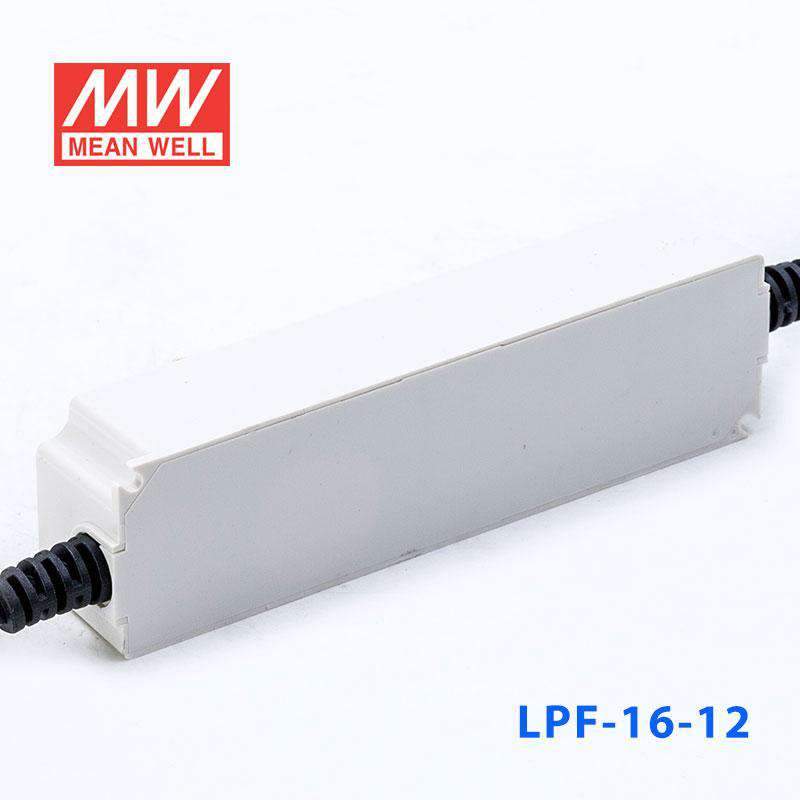

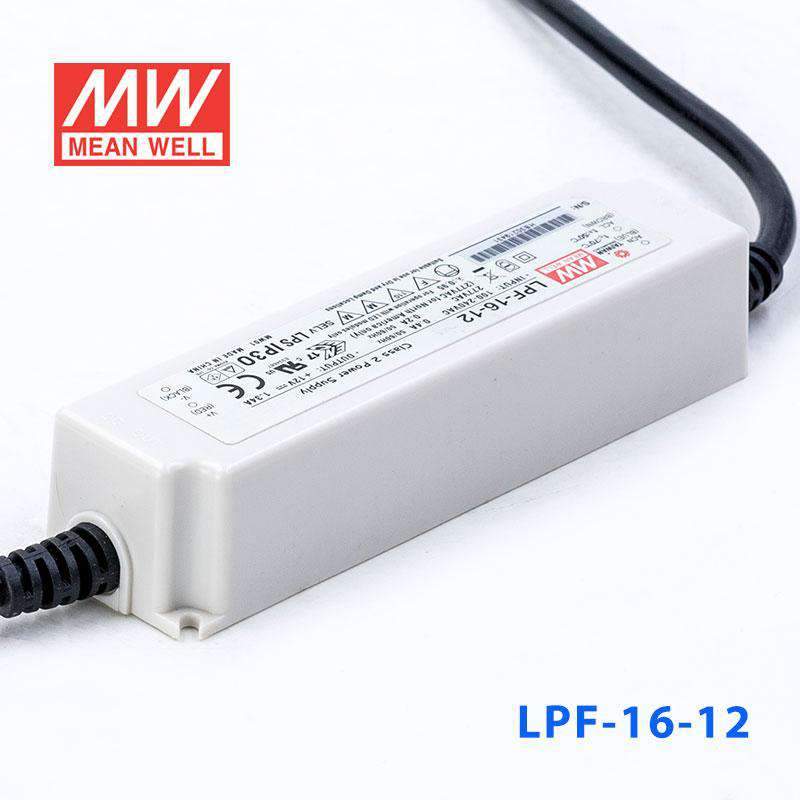

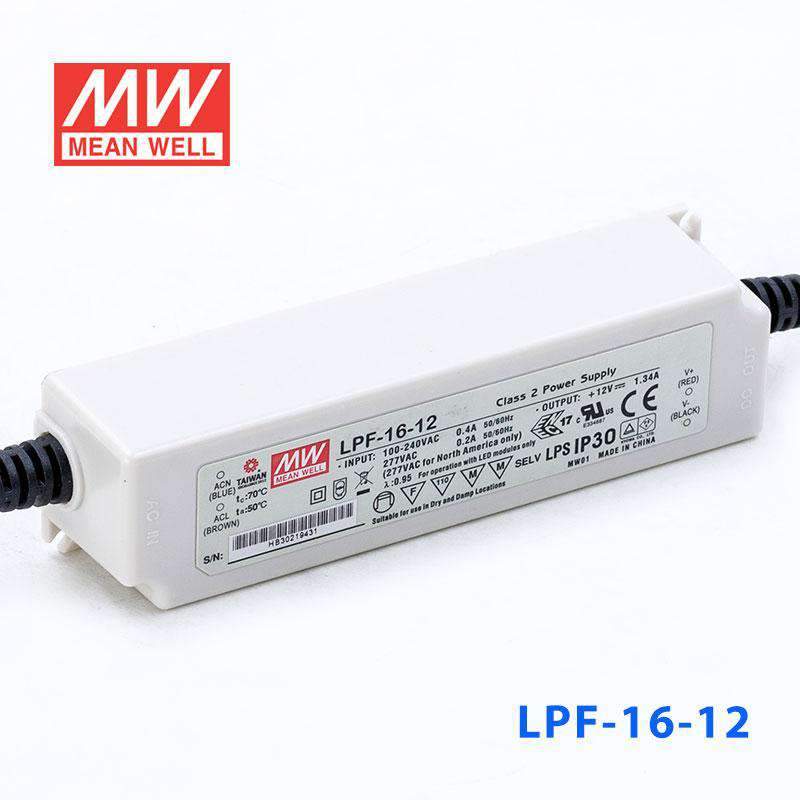

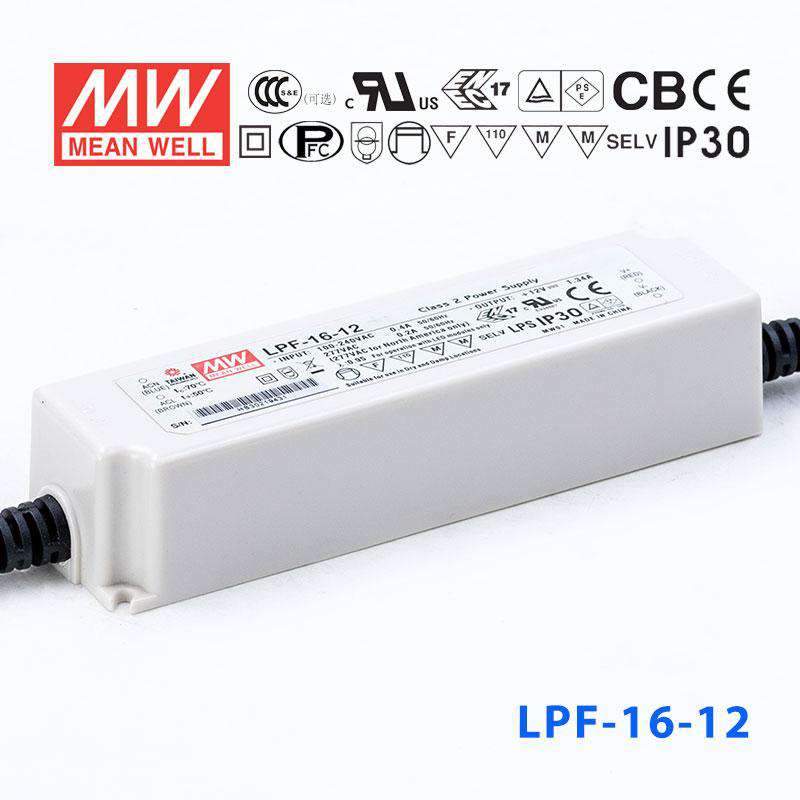

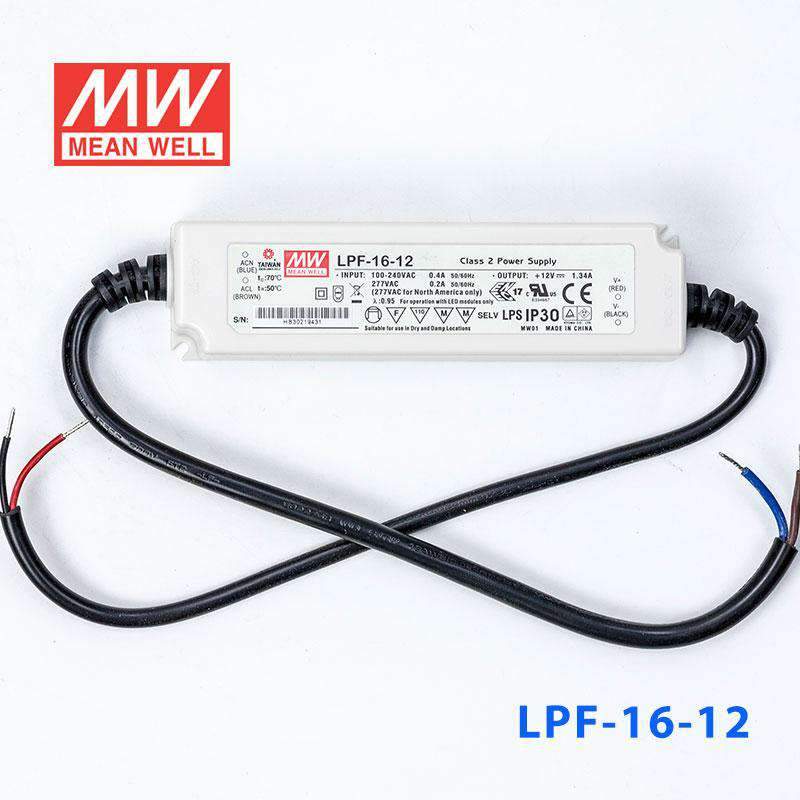

Mean Well LPF-16-12 Power Supply 16W 12V
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| Built-in active PFC function |
| Fully isolated plastic case |
| Built-in 3 in 1 dimming function (1~10VDC, PWM signal or resistance) for D type |
| IP30 |
| Class 2 power unit / Pass LPS |
| Isolation class II, no F.G. |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| Suitable for LED lighting and moving sign applications |
| Suitable for dry, damp, and wet location |
| Cooling by free air convection |
| 5 years warranty |
General Specification
| AC input voltage range | 90~305VAC ; 127~431VDC |
| AC inrush current (max.) | Cold start, 45A |
| Over current protection | 95% ~108% constant current, auto-recovery |
| Over voltage protection | 110%~150% rated output voltage |
| Withstand voltage | I/P - O/P: 3.75kVAC |
| Working temperature | -35~+70ºC |
| Safety standards | UL8750, ENEC EN61347-1, EN61347-2-13, EN62384, PSE J61347-1, J61347-2-13 approved for LPF-16(D)/25(D); UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved for LPF-40(D)/60(D)/90(D) |
| EMC standards | EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11 |
| Connection Input | UL rated, SJTW 18AWGx2C (30cm) |
| Connection Output | UL rated, SVT 18AWGx2C (30cm) |
| Dimension (LxWxH)(mm) | 148x 40x 32 |
Specifications
Specifications
-
BrandMean Well
-
SeriesLPF Series
-
Power Rating16.08 Watt
-
Output Voltage12 Volt
-
Rated Current1.34 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,ENEC,PSE,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-35°C~70°C
-
Warranty5 Year
-
Length5.83 in
-
Width1.57 in
-
Height1.26 in
-
Weight0.46 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the Mean Well LPF-16-12 for 12V LED strip lights outdoors?
Yes, this model is built for 12V lighting loads and has a 12V output with up to 16.08W available. Its IP67 rating and operating temperature range of -35°C to +70°C make it suitable for outdoor or wet-location LED strip lighting, as long as your total load stays within 16.08W.
Is the LPF-16-12 a good fit for a small 12V LED sign or channel letter project?
It can be a fit for small 12V LED signage where the total power draw does not exceed 16.08W. The unit is IP67 rated, uses a fully isolated plastic case, and has a Class II design without FG, which makes it suitable for signage environments that need a sealed driver.
Can this power supply be used for 12V architectural or accent lighting in damp areas?
Yes, it is intended for 12V LED lighting loads and is rated IP67 for wet or dusty environments. With 16.08W output capacity and an operating temperature range of -35°C to +70°C, it is suitable for low-power accent or architectural lighting where environmental sealing matters.
How much 12V LED strip can the LPF-16-12 run?
The maximum output power is 16.08W, so the strip length depends on your strip's rated power per meter. Use this formula: 16.08W ÷ your strip watts per meter = maximum estimated length, and check your strip rated power per meter before sizing.
Is the Mean Well LPF-16-12 waterproof and suitable for outdoor conditions?
Yes, it has an IP67 waterproof rating, which makes it suitable for outdoor and wet-location use. It is also rated to operate from -35°C to +70°C and uses a fully isolated plastic case for added environmental protection.
What is the difference between the LPF-16-12 and the other LPF-16 series models?
The LPF-16-12 is the 12V version rated at 1.34A and 16.08W. Other LPF-16 fixed-output models are LPF-16-15 at 15V 1.07A 16.05W, LPF-16-20 at 20V 0.8A 16W, LPF-16-24 at 24V 0.67A 16.08W, LPF-16-30 at 30V 0.54A 16.2W, LPF-16-36 at 36V 0.45A 16.2W, LPF-16-42 at 42V 0.39A 16.38W, LPF-16-48 at 48V 0.34A 16.32W, and LPF-16-54 at 54V 0.3A 16.2W. The LPF-16D versions mirror the same voltage and current options under model numbers LPF-16D-12 through LPF-16D-54.
