Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

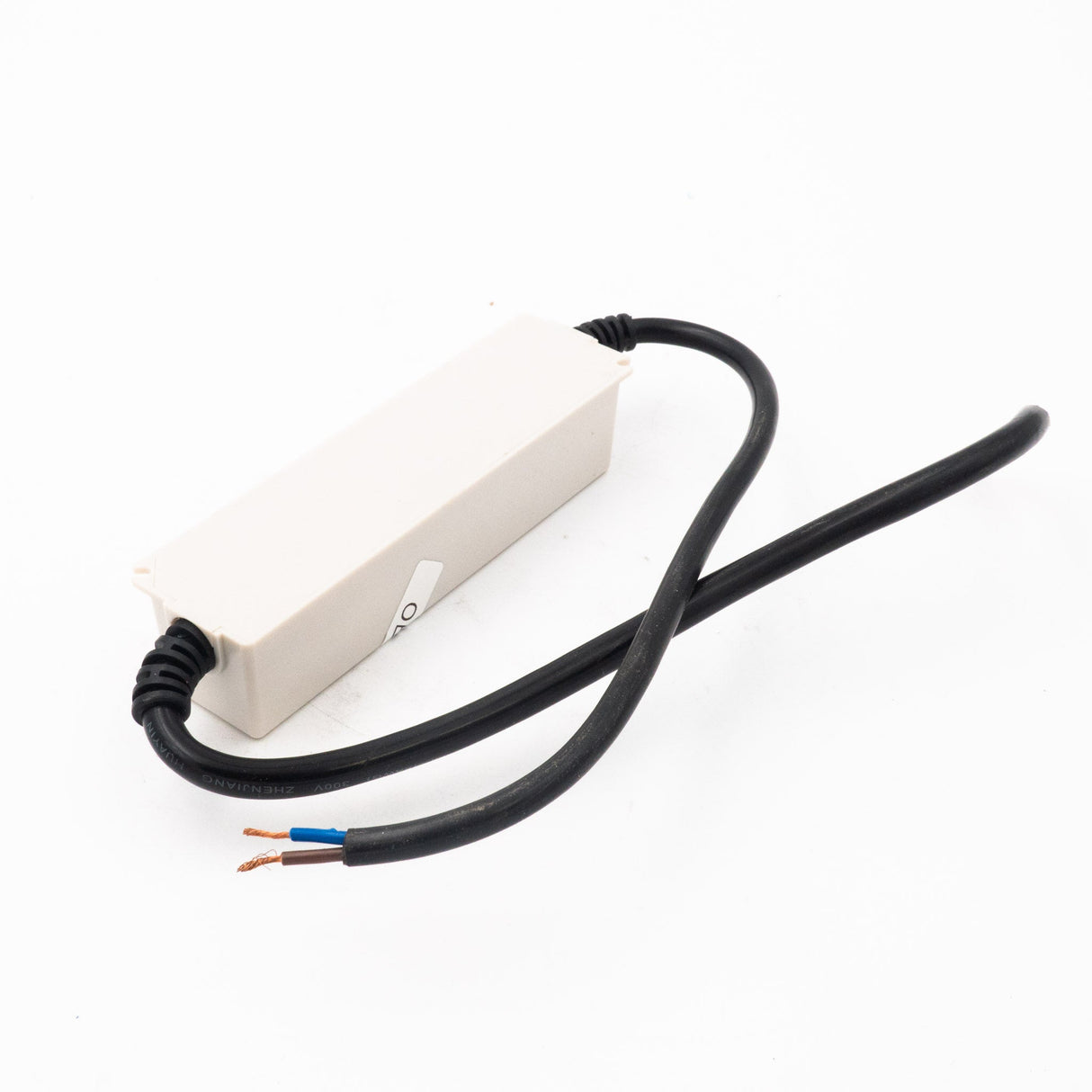

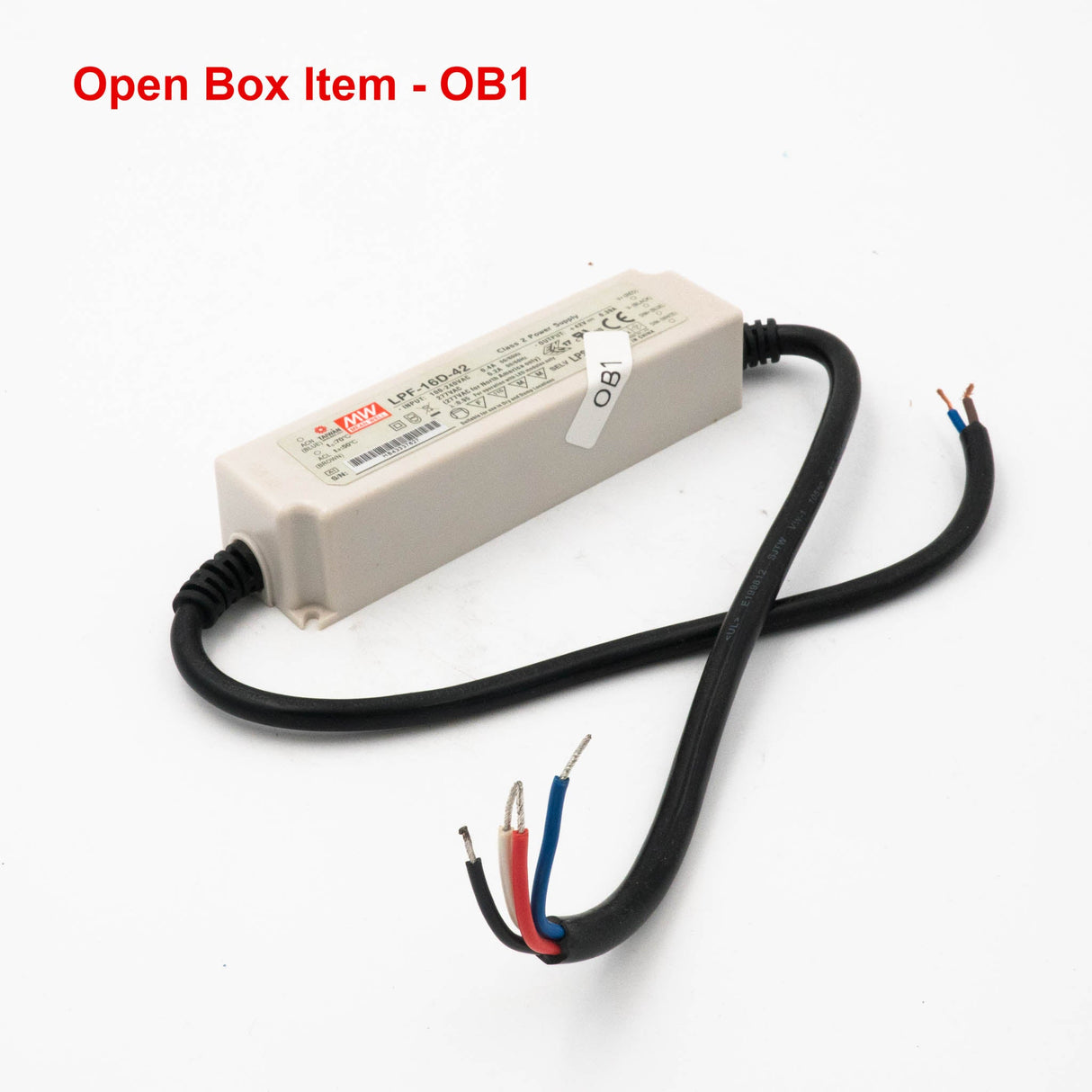

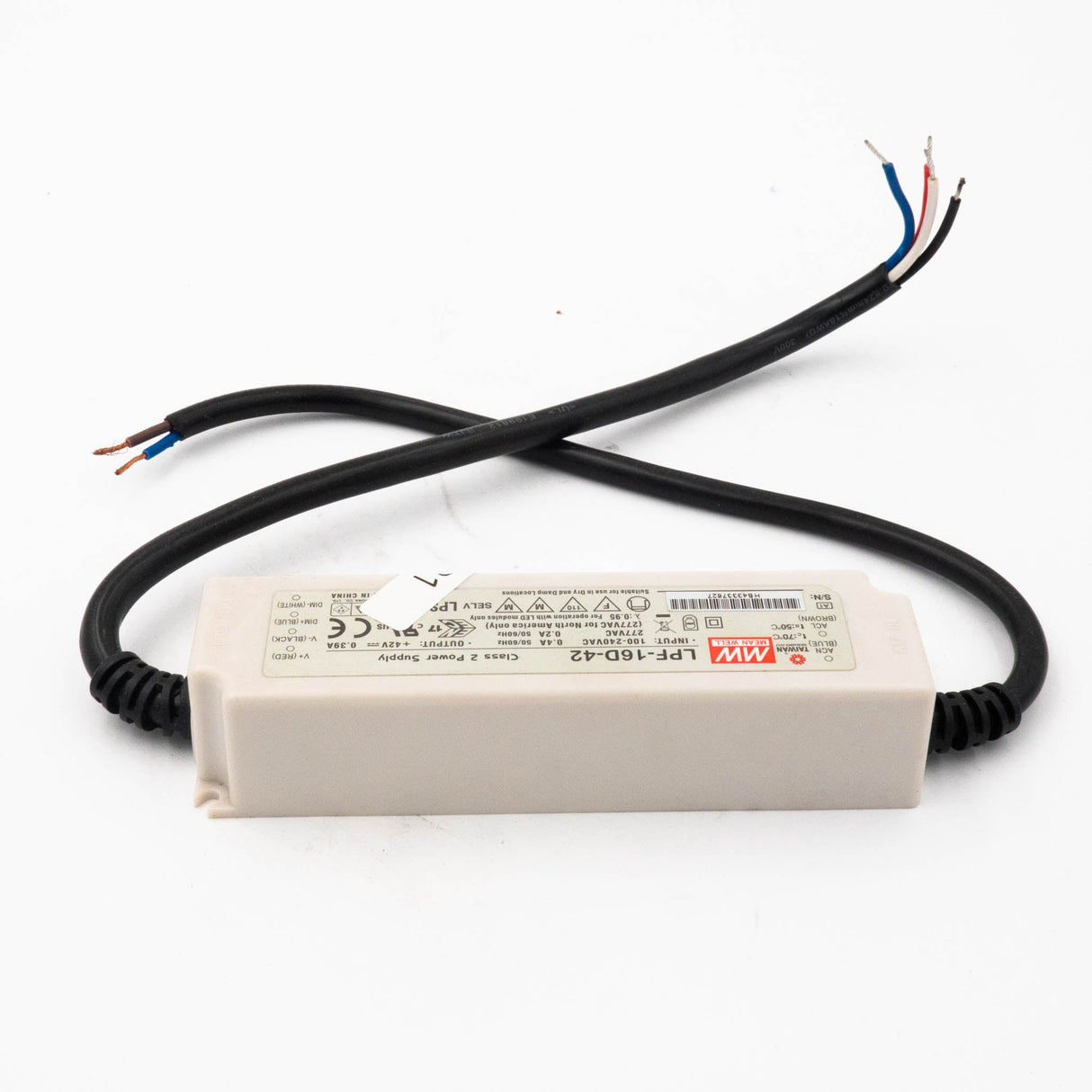

Mean Well LPF-16D-42 Power Supply 16W 42V - Dimmable - Open Box
fully isolated plastic case, IP67, Class II design without FG, built-in 3 in 1 dimming
59% off
SKU:
LPF-16D-42
Datasheet:
$10.00 USD
$24.63
Unit price /
Unavailable
Shipping calculated at checkout.
|
Your order will be processed within 24 hours
Mean Well LPF-16D-42 Power Supply 16W 42V - Dimmable - Open Box
$10.00 USD
$24.63
Unit price /
Unavailable
Description
Description
This is a tested open box model in perfect working condition, see the product name for description of the conditions
Features
| Universal AC input (up to 305VAC) / Full range |
| Built-in active PFC function |
| Fully isolated plastic case |
| Built-in 3 in 1 dimming function (1~10VDC, PWM signal or resistance) for D type |
| IP30 |
| Class 2 power unit / Pass LPS |
| Isolation class II, no F.G. |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| Suitable for LED lighting and moving sign applications |
| Suitable for dry, damp, and wet location |
| Cooling by free air convection |
| 5 years warranty |
General Specification
| AC input voltage range | 90~305VAC ; 127~431VDC |
| AC inrush current (max.) | Cold start, 45A |
| Over current protection | 95% ~108% constant current, auto-recovery |
| Over voltage protection | 110%~150% rated output voltage |
| Withstand voltage | I/P - O/P: 3.75kVAC |
| Working temperature | -35~+70ºC |
| Safety standards | UL8750, ENEC EN61347-1, EN61347-2-13, EN62384, PSE J61347-1, J61347-2-13 approved for LPF-16(D)/25(D); UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved for LPF-40(D)/60(D)/90(D) |
| EMC standards | EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11 |
| Connection Input | UL rated, SJTW 18AWGx2C (30cm) |
| Connection Output | UL rated, SJTW 18AWGx4C (30cm) |
| Dimension (LxWxH)(mm) | 148x 40x 32 |
Specifications
Specifications
-
BrandMean Well
-
SeriesLPF Series
-
Power Rating16.38 Watt
-
Output Voltage42 Volt
-
Rated Current0.39 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CE,EAC,ENEC,PSE,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-35°C~70°C
-
Warranty5 Year
-
Length5.83 in
-
Width1.57 in
-
Height1.26 in
-
Weight0.46 lb
File Downloads
File Downloads
Specification Sheet
Certificates
- UL Certificate(LPF-16D)(EN)
- CB Certificate(LPF-16D)(EN)
- EMC Certificate(LPF-16D)(EN)
- ENEC Certificate(LPF-16D)(EN)
- PSE Certificate(LPF-16D)(EN)
Test Reports
