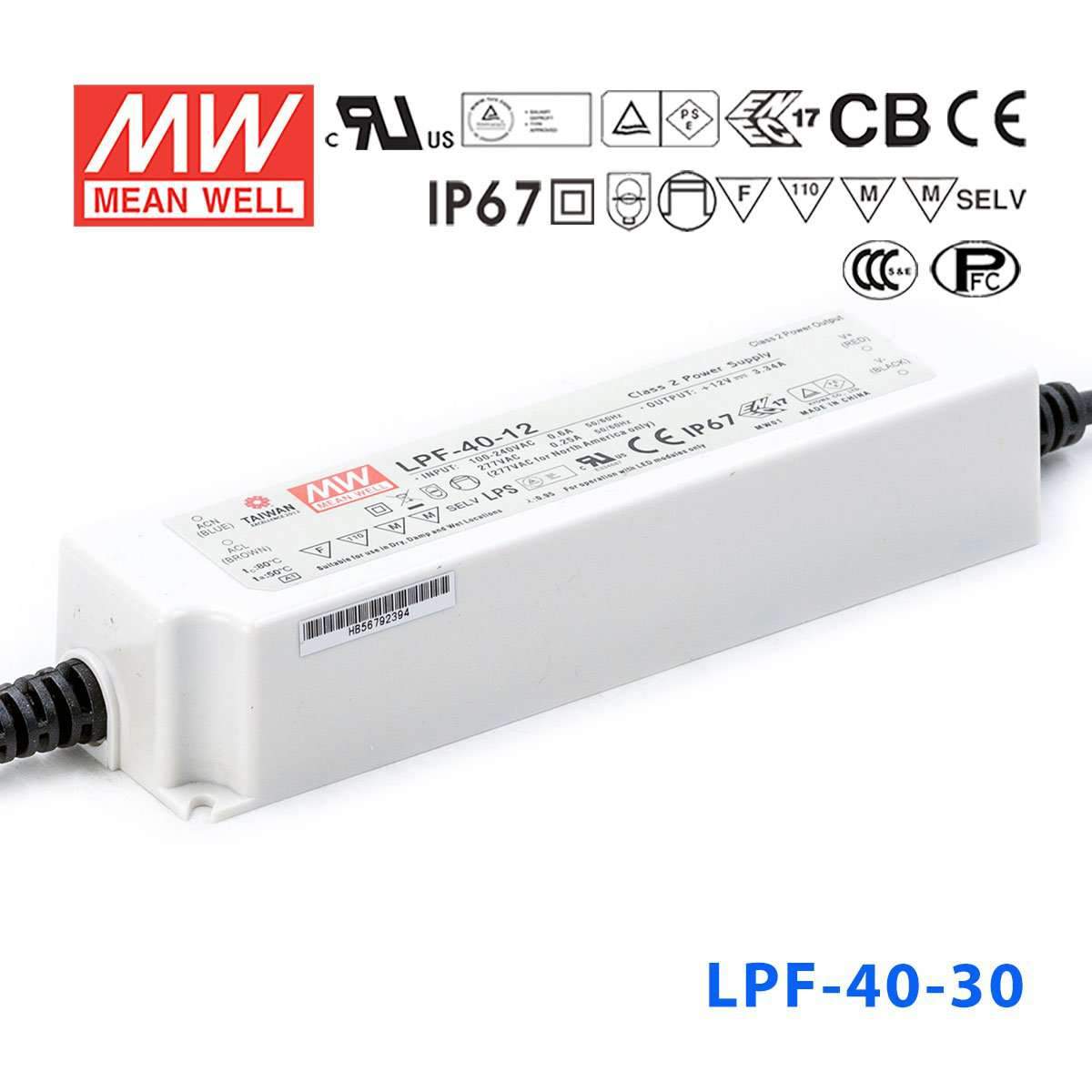

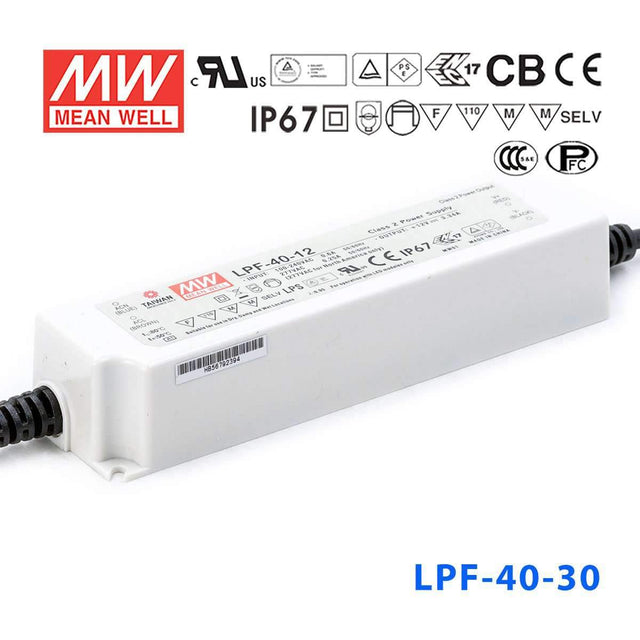

Mean Well LPF-40-30 Power Supply 40W 30V 1.34A

Name: Mean Well LPF-40-30 Power Supply 40W 30V 1.34A
Brand: Mean Well
SKU: LPF-40-30
Price: 29.01 USD
Availability: InStock

Overview

LPF-40-30 is the 30V output model of this series: rated current 1.34A, rated power 40.2W, typical efficiency 88%.

LPF-40 series is a 40W AC/DC LED driver featuring the dual modes constant voltage and constant current output. LPF-40 operates from 90~305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 90%, with the fanless design, the entire series is able to operate for -40℃ ~ +80℃ case temperature under free air convection. The entire series is rated with IP67 ingress protection level and is suitable to work for a variety of applications at dry, damp or wet locations.

Features

Constant Voltage + Constant Current mode output
Plastic housing with Class II design
Built-in active PFC function
Class 2 power unit
Fully encapsulated with IP67 level
Typical lifettime>50000 hours
5 years warranty

Specifications

LPF-40-30Specifications from the official datasheet (2026-02-09 edition)

OUTPUT

DC VOLTAGE: 30V
CONSTANT CURRENT REGION^Note.2: 18 ~ 30V
RATED CURRENT: 1.34A
RATED POWER^Note.5: 40.2W
RIPPLE & NOISE (max.)^Note.3: 200mVp-p
VOLTAGE TOLERANCE^Note.4: ±4.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME^Note.6: 1000ms, 80ms / 115VAC 500ms, 80ms / 230VAC
HOLD UP TIME (Typ.): 16ms/230VAC 16ms/115VAC

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧60%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 88%
AC CURRENT: 0.6A / 115VAC 0.3A / 230VAC 0.25A/277VAC
INRUSH CURRENT(Typ.): COLD START 50A(twidth=210μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 12 units (circuit breaker of type B) / 20 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 240VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 34 ~ 40V Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +80℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+80℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.8: UL8750, CSA C22.2 No. 250.0-08, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, EAC TP TC 004 , IP67, J61347-1, J61347-2-13,GB/T19510.1,GB/T19510.213 approved ; design refer to UL60950-1
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.8: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3, GB/T 17743 , GB17625.1,EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF: 3597.9K hrs min. Telcordia SR-332 (Bellcore) ; 438.9Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 162.5*43*32mm (L*W*H)
PACKING: 0.44Kg; 32pcs/15.08Kg/0.93CUFT

Test conditions and notes12

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
4. Tolerance : includes set up tolerance, line regulation and load regulation.
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
9. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

LPF-40-30 OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

LPF-40-30 STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

LPF-40-30 TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

LPF-40-30 MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

LPF-40-30 Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED panel lighting
LED downlight
LED decorative lighting
LED tunnel lighting
Moving sign

Downloads

Datasheet1

LPF-40-30 datasheetLPF-40-SPEC.PDF · 2026-02-09 edition PDF Download

Certificates5

UL Certificate (LPF-40)(EN) PDF Download

CB Certificate (LPF-40)(EN) PDF Download

EMC Certificate (LPF-40)(EN) PDF Download

ENEC Certificate (LPF-40)(EN) PDF Download

PSE Certificate (LPF-40)(EN) PDF Download

Test reports1

Test Report(LPF-40-30)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the LPF-40-30 for 30V LED lighting applications?

Yes, if the LED lighting product is designed for 30V input and the total load is within 40.2W. This model provides 30V output at up to 1.34A, so both the voltage match and the full connected load need to be checked.

Is the LPF-40-30 suitable for 30V sign lighting?

It can be used for 30V sign lighting products that stay within the 40.2W rating. Its IP67 Waterproof housing also supports applications where the driver may be exposed to outdoor moisture.

Can this model power 30V outdoor decorative or architectural lighting?

Yes, for 30V decorative or architectural lighting loads up to 40.2W. The IP67 rating and -40°C to +80°C case temperature (Tcase) range make the driver itself suitable for wet and exposed environments.

How much 30V LED strip can the LPF-40-30 run?

Maximum strip length is calculated as 40.2W divided by the strip's rated watts per meter. Check your strip rated power per meter, make sure it is a 30V strip, and keep the total strip load at or below 40.2W.

Is the LPF-40-30 appropriate for outdoor or wet locations?

Yes, the IP67 Waterproof rating means the driver is intended for wet and outdoor use. It is also specified for a case temperature (Tcase) of -40°C to +80°C, which supports use across a wide range of weather conditions.

How does the LPF-40-30 compare to the other LPF-40 voltage choices?

In the LPF-40 family, the fixed-output options are 12V at 40.08W and 3.34A, 15V at 40.08W and 2.67A, 20V at 40W and 2A, 24V at 40.08W and 1.67A, 30V at 40.2W and 1.34A, 36V at 40.32W and 1.12A, 42V at 40.32W and 0.96A, 48V at 40.32W and 0.84A, and 54V at 41.04W and 0.76A. The family is similar in form factor and protection level, but each version changes the output voltage and available current.
