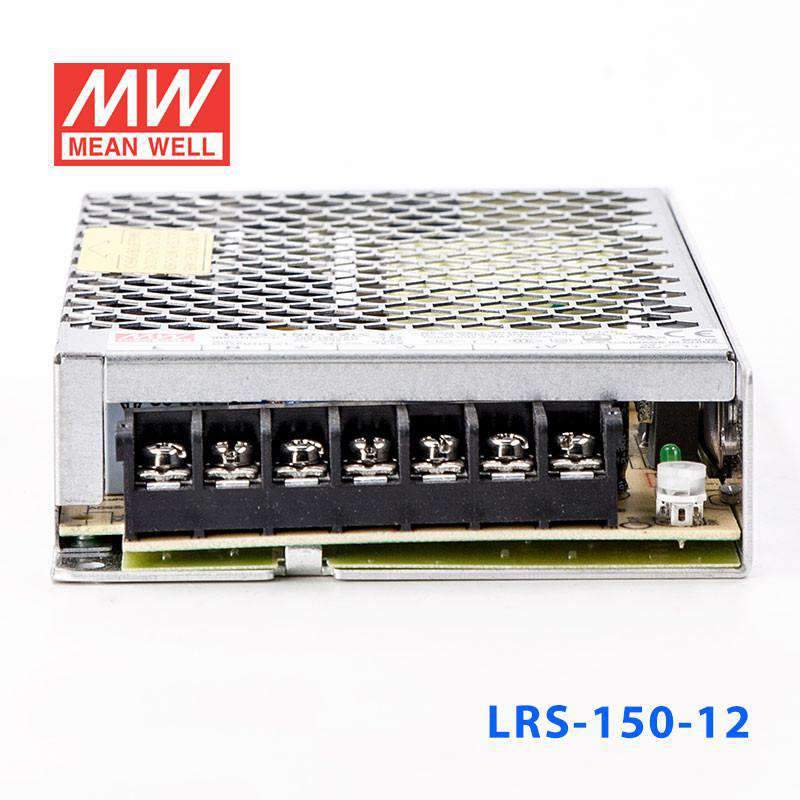

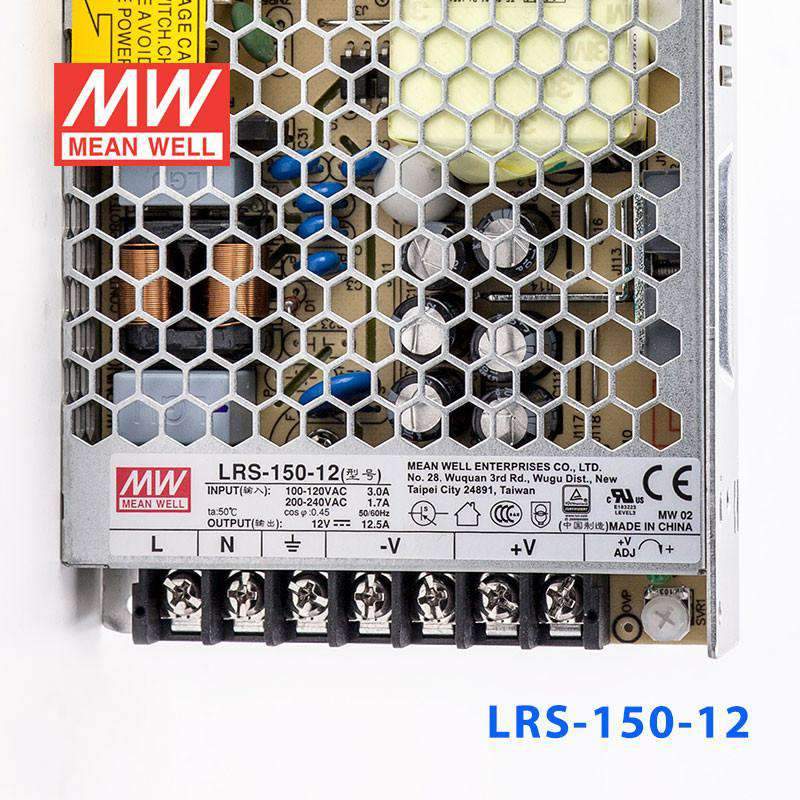

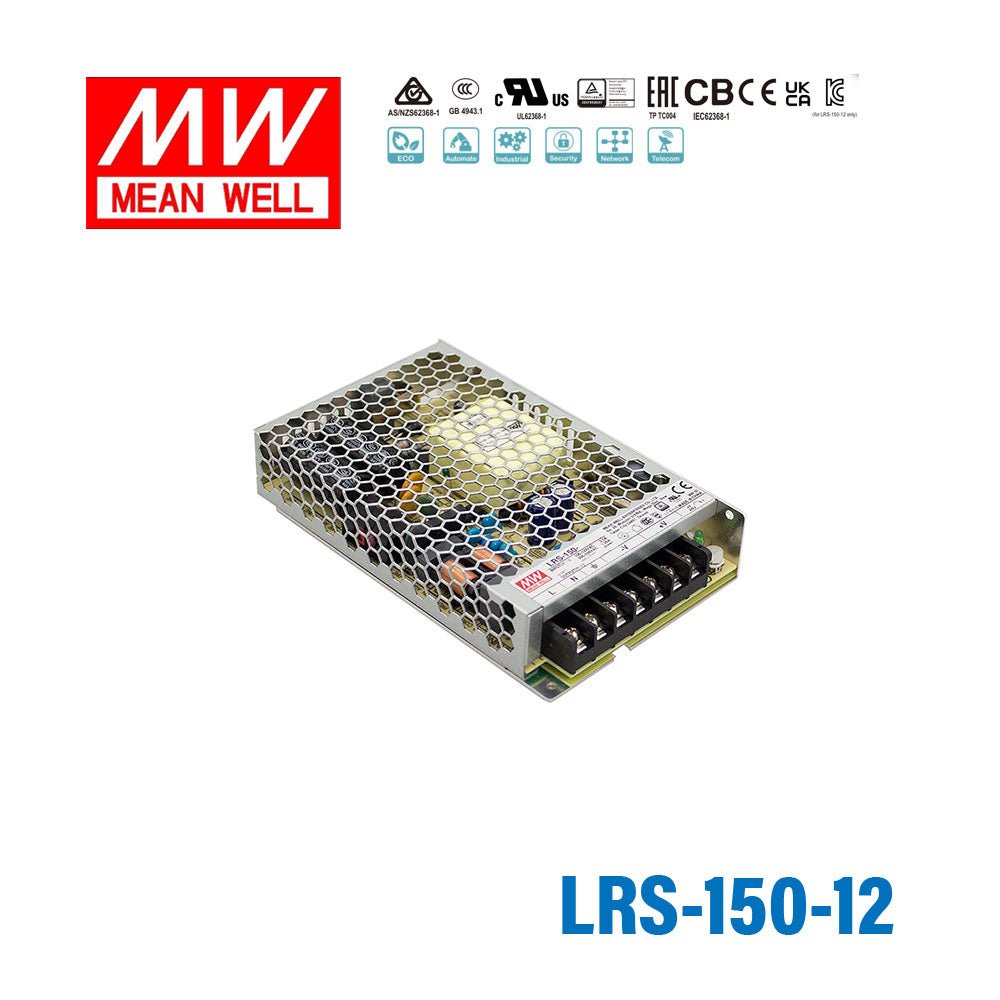

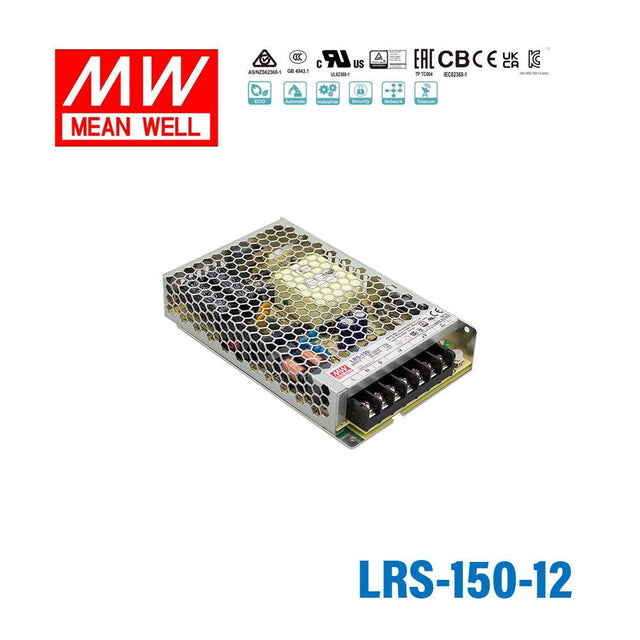

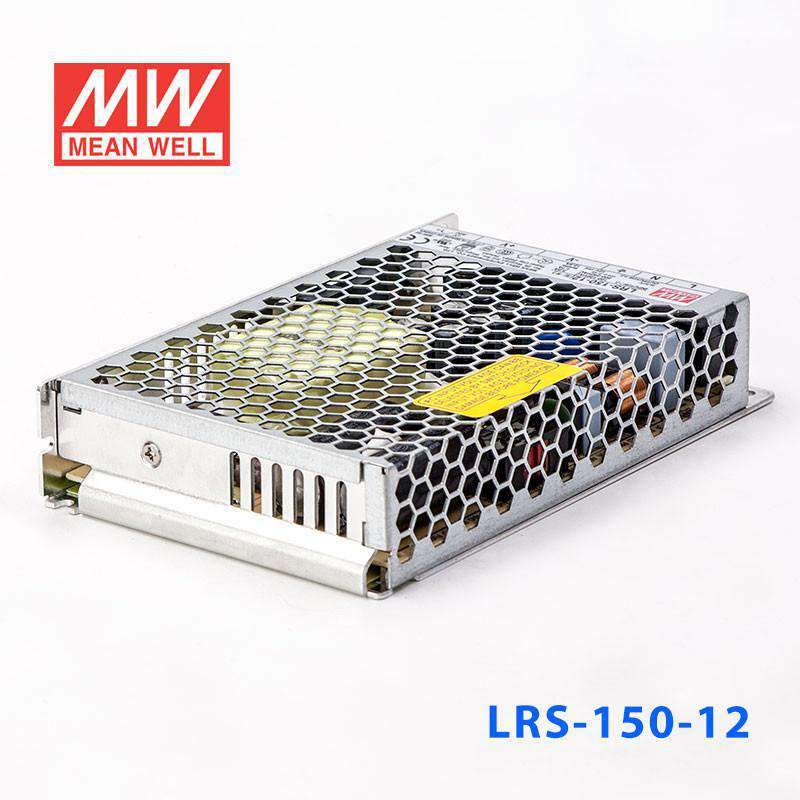

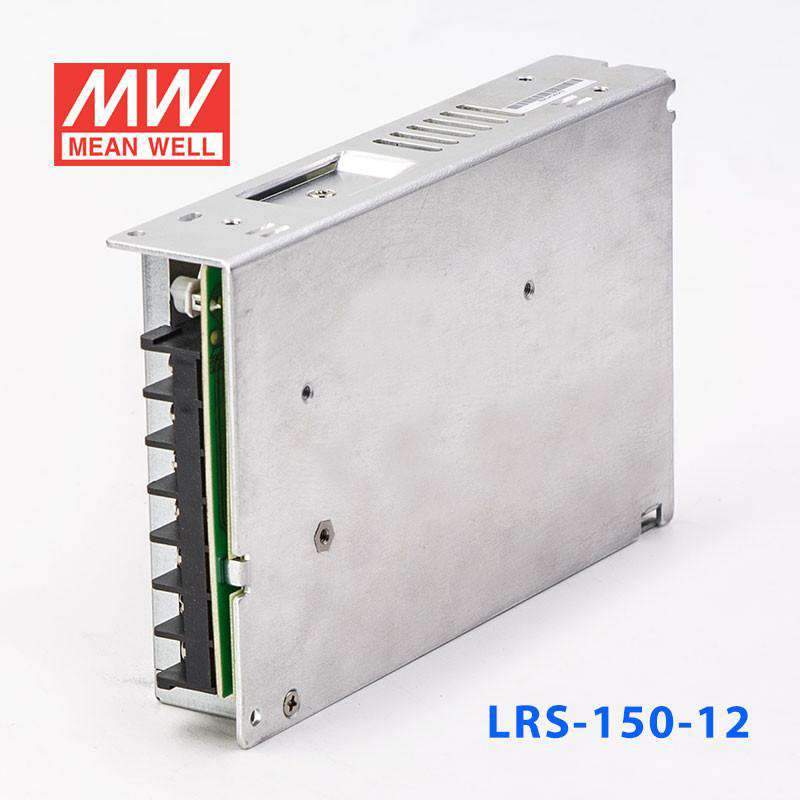

Mean Well LRS-150-12 Power Supply 150W 12V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LRS-150-12 Power Supply 150W 12V
Description
Description
Features:
No load power consumption <0.5W for 150W; <0.75W for 200W/350W
AC input selectable by switch
Withstand 300VAC surge input for 5 seconds
Ultra compact and 1U low profile
Withstand 5G vibration test
High operating temperature up to 70oC
Protections: Short circuit / Overload / Over voltage / Over temp.
Cooling by free air convection (150W/200W); forced air cooling by built-in DC fan (350W)
Compliance to IEC/EN60335-1(PD3) and IEC/EN61558-1,-2-16 for household appliances (150W)
Operating altitude up to 5000 meters
LED indicator for power on
High efficiency, long life and high reliability
Low cost
3 years warranty
General Specification
| AC input voltage range | 115 / 230VAC by switch |
| AC inrush current (max.) | Cold start, 60A at 230VAC |
| DC adjustment range | ±10% by potentiometer |
| Overload protection Range | 110%~140% |
| Overload protection Type | Hiccup mode, auto-recovery |
| Over voltage protection Range | 115%~145% rated output voltage |
| Over voltage protection Type | Shut down o/p voltage, re-power on to recover |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.25kVAC |
| Working temperature | -30~+70°C (refer to output derating curve) |
| Safety standards | UL60950-1, IEC/EN60950-1, IEC/EN61558-1, EN61558-2-16, IEC/EN60335-1, CCC GB4943 approved |
| EMC standards | EN55022 class B, EN55014, EN61000-3-2, 3, EN61000-4,2,3,4,5,6,8,11, GB9254 |
| Connection | 7P/9.5mm pitch terminal block |
| Dimension (LxWxH) | 159x 97x 30 |
Specifications
Specifications
-
BrandMean Well
-
SeriesLRS Series
-
Power Rating150 Watt
-
Output Voltage12 Volt
-
Rated Current12.5 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length6.26 in
-
Width3.82 in
-
Height1.18 in
-
Weight0.93 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What equipment is the LRS-150-12 typically used with?
The LRS-150-12 supplies 12V DC at 12.5A, suitable for multi-card industrial computing platforms, CCTV systems with multiple cameras, network rack accessories, and 12V automation subsystems requiring more headroom than a 100W supply provides. Its 150W output allows for load growth within a single supply.
Is the LRS-150-12 suitable for use in high-temperature environments?
The LRS-150-12 is rated for operation from -30°C to +70°C, allowing continuous use in demanding industrial environments without forced-air cooling up to the rated temperature ceiling. The unit is designed for indoor installation in ventilated enclosures; it does not carry an IP rating for outdoor or wet-location use.
How does the LRS-150-12 compare to other voltage options in the LRS-150 series?
The LRS-150 series offers multiple output voltages to match different system requirements. The available variants (with rated power, voltage, and current) are: LRS-150-15: 150W, 15V, 10A; LRS-150-24: 156W, 24V, 6.5A; LRS-150-36: 154.8W, 36V, 4.3A; LRS-150-48: 158.4W, 48V, 3.3A; LRS-150-5: 150W, 5V, 60A. The LRS-150-12 itself is rated at 150W, 12V, 12.5A. All share the same universal input range of 85-264VAC and operating temperature of -30°C to +70°C.
Does the LRS-150-12 meet any vibration resistance requirements?
Yes, the LRS-150-12 is rated to withstand 5G vibration, making it appropriate for equipment installed in environments subject to mechanical vibration such as factory floors or mobile industrial platforms. It also operates continuously up to 70°C, covering most harsh industrial ambient conditions.
How do I determine if the LRS-150-12 has enough headroom for my load?
The LRS-150-12 is rated at 150W output. Best practice is to keep continuous load at or below 80% of rated capacity, which for this unit is approximately 120W sustained draw. The 12V output at 12.5A gives the total current budget across all loads sharing this supply.
