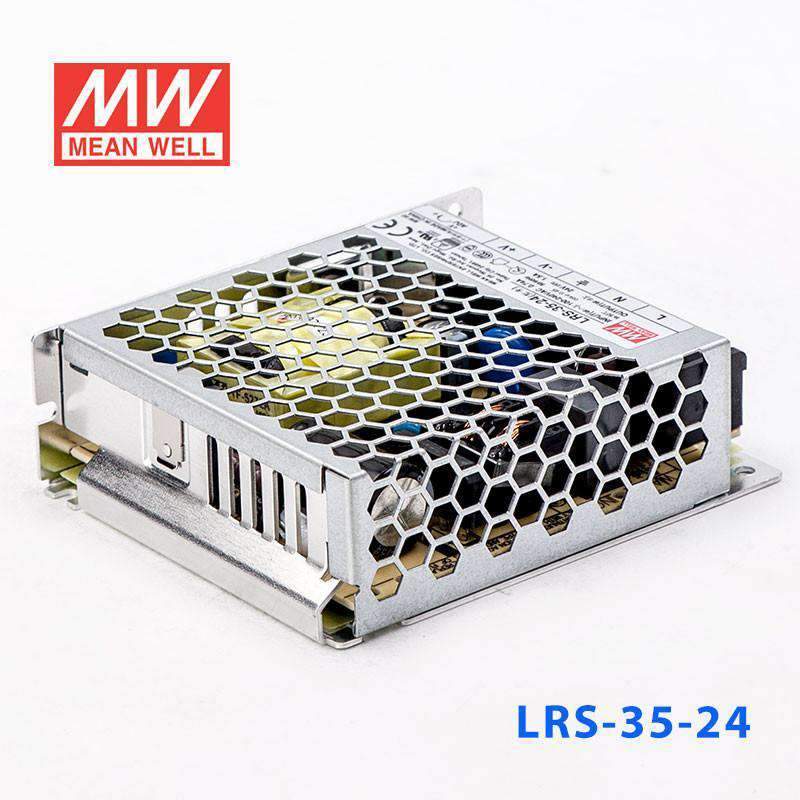

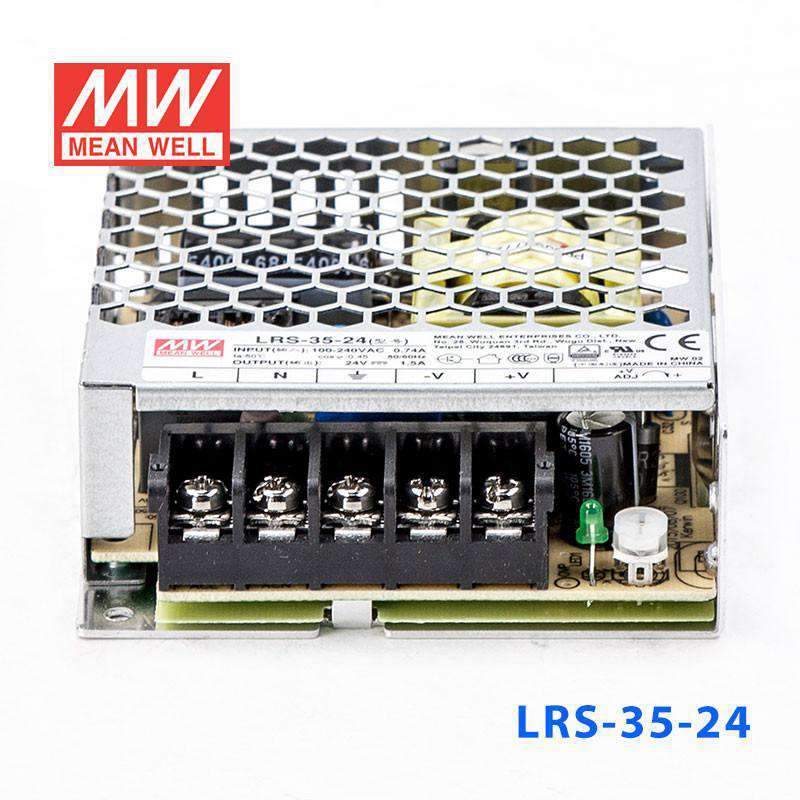

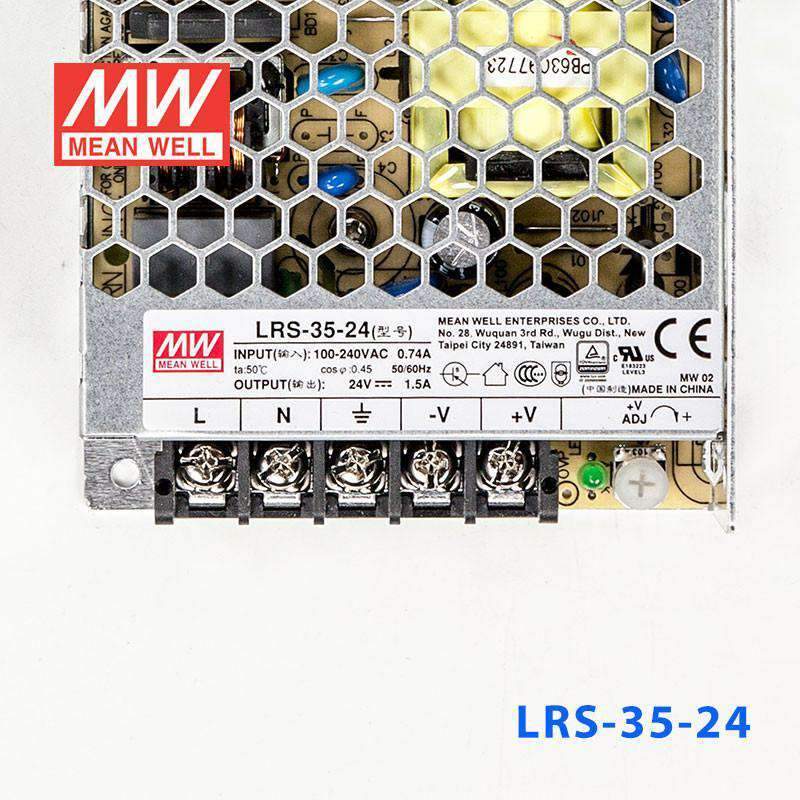

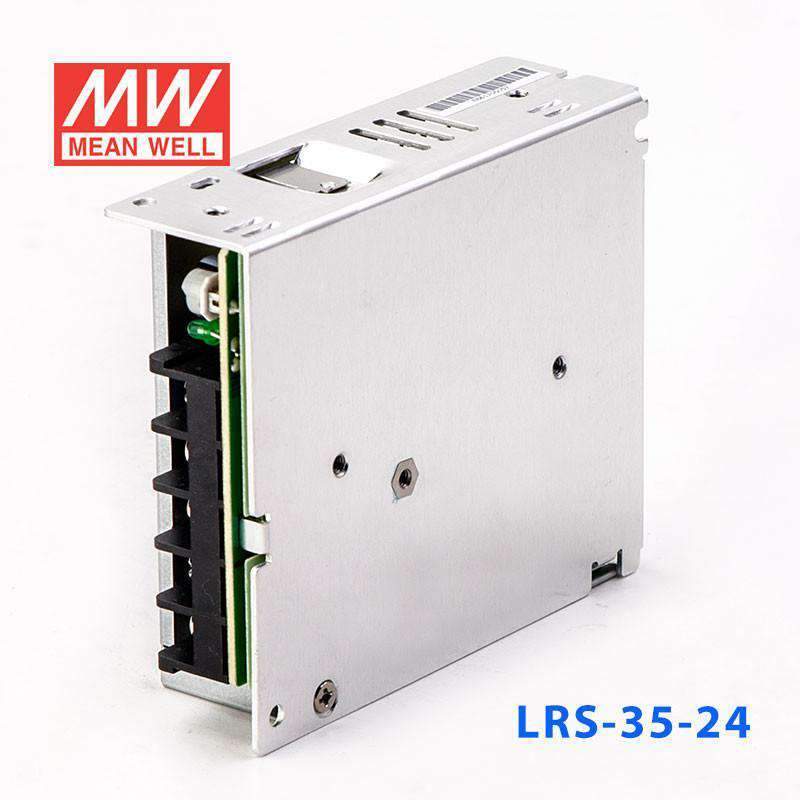

Mean Well LRS-35-24 Power Supply 35W 24V

$13.53 USD
Shipping calculated at checkout.

Your order will be processed within 24 hours

Description

Features:

No load power consumption <0.2W for 35W/50W;  <0.3W for 75W/100W
Universal AC input / Full range
Withstand 300VAC surge input for 5 seconds
Ultra compact and 1U low profile
Withstand 5G vibration test
High operating temperature up to 70oC
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
Compliance to IEC/EN60335-1(PD3) and IEC/EN61558-1,-2-16 for household appliances
Operating altitude up to 5000 meters
High efficiency, long life and high reliability
LED indicator for power on
Low cost
3 years warranty


General Specification

AC input voltage range 85~264VAC; 120~370VDC
AC inrush current (max.) Cold start, 45A at 230VAC
DC adjustment range ±10% by potentiometer
Overload protection Range 110%~150%
Overload protection Type Hiccup mode, auto-recovery
Over voltage protection Range 115%~135% rated output voltage
Over voltage protection Type Shut down o/p voltage, re-power on to recover
Withstand voltage 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.25kVAC, 1 minute
Working temperature -30~+70°C (refer to output derating curve)
Safety standards UL60950-1, IEC/EN60950-1, IEC/EN61558-1, EN61558-2-16, IEC/EN60335-1, CCC GB4943 approved
EMC standards EN55022 class B, EN55014, EN61000-3-2, 3, EN61000-4,2,3,4,5,6,8,11, GB9254
Connection 5P/9.5mm pitch terminal block
Dimension (LxWxH) 99x 82x 30

Specifications

  • Brand
    Mean Well
  • Series
    LRS Series
  • Power Rating
    36 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    1.5 Ampere
  • Input Voltage
    85V~264V
  • Standards Met
    BSMI,CB,CCC,CE,EAC,RCM,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    3.9 in
  • Width
    3.23 in
  • Height
    1.18 in
  • Weight
    0.51 lb
