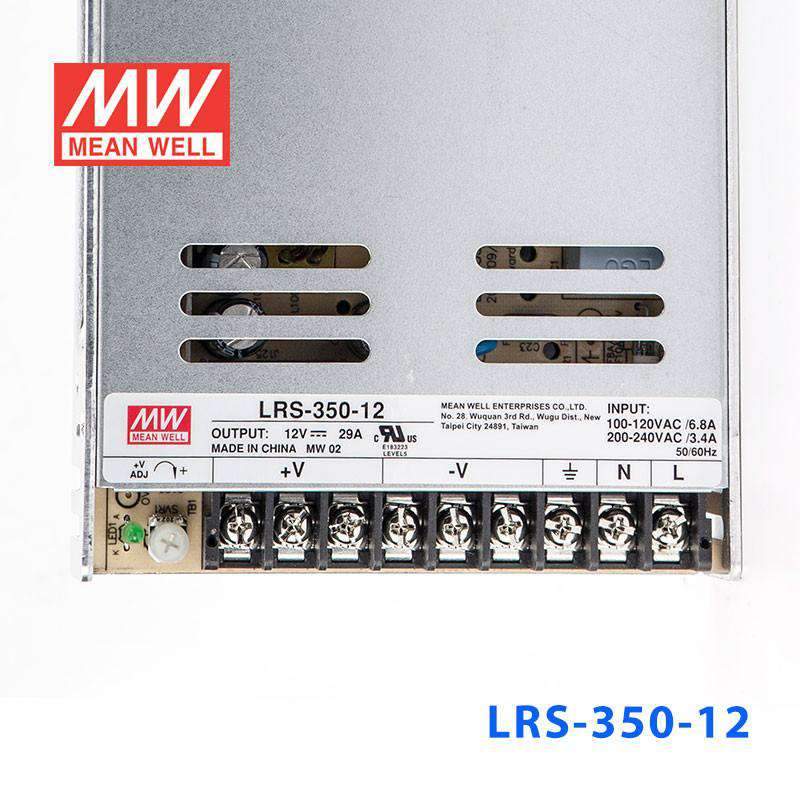

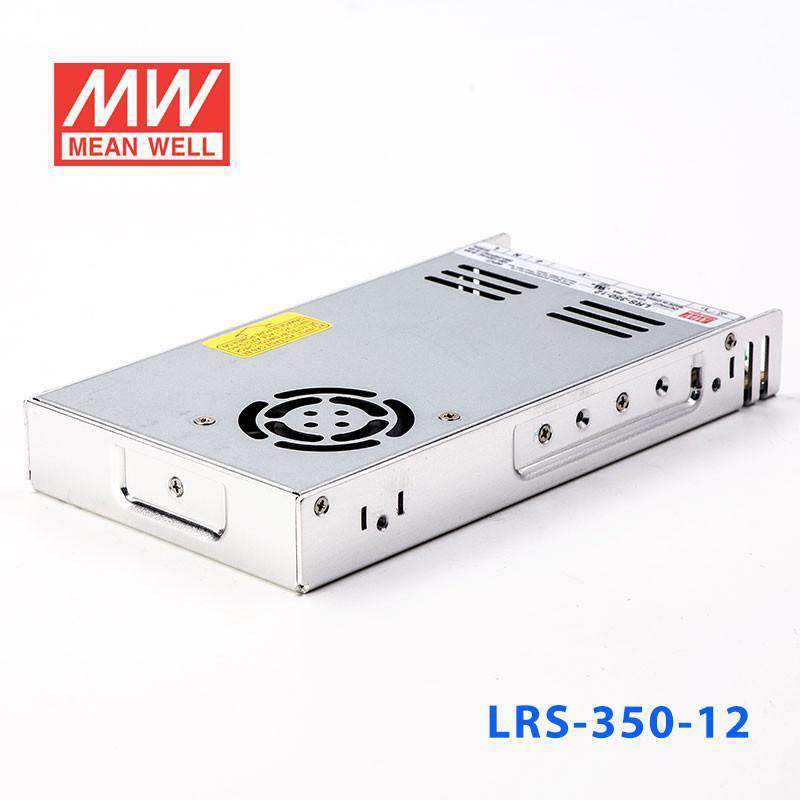

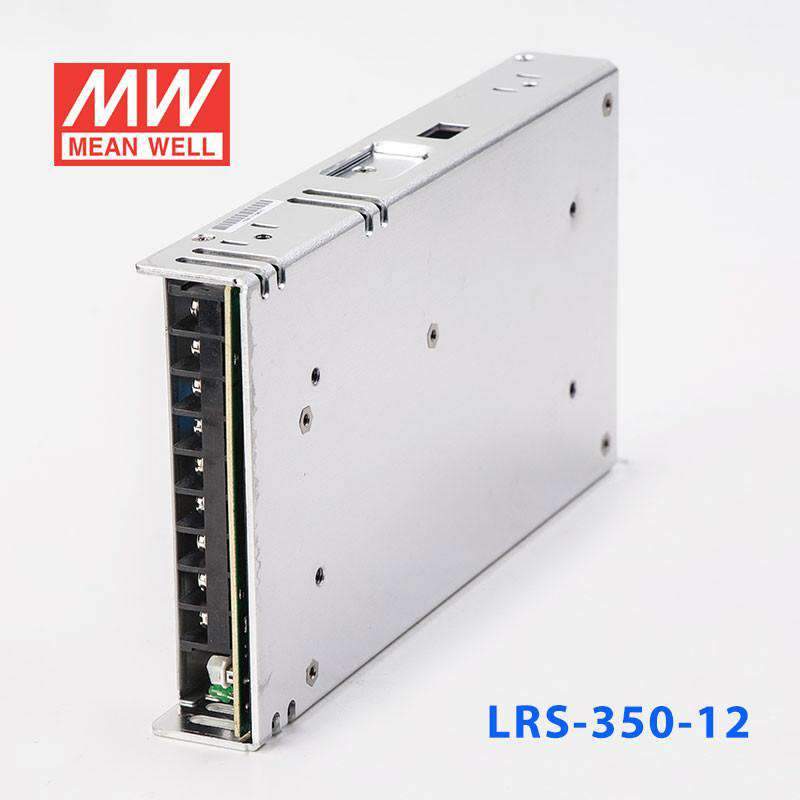

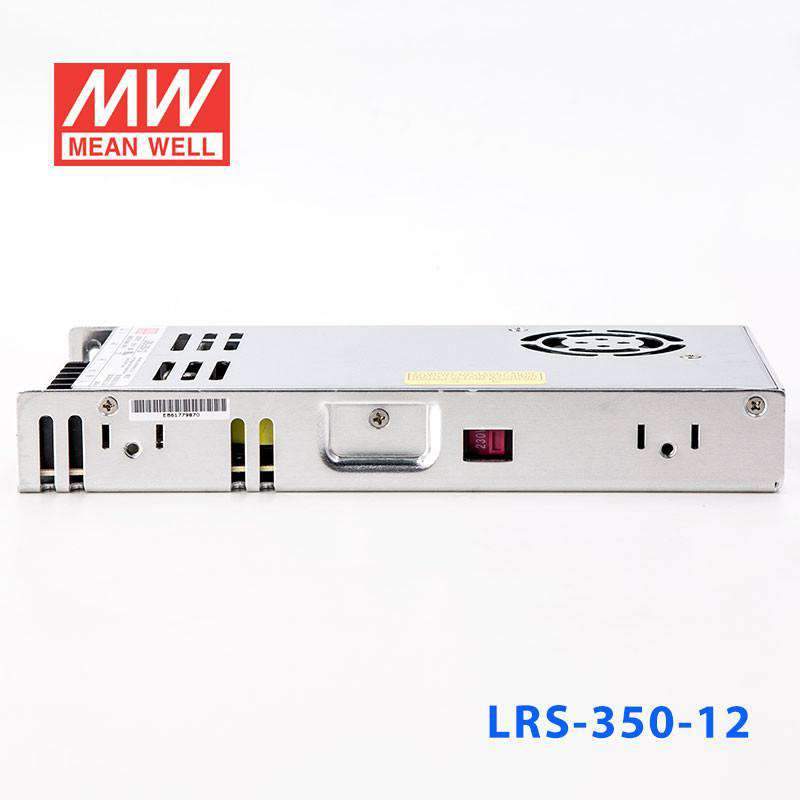

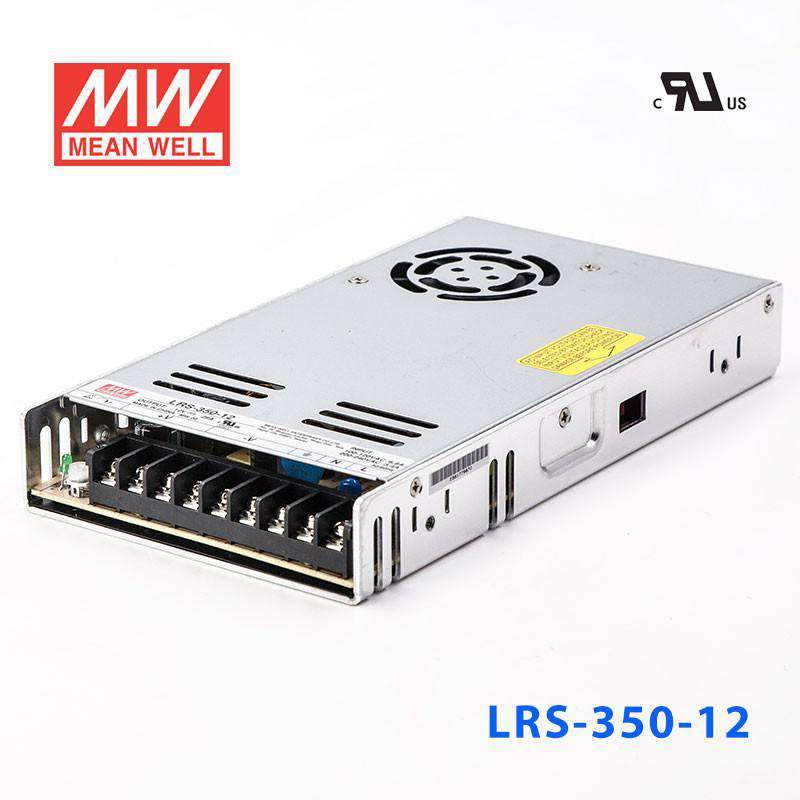

Mean Well LRS-350-12 Power Supply 350W 12V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LRS-350-12 Power Supply 350W 12V
Description
Description
No load power consumption <0.5W for 150W; <0.75W for 200W/350W;AC input selectable by switchWithstand 300VAC surge input for 5 secondsUltra compact and 1U low profileWithstand 5G vibration testHigh operating temperature up to 70oCProtections: Short circuit / Overload / Over voltage / Over temp.Cooling by free air convection (150W/200W); forced air cooling by built-in DC fan (350W)Compliance to IEC/EN60335-1(PD3) and IEC/EN61558-1,-2-16 for household appliances (150W)Operating altitude up to 5000 metersLED indicator for power onHigh efficiency, long life and high reliabilityLow cost3 years warranty
Key Features
- ✓115 / 230VAC by switch
- ✓Cold start, 60A at 230VAC
- ✓±10% by potentiometer
- ✓110%~140%
- ✓Hiccup mode, auto-recovery
- ✓115%~145% rated output voltage
- ✓Shut down o/p voltage, re-power on to recover
- ✓I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
- ✓-25~+70°C (refer to output derating curve)
- ✓UL60950-1 approved
- ✓Design refer to EN55022 class A
- ✓9P/9.5mm pitch terminal block
- ✓215x 115x 30
Specifications
Specifications
-
BrandMean Well
-
SeriesLRS Series
-
Power Rating348 Watt
-
Output Voltage12 Volt
-
Rated Current29 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,CQC,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~70°C
-
Warranty3 Year
-
Length8.46 in
-
Width4.53 in
-
Height1.18 in
-
Weight1.68 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What applications is the LRS-350-12 suited for?
The LRS-350-12 outputs 12V DC at 29A, making it appropriate for multi-axis motion control systems, industrial robotics, large LED lighting arrays, and high-current 12V distribution panels. Its 348W output handles heavy continuous loads typical of mid-to-high power automation builds.
Is the LRS-350-12 suitable for use in high-temperature environments?
The LRS-350-12 is rated for operation from -25°C to +70°C, allowing continuous use in demanding industrial environments without forced-air cooling up to the rated temperature ceiling. The unit is designed for indoor installation in ventilated enclosures; it does not carry an IP rating for outdoor or wet-location use.
How does the LRS-350-12 compare to other voltage options in the LRS-350 series?
The LRS-350 series offers multiple output voltages to match different system requirements. The available variants (with rated power, voltage, and current) are: LRS-350-15: 348W, 15V, 23.2A; LRS-350-24: 350.4W, 24V, 14.6A; LRS-350-3.3: 198W, 3.3V, 60A; LRS-350-36: 349.2W, 36V, 9.7A; LRS-350-4.2: 252W, 4.2V, 60A; LRS-350-48: 350.4W, 48V, 7.3A. The LRS-350-12 itself is rated at 348W, 12V, 29A. All share the same universal input range of 90-264VAC and operating temperature of -25°C to +70°C.
Does the LRS-350-12 meet any vibration resistance requirements?
Yes, the LRS-350-12 is rated to withstand 5G vibration, making it appropriate for equipment installed in environments subject to mechanical vibration such as factory floors or mobile industrial platforms. It also operates continuously up to 70°C, covering most harsh industrial ambient conditions.
How do I determine if the LRS-350-12 has enough headroom for my load?
The LRS-350-12 is rated at 348W output. Best practice is to keep continuous load at or below 80% of rated capacity, which for this unit is approximately 278.4W sustained draw. The 12V output at 29A gives the total current budget across all loads sharing this supply.
Other LRS-350 Models
6 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LRS-350-24 Power Supply — 350W 24V 14.6A | 350.4W | 24V | 14.6A | Indoor | $28.48 | View |
| Mean Well LRS-350-5 Power Supply 350W 5V | 300W | 5V | 60A | Indoor | $37.04 | View |
| Mean Well LRS-350-15 Power Supply 350W 15V | 348W | 15V | 23.2A | Indoor | $37.13 | View |
| Mean Well LRS-350-48 Power Supply 350W 48V | 350.4W | 48V | 7.3A | Indoor | $37.13 | View |
| Mean Well LRS-350-4.2 Power Supply 350W4.2V | 252W | 4.2V | 60A | Indoor | $38.11 | View |
| Mean Well LRS-350-36 Power Supply 350W 36V | 349.2W | 36V | 9.7A | Indoor | $37.13 | View |
