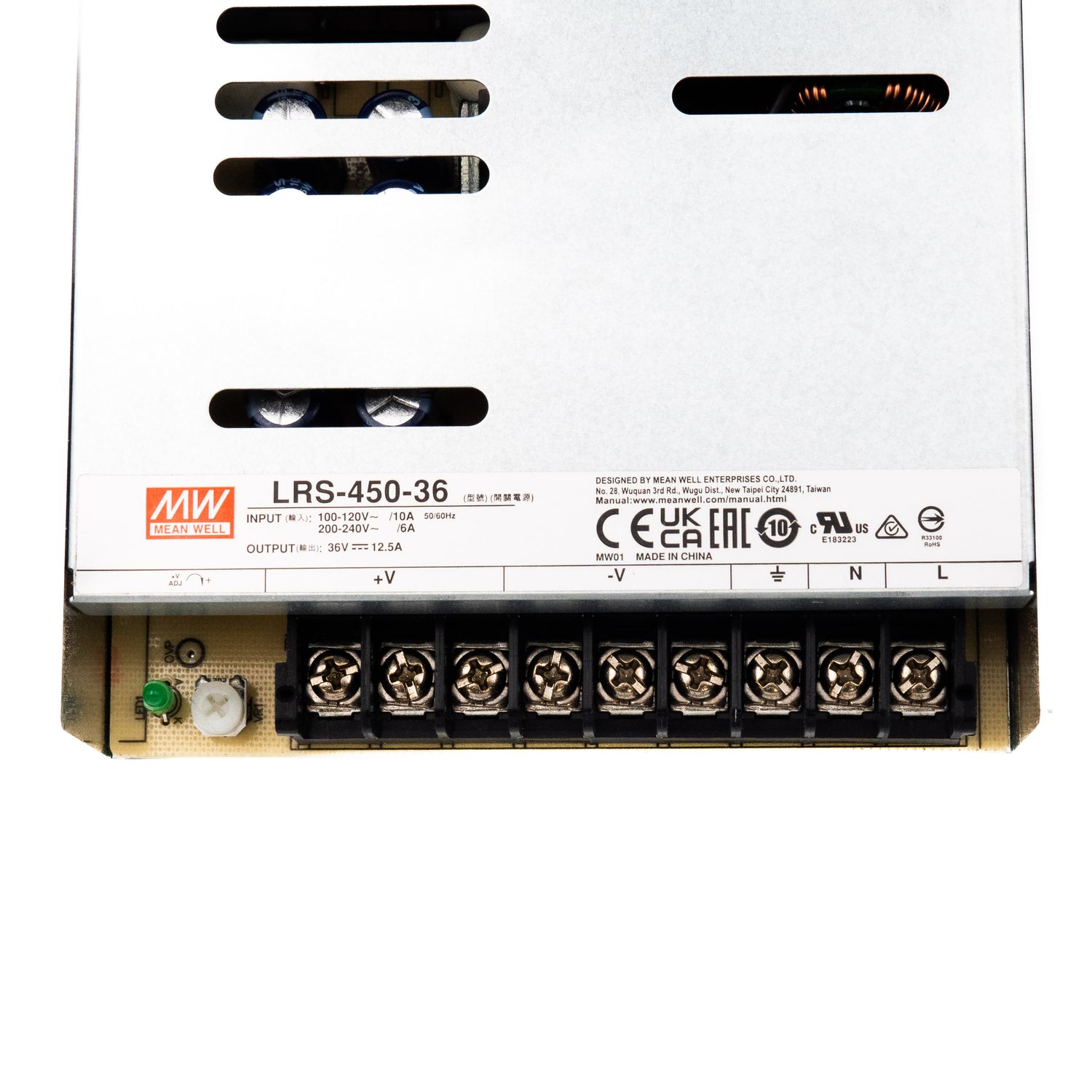

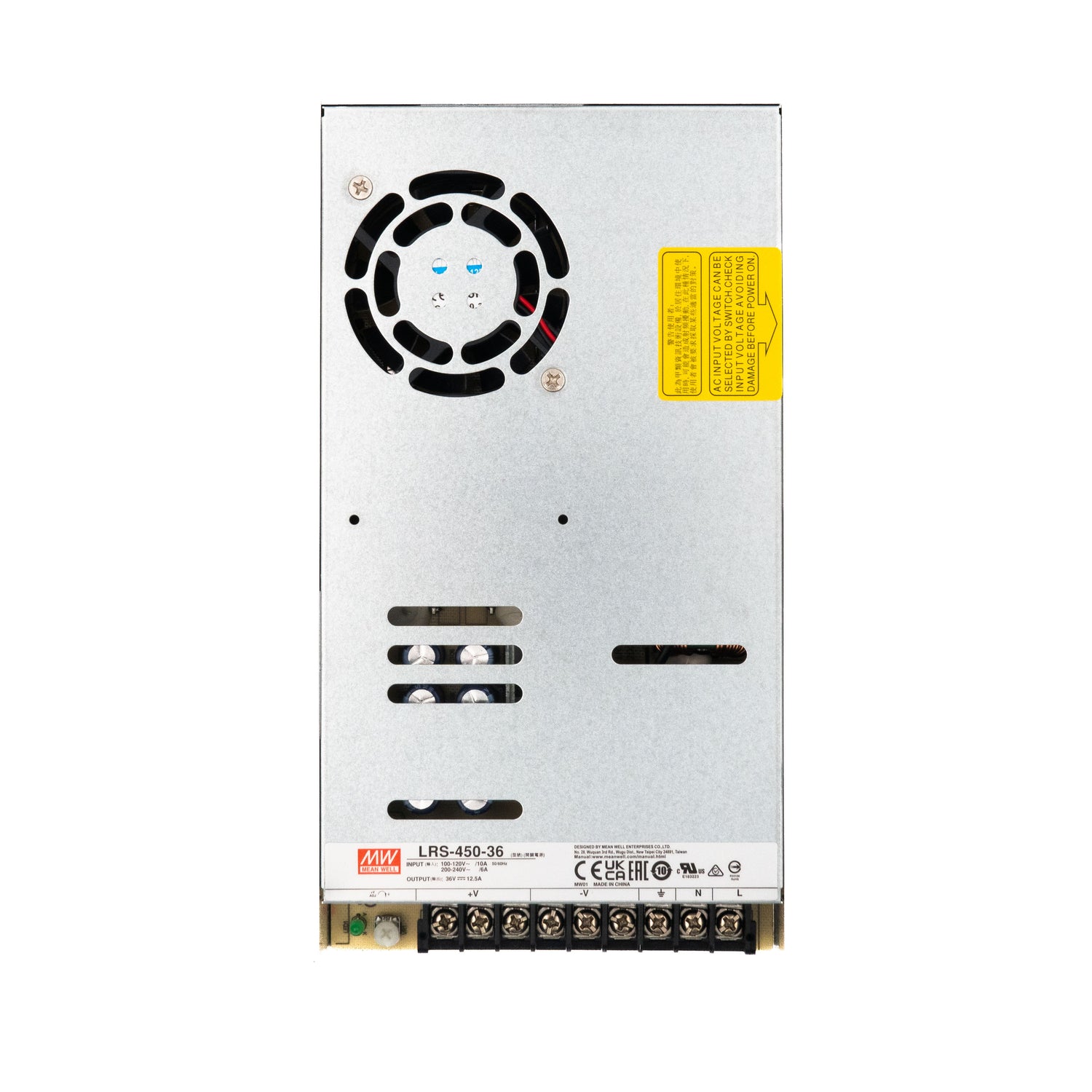

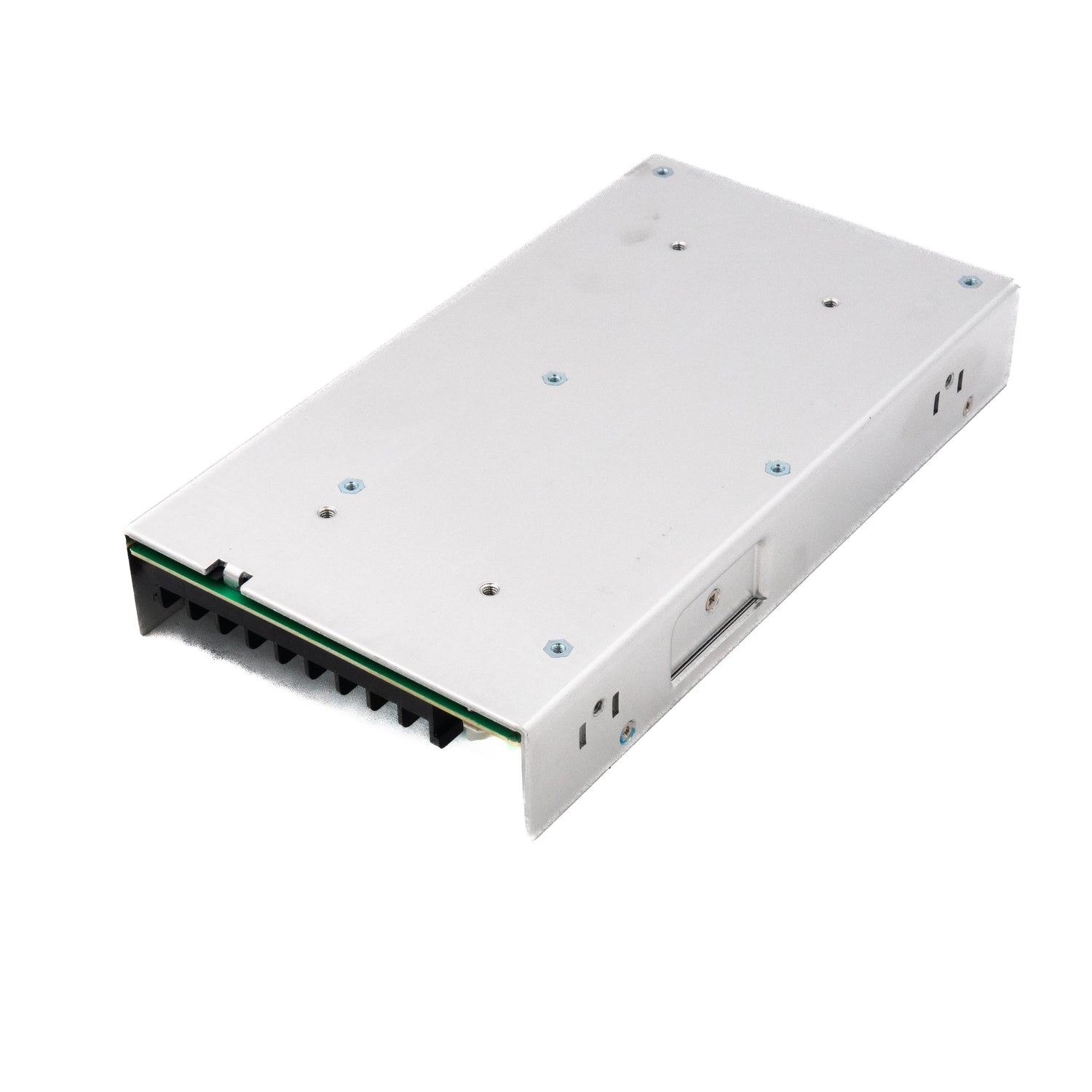

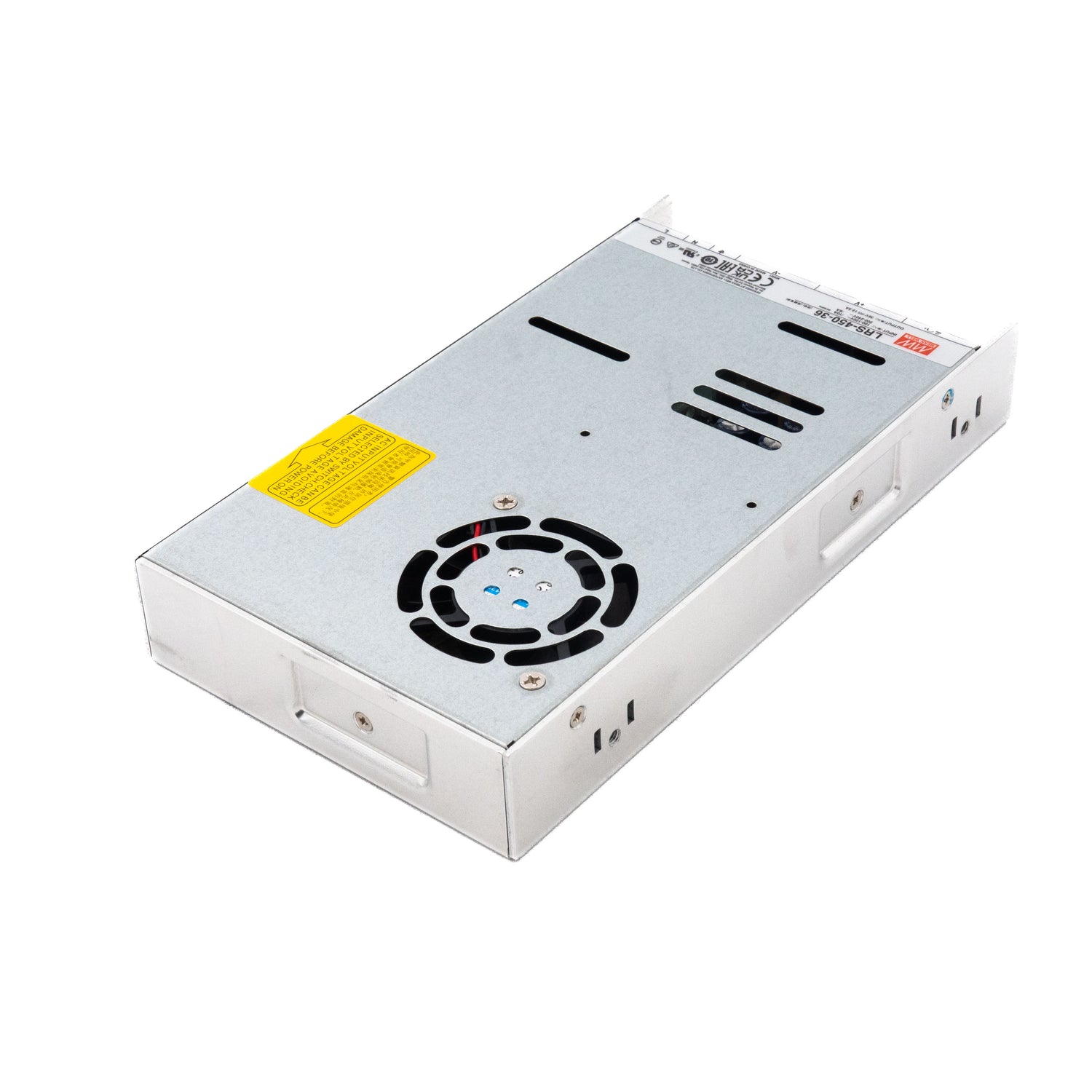

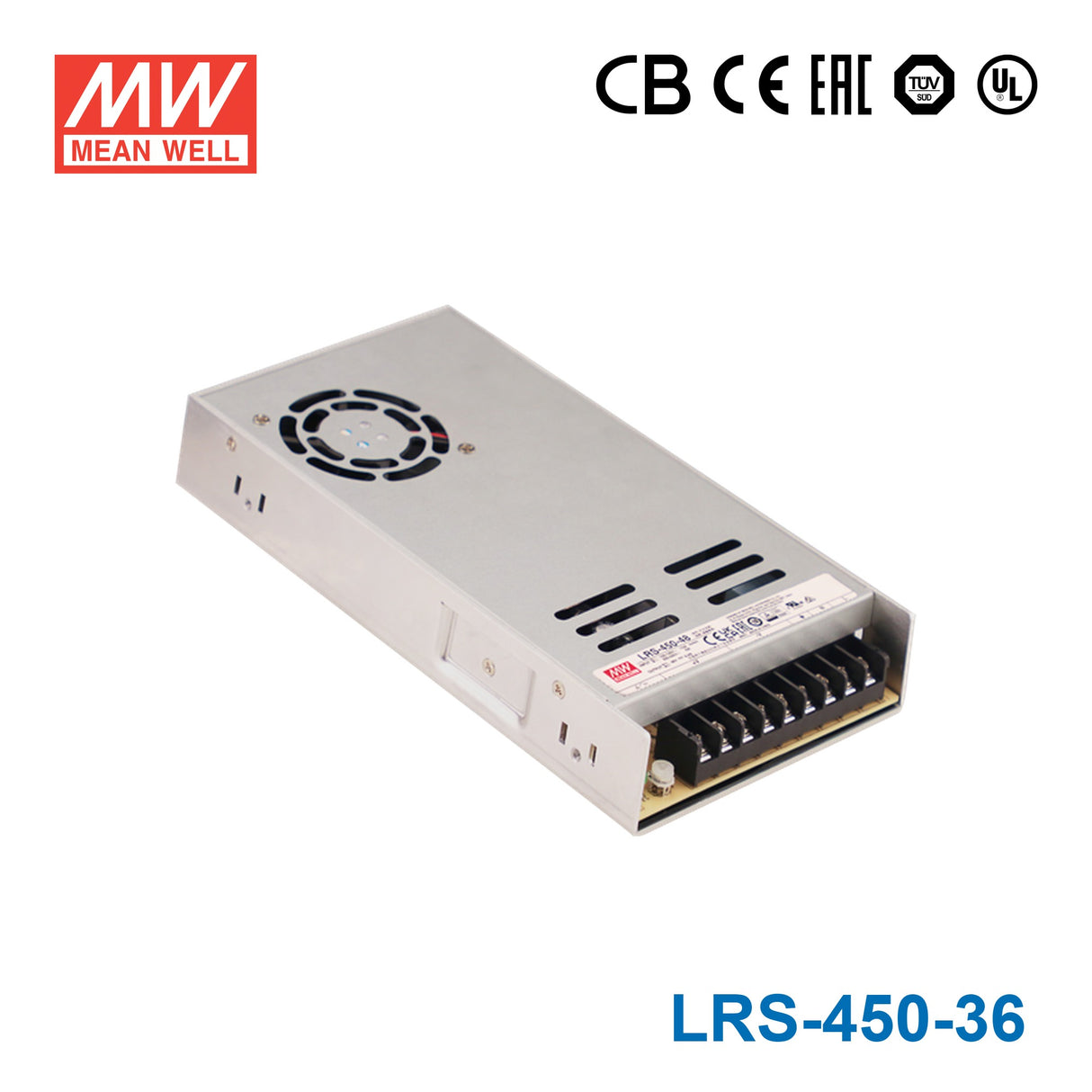

Mean Well LRS-450-36 Power Supply 450W 36V 12.5A
most economical modelultra compact and 1U low profilewithstand 5G vibration and 70°C operation
SKU
LRS-450-36
$63.90 USD
Unit price /
Unavailable
Shipping calculated at checkout.
|
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LRS-450-36 Power Supply 450W 36V 12.5A
$63.90 USD
Unit price /
Unavailable
Overview
LRS-450-36 is the 36V output model of this series: rated current 12.5A, rated power 450W, typical efficiency 92%.
LRS-450 series is a 450W single-output enclosed type power supply with 35mm of low profile design. Adopting the input of 115VAC or 230VAC (select by switch), the entire series provides an output voltage line of 5V, 12V, 15V, 24V, 36V and 48V.In addition to the high efficiency up to 92%, with the built-in long life fan LRS-450 can work under -20~+70℃ with full load. LRS-450 has the complete protection functions and 5G anti-vibration capability; It is complied with complete international safety regulations LRS-450 series serves as a high price-to-performance power supply solution for various industrial applications.
Features
- MEANWELL Patent Number :ZL202220241473.0
- AC input range selectable by switch
- Withstand 300VAC surge input for 5 second
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Forced air cooling
- Built-in cooling Fan ON-OFF control
- 1U low profile
- Withstand 5G vibration test
- High operating temperature up to 70℃
- Operating altitude up to 5000 meters (Note.10)
- 3 years warranty
- MTBF>1KK hrs
Specifications
LRS-450-36Specifications from the official datasheet (2025-09-12 edition)
OUTPUT
- DC VOLTAGE
- 36V
- RATED CURRENT
- 12.5A
- CURRENT RANGE
- 0 ~ 12.5A
- RATED POWER
- 450W
- RIPPLE & NOISE (max.)Note.2
- 360mVp-p
- VOLTAGE ADJ. RANGENote.3
- 34.2 ~ 39.6V
- VOLTAGE TOLERANCENote.4
- ±1.0%
- LINE REGULATIONNote.5
- ±0.5%
- LOAD REGULATIONNote.6
- ±0.5%
- SETUP, RISE TIMENote.7
- 1500ms, 50ms/230VAC 1500ms,50ms/115VAC at full load
- HOLD UP TIME (Typ.)
- 16ms/230VAC 12ms/115VAC at full load
INPUT
- VOLTAGE RANGENote.8
- 90 ~ 132VAC / 180 ~ 264VAC by switch 255 ~ 370VDC (swith on 230VAC)
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY (Typ.)
- 92%
- AC CURRENT (Typ.)
- 10A/115VAC 6A/230VAC
- INRUSH CURRENT (Typ.)
- 35A/115VAC 60A/230VAC
- LEAKAGE CURRENT
- <2mA / 240VAC
PROTECTION (Note.9)
- OVER LOAD
- 105 ~ 150% rated output power Constant current limiting, unit will shutdown after 3 sec. re-power on to recover
- OVER VOLTAGE
- 41.4 ~ 48.6V Protection type : Shut down o/p voltage, re-power on to recover
- OVER TEMPERATURE
- Shut down o/p voltage, re-power on to recover
FUNCTION
- FAN ON/OFF CONTROL (Typ.)
- RTH3≧50℃ FAN ON, ≦40℃ FAN OFF
ENVIRONMENT
- WORKING TEMP.
- -20 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC (Note.11)
- OVER VOLTAGE CATEGORY
- Ⅲ: According to EN61558, EN50178, EN60664-1, EN62477-1; altitude up to 2000 meters
- SAFETY STANDARDS
- BS IEC/UL 62368-1, EAC TP TC 004,KC62368-1(except for 5V), BIS IS13252(Part1):2010/IEC60950-1: 2005( NOTE 14 ),BSMI CNS15598-1,GB 4943.1,BS EN/EN61558-1,BS EN/EN61558-2-16 approved, Designed by AS/NZS 61558.1/2.16, AS/NZS 62368.1
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to EAC TP TC 020, BSMI CNS15936,KC KSC 9832, KSC 9835
- EMC IMMUNITY
- Compliance to EAC TP TC 020,KC KSC 9832, KSC 9835
OTHERS
- MTBF
- 1508.9K hrs min. Telcordia SR-332(Bellcore) ; 252.2K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 225*124*35mm (L*W*H)
- PACKING
- 0.85Kg/15pcs/14.11Kg/0.84CUFT
Test conditions and notes14
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Voltage adjustment can only be operated within the input range of 100~120VAC or 200-240VAC. If the voltage adjustment is performed outside this range, it may cause abnormal output.
- 4. Tolerance : includes set up tolerance, line regulation and load regulation.
- 5. Line regulation is measured from low line to high line at rated load.
- 6. Load regulation is measured from 0% to 100% rated load.
- 7. Length of set up time is measured at cold start. Turning the power supply on/off frequently may lead to increase of the set up time.
- 8. Derating may be needed under low input voltages. Please refer to"Static Characteristics" sections for details.
- 9. Once protections are triggered, 3min(Typ.) of cold down time is required before restart.
- 10. The ambient temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m(6500ft).
- 11. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 12. This power supply does not meet the harmonic current requirements outlined by EN61000-3-2. Please do not use this power supply under the following conditions: a) the end-devices is used within the European Union, and b) the end-devices is connected to public mains supply with 220Vac or greater rated nominal voltage, and c) the power supply is: - installed in end-devices with average or continuous input power greater than 75W, or - belong to part of a lighting system Exception: Power supplies used within the following end-devices do not need to fulfill EN61000-3-2 a) professional equipment with a total rated input power greater than 1000W; b) symmetrically controlled heating elements with a rated power less than or equal to 200W
- 13. RCM is on voluntary basis and meets relevant IEC or AS/NZS standards complying with AS/NZS 4417.1.
- 14. Some model may not have the BIS logo, please contact your MEAN WELL sales for more information.
Technical drawings
Typical applications
- Industrial automation machinery
- Industrial control system
- Mechanical and electrical equipment
- Electronic instruments, equipments or apparatus
