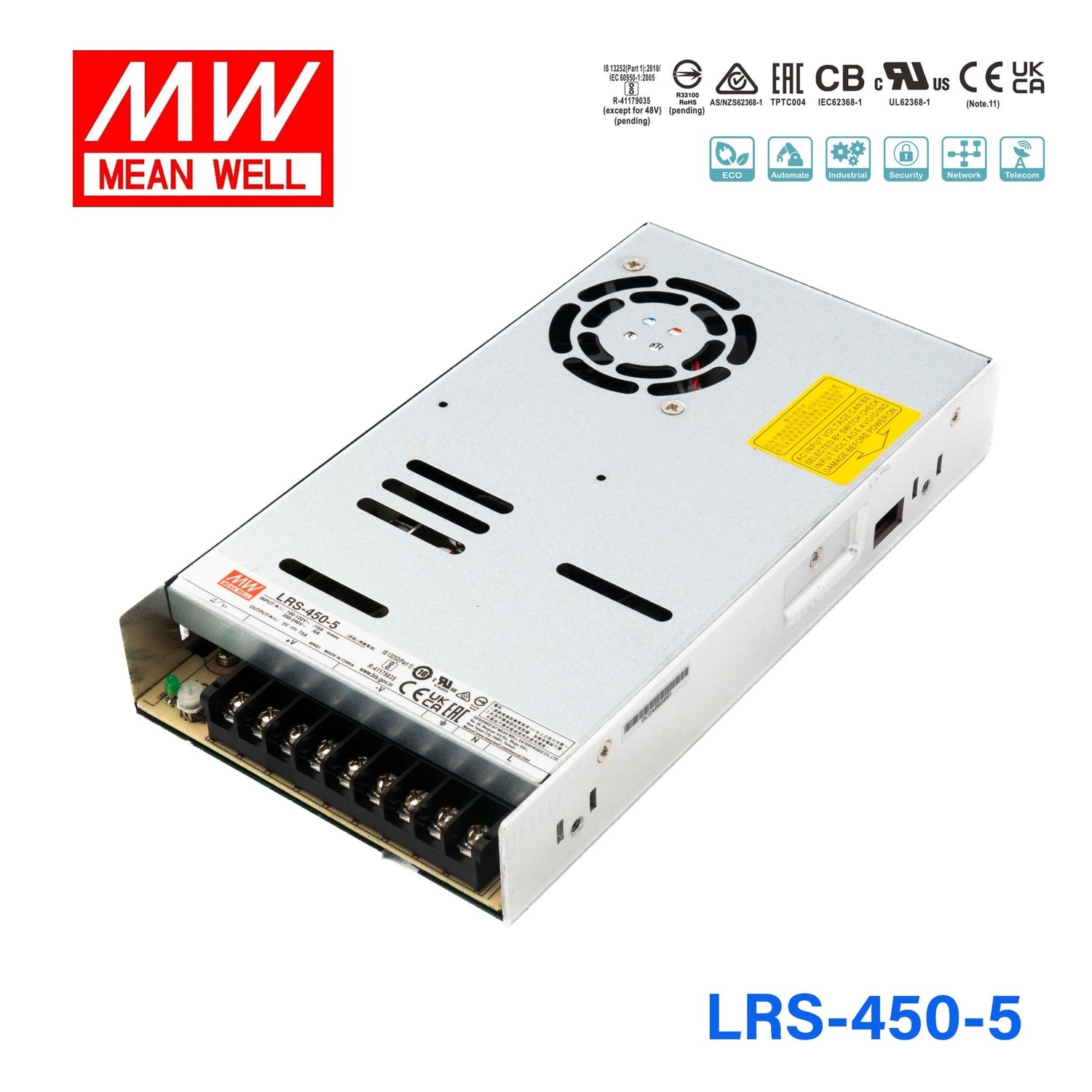

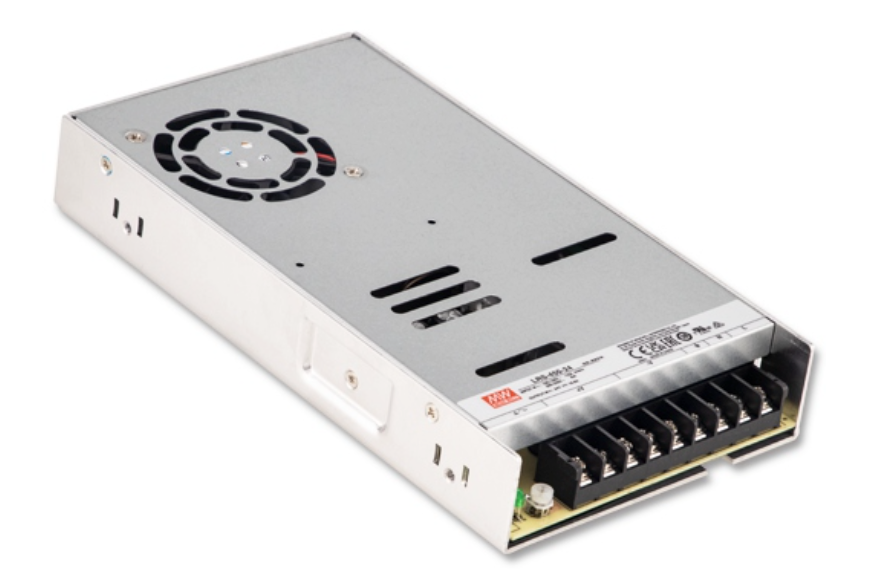

Mean Well LRS-450-5 Power Supply 300W 5V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LRS-450-5 Power Supply 300W 5V
Brand MEANWELL
AC input voltage range: 90 ~ 132VAC
Rated power: 300W
AC input range selectable by switch
Withstand 300VAC surge input for 5 second
Protections: Short circuit / Overload / Over voltage / Over temperature
Forced air cooling by built-in DC fan
Built-in cooling Fan ON-OFF control
1U low profile
Withstand 5G vibration test
LED indicator for power on
No load power consumption < 0.75W
100% full load burn-in test
High operating temperature up to 70℃
Operating altitude up to 5000 meters (Note.8)
High efficiency, long life and high reliability
3 years warranty
Key Features
- ✓180 / 264VAC by switch
- ✓Cold start, 60A at 230VAC
- ✓±10% by potentiometer
- ✓105%~150%
- ✓Constant current limiting, unit will shutdown after 3 sec, re-power on to recover
- ✓5.75 ~ 6.75V
- ✓Shut down o/p voltage, re-power on to recover
- ✓I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ✓-20 ~ +70℃ (Refer to "Derating Curve")
- ✓BS IEC/UL 62368-1, EAC TP TC 004, AS/NZS62368.1 approved
- ✓225*124*35mm (L*W*H)
-
BrandMean Well
-
SeriesLRS Series
-
Power Rating375 Watt
-
Output Voltage5 Volt
-
Rated Current75 Ampere
-
Input Voltage90V~132V
-
No of Output1
-
Standards MetCB,CE,CQC,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length8.86 in
-
Width4.88 in
-
Height1.38 in
-
Weight1.87 lb
