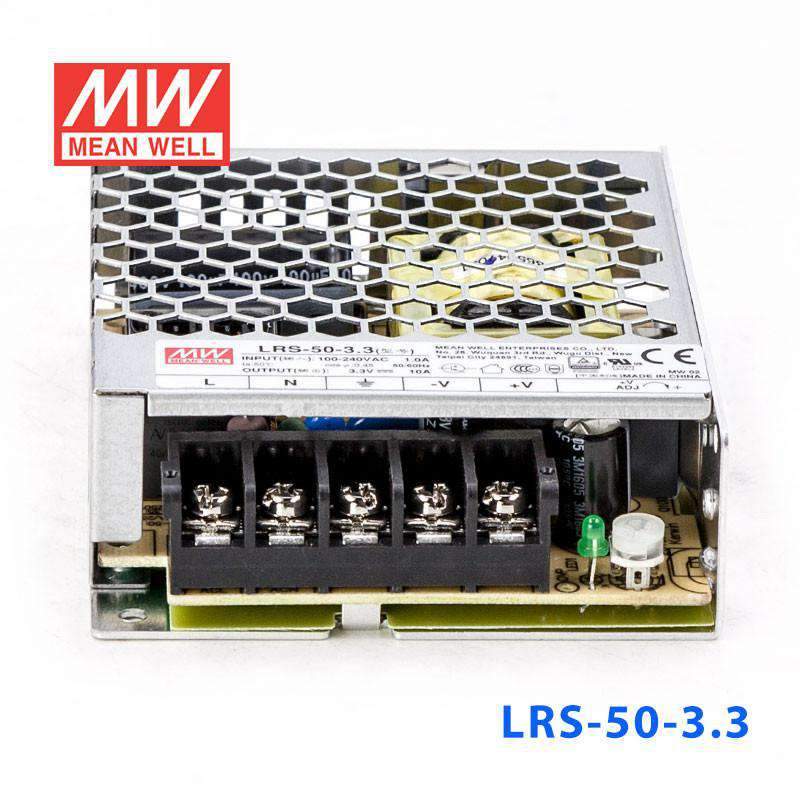

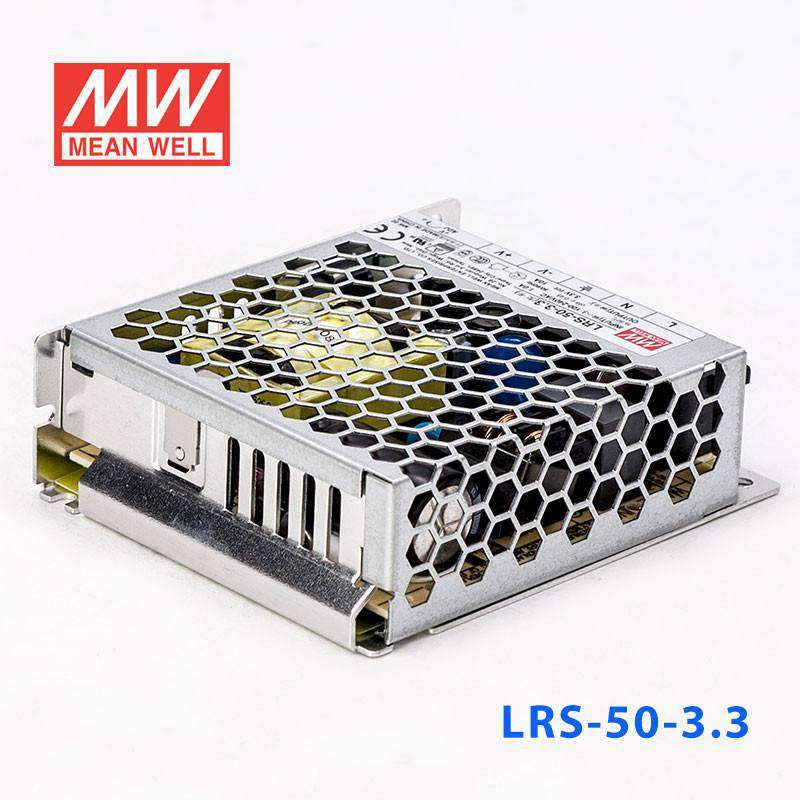

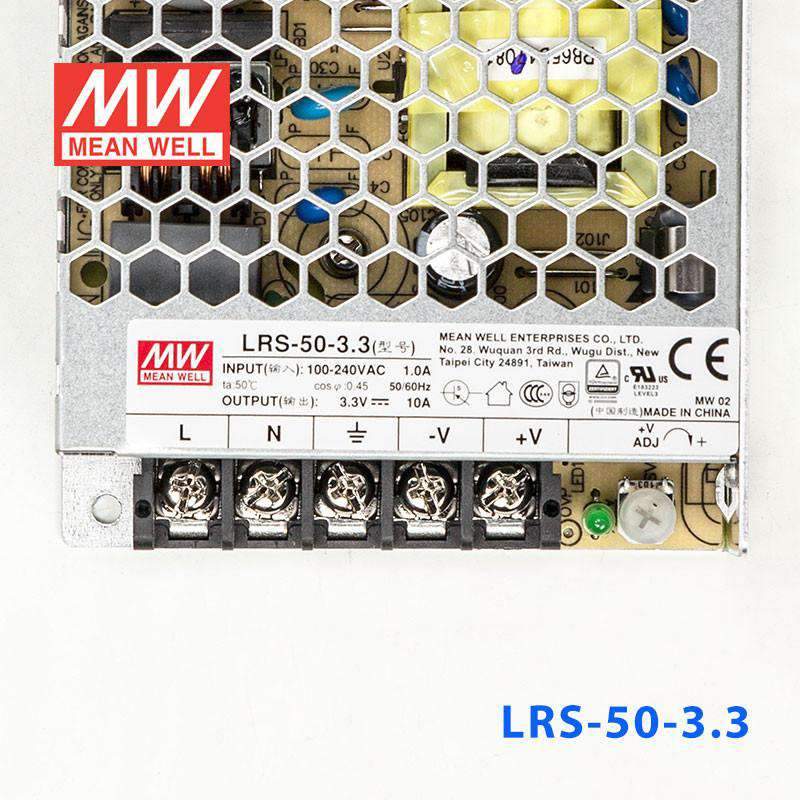

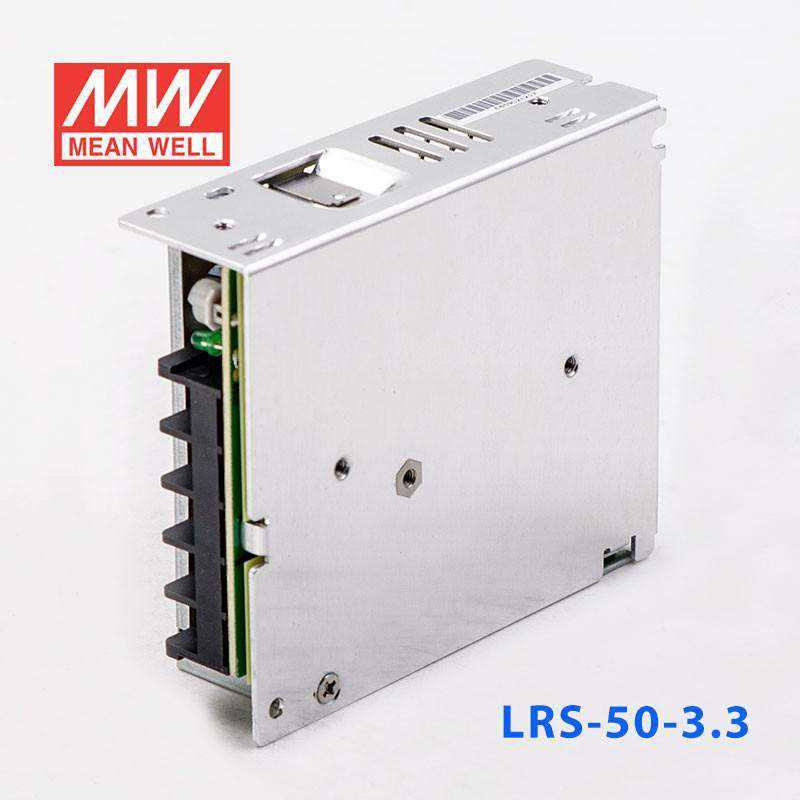

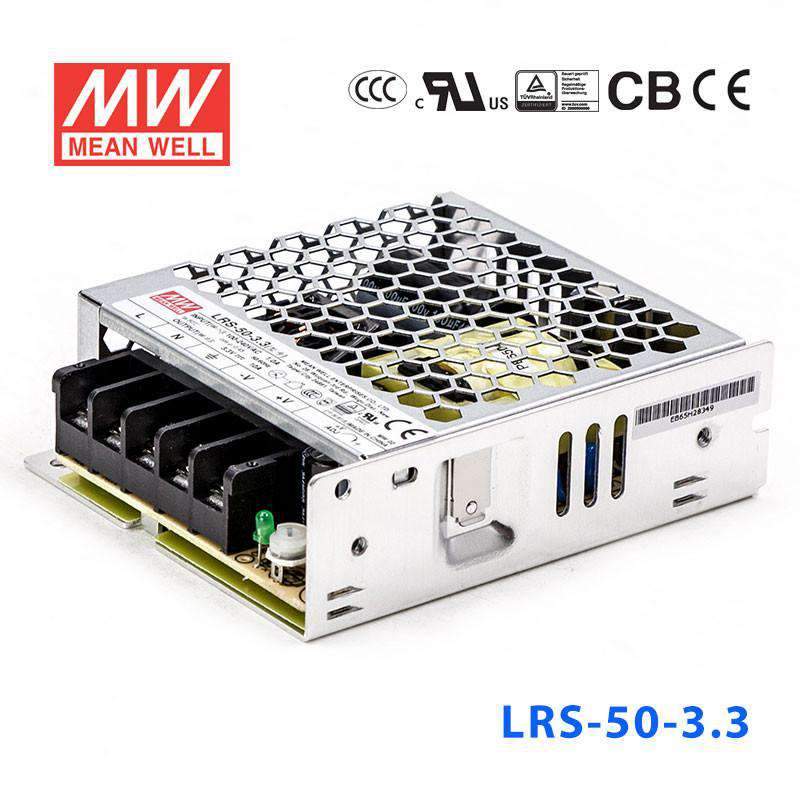

Mean Well LRS-50-3.3 Power Supply 50W 3.3V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LRS-50-3.3 Power Supply 50W 3.3V
Description
Description
No load power consumption <0.2W for 35W/50W; <0.3W for 75W/100WUniversal AC input / Full rangeWithstand 300VAC surge input for 5 secondsUltra compact and 1U low profileWithstand 5G vibration testHigh operating temperature up to 70oCProtections: Short circuit / Overload / Over voltageCooling by free air convectionCompliance to IEC/EN60335-1(PD3) and IEC/EN61558-1,-2-16 for household appliancesOperating altitude up to 5000 metersHigh efficiency, long life and high reliabilityLED indicator for power onLow cost3 years warranty
Key Features
- ✓85~264VAC; 120~370VDC
- ✓Cold start, 45A at 230VAC
- ✓±10% by potentiometer
- ✓110%~150%
- ✓Type Hiccup mode, auto-recovery
- ✓115%~135% rated output voltage
- ✓Shut down o/p voltage, re-power on to recover
- ✓3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.25kVAC, 1 minute
- ✓-30~+70°C (refer to output derating curve)
- ✓UL60950-1, IEC/EN60950-1, IEC/EN61558-1, EN61558-2-16, IEC/EN60335-1, CCC GB4943 approved
- ✓EN55022 class B, EN55014, EN61000-3-2, 3, EN61000-4,2,3,4,5,6,8,11, GB9254
- ✓5P/9.5mm pitch terminal block
- ✓99x 82x 30
Specifications
Specifications
-
BrandMean Well
-
SeriesLRS Series
-
Power Rating33 Watt
-
Output Voltage3.3 Volt
-
Rated Current10 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3.9 in
-
Width3.23 in
-
Height1.18 in
-
Weight0.46 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What loads is the LRS-50-3.3 suitable for at 3.3V?
The LRS-50-3.3 supplies 3.3V at 10A (33W), the standard core logic voltage for FPGAs, microcontrollers, and DDR memory modules. It suits embedded development boards, custom PCBs requiring a 3.3V rail, and low-power logic subsystems within larger equipment.
How does the LRS-50-3.3 output power compare to other LRS-50 models?
The LRS-50-3.3 delivers 33W — the lowest wattage in the LRS-50 family due to the low voltage. By comparison: LRS-50-5 (50W), LRS-50-12 (50.4W), LRS-50-15 (51W), LRS-50-24 (52.8W), LRS-50-36 (52.2W), LRS-50-48 (52.8W). All share the same 99 × 82 × 30 mm case and 0.21 kg weight.
Can the LRS-50-3.3 be used in cold environments?
The LRS-50-3.3 is rated for -30°C to +70°C operation. This low-end cold rating allows deployment in unheated industrial spaces, cold-storage control panels, or outdoor enclosures in temperate climates where temperatures drop near or below freezing.
Is the LRS-50-3.3 appropriate as a standalone board-level power supply for custom electronics?
Yes. At 3.3V and 10A (33W), the LRS-50-3.3 can serve as a primary or auxiliary power supply for custom PCBs requiring a regulated 3.3V rail. Its compact 99 × 82 × 30 mm footprint and 0.21 kg weight allow tight integration inside enclosures.
