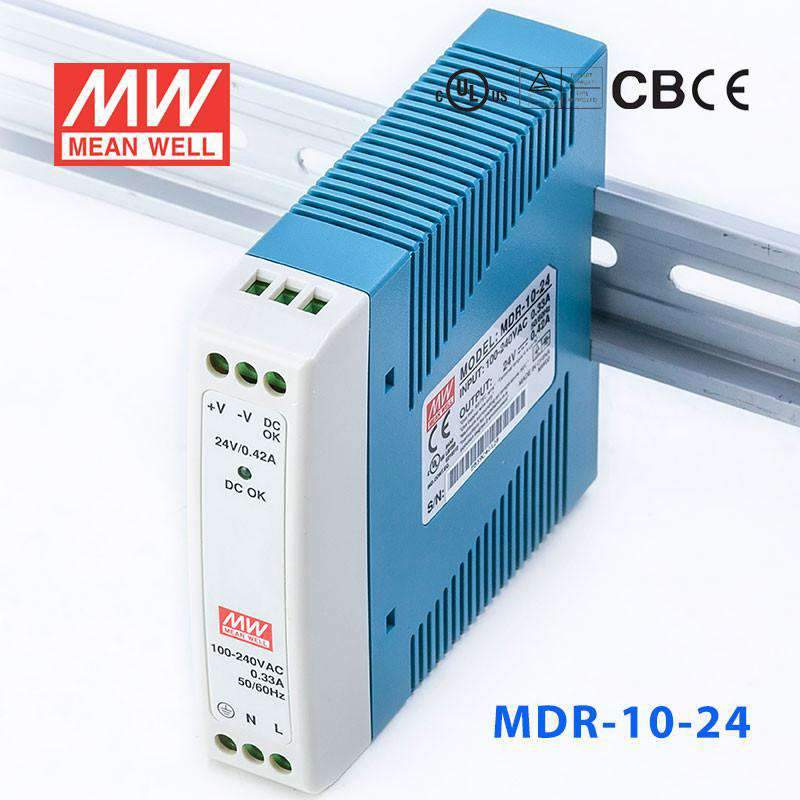

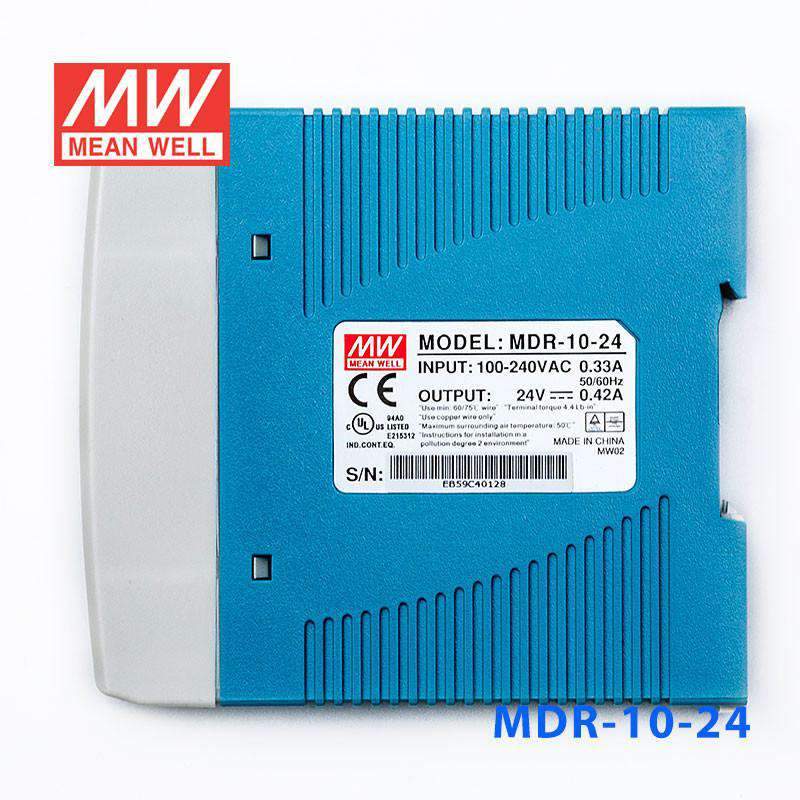

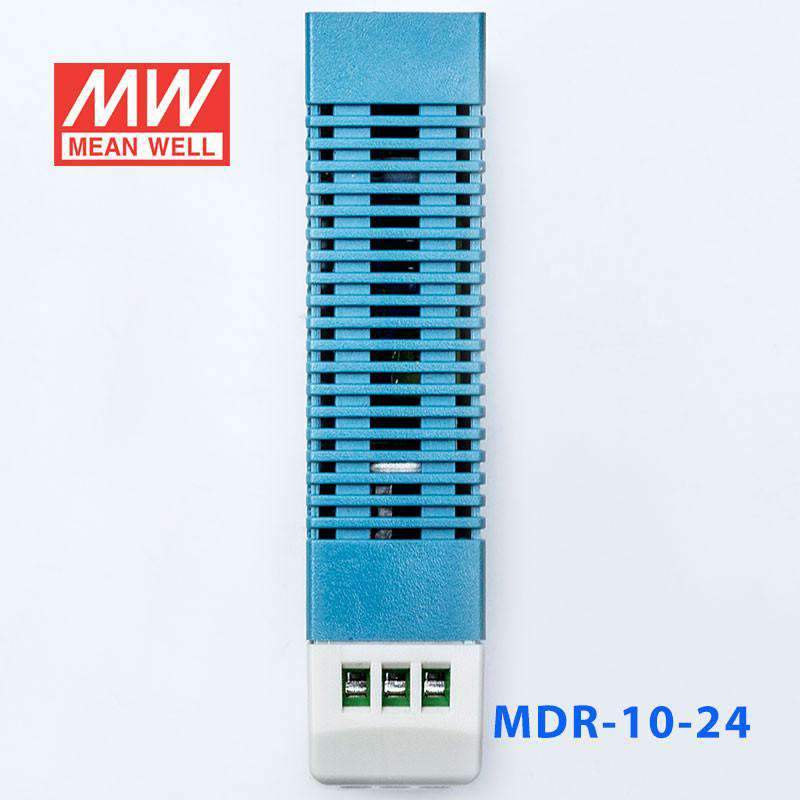

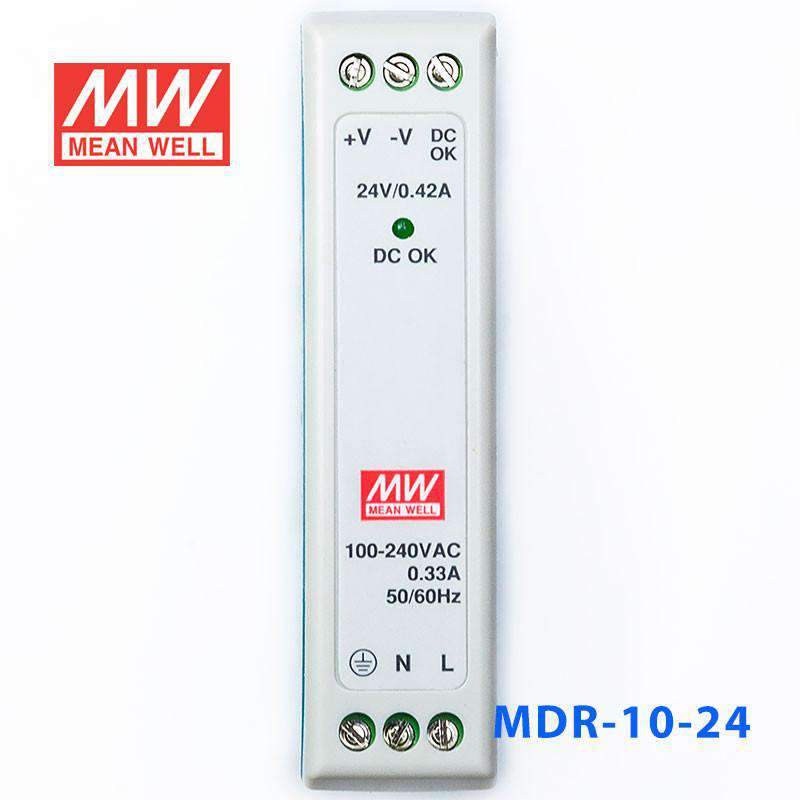

Mean Well MDR-10-24 Single Output Industrial Power Supply 10W 24V - DIN Rail

ultra slim, built-in active PFC function
SKU:
MDR-10-24

Model
$13.73 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range

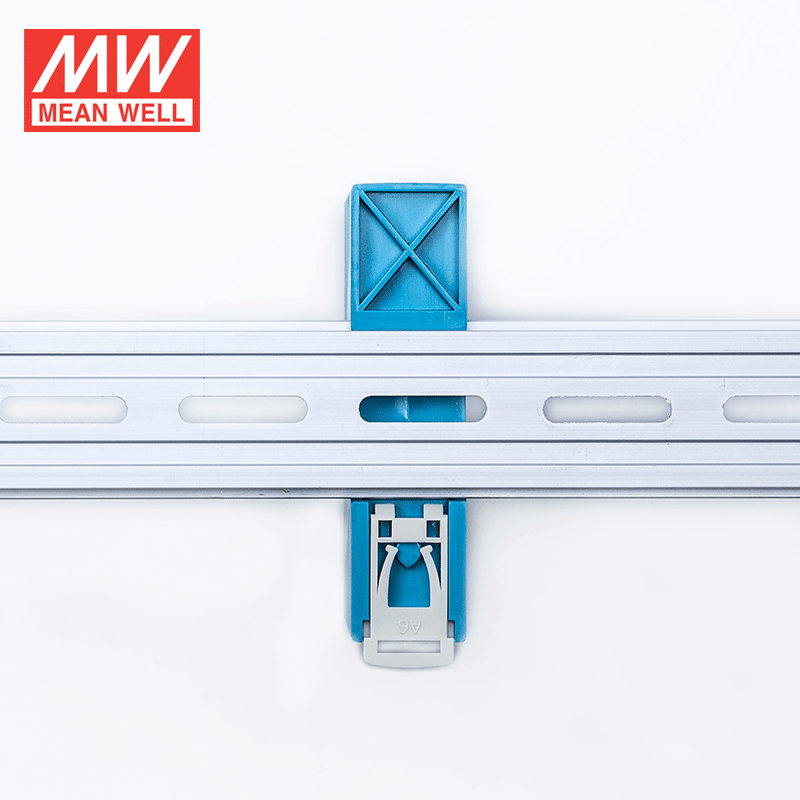

Installed on DIN rail TS35 / 7.5 or 15
Protections: Short circuit / Overload / Over voltage
No load power consumption <0.75W
LED indicator for power on
DC OK signal output
Cooling by free air convection
100% full load burn-in test
3 years warranty

General Specification

AC input voltage range 85~264VAC; 120~370VDC
AC inrush current Cold start, 35A at 115VAC, 70A at 230VAC
DC adjustment range Fixed
Overload protection >105% hiccup mode, auto-recovery
Over voltage protection 115%~135% rated output voltage
Setup, rise, hold up time 500ms, 30ms, 120ms
Withstand voltage I/P-O/P:3kVAC, I/P-FG:1.5kVAC, 1minute
Working temperature -20~+70°C (refer to output derating curve)
DC OK signal Open collector
Safety standards UL508, TUV EN60950-1 approved
EMC standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61204-3
Connection I/P: 3 poles, O/P: 3 poles screw DIN terminal
Dimension (LxWxH) 22.5x90x100
Packing 72pcs / 13.2kg

Specifications

  • Brand
    Mean Well
  • Series
    MDR Series
  • Power Rating
    10 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    0.42 Ampere
  • Input Voltage
    85V~264V
  • No of Output
    1
  • Standards Met
    BSMI,CB,CE,cUL,EAC,RCM,TUV
  • Operating Temperature
    -20°C~70°C
  • Warranty
    3 Year
  • Length
    3.94 in
  • Width
    3.54 in
  • Height
    0.89 in
  • Weight
    0.33 lb

File Downloads
