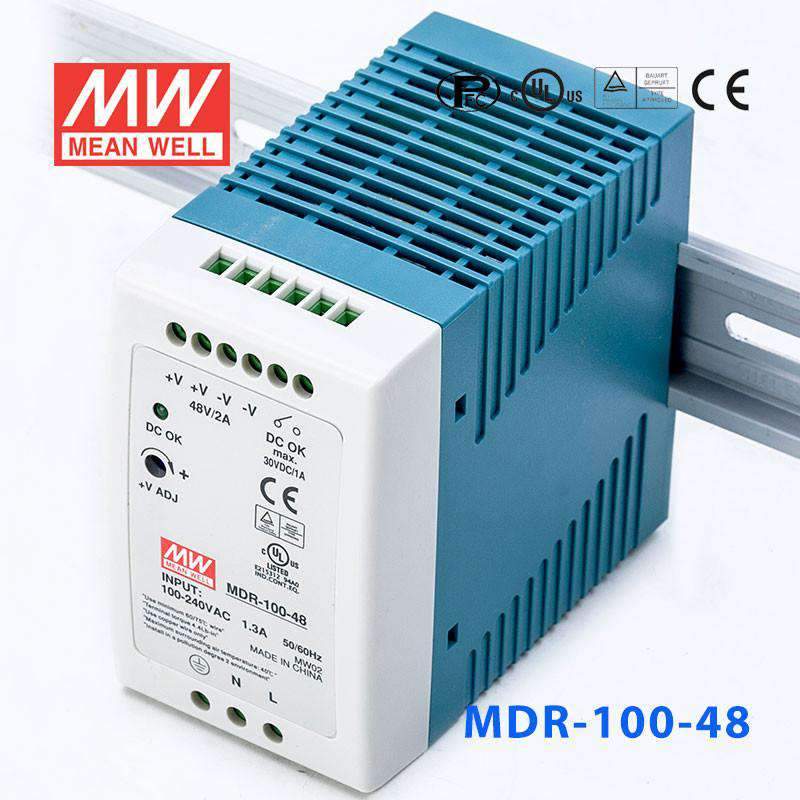

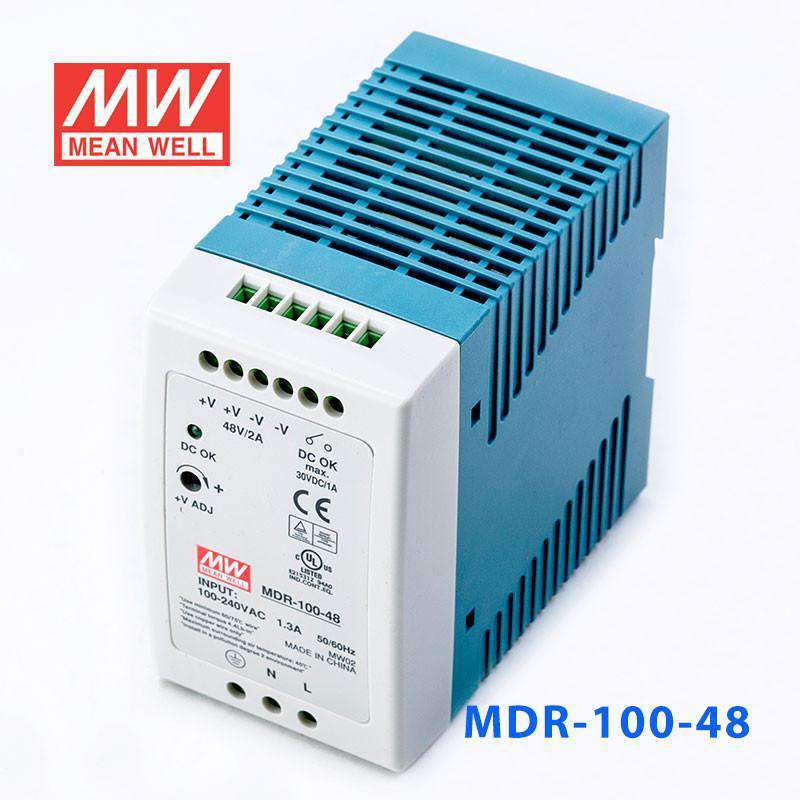

Mean Well MDR-100-48 Single Output Industrial Power Supply 100W 48V - DIN Rail
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MDR-100-48 Single Output Industrial Power Supply 100W 48V...
Description
Description
Features
| Universal AC input / Full range |

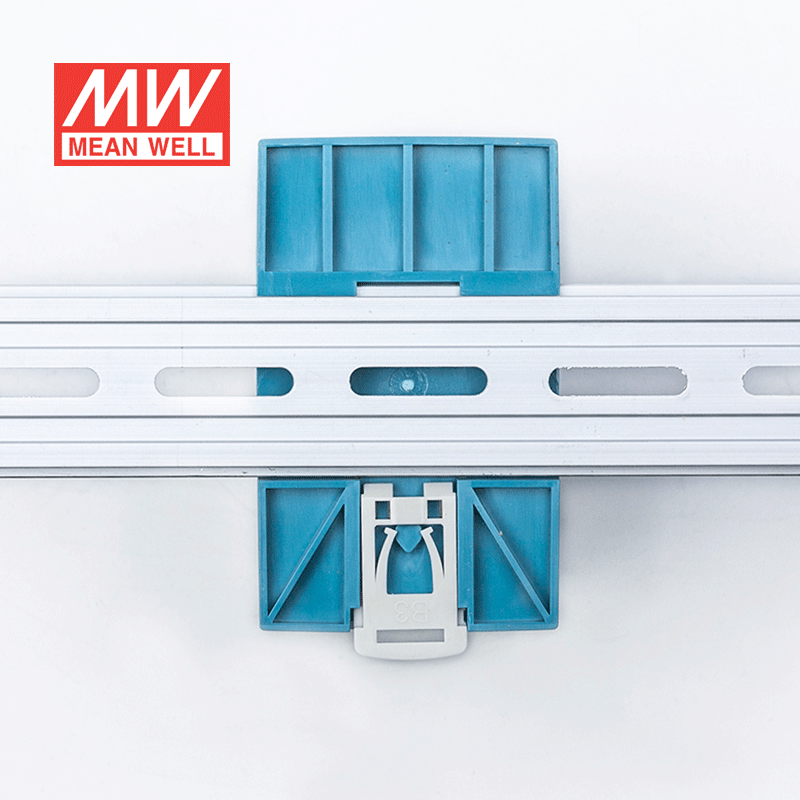

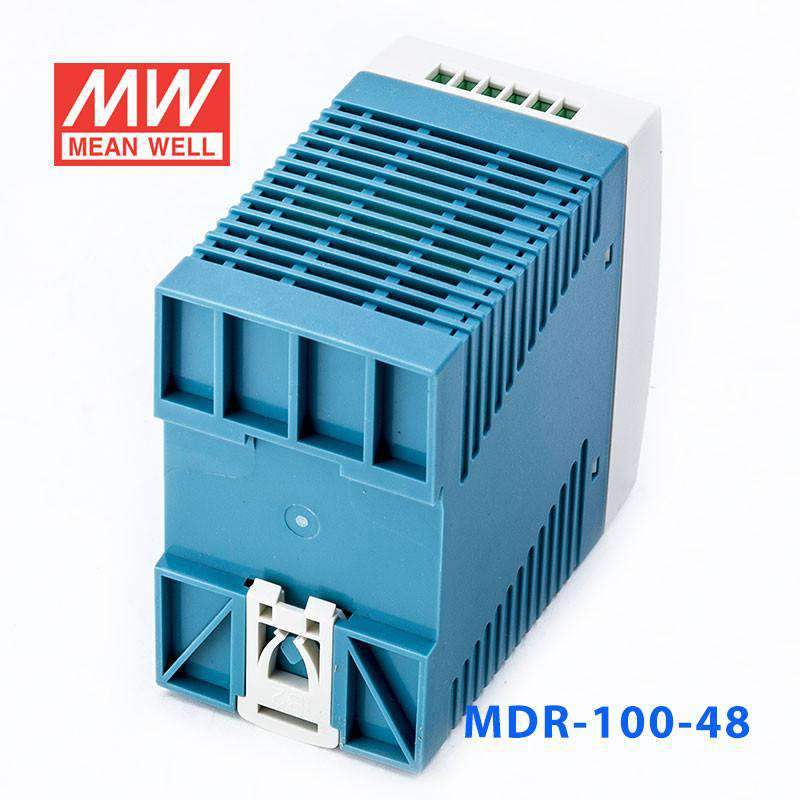

| Installed on DIN rail TS35 / 7.5 or 15 |
| Protections: Short circuit / Overload / Over voltage |
| No load power consumption <1W |
| LED indicator for power on |
| DC OK relay contact |
| Cooling by free air convection |
| 100% full load burn-in test |
| Built-in active PFC and over temp. protection |
| 3 years warranty |
General Specification
| AC input voltage range | 85~264VAC; 120~370VDC |
| AC inrush current | Cold start, 30A at 115VAC, 60A at 230VAC |
| DC adjustment range | 0~+20% rated output voltage |
| Overload protection | 105%~150% constant current limiting, auto-recovery |
| Over voltage protection | 125%~150% rated output voltage |
| Setup, rise, hold up time | 3000ms, 50ms, 50ms |
| Withstand voltage | I/P-O/P:3kVAC, I/P-FG:1.5kVAC, 1minute |
| Working temperature | -10~+60°C |
| DC OK signal | Relay contact |
| Safety standards | UL508, TUV EN60950-1 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61204-3, EN61000-6-2 heavy industry level |

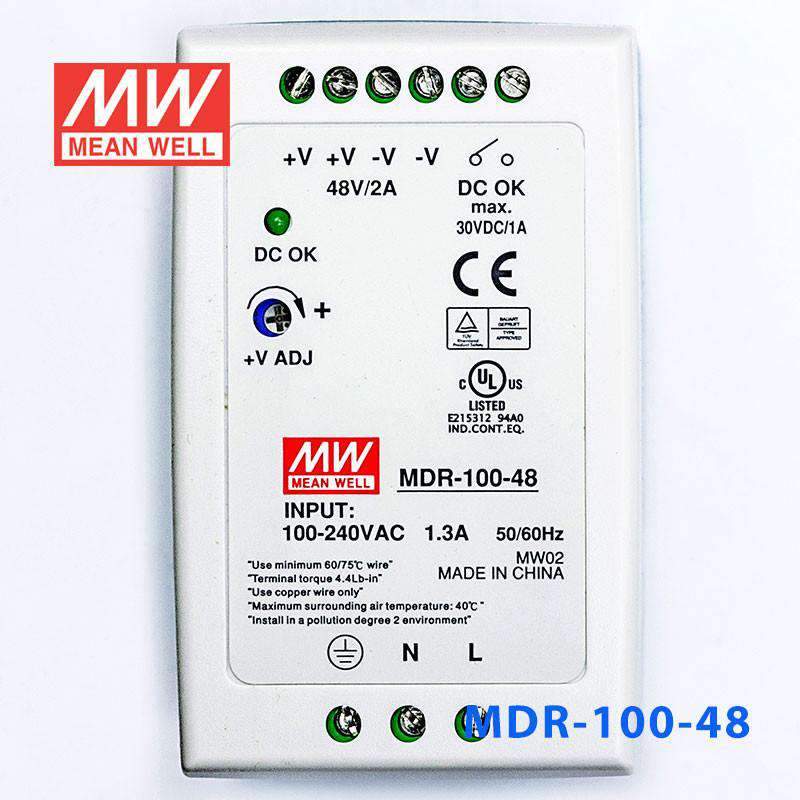

| Connection | IP: 3 poles, O/P: 6 poles screw DIN terminal |
| Dimension (LxWxH) | 55x90x100 |
| Packing | 30pcs / 13.6kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesMDR Series
-
Power Rating96 Watt
-
Output Voltage48 Volt
-
Rated Current2 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CE,cUL,EAC,RCM,TUV
-
Operating Temperature-10°C~60°C
-
Warranty3 Year
-
Length3.94 in
-
Width3.54 in
-
Height2.17 in
-
Weight0.93 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the MDR-100-48 to power 48V devices in an industrial control panel?
Yes, this model is suited to industrial control panels that need a 48V DC supply up to 2A. Its 96W output and DIN rail form factor make it appropriate for centralized 48V power distribution inside automation cabinets.
Is the MDR-100-48 suitable for PLC and industrial automation cabinets that use 48V DC?
It can be a fit where the PLC cabinet or automation assembly requires 48V DC and the connected load stays within 2A. The ultra slim housing and DIN rail design also help when panel space is limited.
Can this 48V DIN rail power supply be used for building management and control enclosures?
Yes, it is appropriate for building management or control enclosure applications that use 48V DC equipment and need up to 96W. The wide 85-264VAC input is useful where panel power standards vary across sites.
How does the MDR-100-48 compare with other MDR series models?
Within the MDR series, 48V options are MDR-40-48 at 39.8W and 0.83A, MDR-60-48 at 60W and 1.25A, and MDR-100-48 at 96W and 2A. Other siblings cover 5V, 12V, 15V, and 24V outputs, with power ratings from 10W up to 96W depending on model.
Is the MDR-100-48 intended for open-air use or for control cabinets?
This DIN rail power supply is best suited to protected indoor control cabinets and enclosures rather than exposed open-air locations. Its operating temperature range is -10°C to +60°C, so the enclosure environment should stay within that range.
