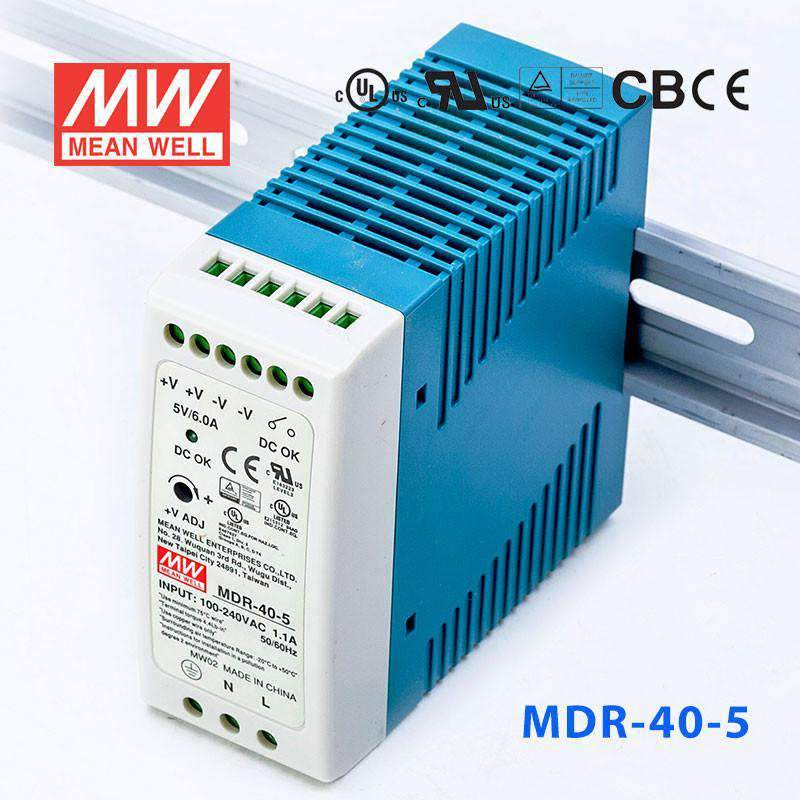

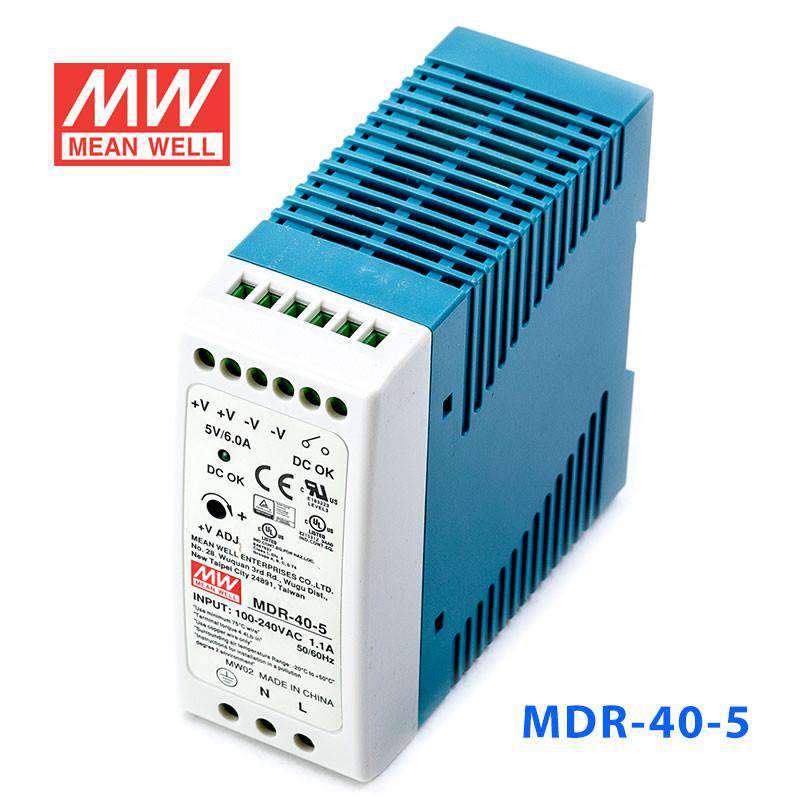

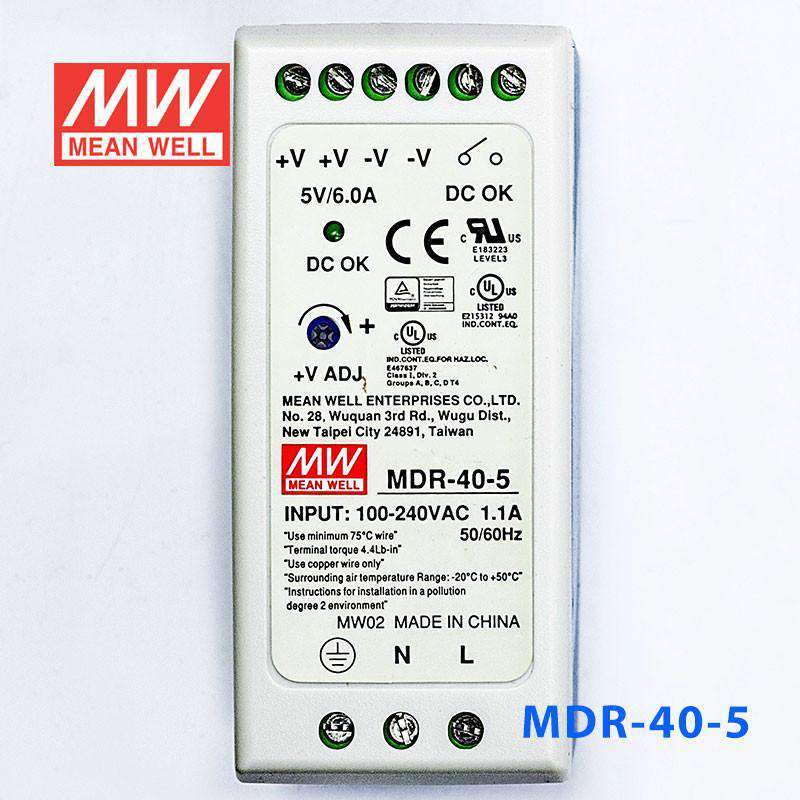

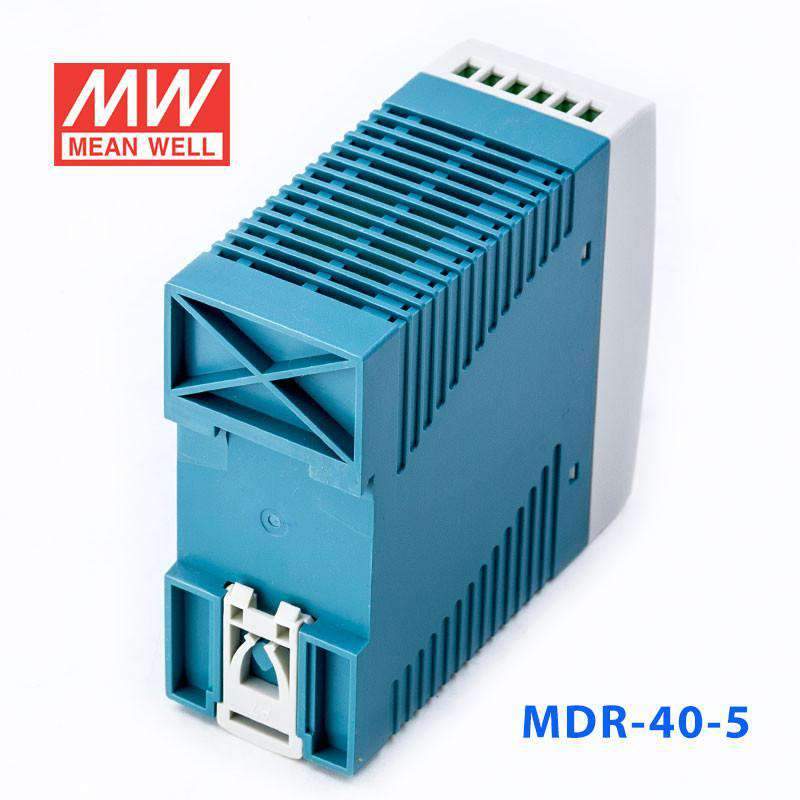

Mean Well MDR-40-5 Single Output Industrial Power Supply 40W 5V - DIN Rail
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MDR-40-5 Single Output Industrial Power Supply 40W 5V - D...
Description
Description
Features
| Universal AC input / Full range |

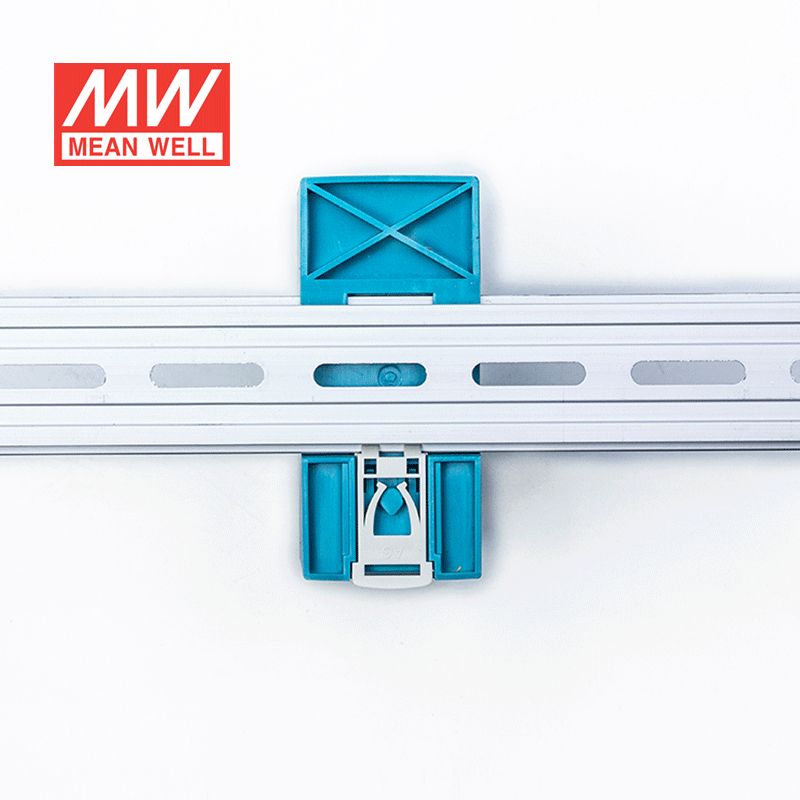

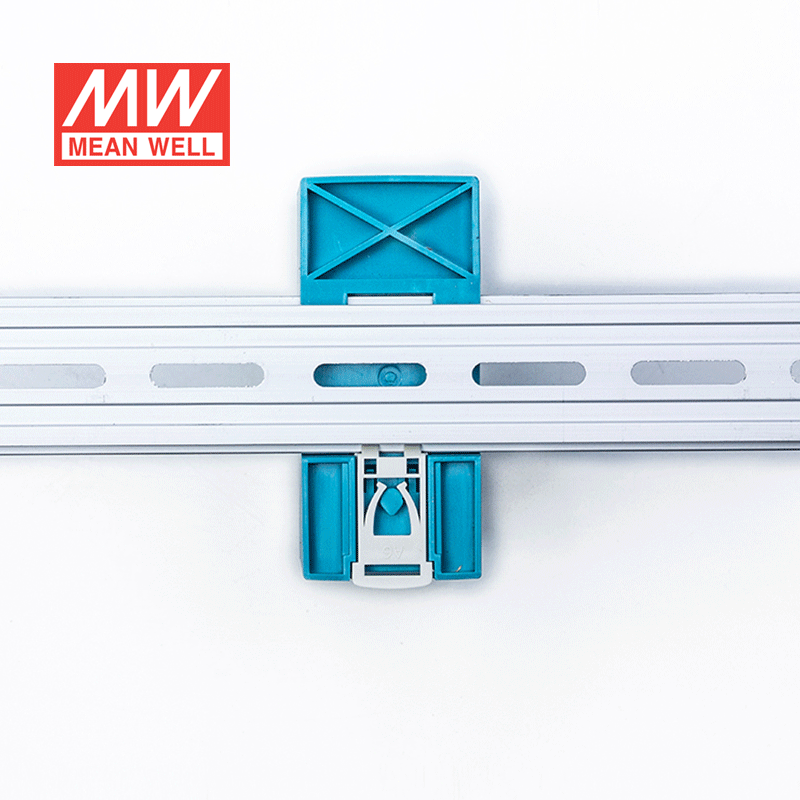

| Installed on DIN rail TS35 / 7.5 or 15 |
| Protections: Short circuit / Overload / Over voltage |
| No load power consumption <0.75W |
| LED indicator for power on |
| DC OK relay contact |
| Cooling by free air convection |
| 100% full load burn-in test |
| 3 years warranty |
General Specification
| AC input voltage range | 85~264VAC; 120~370VDC |
| AC inrush current | Cold start, 30A at 115VAC, 60A at 230VAC |
| DC adjustment range | 0~+20% rated output voltage |
| Overload protection | 105%~150% constant current limiting, auto-recovery |
| Over voltage protection | 125%~150% rated output voltage |
| Setup, rise, hold up time | 500ms, 30ms, 50ms |
| Withstand voltage | I/P-O/P:3kVAC, I/P-FG:1.5kVAC, 1minute |
| Working temperature | -20~+70°C (refer to output derating curve) |
| DC OK signal | Relay contact |
| Safety standards | UL508, TUV EN60950-1, UL60950-1 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61204-3, EN61000-6-2 heavy industry level |
| Connection | IP: 3 poles, O/P: 6 poles screw DIN terminal |
| Dimension (LxWxH) | 40x90x100 |
| Packing | 42pcs / 13.6kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesMDR Series
-
Power Rating30 Watt
-
Output Voltage5 Volt
-
Rated Current6 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CE,cUL,EAC,RCM,TUV,UL
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length3.94 in
-
Width3.54 in
-
Height1.57 in
-
Weight0.66 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the MDR-40-5 for 5V PLC logic, controller boards, or industrial electronics?
Yes, this model is suited to 5V DC loads up to 6A, with a listed power rating of 30W. It is appropriate for DIN rail control panels where the electronics specifically require a 5V supply.
Is the MDR-40-5 a good fit for 5V modules inside a control cabinet?
It can be used for grouped 5V industrial electronics as long as the combined draw stays within 30W and 6A. The DIN rail format and ultra slim design help when several components must fit in one enclosure.
Can this 5V power supply be used in building management or automation panels with low-voltage control electronics?
Yes, if the panel includes 5V DC devices and the total load remains within the unit's 30W and 6A output limits. The 85-264VAC input range also suits AC-fed control panels used in automation and facility systems.
Is the MDR-40-5 suitable when I need a slim DIN rail power supply for compact panel layouts?
Yes, the housing measures 100.0 x 90.0 x 40.0 mm and is described as ultra slim. That makes it useful in compact DIN rail assemblies where a 5V supply must fit into limited panel space.
Should the MDR-40-5 be mounted in an enclosure rather than an exposed location?
This unit is generally intended for use inside a control cabinet or enclosure. The listed operating temperature range is -20C to +70C, but no separate outdoor or washdown protection rating is included in the provided specs.
How does the MDR-40-5 compare with the other MDR series models?
For the listed 5V models, MDR-10-5 is 10W and 2A, MDR-20-5 is 15W and 3A, MDR-40-5 is 30W and 6A, and MDR-60-5 is 50W and 10A. Other siblings are MDR-10-12 at 10W and 0.84A, MDR-20-12 at 20W and 1.67A, MDR-40-12 at 40W and 3.33A, MDR-60-12 at 60W and 5A, MDR-100-12 at 90W and 7.5A, MDR-10-15 at 10W and 0.67A, MDR-20-15 at 20W and 1.34A, MDR-10-24 at 10W and 0.42A, MDR-20-24 at 24W and 1A, MDR-40-24 at 40.8W and 1.7A, MDR-60-24 at 60W and 2.5A, MDR-100-24 at 96W and 4A, MDR-40-48 at 39.8W and 0.83A, MDR-60-48 at 60W and 1.25A, and MDR-100-48 at 96W and 2A.
