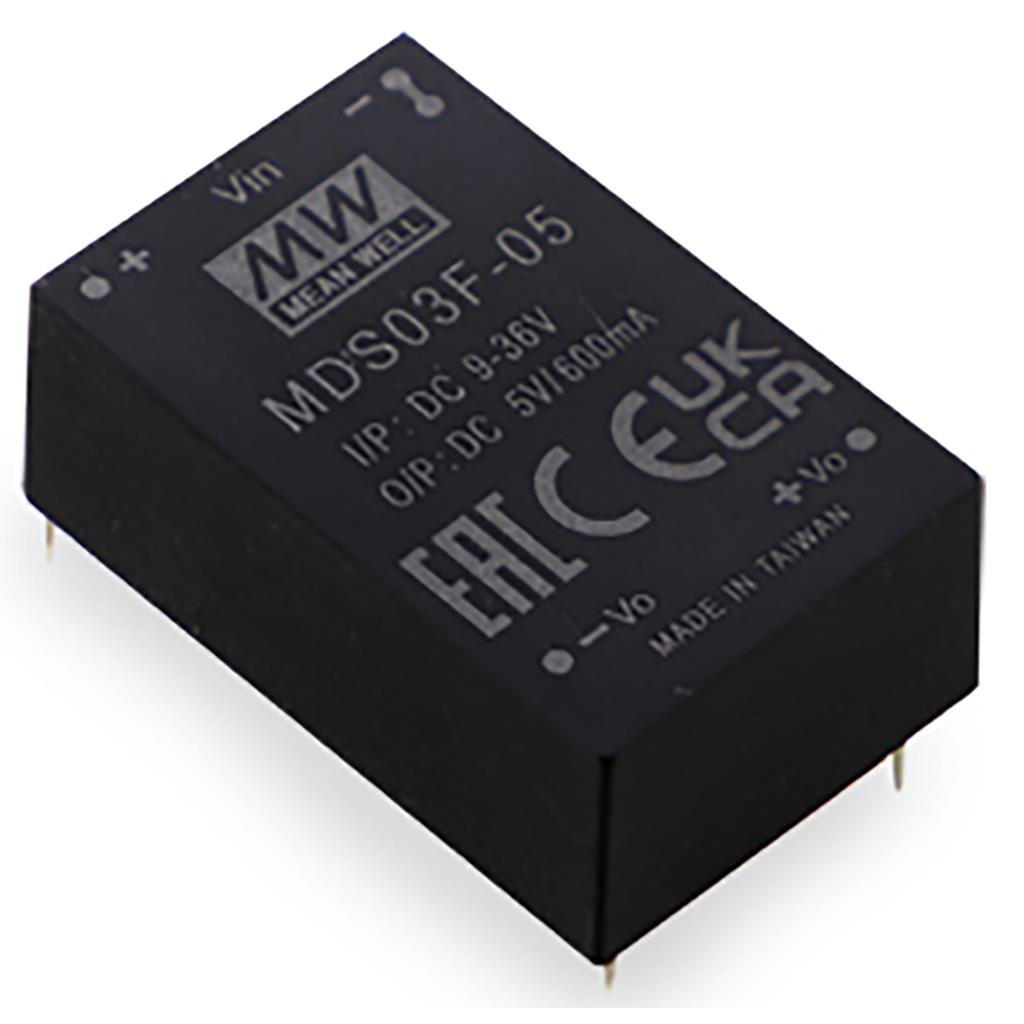

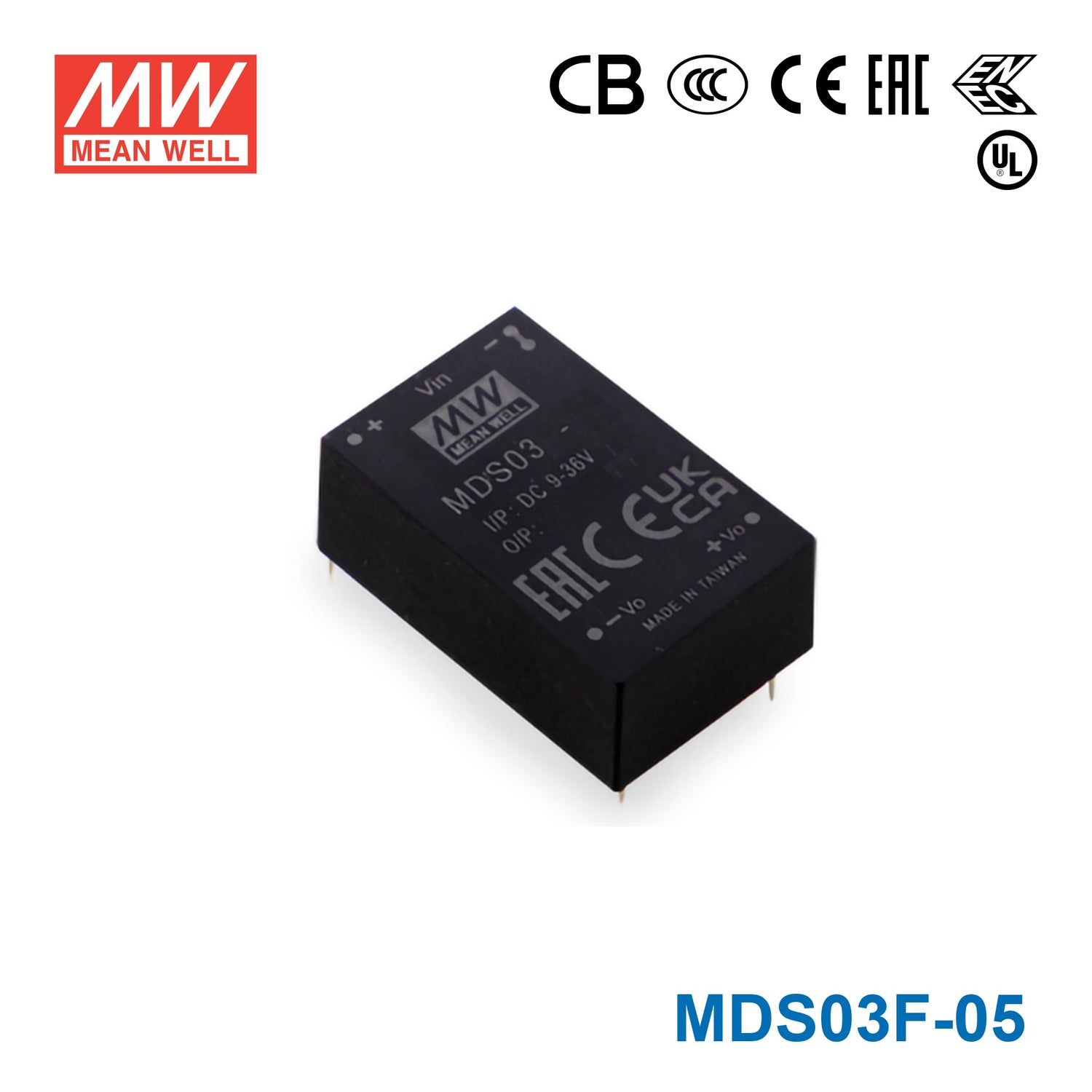

Mean Well MDS03F-05 Medical Grade DC/DC Converter 3W - 9-36V input,...
Description
Description
The MDS03F is a 3W Mean Well power converter (input range: 9~36Vdc).
Key Features
- ✓ Input voltage range: 9~36Vdc
- ✓ 6KVDC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload
- ✓ Safety approvals: IEC60601-1(LVD) 3 edition, EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMDS Series
-
Power Rating3 Watt
-
Output Voltage5 Volt
-
Rated Current0.6 Ampere
-
Input Voltage9V~36V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length1.25 in
-
Width0.8 in
-
Height0.48 in
-
Weight0.04 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the MDS03F-05 for 5V logic power in medical or laboratory electronics?
Yes, this medical-grade DC-DC converter provides a constant 5V output from a 9-36VAC input range. With a 3W rating and 0.6A output current, it is suited to low-power 5V electronics rather than larger 5V loads.
Is the MDS03F-05 a fit for embedded controllers in portable diagnostic or monitoring equipment?
It can fit embedded medical or lab designs that need a regulated 5V rail and operate from a wide 9-36VAC input range. The compact 31.8 x 20.3 x 12.2 mm housing helps in tightly packed equipment layouts.
Can this converter be used for 5V support rails in industrial instruments or communication modules?
Yes, it is appropriate for low-power support circuits that require constant 5V output and stay within the 3W limit. The 0.017 kg weight also suits compact instrument assemblies where size and mass matter.
Is the MDS03F-05 suitable for outdoor use or demanding temperature conditions?
The operating temperature range is -40C to +90C, which supports very cold and very hot environments. No IP rating is listed in the supplied specs, so outdoor or water-exposed use is not confirmed here.
How does the MDS03F-05 compare with the other MDS03F models?
The listed MDS03F family members are all 3W medical-grade DC-DC converters with the same 9-36VAC input range. The differences shown are 5V at 0.6A for this model, 12V at 0.25A for MDS03F-12, and 15V at 0.2A for MDS03F-15.
