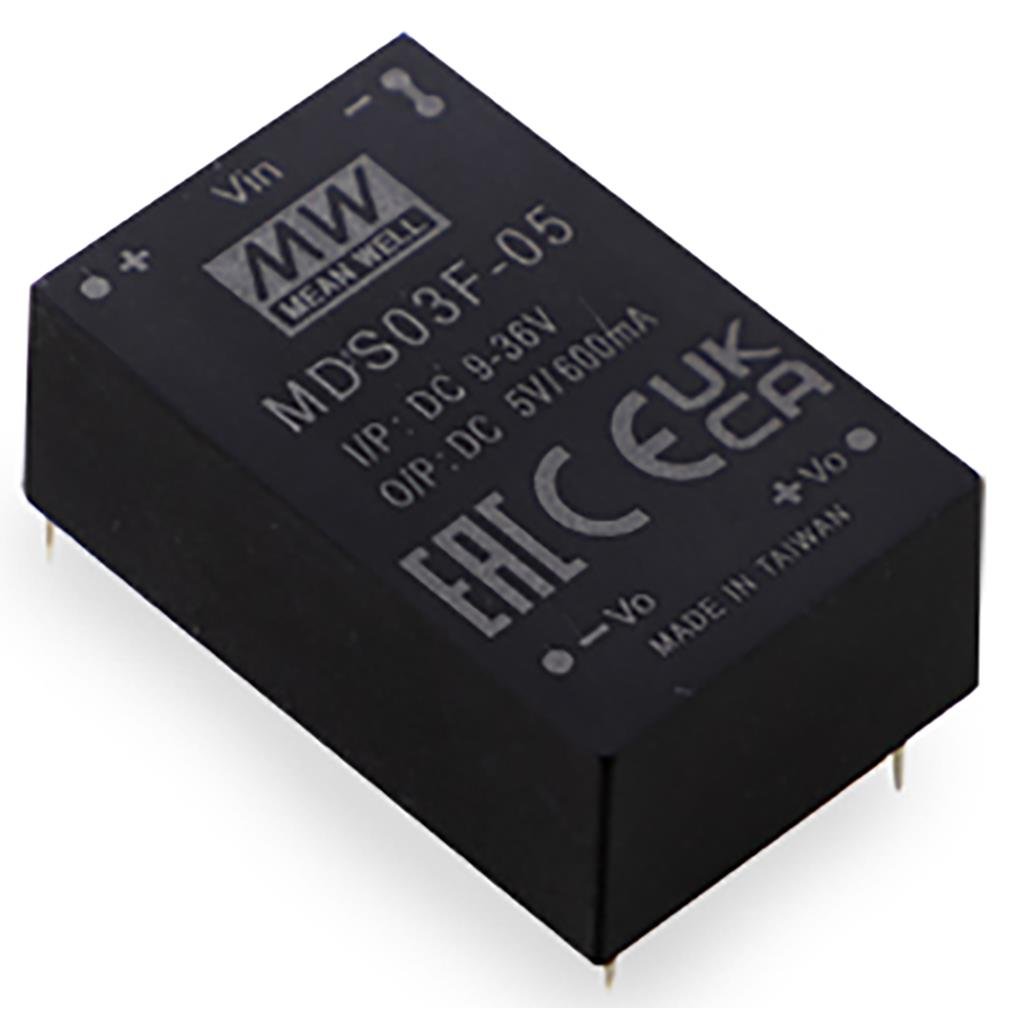

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

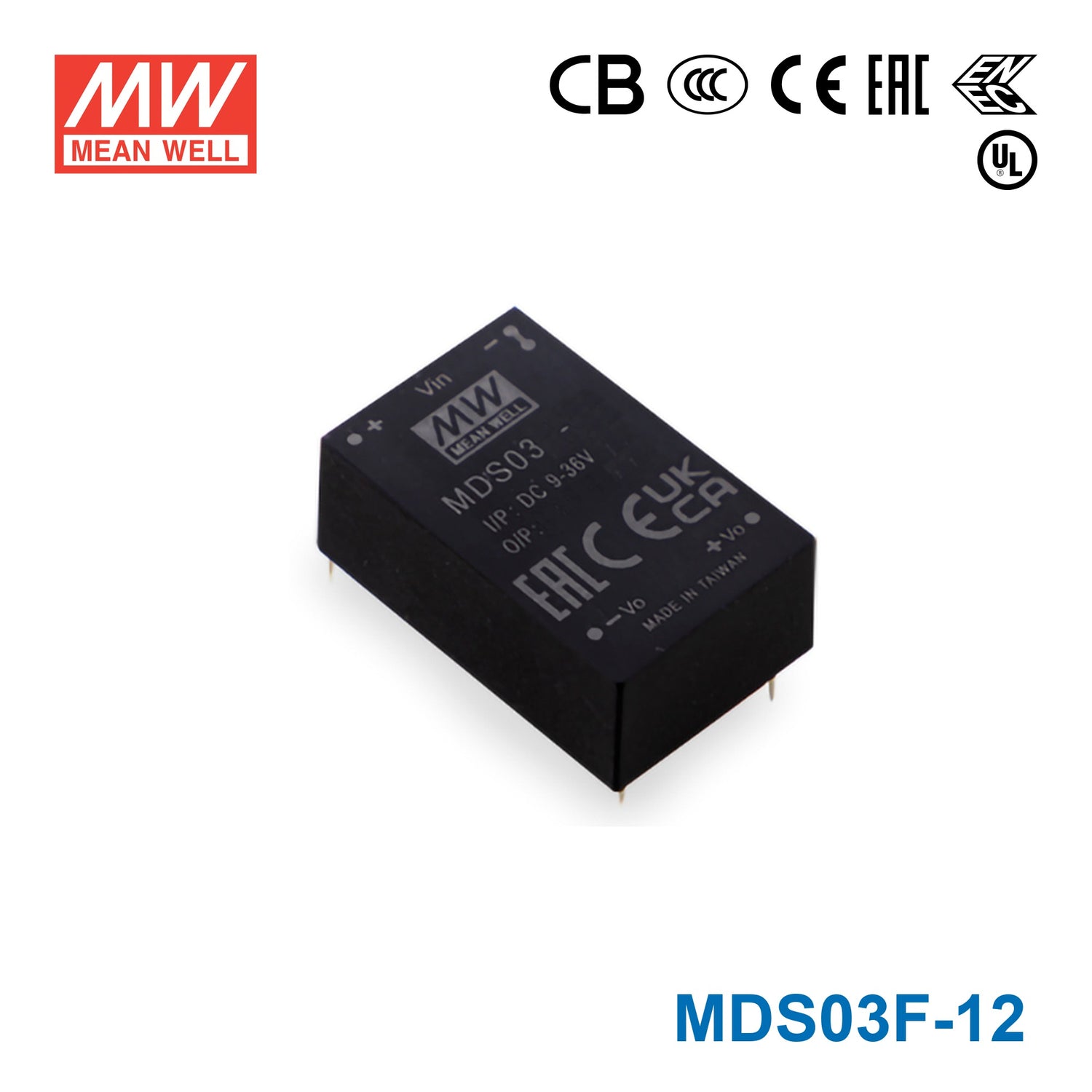

Mean Well MDS03F-12 Medical Grade DC/DC Converter 3W - 9-36V input,...
Description
Description
The MDS03F is a 3W Mean Well power converter (input range: 9~36Vdc).
Key Features
- ✓ Input voltage range: 9~36Vdc
- ✓ 6KVDC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload
- ✓ Safety approvals: IEC60601-1(LVD) 3 edition, EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMDS Series
-
Power Rating3 Watt
-
Output Voltage12 Volt
-
Rated Current0.25 Ampere
-
Input Voltage9V~36V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length1.25 in
-
Width0.8 in
-
Height0.48 in
-
Weight0.04 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the MDS03F-12 to provide 12V for medical control electronics or instrumentation?
Yes, this medical-grade converter delivers a constant 12V output from a 9-36VAC input range. Its 3W power rating and 0.25A output current make it a fit for lower-power 12V electronics rather than heavier 12V loads.
Is the MDS03F-12 suitable for embedded 12V circuits inside test, monitoring, or automation devices?
It is well suited to embedded designs that need a regulated 12V rail and have a wide-input source from 9-36VAC. The 31.8 x 20.3 x 12.2 mm size supports compact layouts in enclosed equipment.
Can this model power low-power 12V subsystems in industrial or medical equipment?
Yes, if the subsystem needs constant 12V and stays within 3W and 0.25A, this model aligns with that requirement. Its medical-grade classification and UL, CE, CB, CCC, EAC, and ENEC certifications may also matter in regulated equipment contexts.
Will the MDS03F-12 handle cold or hot operating conditions, and is it outdoor rated?
The specified operating temperature range is -40C to +90C, so the unit is rated across a broad temperature span. The provided specs do not include an IP rating, so outdoor exposure suitability is not established here.
What are the main differences between MDS03F-12 and its sibling models?
The MDS03F series shown here keeps the same 3W rating and 9-36VAC input range across all variants. The output choices are 5V at 0.6A for MDS03F-05, 12V at 0.25A for this model, and 15V at 0.2A for MDS03F-15.
