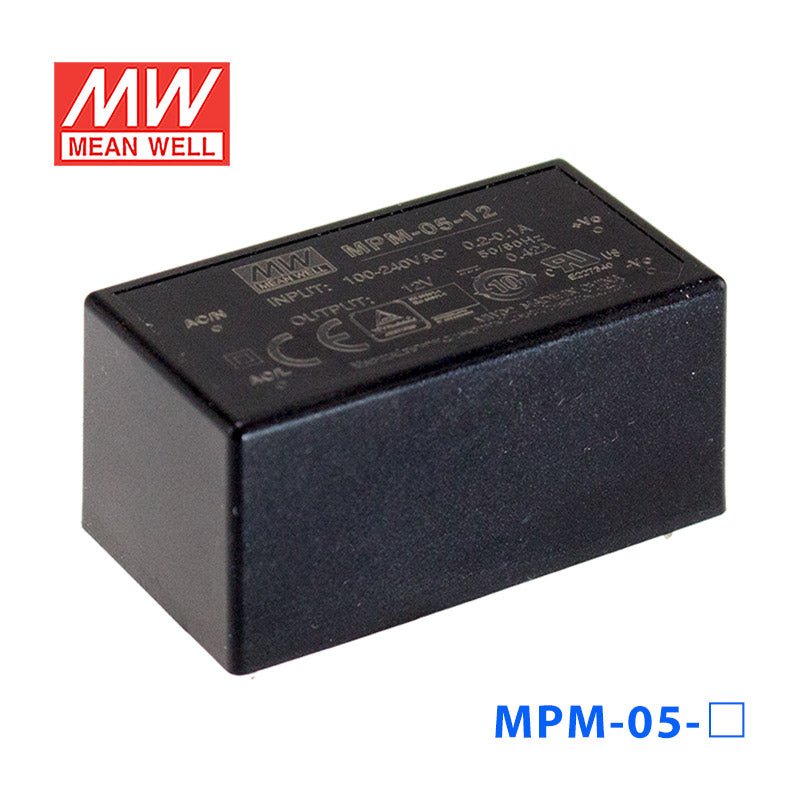

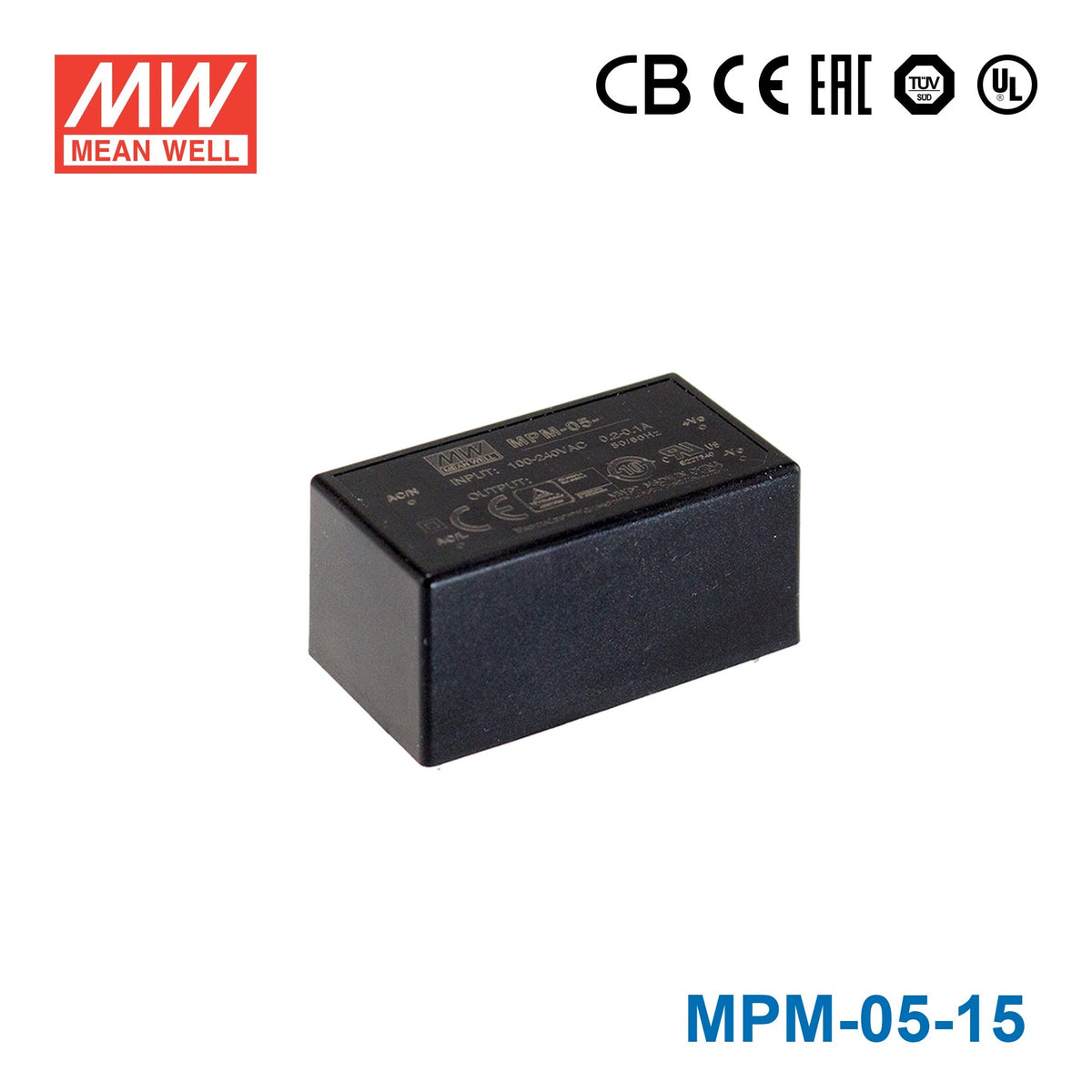

Mean Well MPM-05-15 Power Supply 5W 15V 330mA
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MPM-05-15 Power Supply 5W 15V 330mA
Overview
MPM-05-15 is the 15V output model of this series: rated current 0.33A, rated power 5W, typical efficiency 81%.
MPM-05 is a 5W high density and small size (45 . 7 * 25 . 4 * 21.5mm) AC/DC module type medical grade power supply series offered in pin type. It features the operation for 80~264VAC, a low no load power consumption less than 0.075W, a high efficiency up to 82%, Class Ⅱ (no FG) double insulation, outstanding dissipation and high lifespan thanks to the interior potting, 5G anti-vibration, high EMC performance, 4KVAC isolation, etc. The design observes IEC / BS EN/EN60601 - 1 and ANSI/AAMI ES60601 - 1version three with 2xMOPP level and ultra-low leakage current (<80μA). It is very suitable for BF (patient contact) type medical device or relevant equipment.
Features
- 1.8"x1" compact size
- Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- Suitable for BF application with appropriate system consideration
- No load power consumption<0.075W
- Extremely low leakage current
- Wide operating temp. range -40 ~ +85℃
- EMI class B for class Ⅱ configuration
- Protections: Short circuit / Overload / Over voltage / Over temperature
- No minimum load required
- Typical lifetime > 48K hours
- 3 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 15V
- RATED CURRENT
- 0.33A
- CURRENT RANGENote.2
- 0 ~ 0.33A
- PEAK CURRENT
- 0.36A
- RATED POWER
- 5W
- PEAK LOAD(10sec.)Note.3
- 5.4W
- RIPPLE & NOISE (max.)Note.4
- 150mVp-p
- VOLTAGE TOLERANCENote.5
- ±2.5%
- LINE REGULATION
- ±0.3%
- LOAD REGULATION
- ±0.5%
- SETUP, RISE TIME
- 1000ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load
- HOLD UP TIME (Typ.)
- 40ms/230VAC 12ms/115VAC at full load
INPUT
- VOLTAGE RANGENote.6
- 80 ~ 264VAC 113V~370VDC
- FREQUENCY RANGE
- 47 ~ 440Hz
- EFFICIENCY (Typ.)
- 81%
- AC CURRENT (Typ.)
- 0.2A/115VAC 0.1A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 25A/115VAC 45A/230VAC
- LEAKAGE CURRENT (max.)Note.7
- Touch current <80μA/264VAC
PROTECTION
- OVERLOAD
- 110% ~ 180% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 17.3 ~ 20.3V Protection type : Shut off o/p voltage, clamping by zener diode
- OVER TEMPERATURE
- Protection type : Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT
- WORKING TEMP.
- -40 ~ +85℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +100℃, 10 ~ 95% RH non-condensing
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 60℃)
- SOLDERING TEMPERATURE
- Wave soldering: 265℃,5s (max.); Manual soldering: 390℃,3s (max.)
- VIBRATION
- 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
- OPERATING ALTITUDENote.8
- 5000 meters
SAFETY & EMC
- SAFETY STANDARDS
- IEC 60601-1:2005+A1,TUV BS EN/ EN 60601-1:2006+A1+A12+A2,ANSI/AAMI ES60601-1:2005+A2 CAN/CSA C22.2 No. 60601-1:2014+A2,EAC TP TC 004 approved;Design refer to BS EN/EN60335-1(by request)
- ISOLATION LEVEL
- Primary-Secondary: 2xMOPP
- WITHSTAND VOLTAGE
- I/P-O/P:4KVAC
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
-
Parameter Standard Test Level Conducted BS EN/EN55011 (CISPR11) Class B Radiated BS EN/EN55011 (CISPR11) Class B Harmonic Current BS EN/EN61000-3-2 Class A Voltage Flicker BS EN/EN61000-3-3 - EMC IMMUNITY
-
BS EN/EN55035, BS EN/EN60601-1-2
Parameter Standard Test Level ESD BS EN/EN61000-4-2 Level 4, 15KV air; Level 4, 8KV contact RF field susceptibility BS EN/EN61000-4-3 Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz ) EFT bursts BS EN/EN61000-4-4 Level 3, 2KV Surge susceptibility BS EN/EN61000-4-5 Level 3, 1KV/Line-Line Conducted susceptibility BS EN/EN61000-4-6 Level 3, 10V Magnetic field immunity BS EN/EN61000-4-8 Level 4, 30A/m Voltage dip, interruption BS EN/EN61000-4-11 100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods
OTHERS
- MTBF
- 9337.3K hrs min. Telcordia SR-332 (Bellcore) ; 1799.5K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 45.7*25.4*21.5mm (L*W*H) or 1.8*1.0"0.85" inch
- PACKING
- 0.035Kg; 270pcs/10.5Kg/0.94CUFT
Test conditions and notes9
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. No minimum load required.
- 3. 33% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power
- 4. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 5. Tolerance : includes set up tolerance, line regulation and load regulation.
- 6. Derating may be needed under low input voltages. Please check the derating curve for more details.
- 7. Touch current was measured from primary input to DC output.
- 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 9. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
Technical drawings
Typical applications
- Portable medical device
- Mobile clinical workstation
- Medical computer monitor
- Medical examination instrument
Downloads
Certificates7
Catalogues1
FAQ
Can I use the MPM-05-15 for a small 15V analog or instrumentation circuit?
It is suited to low-power 15V constant voltage electronics that stay within 5W and 0.33A. That makes it more appropriate for compact instrumentation or control subcircuits than for higher-demand 15V loads.
Is the MPM-05-15 a fit for embedded or automation boards that need 15V DC?
Yes, if the board is designed for a regulated 15V input and its demand does not exceed 0.33A. The encapsulated construction and 45.7 × 25.4 × 21.5 mm size support dense equipment layouts.
Can the MPM-05-15 be used in medical or lab equipment with a low 15V power budget?
The feature set says it is medical safety approved, which is relevant for medical and lab device designers evaluating low-power AC-DC modules. Electrically, it delivers 15V constant voltage at up to 0.33A and 5W.
Does the MPM-05-15 handle wide ambient temperatures?
The specified operating range is -40°C to +85°C, with output derating at higher ambient temperatures per the derating curve. No IP rating is provided in the listed specs, so the environment data here covers temperature but not ingress protection.
When should I move up from the MPM-05-15 to a larger 15V model?
This model is for 15V loads up to 0.33A and 5W continuous, with a 5.4W peak allowed for up to 10 seconds. If your 15V load needs more current or average power than that, choose a higher-power 15V supply; no larger 15V model is listed on this MPM-05 sheet.
