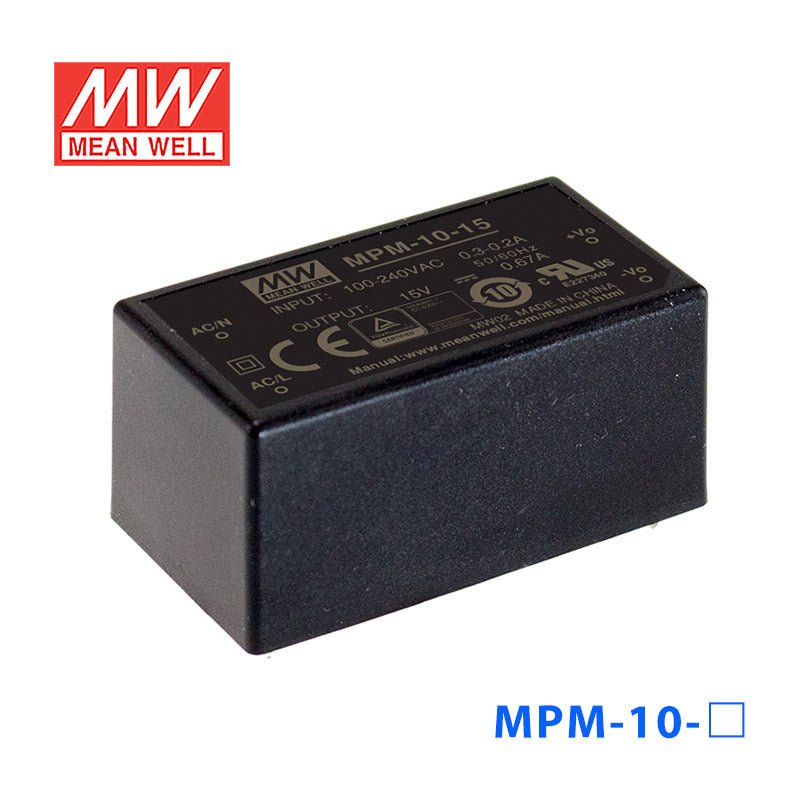

Mean Well MPM-10-3.3 Power Supply 10W 3.3V

encapsulated, compact size, medical safety approved, no load power consumption < 0.1W, extremely low leakage current
SKU:
MPM-10-3.3

$11.85 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Description

Features

1.8"x1" compact size
Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
Suitable for BF application with appropriate system consideration
No load power consumption<0.075W
Extremely low leakage current
Wide operating temp. range -30~+85°C
EMI class B for class II configuration
Protections: Short circuit/ Overload/ Over voltage/Over temperature
No minimum load required
3 years warranty

General Specification

AC input voltage range 80~264VAC
AC inrush current COLD START 25A/115VAC
Leakage current

Touch current<80 μA/264VAC

Overload protection  110 ~ 180% rated output power
Over voltage protection 115%~151% rated output voltage
Setup, rise, hold up time 1000ms, 30ms, 40ms
Withstand voltage I/P-O/P:4KVAC
Working temperature -30~+85°C
Vibration 10~500Hz, 2G 10min./1cycle, period for 60min. Each along X, Y, Z axes
Safety standards IEC60601-1, BS EN/EN60601-1, EAC TP TC 004, UL ANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22 3 Edition approved ; Design refer to BS EN/EN60335-1(by request)
EMC standards EN55011 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Case No 291A
Dimension (LxWxH) 45.7x25.4x21.5
Packing 270pcs / 10.5kg

Specifications

  • Brand
    Mean Well
  • Series
    MPM Series
  • Power Rating
    8.3 Watt
  • Output Voltage
    3.3 Volt
  • Rated Current
    2.5 Ampere
  • Input Voltage
    80V~264V
  • No of Output
    1
  • Dimming Control
    None
  • Standards Met
    CB,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~85°C
  • Warranty
    3 Year
  • Length
    1.8 in
  • Width
    1 in
  • Height
    0.85 in
  • Weight
    0.08 lb
