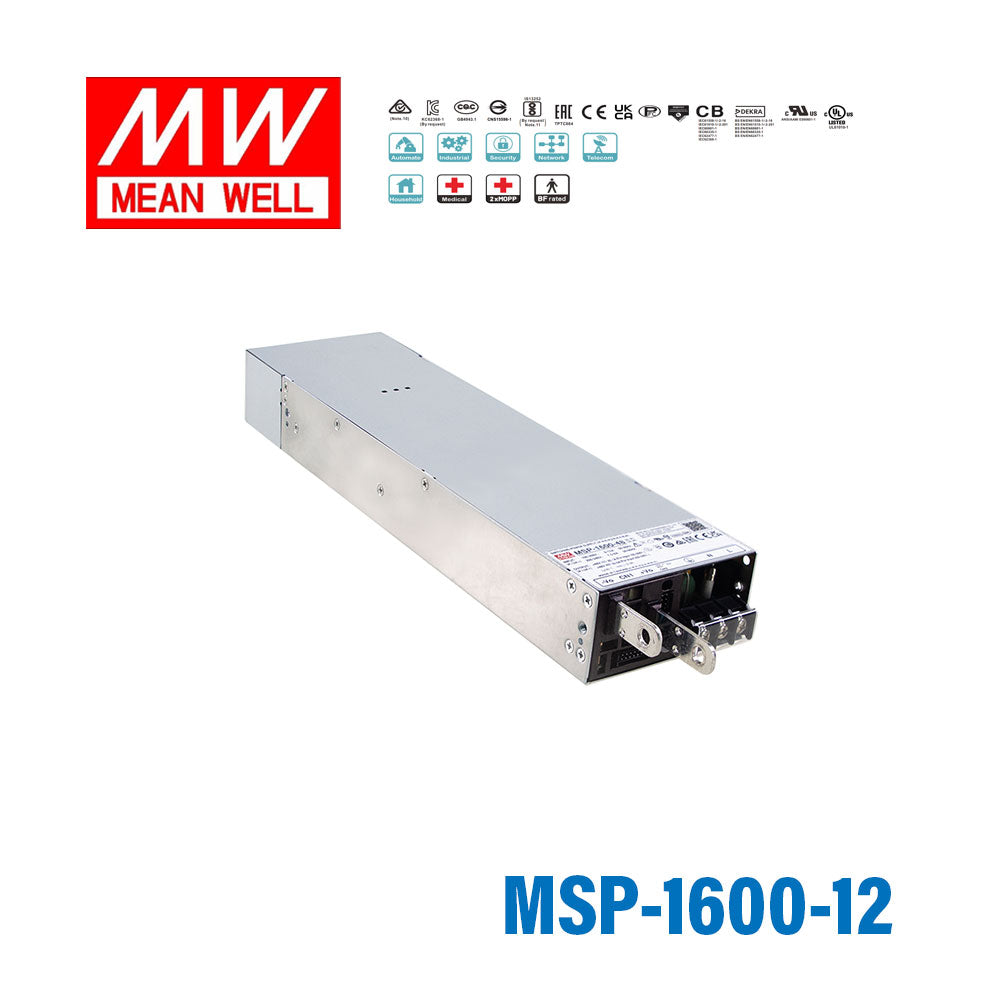

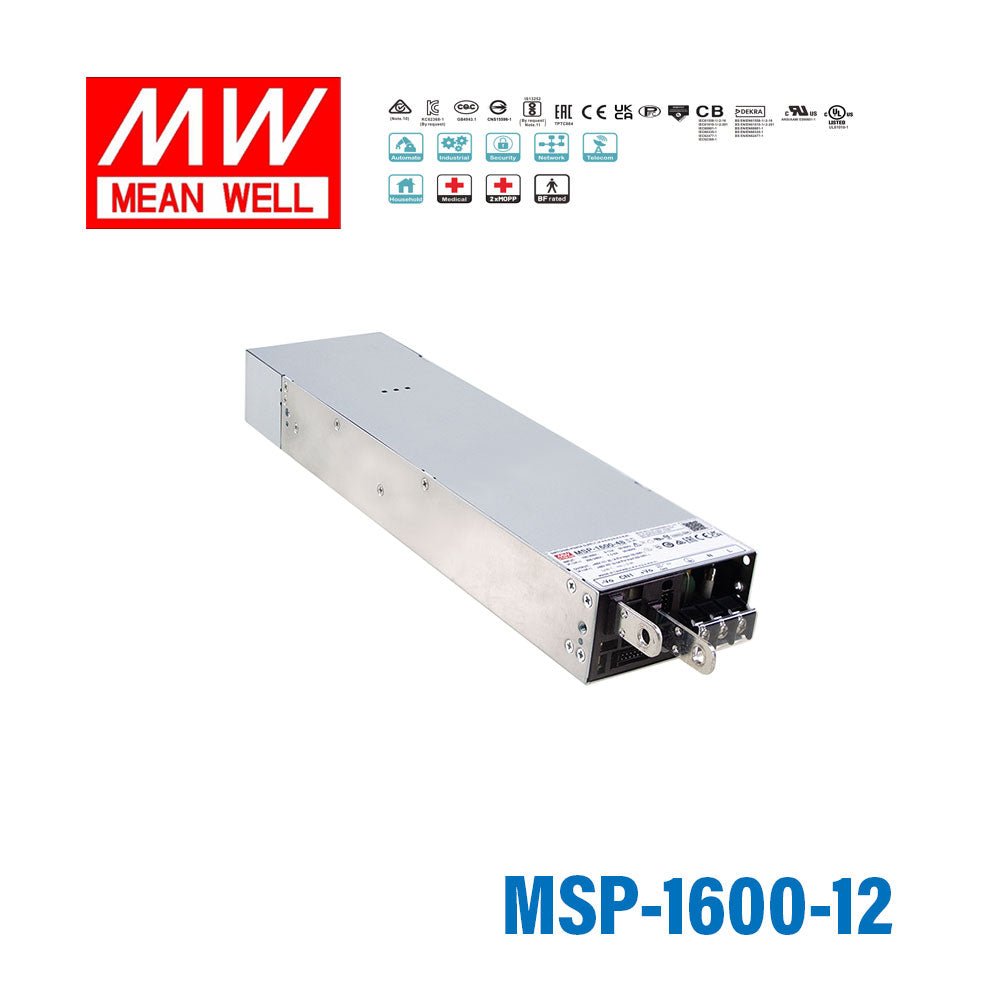

Mean Well MSP-1600-12 Power Supply 1500W 12V

built-in active PFC, medical safety approved, high efficiency

SKU:

MSP-1600-12

$336.85 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

The MSP-1600 is a 1600W Mean Well power converter (input range: 90~264Vac, operating temperature: -40~+85℃).

✓ Input voltage range: 90~264Vac
✓ DC output voltage adjustable ±10%
✓ 4.2KVac reinforced I/O isolation
✓ Cooling by free air convection
✓ Wide operating temperature: -40~+85℃
✓ Protections: Short circuit / Overload / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ DC OK relay contact output
✓ Remote ON/OFF control
✓ Safety approvals: UL61010-1/-2-201 GB4943.1 CNS15598-1 TP TC 004 CB DEKRA UL CQC BSMI EAC SEMI F47
✓ 3 years warranty
