Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

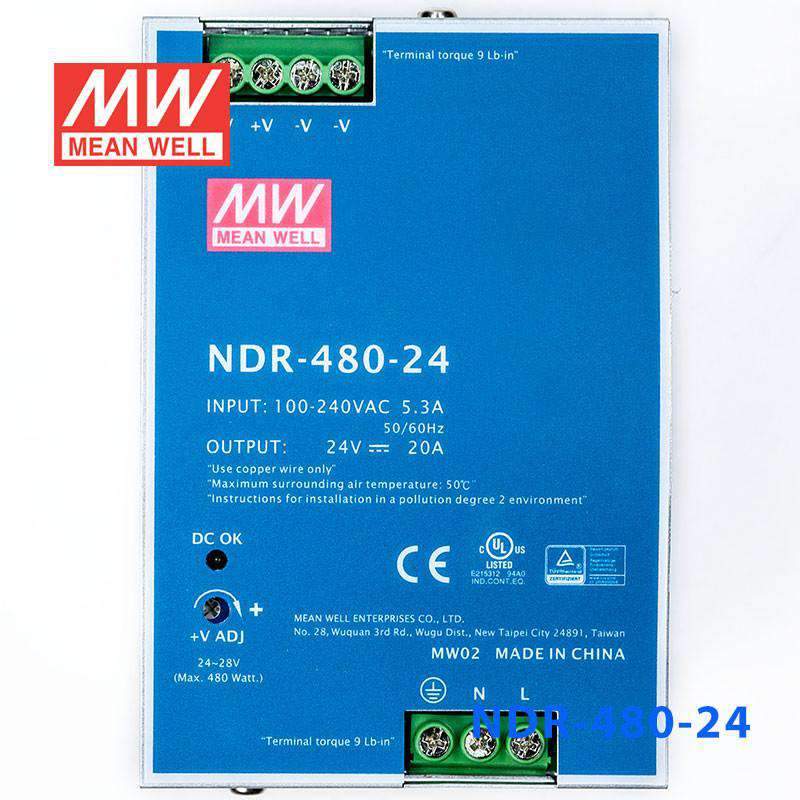

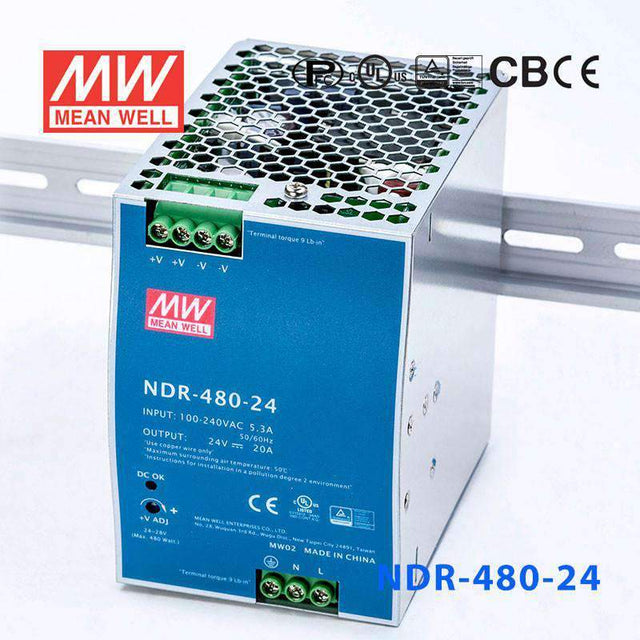

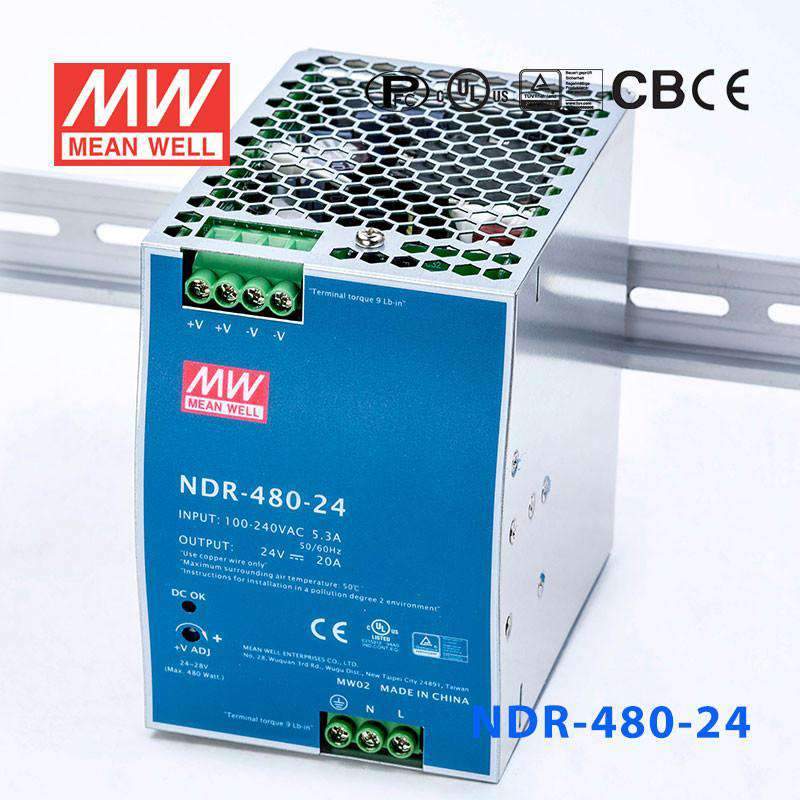

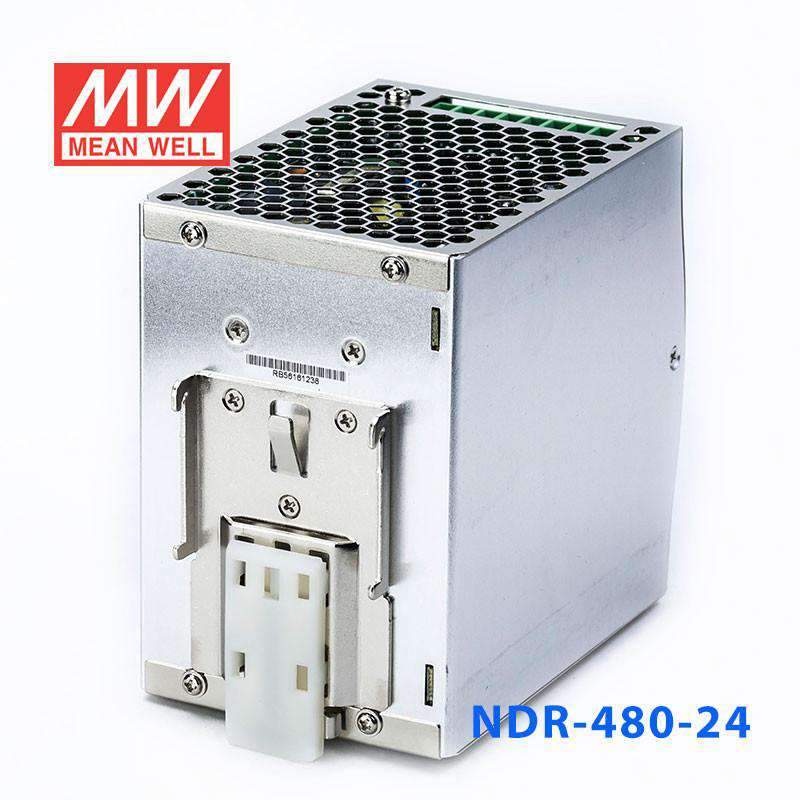

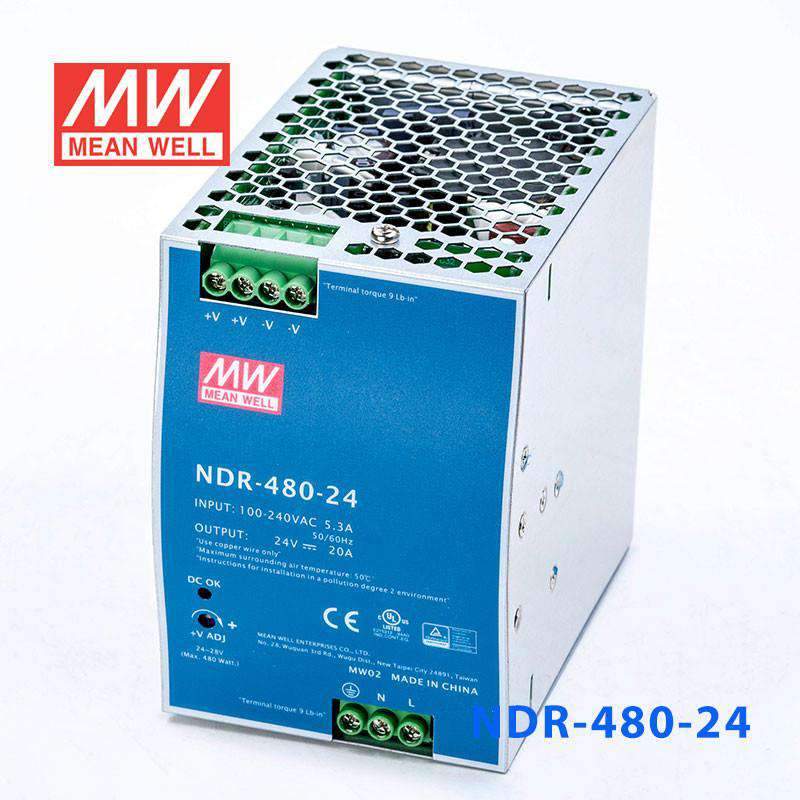

Mean Well NDR-480-24 Single Output Industrial Power Supply 480W 24V - DIN Rail

metal case, economical model, slim size, EMC EN55022 class B

SKU:

NDR-480-24

Model

75W 24V

$27.55 USD

SKU: NDR-75-24

120W 24V

$31.92 USD

SKU: NDR-120-24

240W 24V

$55.43 USD

SKU: NDR-240-24

480W 24V

$90.04 USD

SKU: NDR-480-24

Product variants

$90.04 USD ~~$114.89~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range

Protections: Short circuit / Overload / Over voltage / Over temperature

Cooling by free air convection

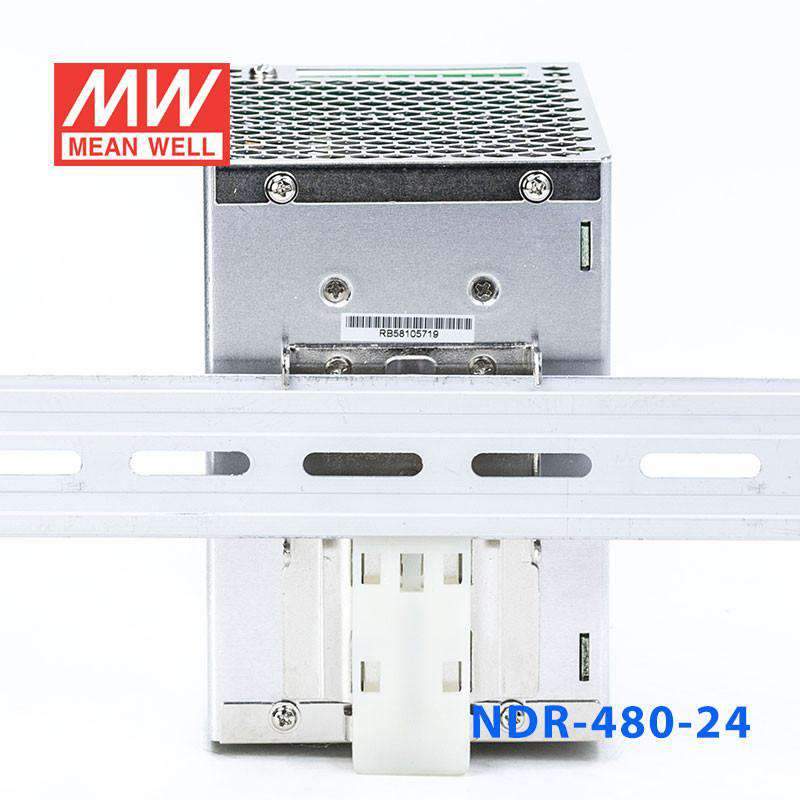

Can be installed on DIN rail TS-35 / 7.5 or 15

UL508 (industrial control equipment) approved

EN61000-6-2 (EN50082-2) industrial immunity level

100% full load burn-in test

Low cost

3 years warranty

General Specification

AC input voltage range	90~264VAC; 127~370VDC
AC inrush current (max.)	Cold start, 35A at 230VAC
DC adjustment range	12V: 12~14V, 24V: 24~28V, 48V: 48~55V
Overload protection	105%~130% Constant current limiting, auto-recovery
Over voltage protection	14V: 14~17V, 24V: 29~33V, 48V: 56~65V
Over temperature protection	Shut down o/p voltage, re-power on to recover
Withstand voltage	I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature	-20~+70°C(refer to output derating curve)
Safety standards	UL508, TUV EN60950-1 approved
EMC standards	EN55022(CISPR22), EN61204-3 Class B,EN61000-3-2,-3 , EN61000-4-2,3,4,5,6,8,11,EN55024, EN61000-6-2(EN50082-2), EN61204-3
Connection (screw DIN terminal)	I/P: 3 poles, O/P: 4 poles
Dimension (LxWxH) (mm)	85.5x 125.2x 128.5mm
Packing	8pcs / 13kg

Specifications

Brand

Mean Well
Series

NDR Series
Power Rating

480 Watt
Output Voltage

24 Volt
Rated Current

20 Ampere
Input Voltage

90V~264V
No of Output

1
Standards Met

BSMI,CB,CE,cUL,EAC,RCM,TUV
Operating Temperature

-20°C~70°C
Warranty

3 Year
Length

4.93 in
Width

4.93 in
Height

3.37 in
Weight

3.31 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the NDR-480-24 for a larger 24V PLC or control cabinet build?

Yes, this is the highest-capacity 24V model in the listed group at 480W and 20A output. That makes it suitable for larger PLC or control cabinet builds with heavier 24VDC demand than 120W or 240W DIN rail supplies can cover.

Is the NDR-480-24 appropriate for industrial automation panels with many 24V loads?

It is appropriate for industrial automation panels that run on 24VDC and need up to 20A across multiple loads. Even at 480W, it keeps a DIN rail format and a slim 85.5 mm profile for high-density control cabinet layouts.

Can this model be used for 24V building management panels with higher current demand?

Yes, it can fit building management panels that require 24VDC and draw more current, as long as the system stays within 480W and 20A. The wide 90-264VAC input is also useful for standardized cabinet designs across different AC input environments.

Does the NDR-480-24 belong in an electrical enclosure rather than an exposed location?

Yes, this model is intended for DIN rail mounting in control cabinets and electrical enclosures. Its operating temperature range is -20°C to +70°C and it uses a metal case, but no ingress rating is listed here for direct exposure to weather or washdown conditions.

How does the NDR-480-24 compare with other NDR series power levels and voltages?

Other listed NDR siblings are NDR-75-12 at 75.6W 12V 6.3A, NDR-75-24 at 76.8W 24V 3.2A, NDR-75-48 at 76.8W 48V 1.6A, NDR-120-12 at 120W 12V 10A, NDR-120-24 at 120W 24V 5A, NDR-120-48 at 120W 48V 2.5A, NDR-240-24 at 240W 24V 10A, NDR-240-48 at 240W 48V 5A, and NDR-480-48 at 480W 48V 10A. The NDR-480-24 is the 24V 480W version rated at 20A.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well NDR-480-48 Single Output Industrial Power Supply 480W 48V - DIN Rail	480W	48V	10A	Indoor	$98.82	View
