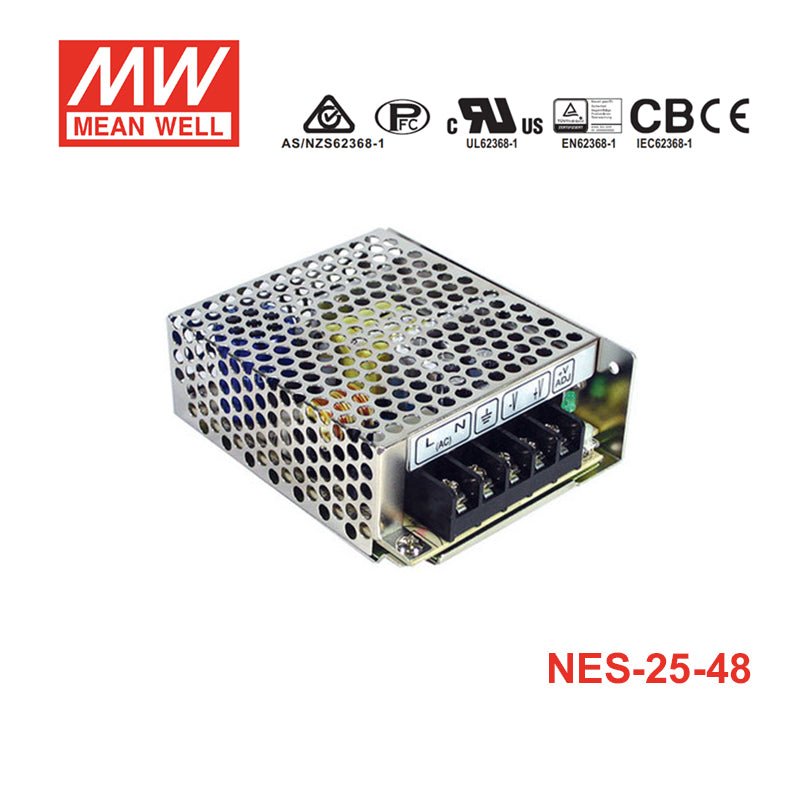

Mean Well NES-25-48 NE Series Switching Power Supply
$8.23 USD
Unit price /
Unavailable
Description
Description
Features
| Universal AC input / Full range |
| Protections: Short circuit / Overload / Over voltage / Over Temperature |
| Cooling by free air convection |
| 100% full load burn-in test |
| 2 years warranty |
General Specification
| Line regulation (max.) | ± 0.5% |
| Load regulation (max.) | ± 0.5% |
| Overload protection Range | 105 ~ 135% rated output power |
| Overload protection Type | Hiccup mode, recovers automatically after fault condition is removed |
| Over-voltage protection | Shut down o/p voltage, re-power on to recover |
| Withstand voltage | I/P-O/P:3KVAC | I/P-FG:2KVAC | O/P-FG:0.5KVAC |
| Isolation resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH |
| Working temperature | -20 ~ +60 (Refer to "Derating Curve") |
| Safety standards | UL60950-1, CB(IEC60950-1) approved |
| Dimension (LxWxH) (mm) | 99*82*35mm (L*W*H) |
| Packing | 0.3Kg; 45pcs/14.5Kg/0.66CUFT |
Specifications
Specifications
-
BrandMean Well
-
SeriesNES Series
-
Power Rating27.36 Watt
-
Output Voltage48 Volt
-
Rated Current0.57 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CCC,UL
-
Operating Temperature-20°C~60°C
-
Warranty2 Year
-
Length3.9 in
-
Width3.23 in
-
Height1.38 in
-
Weight0.66 lb
