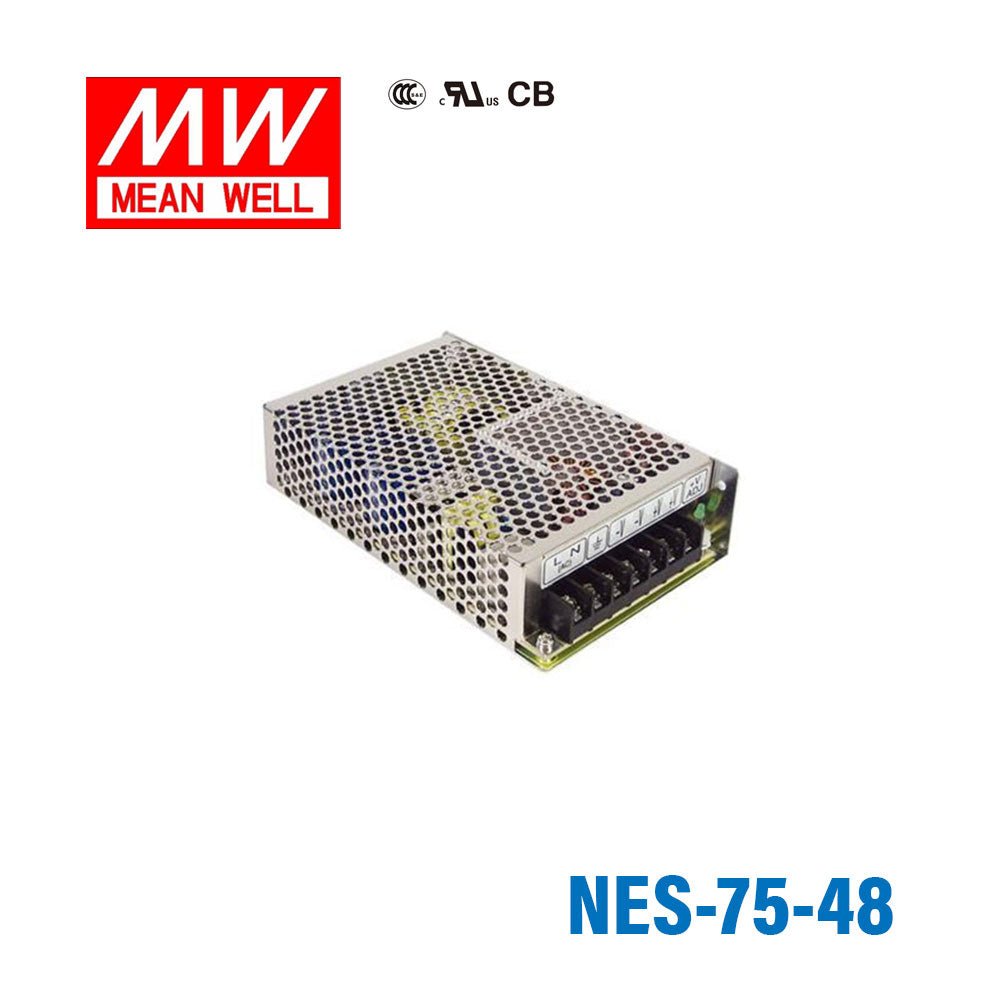

Mean Well NES-75-48 NE Series Switching Power Supply

$12.01 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
100% full load burn-in test
2 years warranty

General Specification

Line regulation (max.) ± 0.5%
Load regulation (max.) ± 0.5%
Overload protection Range 105 ~ 135% rated output power
Overload protection Type Hiccup mode, recovers automatically after fault condition is removed
Over-voltage protection Shut down o/p voltage, re-power on to recover
Withstand voltage I/P-O/P:3KVAC | I/P-FG:2KVAC | O/P-FG:0.5KVAC
Isolation resistance I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
Working temperature -20 ~ +60 (Refer to "Derating Curve")
Safety standards UL60950-1, CB(IEC60950-1) approved
Dimension (LxWxH) (mm) 159*97*38mm (L*W*H)
Packing 0.52Kg; 30pcs/16.6Kg/0.97CUFT

Specifications

  • Brand
    Mean Well
  • Series
    Mean Well NES Series
  • Power Rating
    76.8 Watt
  • Output Voltage
    48 Volt
  • Rated Current
    1.6 Ampere
  • Input Voltage
    85V~264V
  • No of Output
    1
  • Standards Met
    CB,CCC,UL
  • Operating Temperature
    -20°C~60°C
  • Warranty
    2 Year
  • Length
    6.26 in
  • Width
    3.82 in
  • Height
    1.5 in
  • Weight
    1.15 lb

File Downloads
