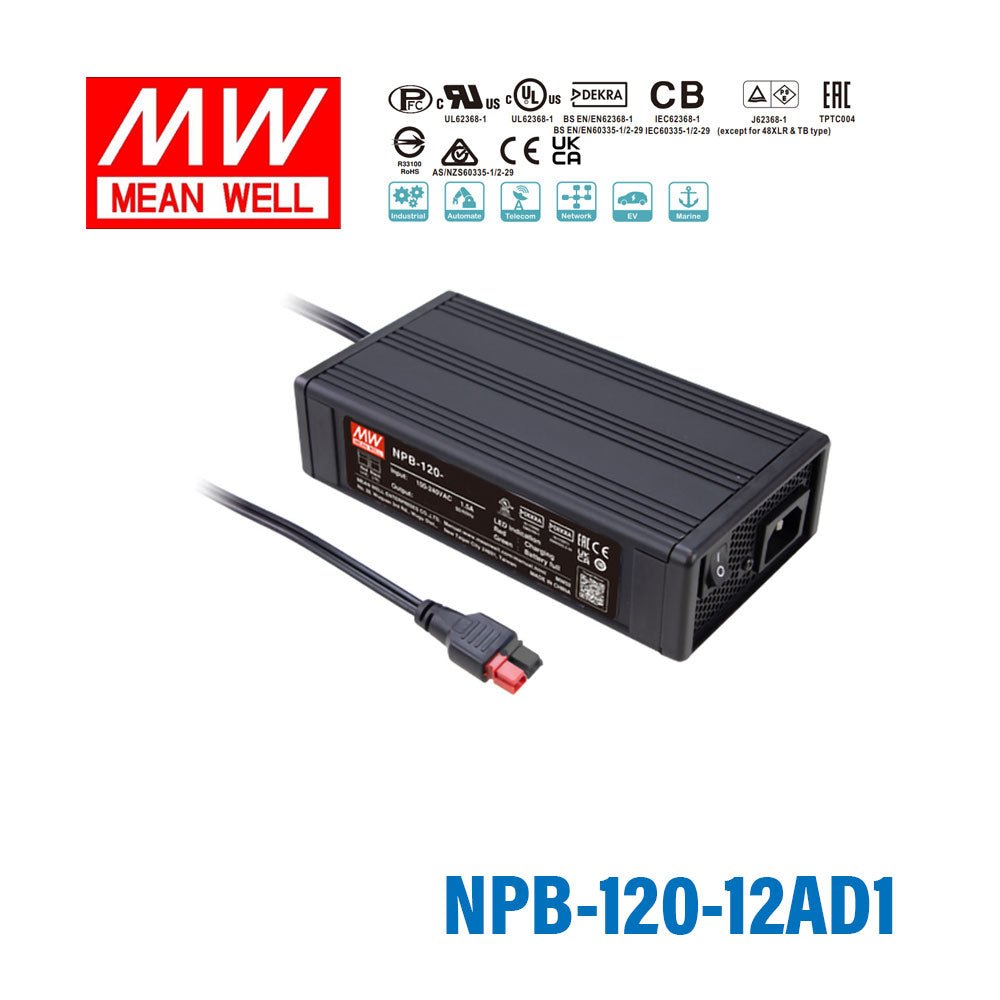

Mean Well NPB-120-12AD1 Battery Charger 120W 12V with Anderson Connector
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NPB-120-12AD1 Battery Charger 120W 12V with Anderson Conn...
The NPB-120 is a 120W Mean Well DIN rail power converter with a 180mm profile (input range: 90~264VAC).
Key Features
- ✓ 180mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 90~264VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature / Reverse polarity
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: CB IEC62368-1,IEC60335-1/2-29, Dekra BS EN/EN62368-1,BS EN/EN60335-1/2-29, UL62368-1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNPB Series
-
Power Rating120 Watt
-
Output Voltage14.4 Volt
-
Rated Current6.8 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-

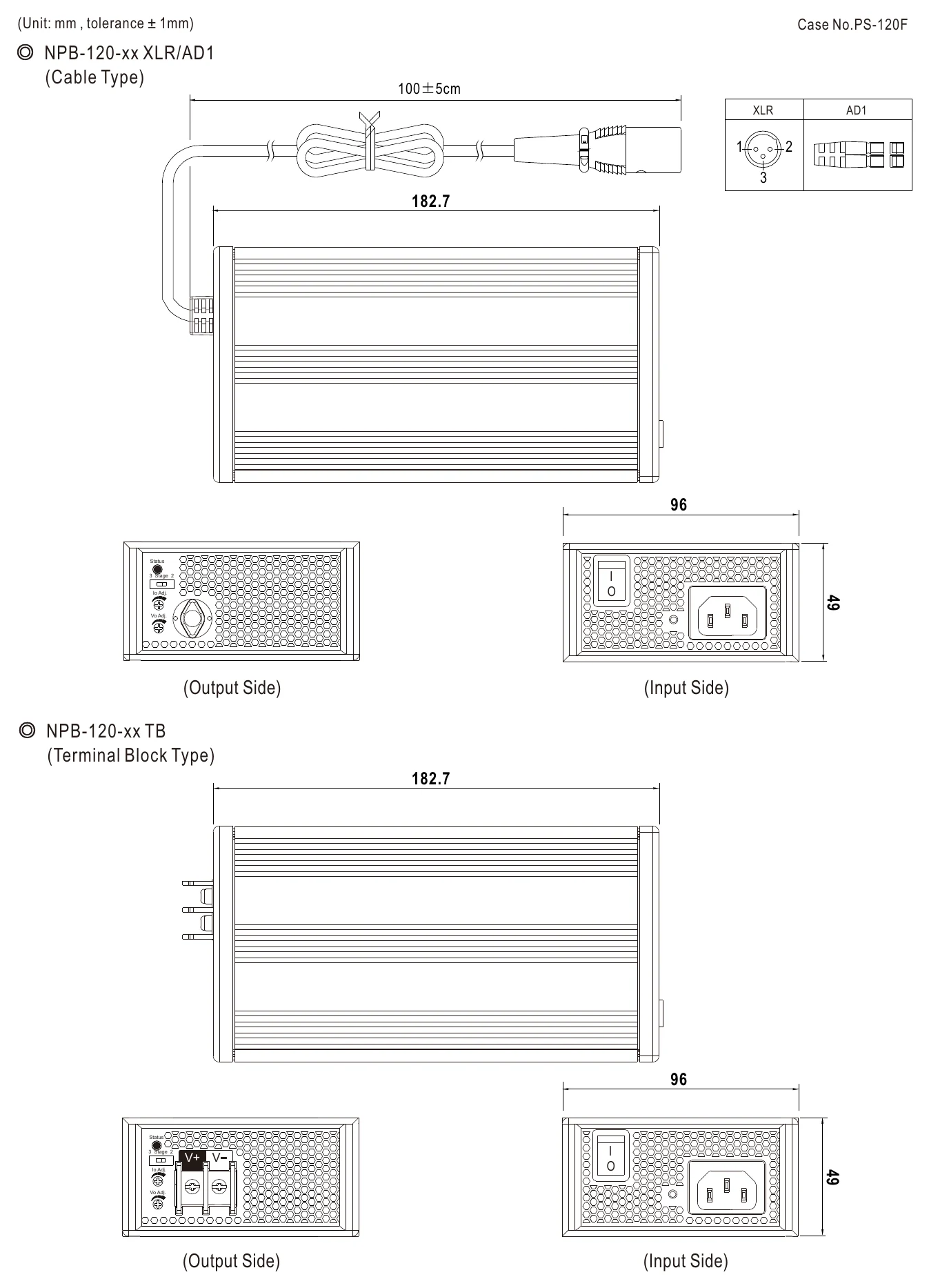

Length7.09 in
-
Width3.78 in
-
Height1.93 in
-
Weight2.87 lb
::specification::
Frequently Asked Questions
What is the Mean Well NPB-120-12AD1 designed for?
The NPB-120-12AD1 is an AC-DC battery charger intended for 12V battery charging applications where a compact 120W charger is needed. This model provides a 14.4Vdc output at up to 6.8A and is suited to portable or installed commercial charging use cases.
What are the main electrical specifications of the NPB-120-12AD1?
This model is rated at 120W output power with a nominal output of 14.4Vdc and 6.8A. It is described as a single-output battery charger with PFC and supports 2-stage or 3-stage charging.

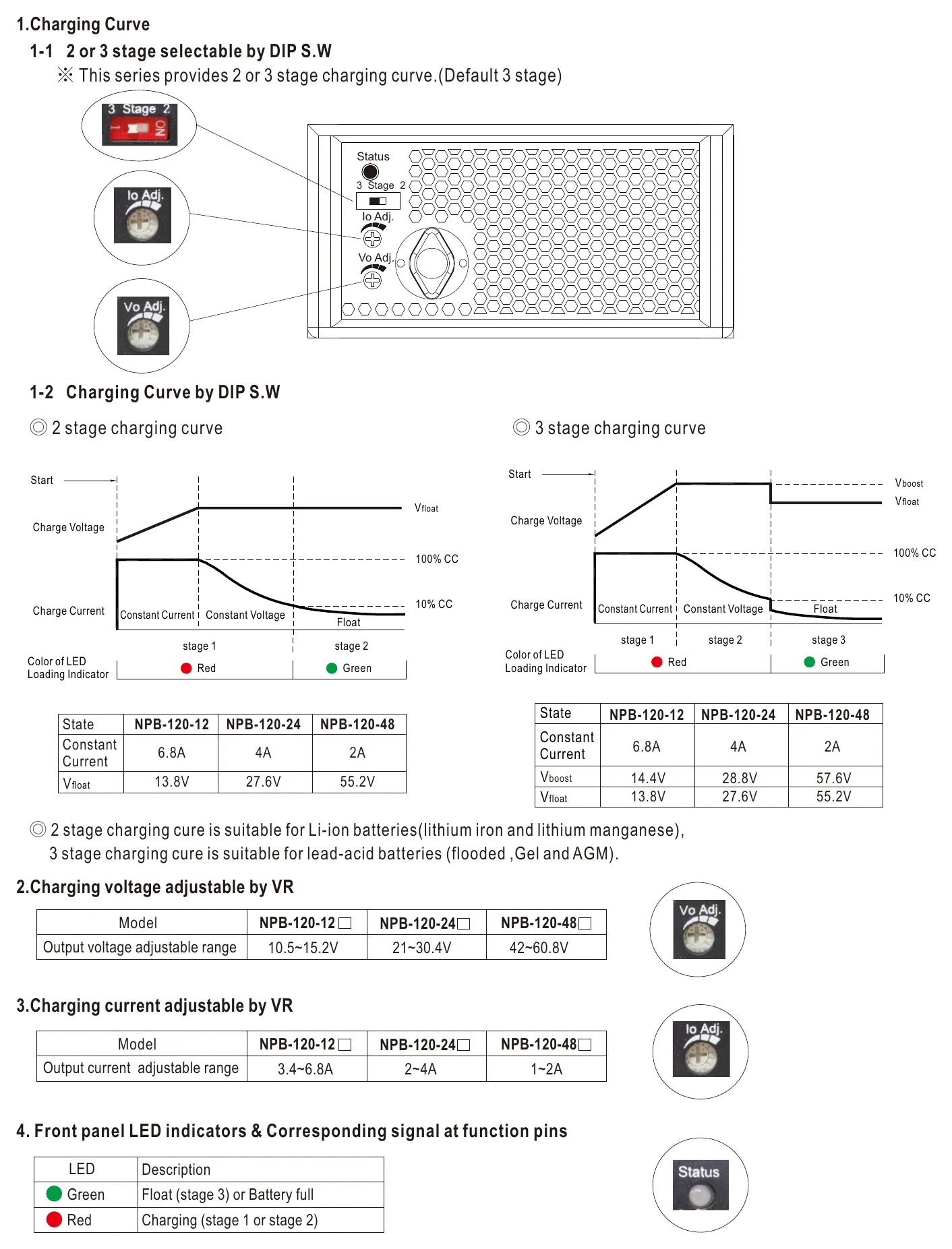

Does this charger support multi-stage battery charging?
Yes. The product description states that the NPB-120-12AD1 supports 2-stage or 3-stage charging. That makes it a better fit for battery charging use than a basic fixed-output power supply without staged charging behavior.
What type of input power does the NPB-120-12AD1 accept?
The NPB-120-12AD1 is specified with universal AC input. That makes it suitable for buyers who need a charger model that can be used across varied AC mains environments without choosing a region-specific input version.
Is the NPB-120-12AD1 suitable for demanding temperature conditions?

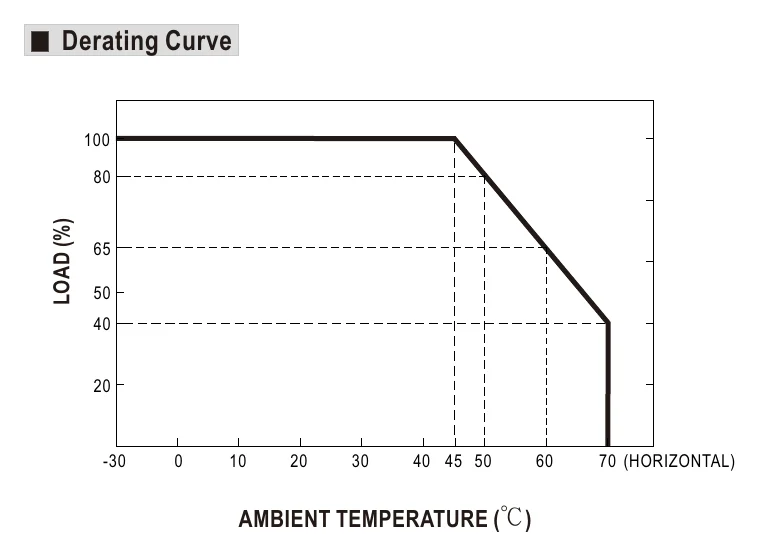

Yes. This charger is rated for operation from -30°C to 70°C, which is a wide operating temperature range for commercial and industrial environments. Buyers evaluating use in cold or hot locations should find this range relevant when comparing charger options.

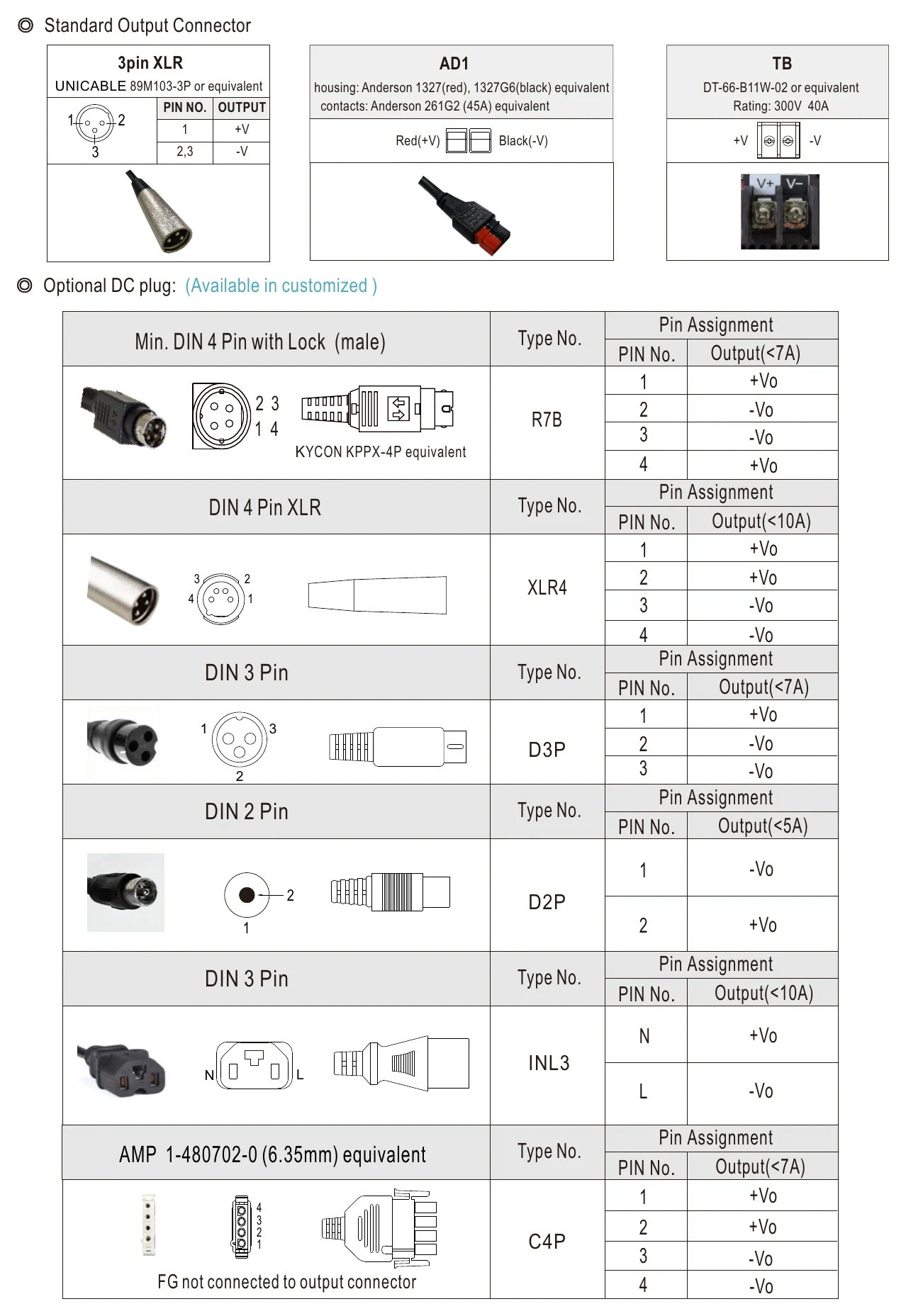

What connector does this model include?
This version includes an Anderson connector, as indicated by the model name and product description. For buyers standardizing on connectorized charger variants, that distinguishes it from otherwise similar chargers offered with different output configurations.
What warranty and physical weight should buyers expect for this model?
The listed warranty period for the NPB-120-12AD1 is 3 years. The unit weight is 1.3 kg, which may matter for portable equipment, panel space planning, or shipping estimates.
