Mean Well NPB-750-48 Battery Charger 759.4W 48V - Suitable for Lead-acid and Li-ion 11.3A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NPB-750-48 Battery Charger 759.4W 48V - Suitable for Lead...
Overview
NPB-750-48 is the model of this series: typical efficiency 93%.
NPB-750 is a miniaturized, versatile, and ultra-wide voltage intelligent charger. It utilizes a fully digital control design with automatic battery voltage detection technology, with five key features including intelligent, versatile, user friendly, safe, and compact. The series have four models with output voltage ranges of 10.5~21V, 21~42V and 42~80V respectively. The charging voltage range of each model is wide enough to cover a variety of different battery voltages and battery chemistries, and there is a built-in intelligent voltage detection charging mode (Note this mode is set to OFF by factory default and is suitable for lithium batteries with BMS only). The NPB-750 can pair with MEAN WELL’s SBP-001 programmer for digital configuration, such as adjust charging voltage/current, and set charging cycle time to protect battery lifetime. Through the user-friendly DIP S.W. on front panel, user may also directly adjust the 2/3 stage charging, current (50~100%), and select between the 4 types of preset charging curves. In addition, a CANBus communication protocol is built in to meet professional applications, which allows remote controlling and monitoring for the status of the charger. In terms of safety, it has intelligent detection for proper battery voltage and connection as well as protection from reverse polarity. It passes ITE IEC/EN/UL62368-1 and household appliances EN60335-1/-2-29 dual safety and 3-year warranty to guarantee reliable operation. The NPB-750 is truly an intelligent, safe, and reliable universal charger with outstanding cost performance.
Features

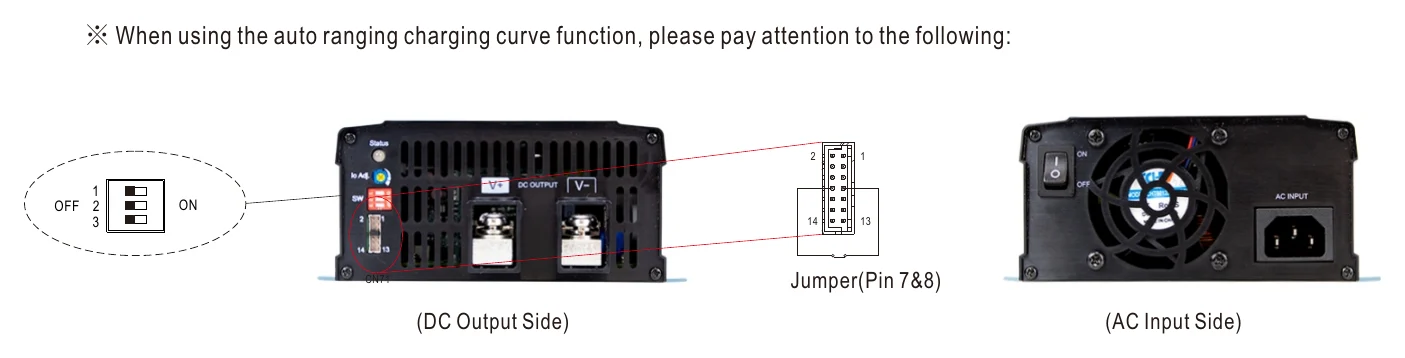

- Auto ranging with ultra-wide charging voltage (10.5~21V, 21~42V, 42~80V; Please refer to page 8 for setting)
- Built-in CANBus protocol for control, setting and monitoring

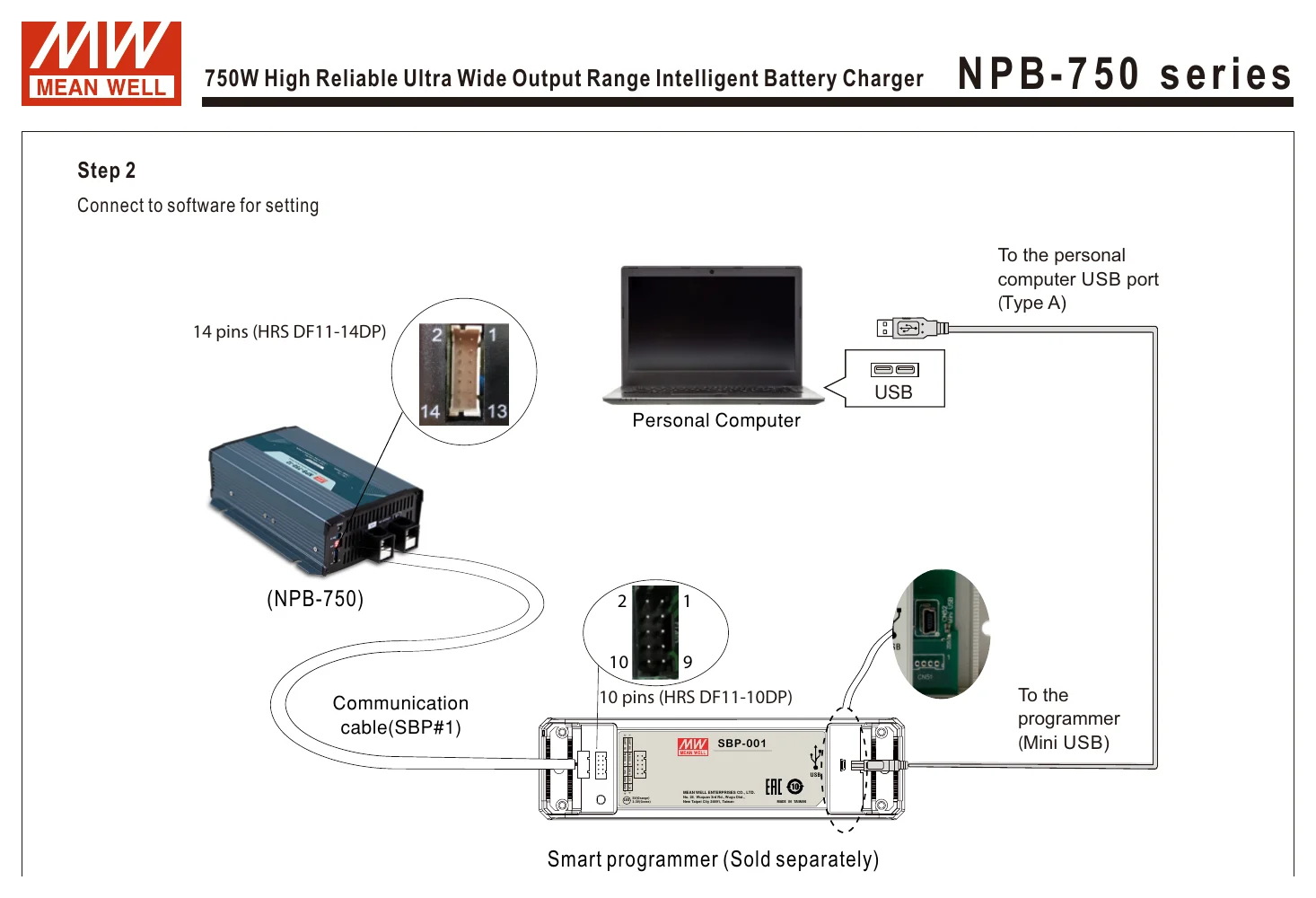

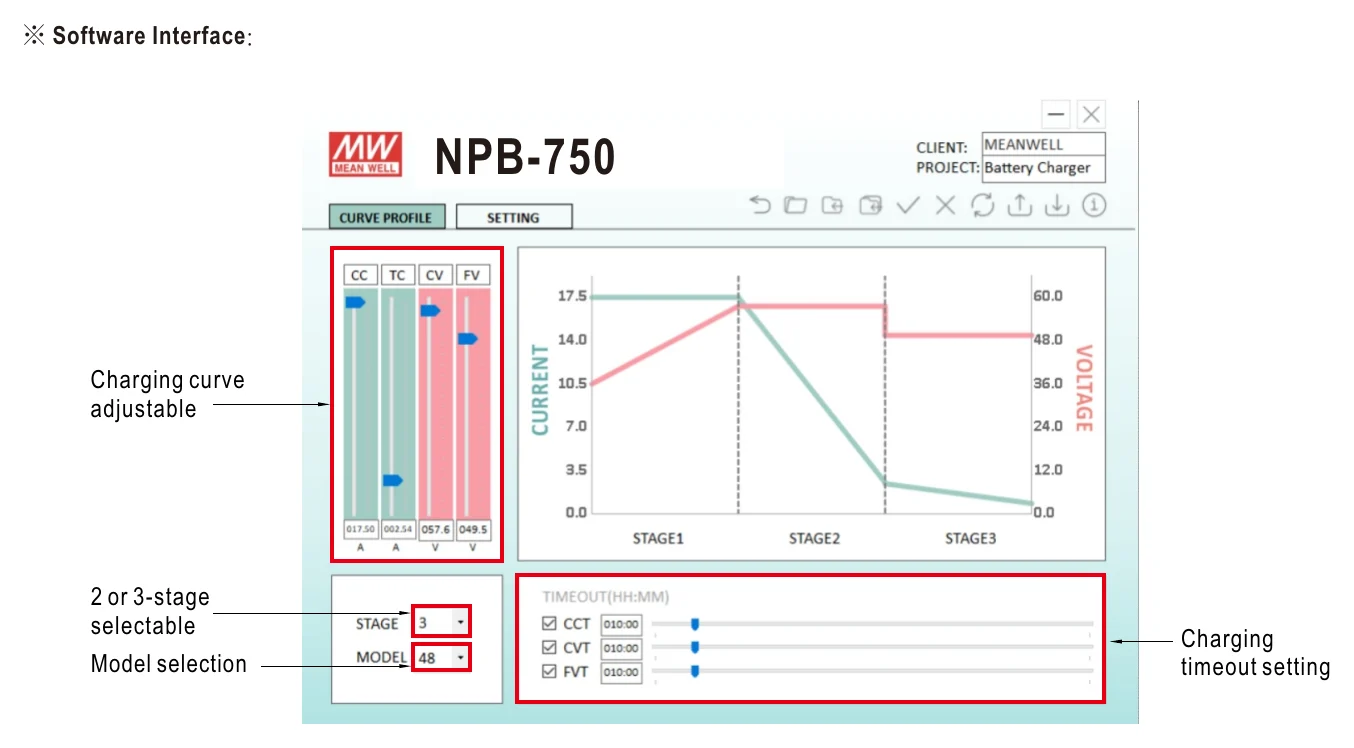

- Programmable charging curve via SBP-001

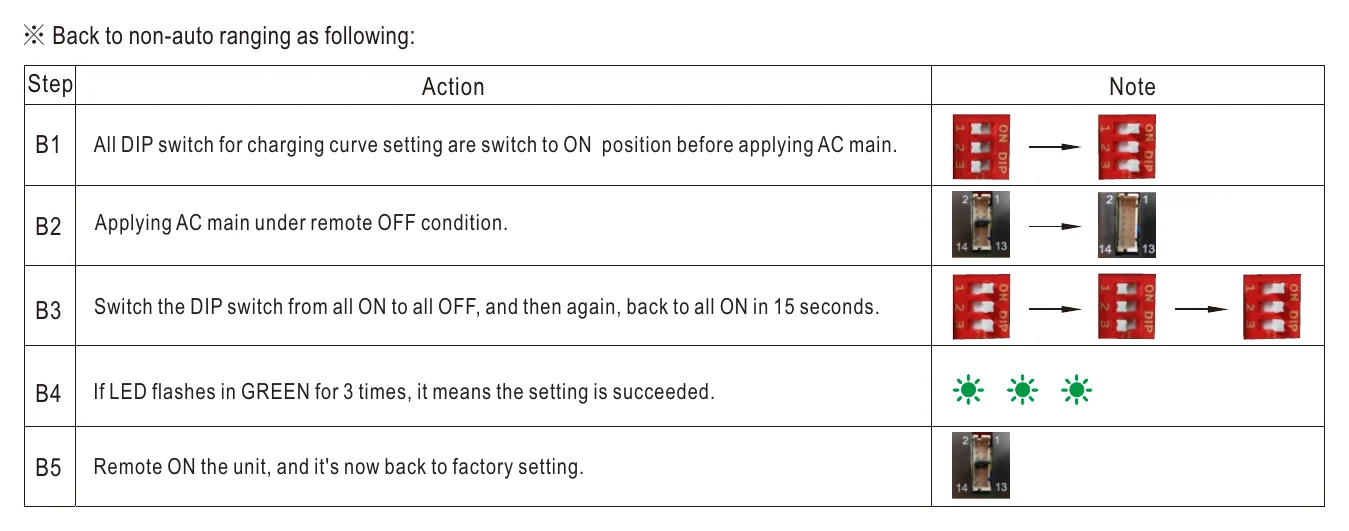

- Manual setting for 2/3 stage and 4 built-in charging curves via DIP S.W
- Multiple protections: Short circuit / Over voltage / Over temperature/ Battery under voltage /Battery reverse polarity (No damage)

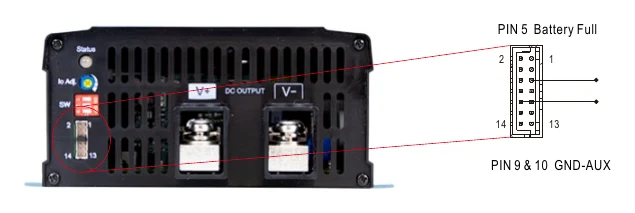

- Charger OK and Battery Full signal
- Temperature compensation function to prolong battery life (Lead-acid only)
- -30℃~+70℃ wide operating temperature
- Thermal controlled DC fan for noise reduction
- Remote ON/OFF control
- Smart programmer available (Order NO.: SBP-001, sold separately)
- Carry handle accessory available(Order NO.: Carry handle, sold separately)
- Comply with 62368-1 + 60335-1/-2-29 dual certification
- Suitable for lead-acid (Pb) and li-ion batteries
- 3 years warranty
Specifications
OUTPUT
- BOOST CHARGE VOLTAGE(Vboost)(default)
- 57.6V
- FLOAT CHARGE VOLTAGE(Vfloat)(default)
- 55.2V
- CHARGE VOLTAGE RANGE Note.3
- 42 ~ 80V
- MAX. OUTPUT CURRENT(CC) Note.4
- 11.3A
- MAX. POWER Note.4
- 759.4W
- RECOMMENDED BATTERY CAPACITY (AMP HOURS) Note.5
- 40 ~ 130AH
- LEAKAGE CURRENT FROM BATTERY (Typ.)
- <1mA
INPUT
- VOLTAGE RANGE Note.6
- 90 ~ 264VAC 127 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- PF>0.98/115VAC, PF>0.95/230VAC at full load
- EFFICIENCY (Typ.) Note.7
- 93%
- AC CURRENT (Typ.)
- 8.7A/115VAC 4A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 50A at 230VAC
- LEAKAGE CURRENT
- <1mA/240VAC
PROTECTION
- SHORT CIRCUIT Note.8
- Protection type : Constant current limiting, charger will shutdown after 5 sec, re-power on to recover
- OVER VOLTAGE Note.9
- 82 ~ 100V; Protection type : Shut down and latch off o/p voltage, re-power on to recover
- REVERSE POLARITY
- Protected internal reverse detection, No damage, re-power on to recover after fault condition is removed
- OVER TEMPERATURE
- Shut down O/P voltage, recovers automatically after temperature goes down
FUNCTION
- CHARGING CURVE

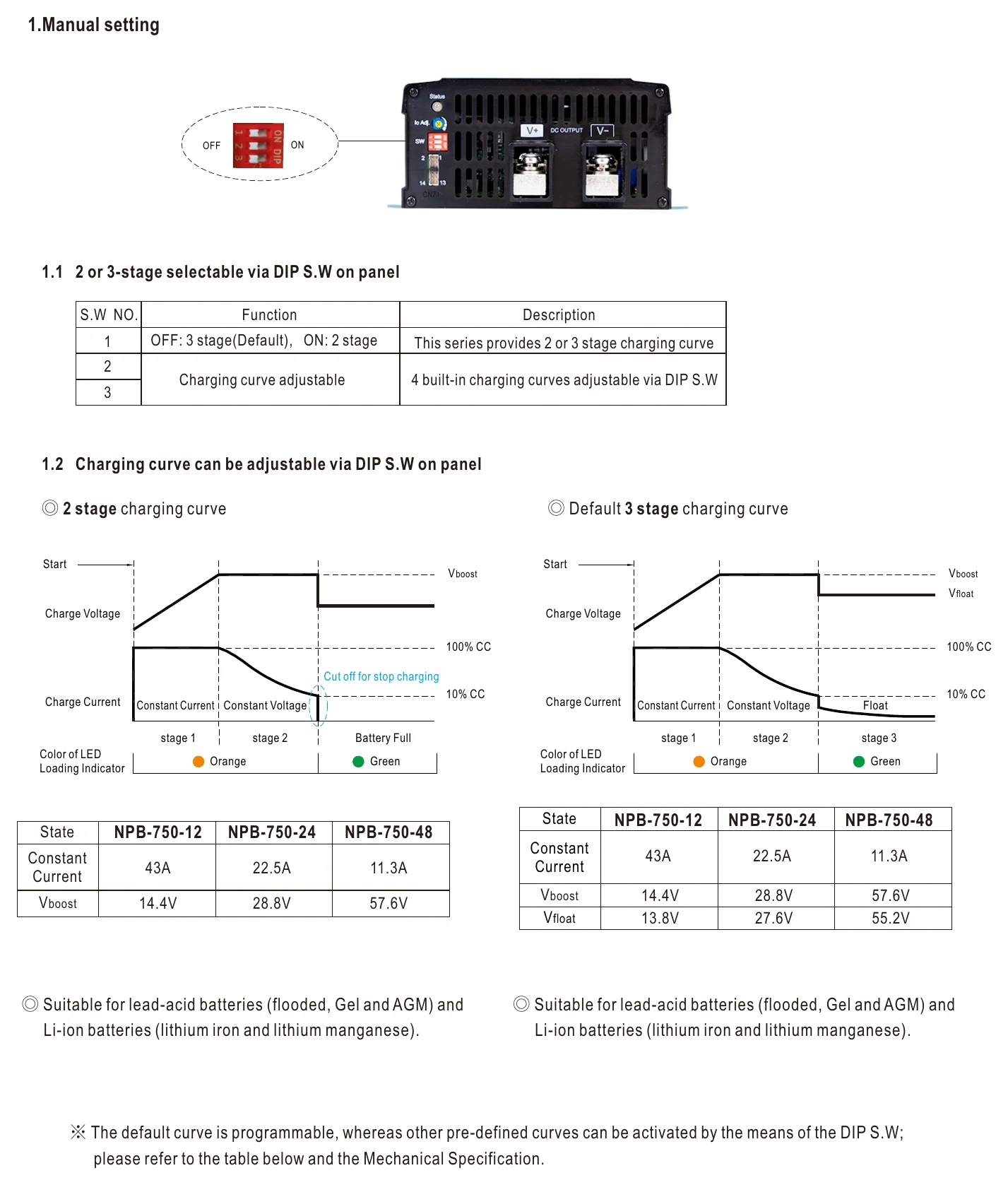

- 2 or 3 stage selectable through DIP S.W on panel
- CHARGING PARAMETERS ADJUSTABLE

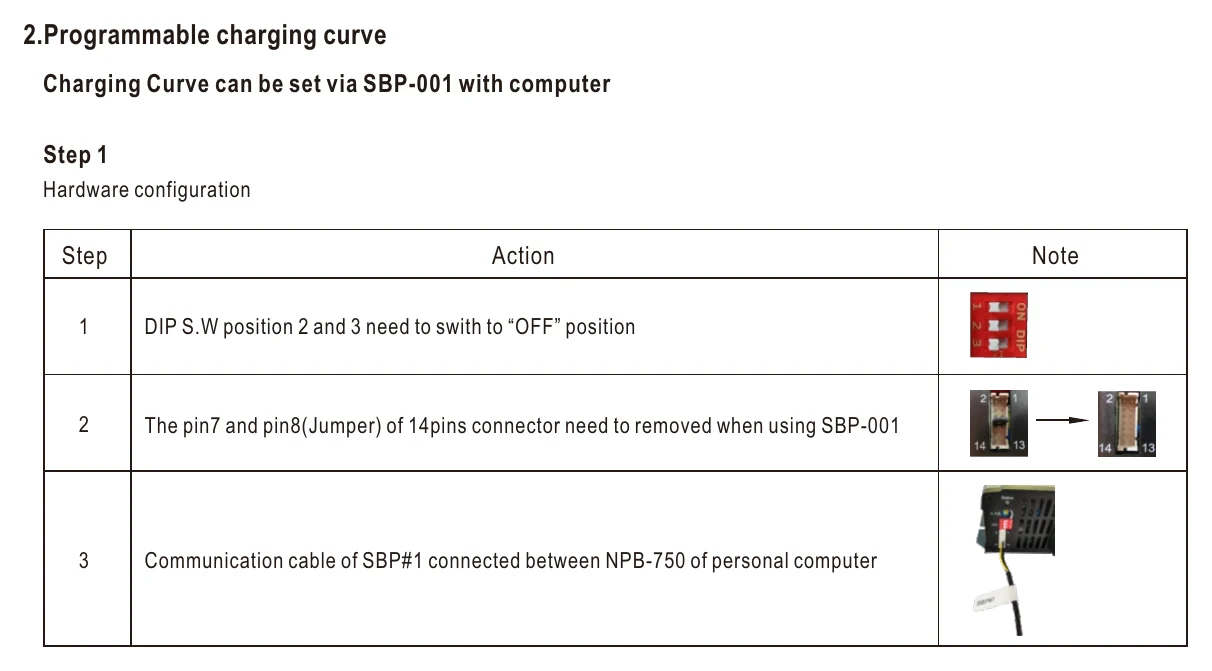

- Programmable: Constant current(CC),Tapper current(TC), Constant voltage(CV) and Float voltage(FV) can be set through SBP-001 with computer; Manual setting: 4 built-in charging curves adjustable via DIP S.W on panel, Please refer to function manual for more detail

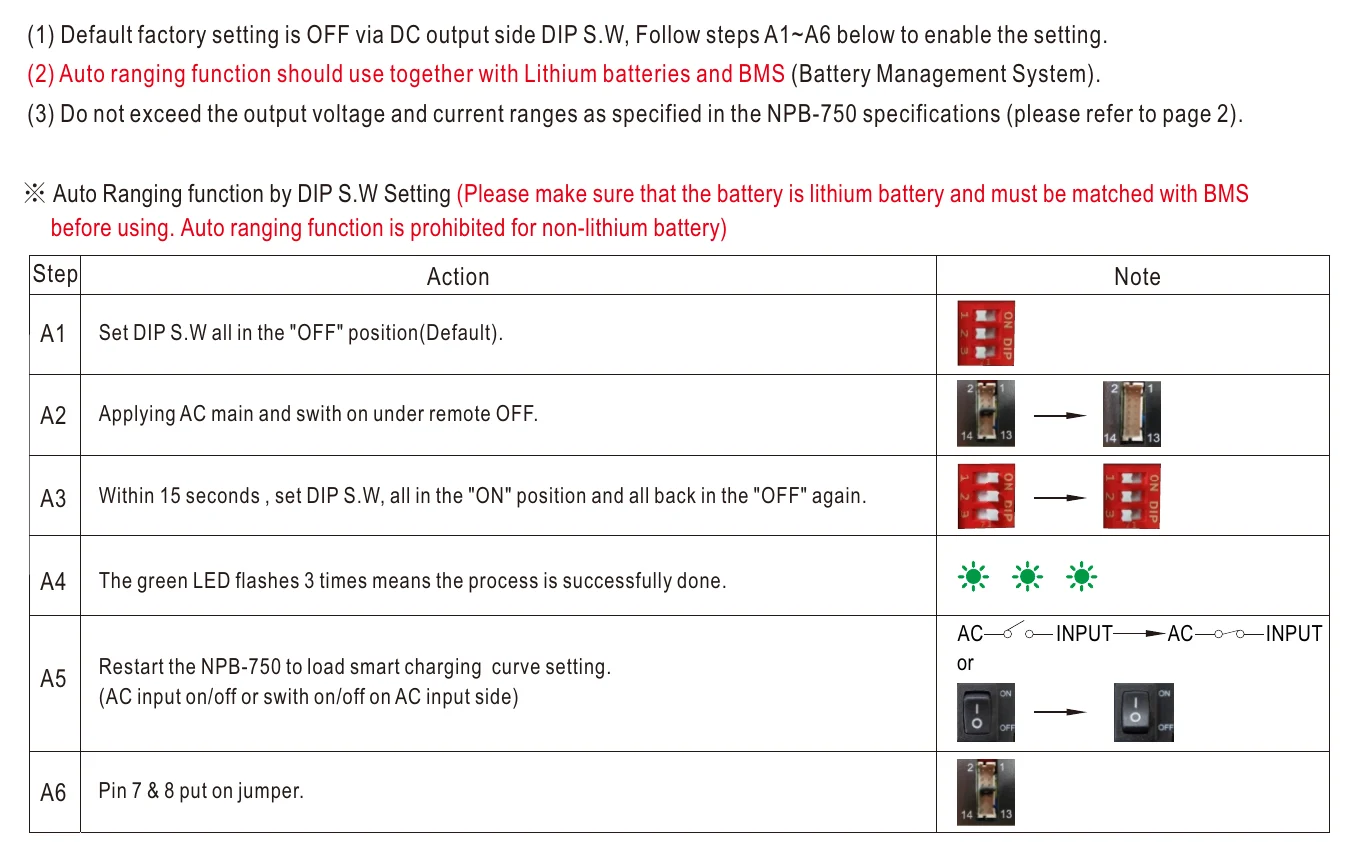

- AUTO RANGING FOR CHARGING (Typ.)
- Please refer to functin manual for more detail (page 8); Charging current adjustable 50~100% by via potentiometer on panel (Only for auto ranging mode)
- CANBUS INTERFACE

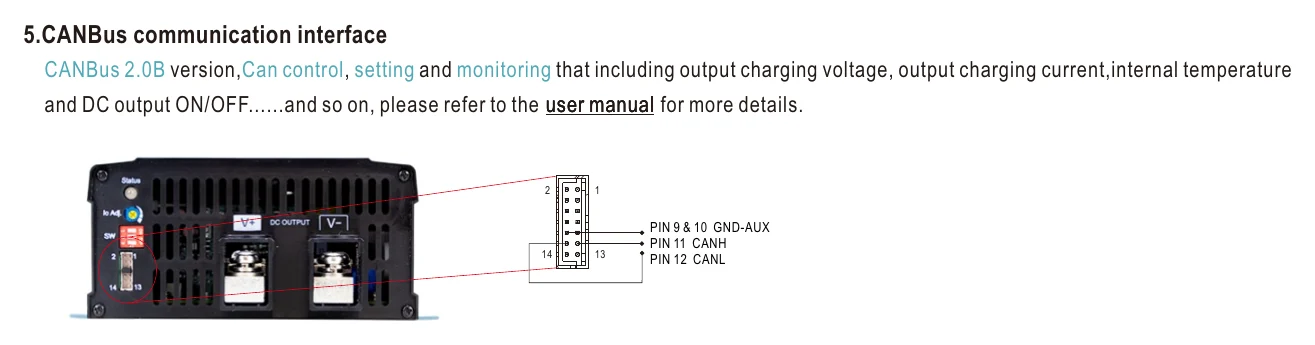

- CANBus 2.0B, Can control, Setting and monitoring(Vo,Io,charging curve, internal temp. and DC output ON/OFF)
- CHARGER OK

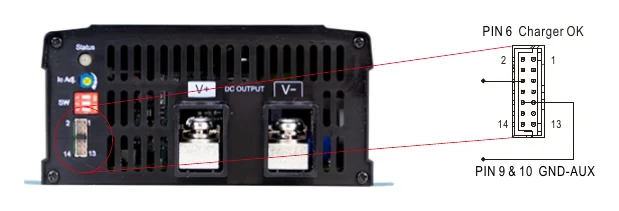

- The TTL signal out, Charger OK = H(4.5 ~ 5.5V) ; Charger failure or protection status =L( -0.5 ~ +0.5V)
- BATTERY FULL SIGNAL
- The TTL signal out, Battery full = H(4.5 ~ 5.5V ); Charging = L(-0.5 ~ +0.5V)
- REMOTE CONTROL
- Short : Charger normal work Open : Charger stop charging
- TEMPERATURE COMPENSATION
- By external NTC
- FAN SPEED CONTROL
- Depends on internal temperature
ENVIRONMENT
- WORKING TEMP.

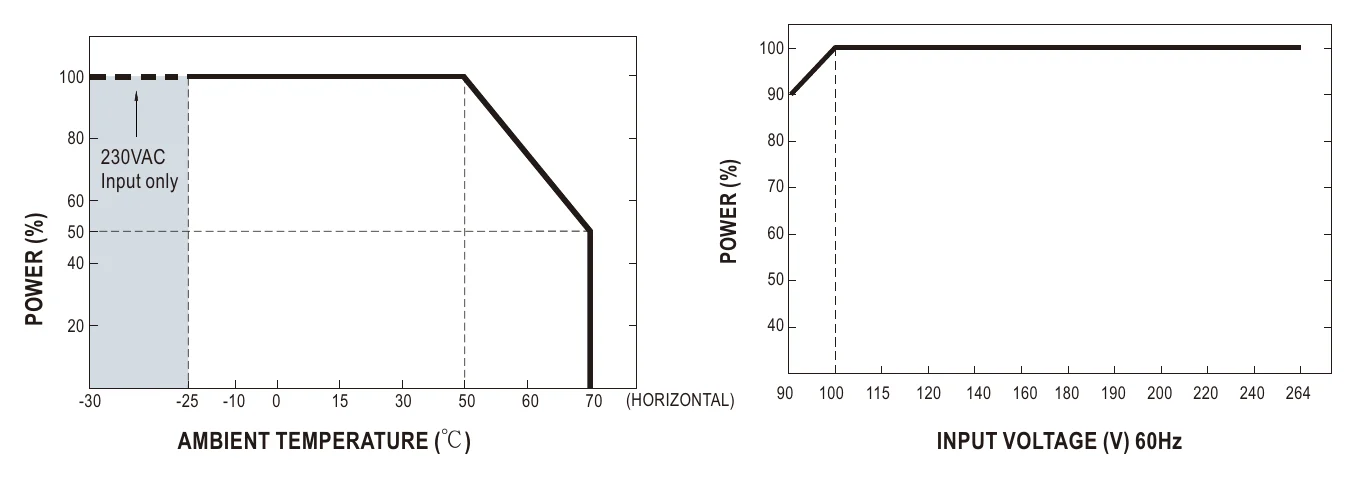

- -30 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH non-condensing
- TEMP. COEFFICIENT
- ±0.05%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC (Note 10)
- SAFETY STANDARDS
- CB IEC62368-1,IEC60335-1/2-29, Dekra BS EN/EN62368-1,BS EN/EN60335-1/2-29, UL62368-1, J62368-1, EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Conducted: BS EN/EN55032 (CISPR32),BS EN/EN55014-1 Class B; Radiated: BS EN/EN55032 (CISPR32),BS EN/EN55014-1 Class B; Harmonic Current: BS EN/EN61000-3-2 Class A; Voltage Flicker: BS EN/EN61000-3-3 -----; J55032(H29)
- EMC IMMUNITY
- ESD: BS EN/EN61000-4-2 Level 3, 8KV air ; Level 2, 4KV contact; Radiated: BS EN/EN61000-4-3 Level 2, 3V/m; EFT / Burst: BS EN/EN61000-4-4 Level 2, 1KV; Surge: BS EN/EN61000-4-5 Level 2, 1KV/Line-Line,Level 3, 2KV/Line-Earth; Conducted: BS EN/EN61000-4-6 Level 2, 3Vrms; Magnetic Field: BS EN/EN61000-4-8 Level 1, 1A/m; Voltage Dips and Interruptions: BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods
OTHERS
- MTBF
- 682.9K hrs min. Telcordia SR-332 (Bellcore) ; 67.7K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 230*158*67mm (L*W*H)
- PACKING
- 1.84Kg; 4pcs/ 9Kg / 1.63CUFT
NOTE
- NOTE
- 1. Modification for charger specification may be required for different battery specification. Please contact battery vendor and MEAN WELL for details. 2. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 3. This is the range when programming Vboost or Vfloat by using SBP-001, the smart battery charging programmer. 4. Refer to derating curve. 5. This is MEAN WELL's suggested range. Please consult your battery manufacturer for their suggestions about maximum charging current limitation. 6. Derating may be needed under low input voltages. Please check the derating curve for more details. 7. The efficiency is measured at 16.8V charge voltage(12V model), 33.6V charge voltage(24V model), 67.2V charge voltage(48V model). 8. This protection mechanism is specified for the case the short circuit occurs after the charger is turned on. 9. Each model incorporates a MCU-controlled dynamic over voltage protection, which is about 125% of Vboost over Constant Current stage and Constant Voltage stage whereas 125% of Vfloat over Float stage. 10. The charger is considered a component which will be installed into a final equipment. All the radiation tests require an additional 13*26*30 NIZN magnetic clasp or magnetic ring to the output line for CLASS B and without NIZN magnetic clasp or magnetic ring for CLASS A. The final equipment must be re-confirmed that it still meets EMC directives. 11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Technical drawings
Typical applications
- AGV
- E-Bike, E-Scooter, Camping car, Bus, Specialty vehicles
- Robotiic lawn mower
- Washing robot
- Recreation craft, Personal yacht or workboat
- Surveillance system
- Telecommunication base station
- Radio system backup solution
- Equipments or instruments with back-up battery
Downloads
Datasheet1
Certificates7
Test reports1
FAQ
What type of batteries is the Mean Well NPB-750-48 suitable for?
The NPB-750-48 is suitable for lead-acid (flooded, Gel and AGM) and Li-ion batteries (lithium iron and lithium manganese). It is designed as an intelligent charger with 4 built-in charging curves and 2-stage or 3-stage charging selectable via the DIP switch on the unit.
What are the main electrical ratings of the NPB-750-48?
This model belongs to the 750W NPB-750 series and has a maximum power of 759.4 W. It has a default boost charge voltage of 57.6 V (55.2 V float) and a maximum charging current of 11.3 A.
Is the charging current fixed on the NPB-750-48?
Not entirely. The charging current can be adjusted from 50% to 100% via the panel potentiometer only in auto ranging mode (lithium batteries with BMS only). Charging voltage, charging current, and timeout can also be programmed through the SBP-001 accessory.
Can the NPB-750-48 be used in demanding industrial or commercial environments?

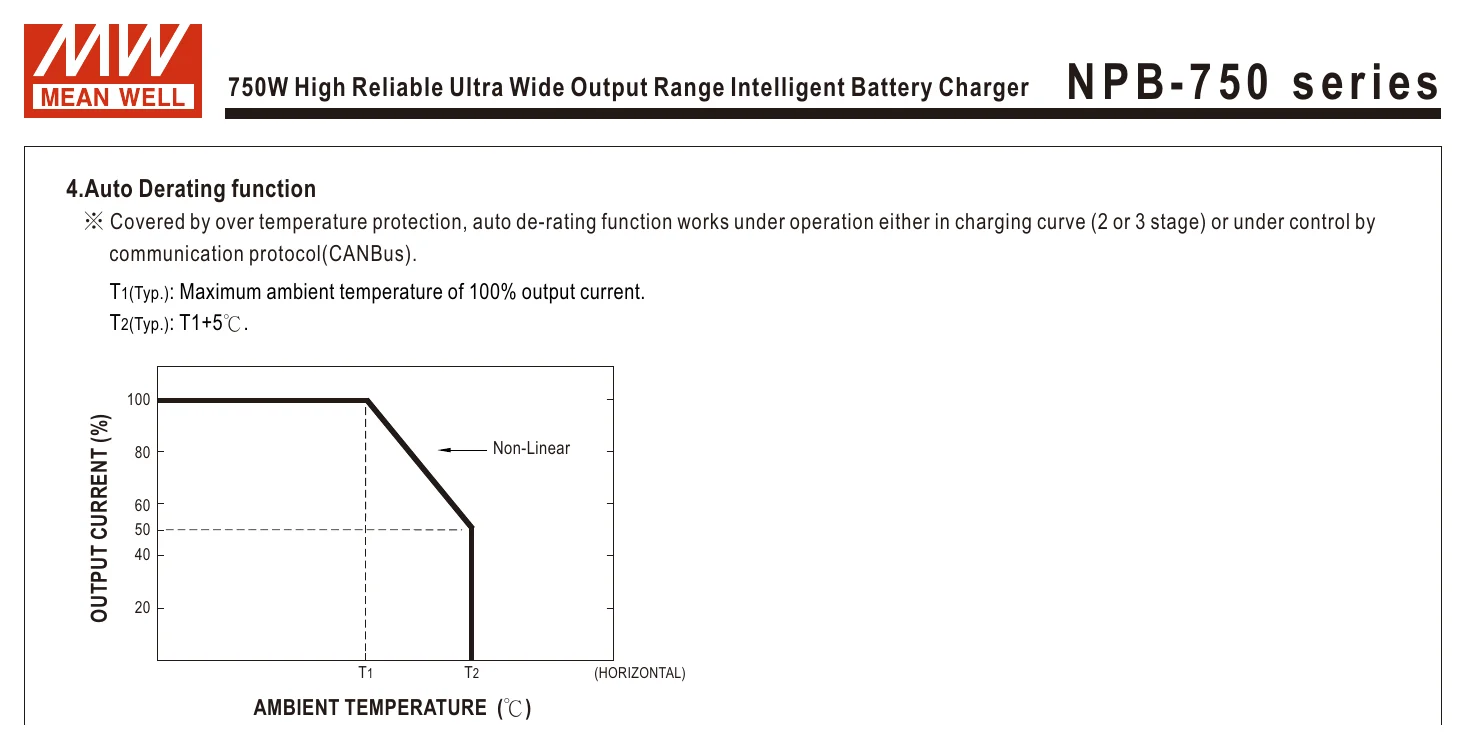

Yes, this charger is built for wide operating conditions with a temperature range of -30 C to +70 C (refer to the derating curve). It also includes fan speed control that depends on internal temperature and automatic derating under over-temperature conditions.
What makes the NPB-750-48 a good option for OEM or fleet charging applications?
The NPB-750-48 includes a built-in CANBus 2.0B interface, programmable charging parameters via SBP-001, and 4 built-in charging curves. Those features make it a strong fit for applications that need configurable charging performance across different battery types.
Does the NPB-750-48 offer any compliance or certification advantages?
Yes, the unit is approved to UL62368-1, IEC/EN62368-1, IEC/EN60335-1/2-29, J62368-1 and EAC TP TC 004. That can be important for businesses that need a charger from an established brand with recognized safety compliance.
