Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

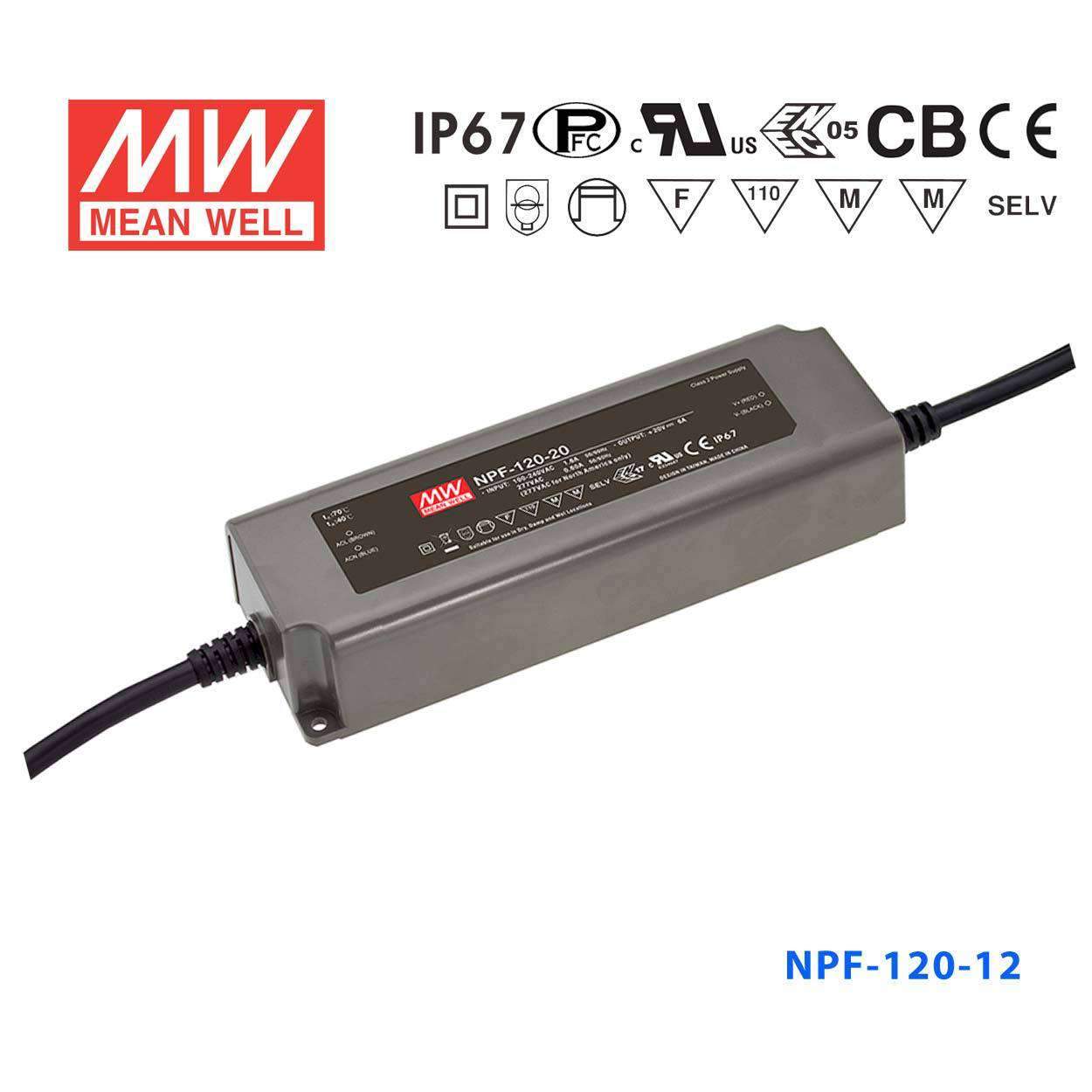

Mean Well NPF-120-12 Power Supply 120W 12V

Name: Mean Well NPF-120-12 Power Supply 120W 12V
Brand: Mean Well
SKU: NPF-120-12
Price: 56.43 USD
Availability: InStock

On Backorder

$56.43 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

AC input voltage range	90~305VAC ; 127~431VDC
AC inrush current (max.)	Cold start, 60A at 230VAC
Over current protection	95% ~108% Constant current limiting, recovers automatically after fault condition is removed
Over voltage protection	110%~140% Shut down o/p voltage, re-power on to recover
Withstand voltage	I/P - O/P: 3.75kVAC
Working temperature	-40~+80ºC (refer to output derating curve)
Safety standards	UL8750(type ”HL”), CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384 independent,IP67 approved; Design refer to EN60335-1
EMC standards	Compliance to EN55015, EN61000-3-2 Class C (@load≥60%) ; EN61000-3-3
Connection Input	UL rated, SJTW 18AWGx2C (30cm)
Connection Output	UL rated, 14AWGx2C (30cm)
Dimension (LxWxH)(mm)	191x 63x 37.5
