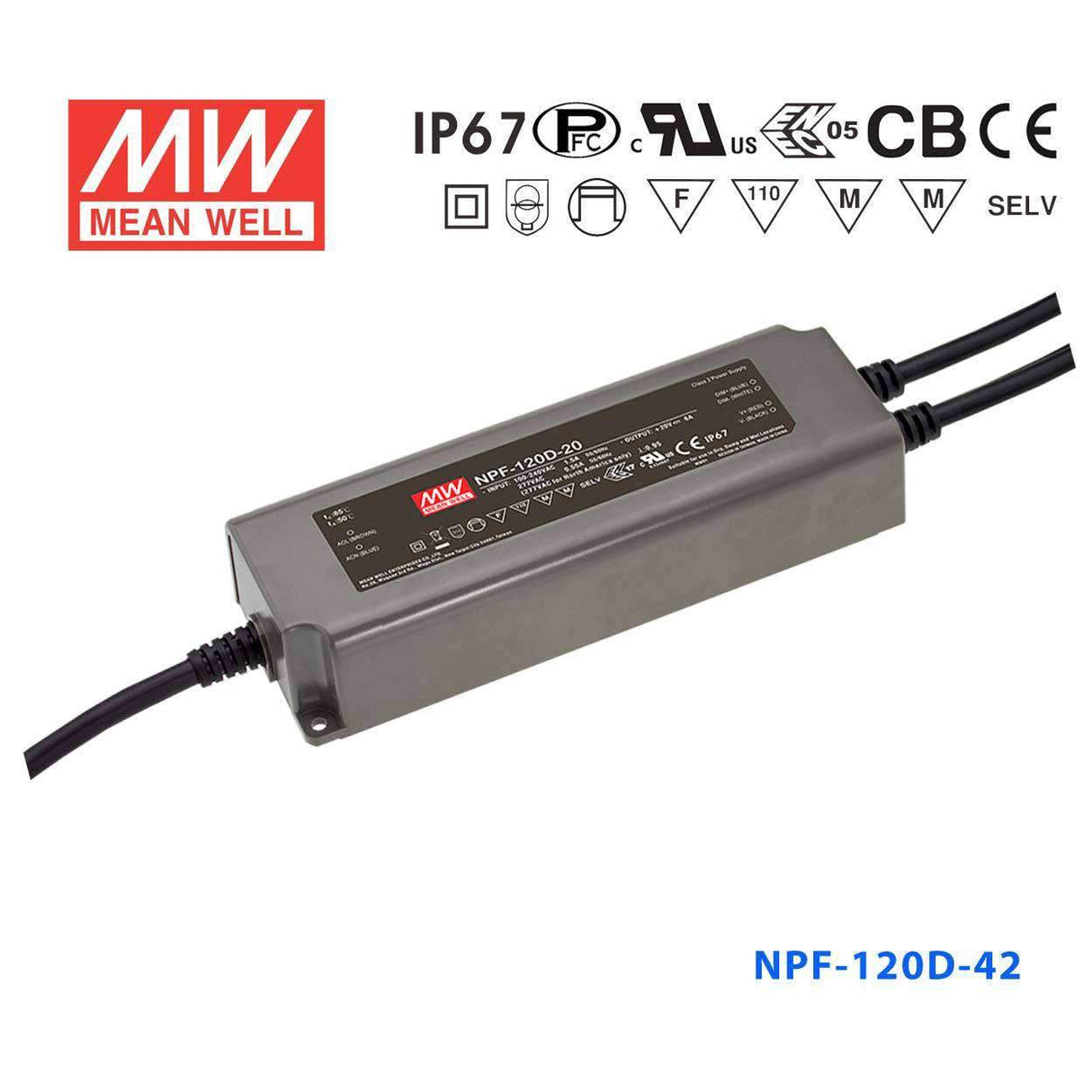

Mean Well NPF-120D-42 Power Supply 120W 42V - Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NPF-120D-42 Power Supply 120W 42V - Dimmable
The NPF-120D is a 120W Mean Well DIN rail power converter with a 191mm profile (input range: 90~305VAC, operating temperature: -40~+80℃).
Key Features
- ✓ 191mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+80℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750(type”HL”), CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384 independent, IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNPF Series
-
Power Rating121.8 Watt
-
Output Voltage42 Volt
-
Rated Current2.9 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length7.52 in
-
Width2.48 in
-
Height1.48 in
-
Weight2.14 lb
::specification::
Frequently Asked Questions
What dimming methods does the NPF-120D-42 support?
The NPF-120D-42 has built-in 3-in-1 dimming that accepts PWM signal, 1–10V analog voltage, and resistance (potentiometer) control. All three interfaces are built into the same driver, eliminating the need for external dimming adapters.
Is the NPF-120D-42 suitable for installation in exposed outdoor fixtures?
Yes. The NPF-120D-42 is IP67 rated for dust-tight and temporary immersion resistance, and its operating range spans -40°C to +90°C. These ratings make it appropriate for outdoor luminaires, roadway lighting enclosures, and industrial installations with high ambient temperatures or moisture exposure.
What types of 42V LED lighting systems use the NPF-120D-42?
The NPF-120D-42 delivers 42V DC at 2.9A (121.8W) in constant-current mode with a CC range of 25–42V. It suits dimmable 42V LED street lights, outdoor floodlights, and commercial high-bay fixtures where 1–10V or PWM dimming control from a central panel is required.
How does the NPF-120D-42 compare to the NPF-120D-36 and NPF-120D-48?
All three share IP67 protection, 3-in-1 dimming, and the 191.0 × 63.0 × 37.5 mm housing (0.97 kg). NPF-120D-36 is 36V/3.4A at 122.4W (CC 21–36V); NPF-120D-42 is 42V/2.9A at 121.8W (CC 25–42V); NPF-120D-48 is 48V/2.5A at 120W (CC 28–48V). Select the voltage that matches your LED module's rating.
