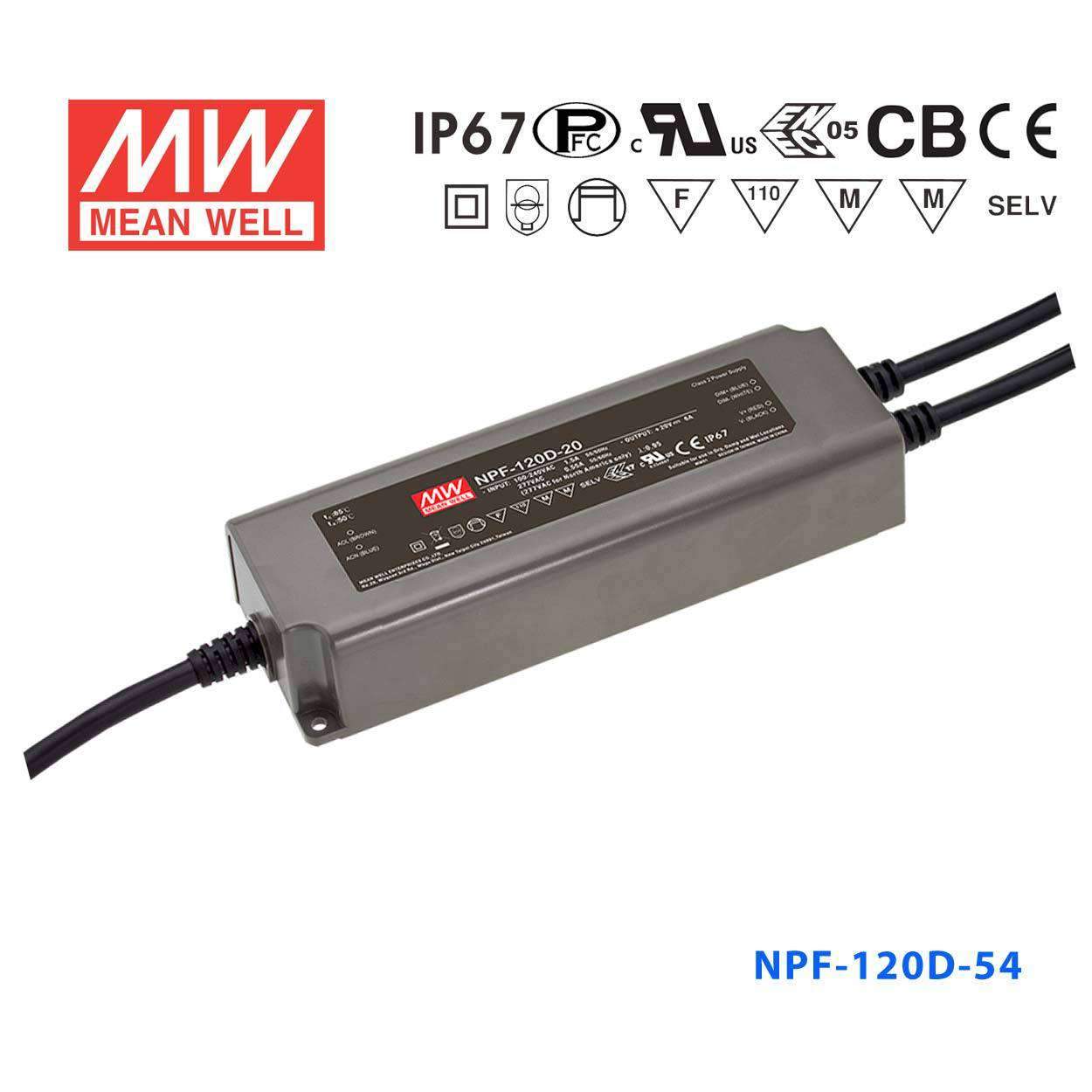

Mean Well NPF-120D-54 Power Supply 120W 54V - Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NPF-120D-54 Power Supply 120W 54V - Dimmable
The NPF-120D is a 120W Mean Well DIN rail power converter with a 191mm profile (input range: 90~305VAC, operating temperature: -40~+80℃).
Key Features
- ✓ 191mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+80℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750(type”HL”), CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384 independent, IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNPF Series
-
Power Rating124.2 Watt
-
Output Voltage54 Volt
-
Rated Current2.3 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length7.52 in
-
Width2.48 in
-
Height1.48 in
-
Weight2.14 lb
::specification::
Frequently Asked Questions
What dimming interfaces does the NPF-120D-54 support?
The NPF-120D-54 has built-in 3-in-1 dimming, accepting PWM signal, 1–10V analog, and resistance (potentiometer) control. All three are available on the same driver without any external interface module, making it compatible with most commercial and industrial lighting control systems.
Is the NPF-120D-54 rated for outdoor installation?
Yes. The NPF-120D-54 is IP67 rated and operates from -40°C to +90°C. These ratings support direct mounting inside outdoor street lights, facade fixtures, and industrial luminaires exposed to rain, humidity, or extreme temperatures.
What LED applications suit the NPF-120D-54's 54V dimmable output?
The NPF-120D-54 outputs 54V DC at 2.3A (124.2W) in constant-current mode with a CC range of 32–54V. It suits dimmable 54V LED modules in commercial street lighting, sports arena area lights, and large-format industrial high-bay fixtures where central brightness control is required.
How does the NPF-120D-54 compare to the non-dimmable NPF-120-54?
Both output 54V at 2.3A (124.2W) with IP67 protection, identical 191.0 × 63.0 × 37.5 mm housing, and 0.97 kg weight. The NPF-120D-54 adds 3-in-1 dimming (PWM, 1–10V, resistance) not present on the NPF-120-54. For fixed-output 54V applications, the NPF-120-54 is the straightforward option; use the NPF-120D-54 when dimming control is required.
