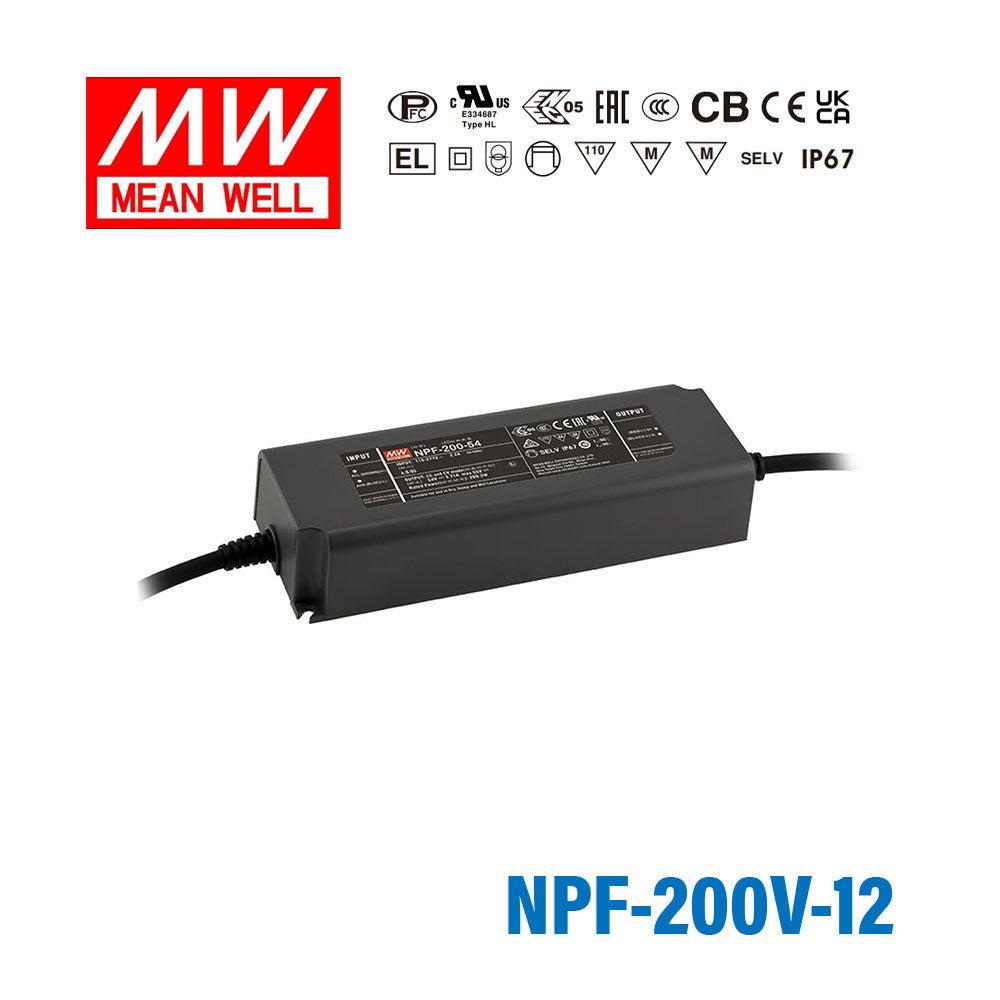

Mean Well NPF-200V-12 Power Supply 200W 12V 3 in 1 Dimmable 15A

Name: Mean Well NPF-200V-12 Power Supply 200W 12V 3 in 1 Dimmable 15A
Brand: Mean Well
SKU: NPF-200V-12
Price: 56.65 USD
Availability: InStock

Overview

NPF-200V-12 is the 12V output model of this series: rated current 15A, rated power 180W, typical efficiency 92%. Type V: 3 in 1 dimming function to adjust output voltage (C.V Dimming) (IP67).

NPF-200 series is a 200W AC/DC LED driver featuring the constant current or constant voltage mode output. NPF-200 operates from 100~305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 94% with the fanless design, the entire series is able to operate for -40℃~+85℃ case temperature under free air convection. The entire series is rated with IP67 ingress protection level and is suitable to work for a variety of applications at dry, damp or wet locations.

Features

Plastic housing with class II and PFC design
Constant Voltage + Constant current mode output
Standby power consumption <0.5W
IP67 rating for indoor or outdoor installations
Dimming function: 3 in 1 Dimming(C.V Dim. only) to adjust output voltage level
Flicker free Design
Typical lifetime >50000hours
5 years warranty

Specifications

NPF-200V-12Specifications from the official datasheet (2026-02-09 edition)

OUTPUT

DC Voltage: 12V
CONSTANT CURRENT AND OUTPUT VOLTAGE REGION: 6 ~ 12V
RATED CURRENT: 15A
RATED POWER: 180W
RIPPLE & NOISE (max.)^Note.9: 150mVp-p
VOLTAGE TOLERANCE^Note.10: ±4.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±2.0%
CURRENT TOLERANCE: ±5.0%
SET UP TIME^Note.3: 500ms/230VAC or 115VAC
RISE TIME: 200ms for V-type
HOLD UP TIME (Typ.): 10ms/230VAC or 115VAC

INPUT

VOLTAGE RANGE^Note.2: 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.97/115VAC, PF≧0.96/230VAC, PF≧0.94/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧60%/115VC, 230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY(Typ.): 92%
AC CURRENT (Typ.): 2.2A / 115VAC 1.1A / 230VAC 0.9A / 277VAC
INRUSH CURRENT(Typ.): COLD START 65A(twidth=550 μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. NO. of PSUs on 16A CIRCUIT BREAKER: 3 units (circuit breaker of type B) / 5 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.25mA / 277VAC
STANDBY POWER CONSUMPTION: <0.5W for V-type only (Output voltage dim to off)

PROTECTION

OVER CURRENT: 95 ~ 108% Hiccup mode or Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode or Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 13 ~ 18V Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 40℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12, According to BS EN/EN61347-2-13 appendix J suitable for emergency installations. ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent, EAC TP TC 004, GB/T19510.1,GB/T19510.213,IP67 approved; Design refer to BS EN/EN60335-1
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧60%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity Line-Line 2KV); EAC TP TC 020

OTHERS

MTBF: 2625.4K hrs min. Telcordia SR-332 (Bellcore) ; 247.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 195*68*39.5mm (L*W*H)
PACKING: 1.03Kg; 12pcs/ 13.4Kg/ 0.71CUFT

Certifications & ratings

Type: HL
Marked features: Function

MODEL ENCODING

Blank: Constant Voltage + Constant current mode output; IP67
V (this model): 3 in 1 dimming function to adjust output voltage (C.V Dimming); IP67

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
3. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
4. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
5. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
6. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
8. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
9. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
10. Tolerance : includes set up tolerance, line regulation and load regulation.
11. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.

Technical drawings

NPF-200V-12 BLOCK DIAGRAM — BLOCK DIAGRAM

NPF-200V-12 DIMMING OPERATION — DIMMING OPERATION

NPF-200V-12 OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

NPF-200V-12 STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

NPF-200V-12 TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

NPF-200V-12 MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

NPF-200V-12 Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED panel lighting
LED downlight
LED decorative lighting
Industrial lighting
Sign board and back light
LED strip lighting(C.V Dimming)
Agricultural lighting(C.V Dimming)
Poultry lighting (C.V Dimming)
Type “HL” for use in Class I, Division 2 hazardous (Classified) location

Downloads

Datasheet1

NPF-200V-12 datasheetNPF-200-SPEC.PDF · 2026-02-09 edition PDF Download

Certificates5

Mean Well NPF,PWM-200 CB Certificate PDF Download

Mean Well NPF-200 CE Certificate EN PDF Download

Mean Well NPF-200 EN ENEC Certificate PDF Download

Mean Well NPF-200 EN UK Certificate PDF Download

Mean Well NPF-200 EN CCC Certificate PDF Download

Test reports1

Mean Well NPF-200-12 Certificate and Test Report PDF Download

FAQ

What makes the NPF-200V-12 different from the NPF-200-12?

Both deliver 12V DC at 15A (180W) with IP67 protection, the same 195.0 × 68.0 × 39.5 mm housing, and 1.03 kg weight. The NPF-200V-12 adds 3-in-1 dimming capability (0–10VDC, 10V PWM, and resistance control) not present on the NPF-200-12. If the installation requires remote brightness control, select the NPF-200V-12; for fixed-output use, the NPF-200-12 is sufficient.

What dimming methods does the NPF-200V-12 support?

The NPF-200V-12 supports 3-in-1 dimming of the output voltage: 0–10VDC signal, 10V PWM signal (100Hz–3KHz), and resistance (potentiometer). These three methods are applied between the DIM+ and DIM- wires, allowing control from a 0–10VDC source, a 10V PWM controller, or a simple rotary potentiometer.

Is the NPF-200V-12 suitable for outdoor or wet-location use?

Yes. The NPF-200V-12 is IP67 rated and works at a case temperature (Tcase) of -40°C to +85°C. It can be installed inside outdoor luminaires and wet industrial enclosures.

What LED applications benefit from the NPF-200V-12's dimmable 12V 180W output?

The NPF-200V-12 provides 12V DC at 15A (180W) with 3-in-1 dimming. It suits large dimmable 12V LED strip installations in commercial hospitality, retail, or architectural projects requiring centralized scene control, as well as 12V industrial lighting systems where PLC 0–10V analog outputs adjust brightness. The 100–305VAC input supports international mains.
