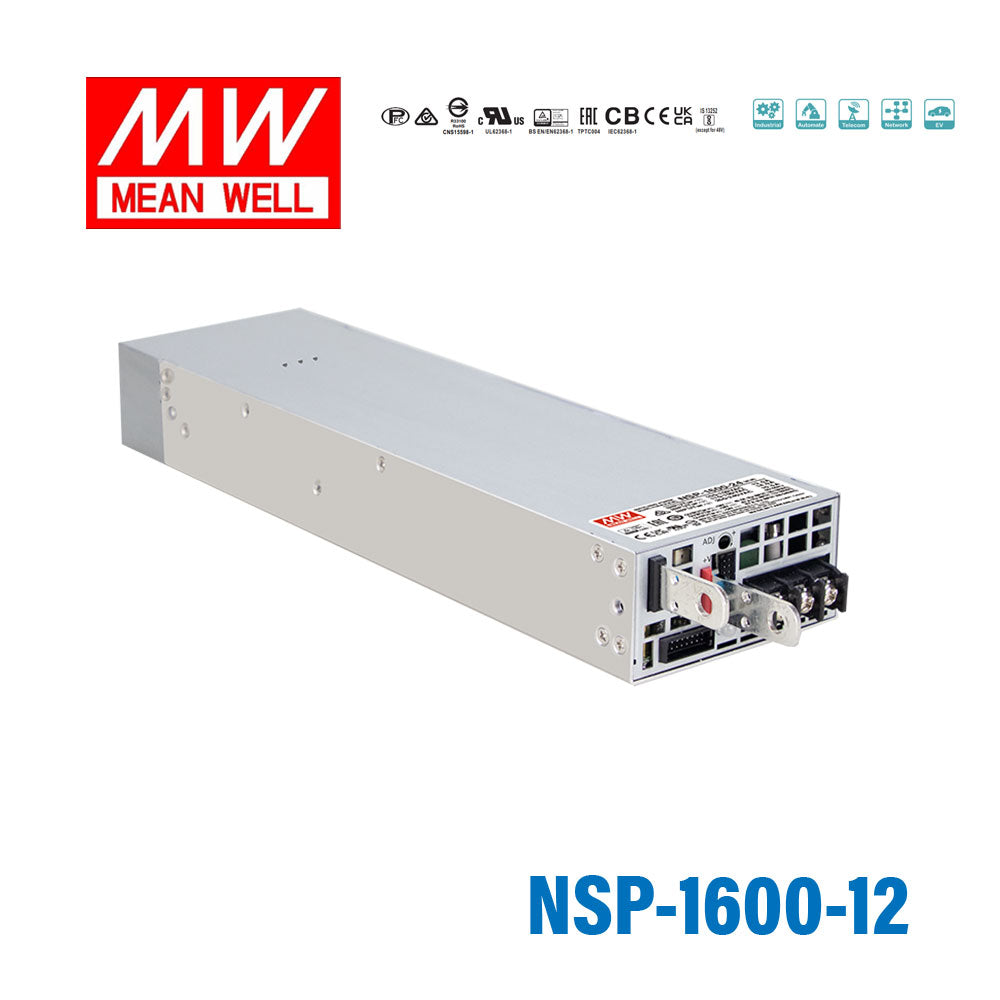

Mean Well NSP-1600-12 1500W 12V Compact Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NSP-1600-12 1500W 12V Compact Power Supply
NSP-1600 Series Features:
NSP-1600 is a 1.6KW single output enclosed type AC/DC power supply with a 1U low profile and a high power density up to 20W/inch.
Features:
-
BrandMean Well
-
SeriesNSP Series
-
Power Rating1500 Watt
-
Output Voltage12 Volt
-
Rated Current12 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty5 Year
-
Length11.81 in
-
Width3.35 in
-
Height1.61 in
-
Weight3.97 lb
::specification::
Frequently Asked Questions
What types of industrial applications is the Mean Well NSP-1600-12 commonly used for?
The NSP-1600-12 is designed for high-power industrial systems that need a regulated 12V DC output from an enclosed AC/DC supply. Its 1500W power rating, 1U low-profile form factor, active PFC, and built-in remote control and status features make it a strong fit for industrial cabinets and OEM equipment where power density and reliability matter.
What are the key electrical specifications of the NSP-1600-12?
This model is a single-output enclosed AC/DC power supply rated at 1500W with a 12V DC output. Mean Well lists universal AC input, built-in active PFC, and efficiency up to 92% for the NSP-1600 series. It is part of the compact 1U low-profile NSP-1600 family.
Is the Mean Well NSP-1600-12 suitable for demanding industrial environments?
It is built for industrial use with an operating temperature range of -20°C to 70°C and forced-air cooling from an internal DC fan. The design also refers to SEMI F47, which is relevant for voltage sag tolerance in industrial environments. Buyers looking for a high-reliability enclosed supply often consider these features important for factory and automation settings.
Does the NSP-1600-12 support system monitoring and external control functions?
Yes. This model includes output voltage programmability along with remote ON-OFF control, remote sense, auxiliary power, and a DC OK signal. Those features make it easier to integrate the power supply into monitored industrial systems that need status feedback and controlled operation.
What protection features and warranty does the NSP-1600-12 include?
The NSP-1600-12 includes protection for short circuit, overload, over voltage, and over temperature. Mean Well also specifies a 5-year warranty for the NSP-1600 series. For buyers evaluating lifecycle risk, that combination supports long-term industrial use.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other NSP-1600 Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well NSP-1600-48 1608W 48V Compact Power Supply | 1608W | 48V | 33.5A | Indoor | $378.76 | View |
| Mean Well NSP-1600-36 1602W 36V Compact Power Supply | 1602W | 36V | 44.5A | Indoor | $378.76 | View |
| Mean Well NSP-1600-24 1608W 24V Compact Power Supply | 1608W | 24V | 67A | Indoor | $378.76 | View |
