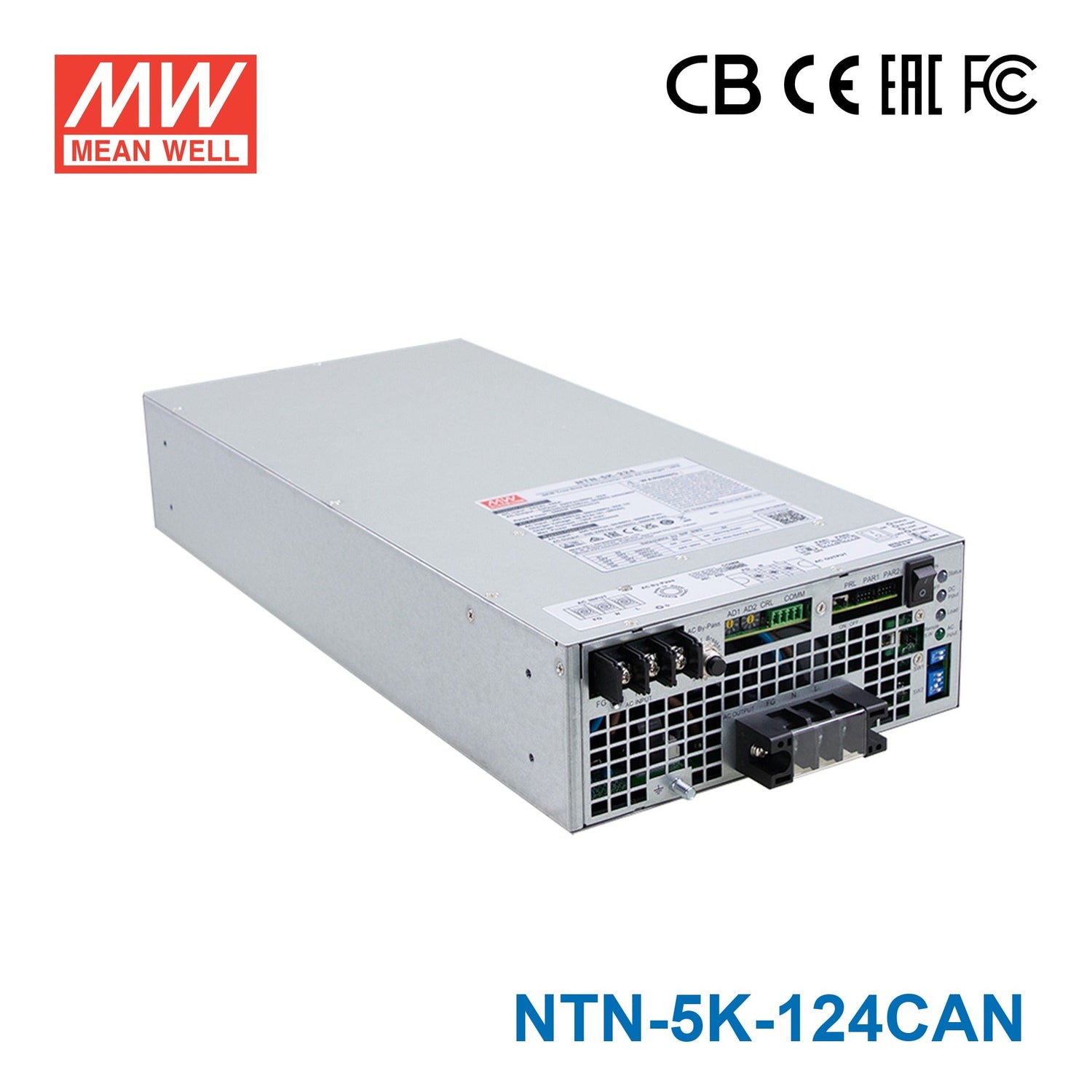

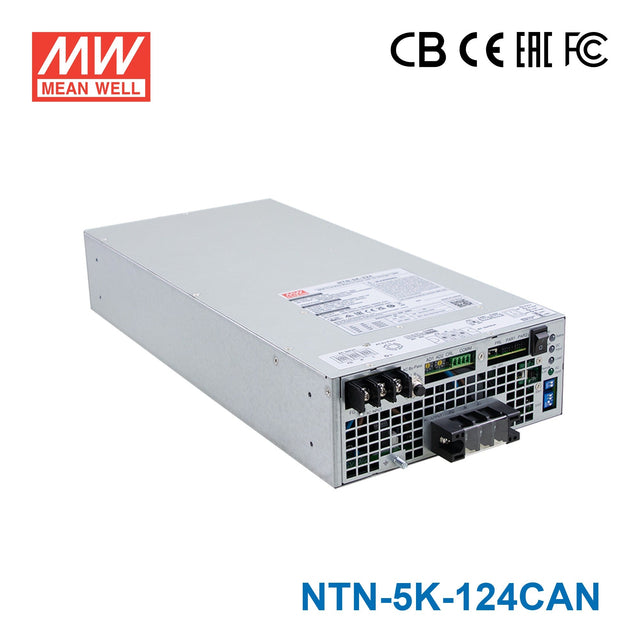

Mean Well NTN-5K-124CAN 5KW True Sine Wave Inverter with AC Charger/UPS, 24V In 110V Out
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NTN-5K-124CAN 5KW True Sine Wave Inverter with AC Charge...
Description
Description
Key Features
- ✓Multi-functional All-in-One device (AC-DC Charger + DC-AC Inverter for Load + AC Bypass for Load)
- ✓Built-in AC-DC high power charger up to 4520W
- ✓DC-AC pure sine wave output (THD<3%)
- ✓Instantaneous peak power of up to 10KW for AC output
- ✓Up to 6 units of AC output can be paralleled, expanding wattage up to 30KW (5+1 units)
- ✓Utilizes 3 NTN-5K unidirectional AC outputs, configurable for 3Ø4W usage
- ✓-30～+70℃ ultra-wide temperature range, suitable for global deployment or installation in enclosed environments
- ✓Built-in remote ON/OFF control
- ✓Protections:DC input: Reverse Polarity, Low Voltage Warning and Shutdown, Over Voltage, Battery Over DischargeAC output: Short Circuit, Overload, Over Temperature
- ✓DC input: Reverse Polarity, Low Voltage Warning and Shutdown, Over Voltage, Battery Over Discharge
- ✓AC output: Short Circuit, Overload, Over Temperature
- ✓Built-in Modbus or CAN bus communication monitoring
- ✓Optional intelligent controllers available for purchase:CMU2E (Stand-Alone Vertical Mounting / Rail Mounting) or CMU2E-R (Rack System Installation)
- ✓CMU2E (Stand-Alone Vertical Mounting / Rail Mounting) or CMU2E-R (Rack System Installation)
- ✓Dimensions (length x width x height): 460 x 211 x 83.5mm
- ✓PCB coating for basic moisture/dust / dirt protection
- ✓Certifications: CB / TUV / RCM / EAC / CE / UKCA / FCC
- ✓Compatible with lead acid or lithium batteries
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
Input Voltage19V~33V
-
Standards MetCB,CE,EAC,EN,FC
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-30°C~70°C
-
Length18.11 in
-
Width8.31 in
-
Height3.29 in
-
Weight23.15 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What kind of product is the Mean Well NTN-5K-124CAN?
The NTN-5K-124CAN is a multi-function power unit that combines an AC-DC charger, a DC-AC true sine wave inverter, and AC bypass for the load in one model. It is designed for 24V DC input systems and provides 110V AC output. This makes it suitable for backup power and power conversion applications where charger and inverter functions are both needed.
Is the NTN-5K-124CAN a pure sine wave inverter?
Yes. This model provides pure sine wave AC output with total harmonic distortion below 3%. That is useful for loads that need cleaner AC power than modified sine wave designs typically provide.
Can the NTN-5K-124CAN be used in UPS or backup power applications?
Yes, this model is built for that type of use because it combines an inverter, a high-power AC charger, and AC bypass for the load. Its built-in charger is rated up to 4520W, and the unit also supports remote ON/OFF control. Those features make it a practical choice for battery-backed power systems that need continuous AC output support.
What battery types are compatible with the NTN-5K-124CAN?
Mean Well specifies this model as compatible with both lead acid and lithium batteries. The DC input range for the 24V version is 19 to 33Vdc. Buyers should match the battery system voltage to the 24V input version of this inverter/charger.
Can multiple NTN-5K-124CAN units be used together for higher capacity?
Yes. Mean Well states that up to 6 units of AC output can be paralleled, allowing system expansion up to 30KW. The product information also notes that 3 NTN-5K unidirectional AC outputs can be configured for 3-phase 4-wire usage.
What protections are built into the NTN-5K-124CAN?
This model includes multiple built-in protections on both the DC input and AC output sides. DC-side protections include reverse polarity, low voltage warning and shutdown, over voltage, and battery over discharge, while AC-side protections include short circuit, overload, and over temperature. These protection functions are part of the standard design for this model.
Is the NTN-5K-124CAN suitable for demanding temperature environments?
Yes. This model is rated for operation from -30C to +70C, which is a wider temperature range than many standard indoor power units. It also includes PCB coating for basic moisture, dust, and dirt protection, making it a better fit for tougher enclosed installations.
Does the NTN-5K-124CAN support remote monitoring or system communication?
Yes. The NTN-5K-124CAN supports Modbus-RTU over RS-485 and CAN bus communication. It also has built-in remote ON/OFF control, which can be useful in monitored or centrally managed power systems.
