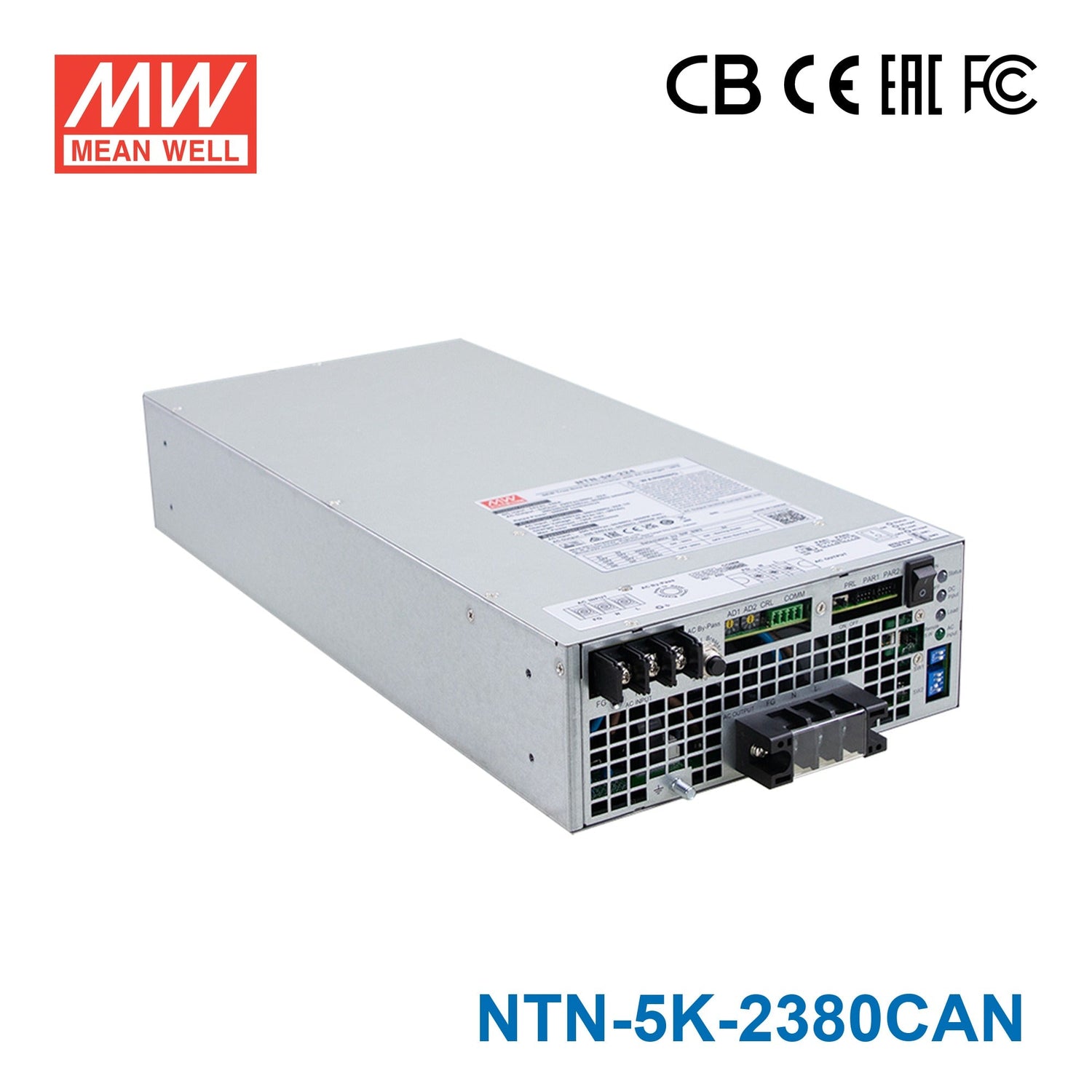

Mean Well NTN-5K-2380CAN 5KW True Sine Wave Inverter with AC Charger/UPS, 380V DC In 230V Out

Key Features

• ✓Multi-functional All-in-One device (AC-DC Charger + DC-AC Inverter for Load + AC Bypass for Load)
• ✓Built-in AC-DC high power charger up to 4520W
• ✓DC-AC pure sine wave output (THD<3%)
• ✓Instantaneous peak power of up to 10KW for AC output
• ✓Up to 6 units of AC output can be paralleled, expanding wattage up to 30KW (5+1 units)
• ✓Utilizes 3 NTN-5K unidirectional AC outputs, configurable for 3Ø4W usage
• ✓-30～+70℃ ultra-wide temperature range, suitable for global deployment or installation in enclosed environments
• ✓Built-in remote ON/OFF control
• ✓Protections:DC input: Reverse Polarity, Low Voltage Warning and Shutdown, Over Voltage, Battery Over DischargeAC output: Short Circuit, Overload, Over Temperature
• ✓DC input: Reverse Polarity, Low Voltage Warning and Shutdown, Over Voltage, Battery Over Discharge
• ✓AC output: Short Circuit, Overload, Over Temperature
• ✓Built-in Modbus or CAN bus communication monitoring
• ✓Optional intelligent controllers available for purchase:CMU2E (Stand-Alone Vertical Mounting / Rail Mounting) or CMU2E-R (Rack System Installation)
• ✓CMU2E (Stand-Alone Vertical Mounting / Rail Mounting) or CMU2E-R (Rack System Installation)
• ✓Dimensions (length x width x height): 460 x 211 x 83.5mm
• ✓PCB coating for basic moisture / dust / dirt protection
• ✓Certifications: CB / TUV / RCM / EAC / CE / UKCA / FCC
• ✓Compatible with lead acid or lithium batteries
• ✓5 years warranty
