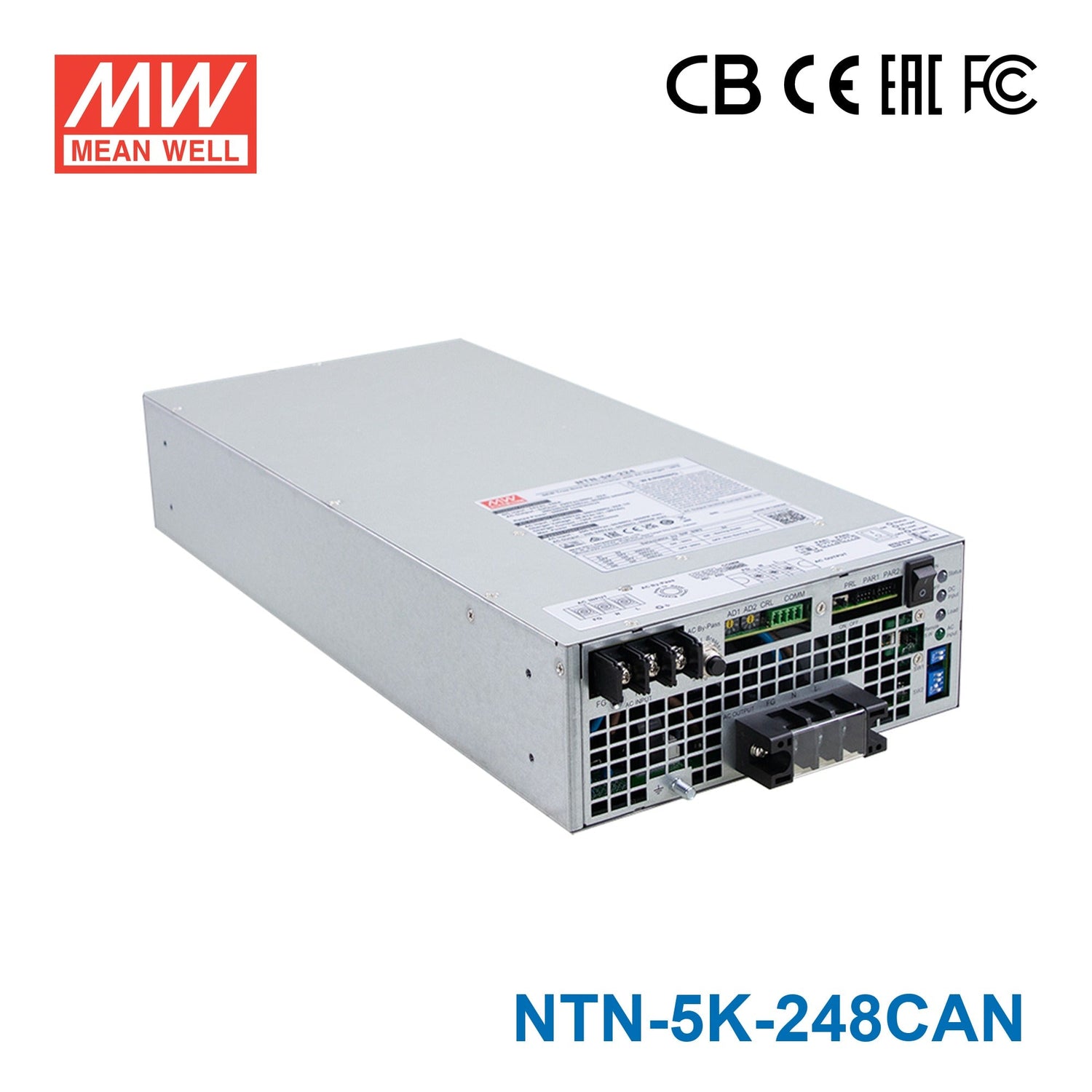

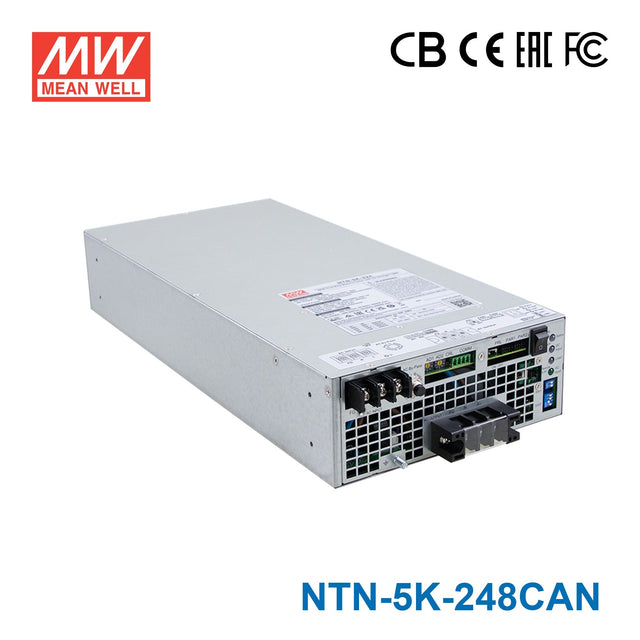

Mean Well NTN-5K-248CAN 5KW True Sine Wave Inverter with AC Charger/UPS, 48V In 230V Out
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NTN-5K-248CAN 5KW True Sine Wave Inverter with AC Charger...
Description
Description
Features:
- Multi-functional All-in-One device (AC-DC Charger + DC-AC Inverter for Load + AC Bypass for Load)
- Built-in AC-DC high power charger up to 4520W
- DC-AC pure sine wave output (THD<3%)
- Instantaneous peak power of up to 10KW for AC output
- Up to 6 units of AC output can be paralleled, expanding wattage up to 30KW (5+1 units)
- Utilizes 3 NTN-5K unidirectional AC outputs, configurable for 3Ø4W usage
- -30～+70℃ ultra-wide temperature range, suitable for global deployment or installation in enclosed environments
- Built-in remote ON/OFF control
- Protections:
- DC input: Reverse Polarity, Low Voltage Warning and Shutdown, Over Voltage, Battery Over Discharge
- AC output: Short Circuit, Overload, Over Temperature
- Built-in Modbus or CAN bus communication monitoring
- Optional intelligent controllers available for purchase:
- CMU2E (Stand-Alone Vertical Mounting / Rail Mounting) or CMU2E-R (Rack System Installation)
- Dimensions (length x width x height): 460 x 211 x 83.5mm
- PCB coating for basic moisture / dust / dirt protection
- Certifications: CB / TUV / RCM / EAC / CE / UKCA / FCC
- Compatible with lead acid or lithium batteries
- 5 years warranty
General Specification
DC input voltage range
(19 - 33Vdc) (38 - 66Vdc) (280 - 430Vdc)
AC output frequency
Default setting set at 50±0.1Hz
50/60Hz selectable by DIP S.W
LOW & HIGH
ALARM, SHUTDOWN, RESTART
Reverse Polarity
No damage, re-power on to recover after fault condition is removed
Over Temperature
Shut down o/p voltage, recovers automatically after temperature goes down
Output Short
Shut down the o/p voltage, and re-power it to recover
OVERLOAD (Typ.)
105 ~ 115% load for 180 sec., 115% ~ 140% load for 10 sec.
105 - 115% load for 180 sec., 115% - 150% load for 10 sec.
Protection type: Shut down o/p voltage, re-power on to recover
Remote Control
Power ON-OFF remote control by front panel dry contact connector(by RELAY), Open : Remote off ; Short: Normal work
Communication
MODBus-RTU (RS-485) / CANBus
Withstand voltage
(DC I/P - AC:3.0KVAC) (AC - FG:1.5KVAC)
Working temperature
-30 ~ +70℃(Refer to “Derating curve”)
Safety standards
CB IEC62368-1, CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, AS/NZS 62368.1, EAC TP TC 004 approved
Dimension (LxWxH)
460x211x83.5mm
Specifications
Specifications
-
BrandMean Well
-
Input Voltage38V~66V
-
Standards MetCB,CE,EAC,EN,FC
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-30°C~70°C
-
Length18.11 in
-
Width8.31 in
-
Height3.29 in
-
Weight23.15 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well NTN-5K-248CAN designed to do?
The NTN-5K-248CAN is a multi-function unit that combines an AC-DC charger, a DC-AC true sine wave inverter for the load, and an AC bypass function for the load. It is intended for high-power 48V battery-based systems that need reliable 230V AC output in one integrated platform.
What are the main output and power capabilities of this inverter?
This model is rated for 5KW continuous power and can deliver instantaneous peak power up to 10KW for AC output. It provides pure sine wave output with THD below 3%, which is important for demanding electrical loads.
Can the NTN-5K-248CAN be used in larger or expandable power systems?
Yes. Up to 6 units of AC output can be paralleled to expand total output capacity up to 30KW in a 5+1 configuration. The series also supports use of 3 NTN-5K unidirectional AC outputs configured for 3Ø4W applications.
Is this model compatible with different battery types?
Yes, the NTN-5K-248CAN is compatible with both lead acid and lithium batteries. That makes it suitable for a wider range of industrial, backup power, and energy storage applications using a 48V battery system.
Is the NTN-5K-248CAN suitable for harsh or enclosed environments?
This model is built for demanding environments with an operating temperature range of -30 to +70 degrees C. It also includes PCB coating for basic protection against moisture, dust, and dirt, which helps in enclosed or industrial installations.
What monitoring and control options are available on this inverter?
The NTN-5K-248CAN includes built-in Modbus-RTU via RS-485 and CAN bus communication for system monitoring and integration. It also supports built-in remote ON/OFF control, and optional intelligent controllers such as the CMU2E and CMU2E-R are available separately.
What protection features are included in the NTN-5K-248CAN?
This model includes DC input protections for reverse polarity, low voltage warning and shutdown, over voltage, and battery over discharge. On the AC output side, it includes short circuit, overload, and over temperature protection to help safeguard the unit during abnormal conditions.
What certifications and warranty come with this model?
The NTN-5K-248CAN carries certifications including CB, TUV, RCM, EAC, CE, UKCA, and FCC. It is backed by a 5-year warranty, which is a strong indicator of its intended long-term industrial and commercial use.
